water resistant flange ball bearing rotary union rotating brass swivel joints

Product Overview

Description





 What is the condition of our 2001 series rotary union?



medium	Cooling water/hot water
Max temperature	80℃
Max pressure	2.5MPA
Max speed	2000RPM
Size	1/2"-4"
options	Mono flow and dual flow configurations available
Connection	Flange or thread
Material	Brass  housing with 304 stainless steel rotor and spring





What is the each part material of our 2001 series rotary union?





Parts	Material
Housing	Brass
Rotor	Stainless steel 304
Spring	Stainless steel 304
Gasket	Graphite Asbestos
Seal Ring	Carbon/ Graphite
Bearing	Double NSK Bearing
Head	Brass











What is the advantages of our 2001 series rotary union?



1.The material of bearing is stainless steel304(Nickel) and the housing is brass,has good resistance of corrosion and good rust-proof.



2. The bearing  is imported from Japan,high speed rotation ,it's more reliable and stable rotation.



3. The use of NSK bearing, it can guarantee the rotary joint doesn't leak.



4. It's samll and convenient to repair,have long running life.



5.This type of rotary union are  designed  for coolant  and hot water  service. this  products  uses corrosion-resistant materials such as stainless steel and brass.



6. Available in both different size of thread and flange connection.



7. We provide one year guarantee. You can free to get some accessories if it is damaged within one year.



What is the structure of our 2001 series rotary union?

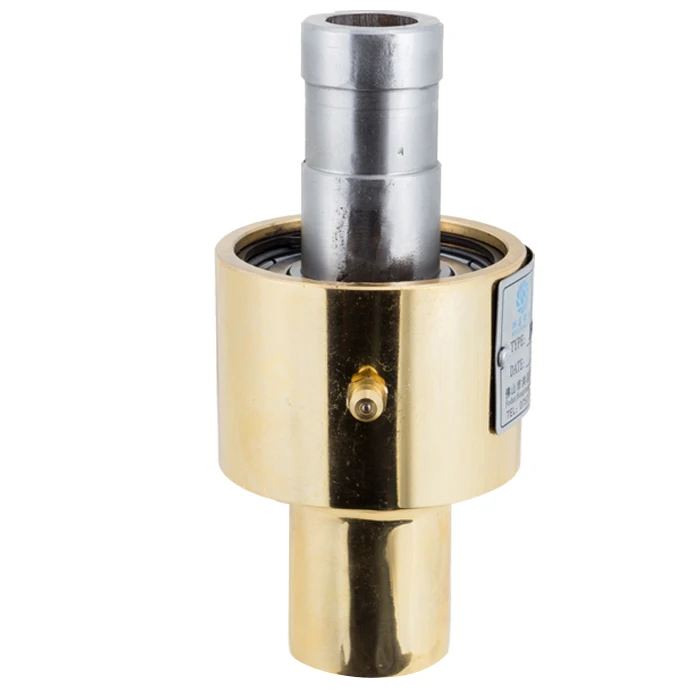

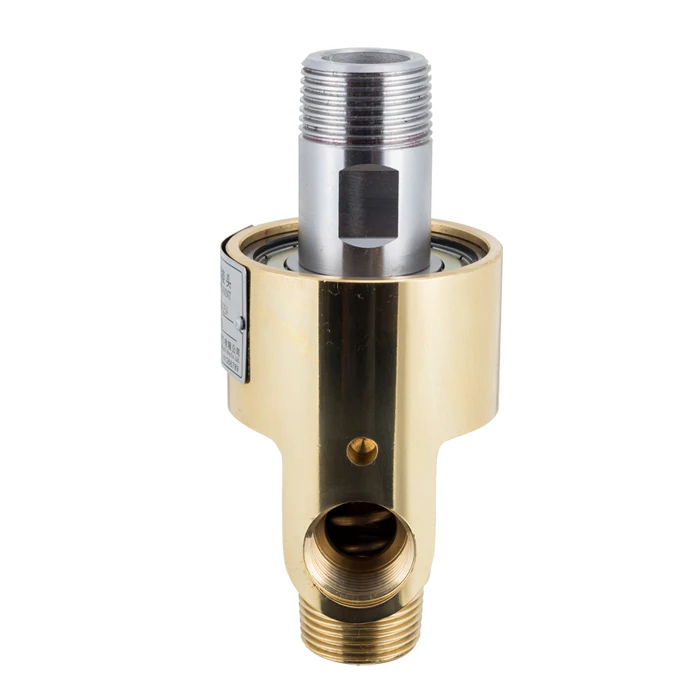

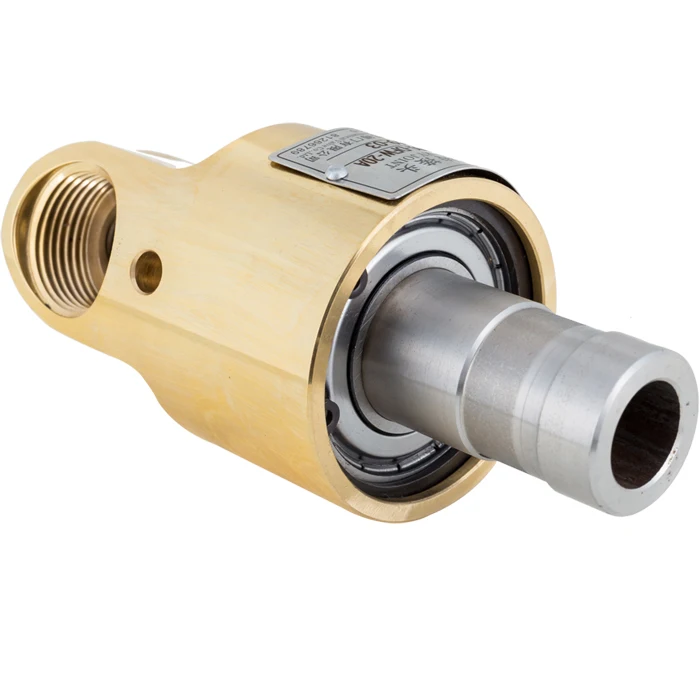

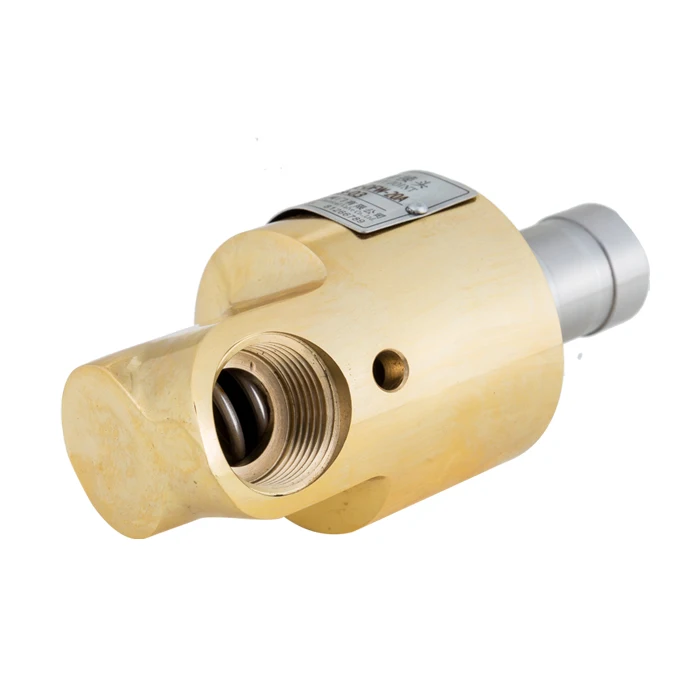

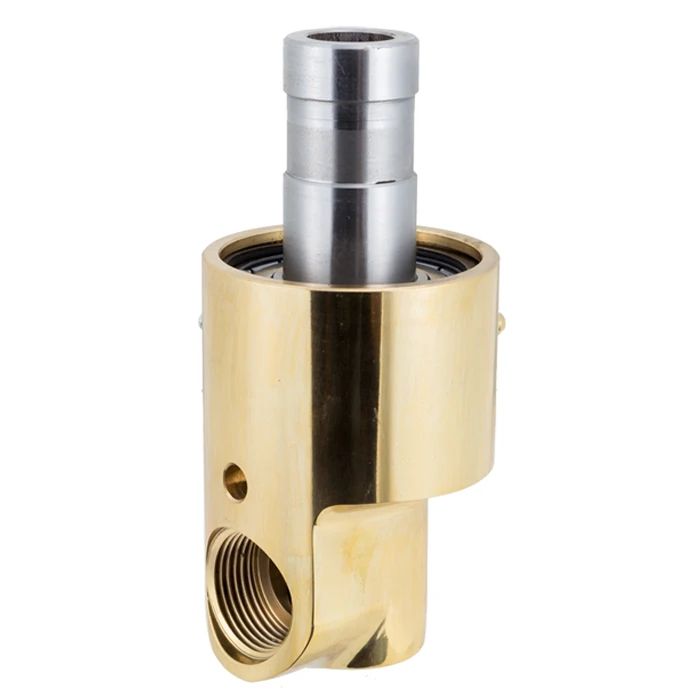

 Photos show for water resistant flange ball bearing rotary union rotating brass swivel joints  :











The application field of rotary joint cover almost every manufacturing industry:



metallurgy	machine tool	The power	Oil
Rubber plastics	Spinning	Printing	Pharmaceutical
Cigarette	Paper	Food	Feed processing















Do your want to have another kind of our rotary joint?
