PVC Wire Thin Insulated Copper Wire 600V Electric Wire Cable 1015 8AWG

Share on (60224444810):


Price:

Quantity:


Product Overview

Description


PVC Wire Thin Insulated Copper Wire 600V Electric Wire Cable UL1015 8AWG



   Thin Insulated Copper Wire 600V Electric Wire Cable UL1015

PVC Wire Thin Insulated Copper Wires 600v Electrical Wire Cable UL1015 8AWG

Application

Application

      PhotoCap_038.jpg     PhotoCap_037.jpg      2015-04-06_144424.jpg



1.) Household,indoor/outdoor,buliding wiring and associated devices to supply the power for lights fittings,switches,meters,plug point,air conditioners,refrigerators,water   pump,water heater,AC motor and etc.



2.) For decoration lights.


3.) Short span electricity transmission.


4.) For electrical appliance,electronic,instrument and telecom devices.



PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

Specification

Specification

- Model No. : AC10WE27

- Size : #8AWG  8.6mm²/168"  105°c  UL1028
- Tinned or bare stranded 28-9AWG copper or tinned copper
- PVC insulated
- Temperature: 105 ° C; Voltage: 600V
- Use the standard thickness, easy stripping and cutting easy
- with anti-acid. oil resistance. moisture. mildew and other characteristics






Model

 AC10WE20



Standard

UL1028  105°c #8AWG  8.6mm²/168"

3

Construction & Dimension

Item

Specification

Conductor

Size

8.6mm²

Material

Annealed Bare Copper

Insulation

Material

PVC

Min. Average Thickness

1.025mm

Min. Thickness at any point

1.300mm

Diameter

6.4±0.40

Identification

Blue, Brown, Yellow/Green

Core Assembly

Core Twist

1 Core

Filler

NA

Assembly Pair

NA

Taping

Mylar Foil

NA

Shielded

A1 - Mylar Foil

NA

Drain

Material

NA

Construction

NA

Jacket

Material

PVC

Min Average Thickness

0.90mm

Min. Thickness at any point

0.67mm

Overall Diameter (Approx)

8.5±0.20

Color

Any Color



4

Electrical & Physical Properties

Item

Specification



Rating Voltage

600V

Conductor Resistance

13.3Ω/Km   20°c Max

In case of dispute, Conductor resistance shall be the referee method

Insulation Resistance

0.010MΩ/Km  70°c Min

Dielectric Strength

AC 2.0KV/5 min No Break

Insulation

Unaged

Tensile Strength

10N/mm²

Elongation

150% Min

Aged

Tensile Strength

Min 10N Unaged±20%(85±2°cx240hrs)

Elongation

Min 150% Unaged±20%(85±2°cx240hrs)

Loss of mass Test

2.0mg/cm² (max)

Jacket

Unaged

Tensile Strength

10N/mm²

Elongation

150% Min

Aged

Tensile Strength

Min 10N Unaged±20%(85±2°cx240hrs)

Elongation

Min 150% Unaged±20%(85±2°cx240hrs)

Loss of mass Test

2.0mg/cm² (max)

Deformation Test

150mm, 70±2°c x 1hr≤50%

Cold Bend Test

-15±2°c x 4hr No Crack

Heat Shock Test

150±2°c x 1hr No Crack





Electric Properties

Item

Specification

Specified voltage and temperature & standard

UL/CSA : 105℃, 600Vac, 750Vdc, ROHS / RECH

Spark Test

The insulation must be withstand 5KV high-tension current

Insulation Potengial Strength

2000V/Min(for water's environment

Minimum Insulation Resistance

20, DC500V  15MΩ-KM Above





Physical Properties

Based on standard of flammability material testing

According for UL Subj.758 spec/According for CSA spec



 Before of

 aging test

Insulation tensile strength test  kgf/mm2

1500 psi above



Insulation elongation test rate %

100% above



 After of

 aging test

Insulation tensile remnant rate %

This amount must be above 70% after heat ageing (136°c,168hrs)



Insulation elogates remnant rate %

This amount must be above 65% after heat aging  (136°c,168hrs)



 Heating Distortion Test

The insulation face must be no cracked, high temperature at 120°c for 1 hour



 Thermo Shock Test

The insulation face must be no cracked, high temperature at 120°c for 1 hour and bent, to withstand 1,000V for 1 Min



 Cold Bending Test

The insulation face must be no cracked, cooled at -40°c for 3 hour and bent to withstand 1000V for 1 Min



 Oil Resistance

Immersed in oil at 80°c for 4 hrs and bent to withstand 1000V for 1 Min







PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

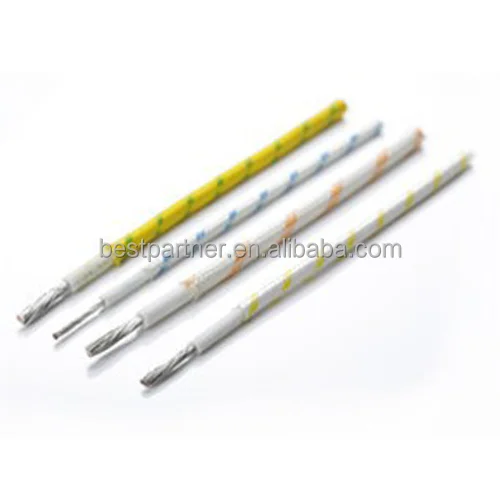

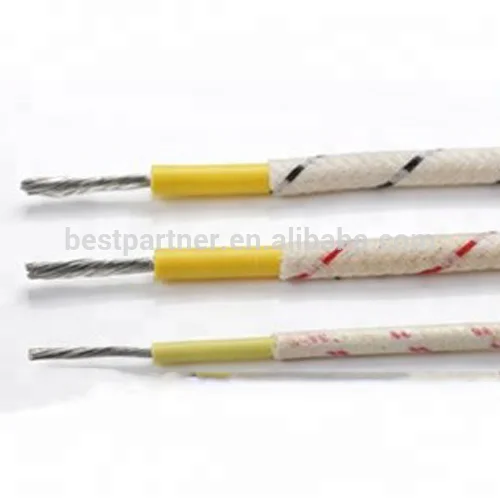

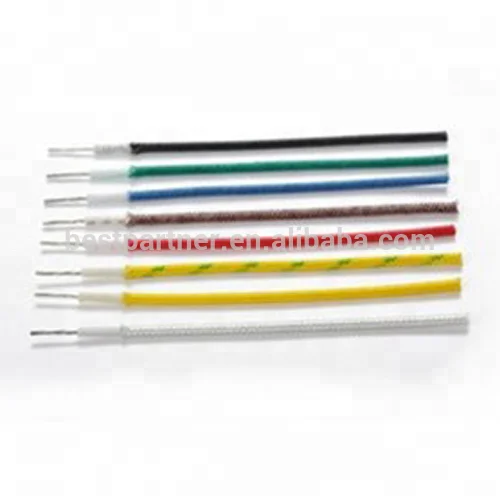

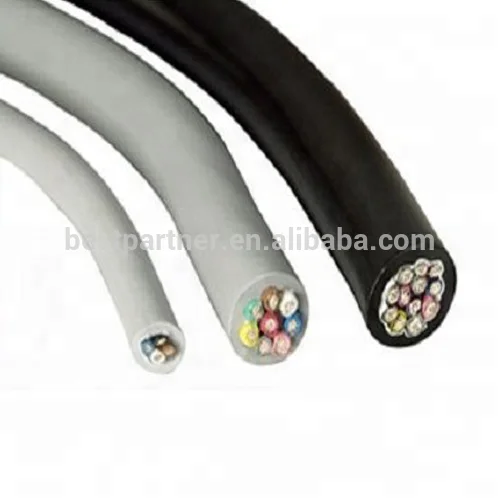

Other Product Photos










PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

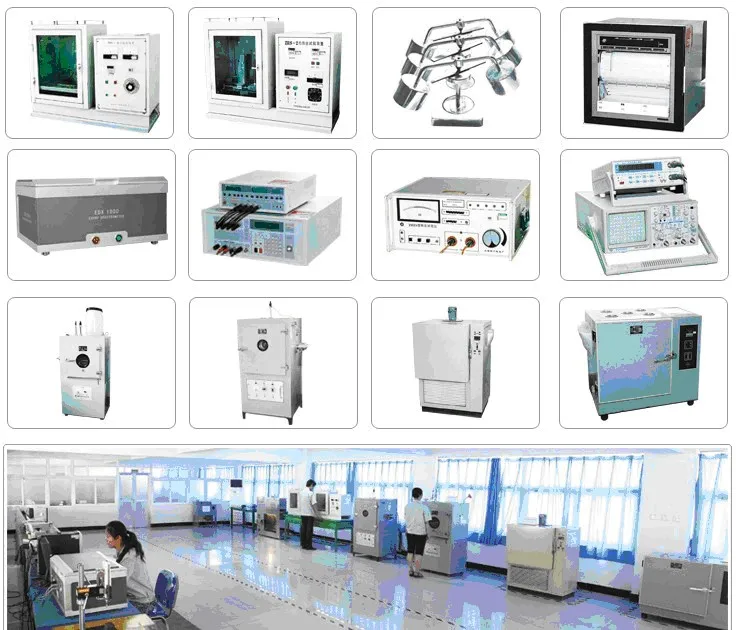

Test Equipment



Test Equipment

Test Equipment.jpg



PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

 Certifications

Certifications




PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

Packaging & Shipping

Packaging & Shipping

Packing Information For Cables/Wires:

1) STANDARD PACKAGE: 100/ROLL FOR SIZE UNDER 35SQMM SPECIFIC LENGTH IN AN EXPORT WOODEN DRUM.



2) IN EXPORT WOODEN DRUMS FOR SIZE LARGER THAN 35SQM, WHILE WOVEN BAGS PACKING FOR OTHER TYPE.

Shipping information

1.For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.



PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

Our Services

Our Services

our service 01.jpgour service2.jpg

BEST TECH.jpg

PVC Wire Thin Insulated Copper Wires 600v Electric Wire Cable UL1015 8AWG

Company Information

Company Information

 Bestech Appliance Ind. Company is one sister company of Best Partner Group. Best Partner was established in 1981. We are one of leading exporters of various components of home appliances like air conditioners,Refrigerators, Washing machines including the relevant molds & die and machinery. We are also one of Taiwan's reputable project supplier on Turn Key basis with vast experience in supplying forward technologies to our customers worldwide.

With over 20 years experience in this filed, our staff numbers 70 including 18 engineers. In order to expand our business and serve customer's requirement, We have installed our own factory and representative offices in China(Ningbo, Huzhou, Suede), Philippines, Thailand ... etc.

Best Partner Company has achieved ISO-9002 certification on July of 2000 and subsequently achieved in 2003 its ISO-9001 certification, the International Standard for World Class Quality Management Systems, based upon its business philosophy " Customer's Interest, Professionalism & Sincerity, Quality Importance, and Friendliness that's Conducive to Business Success" as business principles. Everyone at Best Partner Trading Co. will comply with and practice overall product quality development and environmental protection activity to promote the conservation of the environment to meet our customer satisfaction and expectations. Since our company put great importance on our environmental programs in preserving our Mother Earth and our responsibility to the community, we practice the environmental protection activity in cooperation with suppliers to promote as green supply chain and apply for ISO-14001 (Environmental Management Standard) and hopefully that this will integrate with ISO-9001 (Quality Management System) so as to implement both on our supply chain system from supplier parts and materials to finished goods to make sure that it is in compliance with ROHS directive and in accomplishment of our goal of constant improvement.

We expect to have chance to establish good communication with your end. If there is any new inquiry need our service, please feel free to contact with us. We will always do our best service f
