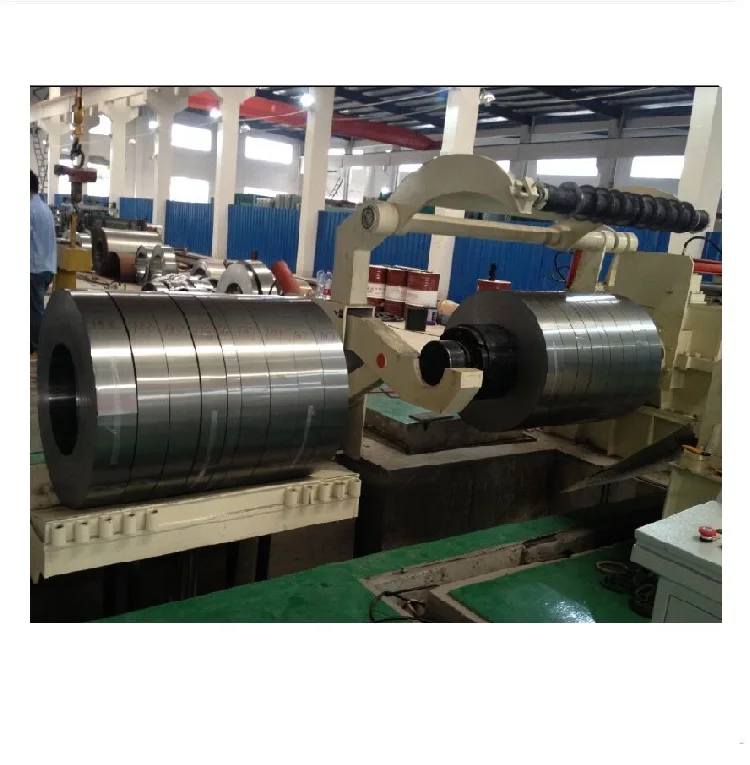

steel and metal coil slitting line machine
- Category: Coil Slitting Machine >>>
- Supplier: Wuxi Bangzhou Machinery Manufacturing Co. Ltd.
Share on (60224472601):
Product Overview
Description
steel and metal coil slitting line machine
A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.
Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.
Product Description

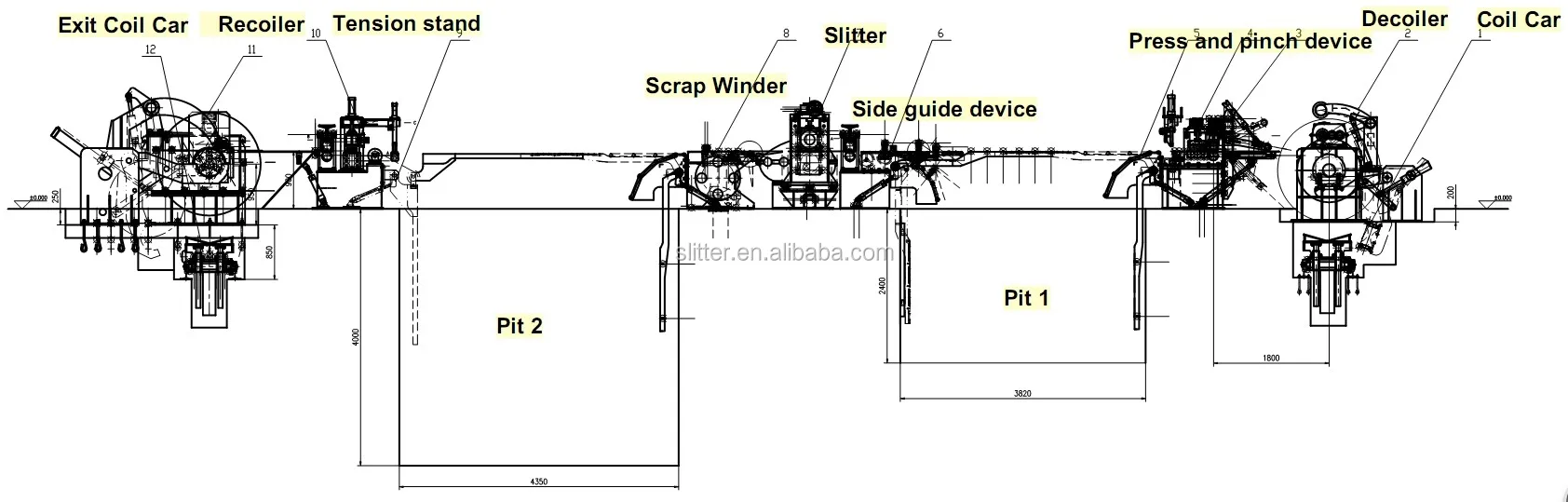

Layout:
Modle | Thickness (mm) | Coil width (mm) | No. of slitting | (±mm/m) | Line speed (m/min) | Coil weight (t) |
BZHS-1X850 | 0.3-2 | 150-850 | 10-30 | 0.3 | 0-150 | 5,10 |
BZHS-2X850 | 0.3-2 | 300-850 | 10-30 | 0.3 | 0-150 | 5,10 |
BZHS-2X1300 | 0.3-2 | 500-1300 | 10-30 | 0.3 | 0-150 | 10,15 |
BZHS-2X1600 | 0.3-2 | 600-1600 | 10-30 | 0.3 | 0-150 | 15,20 |
BZHS-3X1300 | 0.4-3 | 500-1300 | 8-30 | 0.3 | 0-150 | 10,15 |
BZHS-3X1600 | 0.4-3 | 600-1600 | 8-30 | 0.3 | 0-150 | 15,20 |
BZHS-4X1300 | 0.5-4 | 500-1300 | 6-25 | 0.5 | 0-150 | 10,15 |
BZHS-4X1600 | 0.5-4 | 600-1600 | 6-25 | 0.5 | 0-150 | 15,20 |
BZHS-6X1600 | 1-6 | 600-1600 | 5-20 | 0.5 | 0-120 | 15,20,25 |
BZHS-6X2000 | 1-6 | 800-2000 | 5-20 | 0.5 | 0-120 | 15,20,25 |
Main Components of Steel Slitting Machine
| Hydraulic entry coil car | 1 Unit |
| Hydraulic decoiler | 1 Unit |
| Press and pinch device | 1 Unit |
| Hydraulic head cutter | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |
| Hydraulic exit coil car | 1 Units |
FAQ
(1) What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and humanized .
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 3-4 lines per month.
(2) Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.
(3) How to visit your company?
Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport. Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
(4)What information you need to prepare the quotation:
1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
