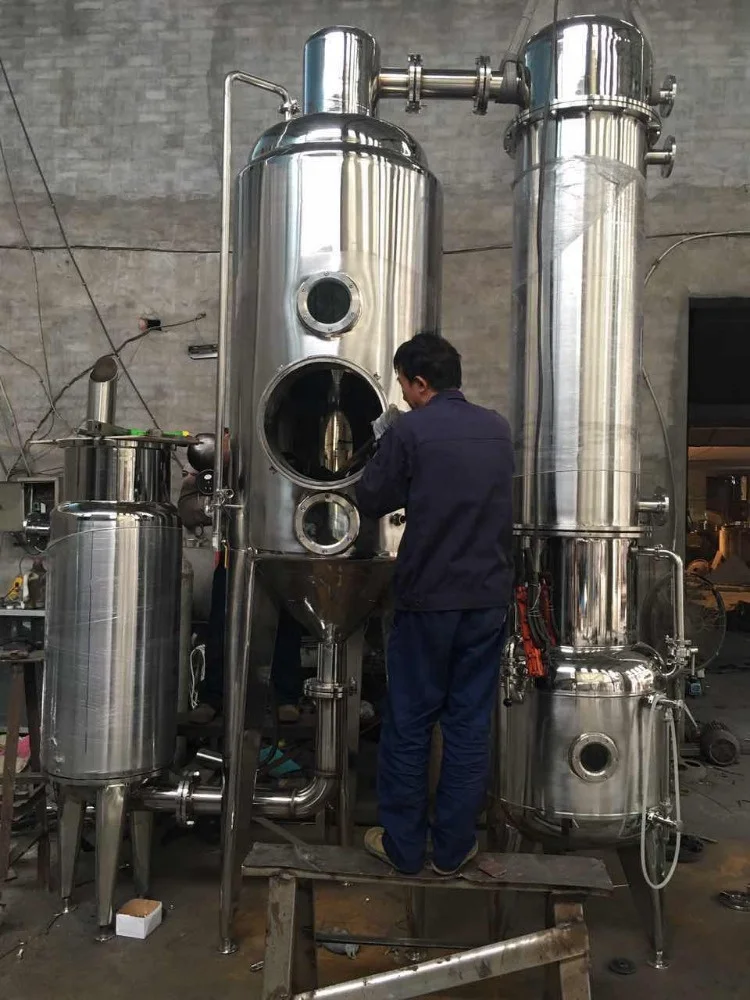

High Quality Stainless Steel Evaporating Concentrator Single Effect

Specifications

Evaporator,,triple-effect falling film evaporator and concentrator.The device is used to concentrate solutions.

Evaporating Rate: 1200--120000L/H

Applicable range:

Single-effect or multi-effect falling film evaporator is suitable to use in Milk, starch, glucose, xylose, juice concentration industries for low temperature continuous evaporation and concentration.

System components:

Composed of evaporators of various effects, separators of various effects, condenser, hot pressure pump, sterilizer, heat preservation tube, vacuum and drainage system, materials converting pumps of various stages, branch cylinder, operation platform, electric meter control cabinet, valve, pipe etc.

Equipment Characteristics: A.Low evaporation consumption,1kg steam can evaporate 3.5kg water. B.Low evaporation temperature.Part of twice steam can be inhald into single-effect heater through spray type hot pressure pump.The heat quantity can be fully used and the evaporation temperature is low. C.Large concentration ratio with falling film type evaporation,which can make material liquid with larger viscosity be easy to flow and evaporate.Hard to agglomerate with short concentration time.The concentration ratio can reach 1:5. D.The equipment can realize automatic production,intellectual system management,which is in comformity with GMP standard.

 Per as agreement

1. Q: How do I pay for my purchase order?

      A:   T/T, L/C at sight, Escrow, Paypal.

2. Q:  What's the MOQ?

    A:  Our MOQ is 1 unit.

3. Q:What's the delivery time?

    A: It will take about 25-35days to finish an order, but the exact time is according to actual situation.

4. Q: Can I have my own customized product?

    A: Yes, your customized requirements for color, logo, design, mark, etc.  are very welcome.

5. Q: Do you have quality control?

    A: Yes, we attach  great performance to quality control.

6. Q: How about the warranty control?

     A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
