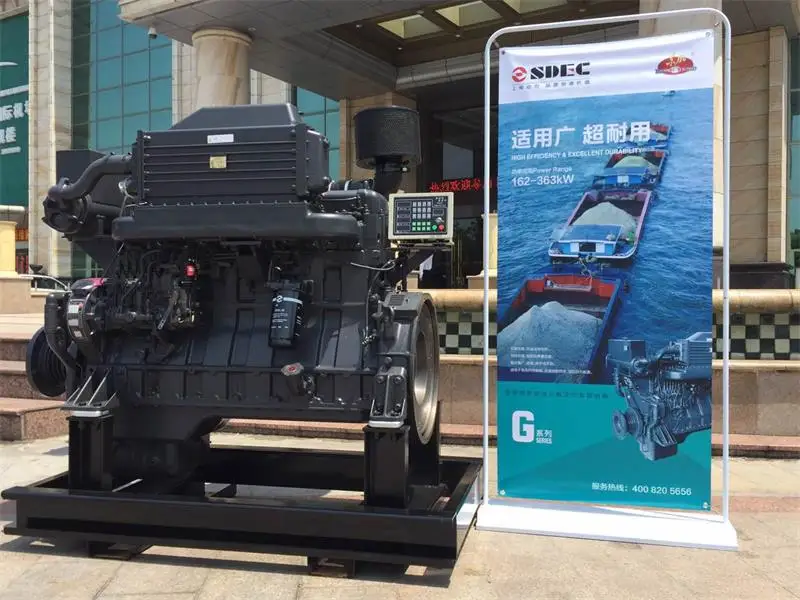

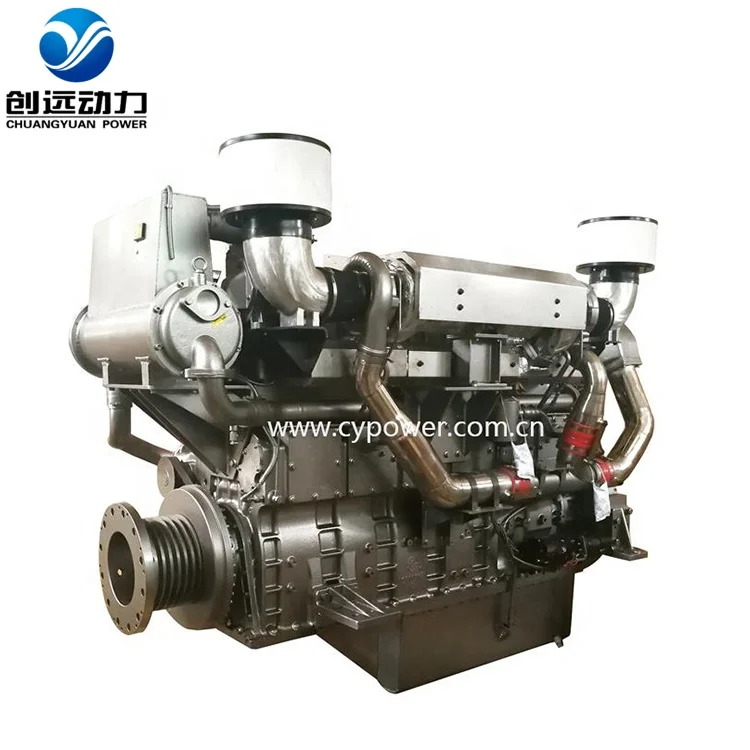

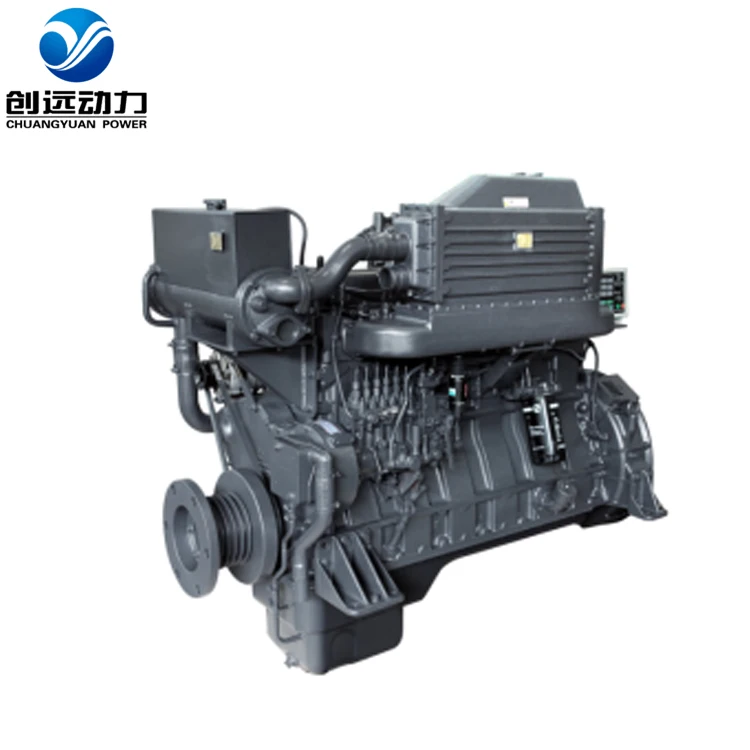

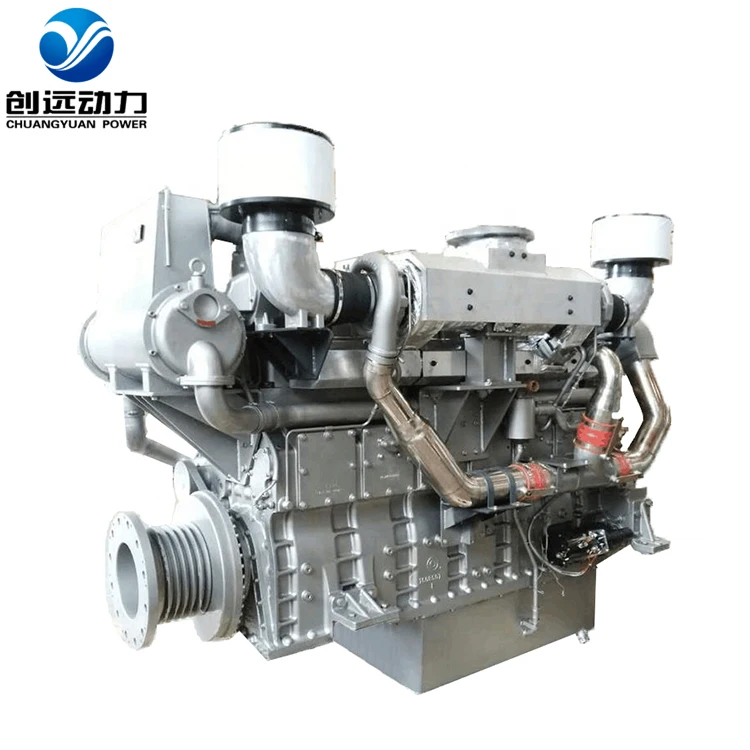

Water cooling Sdec Sc15g Man Series inboard diesel marine engine for boat 280 330kw
- Category: >>>
- Supplier: Zhongshan Chuangyuan Power Equipment Co. Ltd.
Share on (60225097948):
Product Overview
Description
Products Description
Engine Specification | ||||
Engine Model | SC15G500Ca2 | SC15G500.1Ca2 | ||
Maker | ShangHai diesel engine Co.,Ltd | |||
Rated power | 330kw | |||
Rated speed | 1500rpm | 1800rpm | ||
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine | |||
Bore x Stroke | 135mm x 165mm | |||
Combustion system | Direct Injection | |||
Aspiration | Turbocharged & Intercooled | |||
Cylinder Number | 6 | |||
Cooling System | Heat Exchanger | |||
Displacement | 14.16L | |||
Rotation | Anti-clockwise (facing Flywheel) | |||
Size of Flywheel Housing &Flywheel | SAE1#14 in | |||
Certification&Emissions | CCS+IMO Tier II | |||
Dry Weight | 1350kg | |||
Dimension(L x W x H) | 1680 x 884 x 1550mm | |||
Series Model | ||||
Engine Model | Rated Power/Speed | UNA Rated power/speed(CCS) | ||
SC15G400Ca2 | 267kw/1500rpm | 254.9kw/1500rpm | ||
SC15G420Ca2 | 280kw/1500rpm | 272kw/1500rpm | ||
SC15G460Ca2 | 308kw/1500rpm | 300kw/1500rpm | ||
SC15G500Ca2 | 330kw/1500rpm | 320kw/1500rpm | ||
SC15G500.1Ca2 | 330kw/1800rpm | 320kw/1800rpm | ||
SC15G500.1Ca2 | 330kw/1800rpm | 320kw/1800rpm | ||
Marine Gear Specification | ||
Gear Model | HC300 | |
Type | Hydraulic multi-disc clutch | |
Reduction Ratio | 1.87, 2.04, 2.54, 3.0, 3.53, 4.1, 4.47 | |
Direction of Rotation | Clockwise or anti-clockwise from stern | |
Dry weight | 680kg | |
Dimension(L x W x H) | 680 x 930 x 880mm | |
Mechanical Efficiency | 97% | |
