GWBMZT_2 raw meal cement ball mill design
- Category: >>>
- Supplier: Xinxiang Great Wall Machinery Co. Ltd.
Share on (60225304955):
Product Overview
Description
GWBMZT_2 raw meal cement ball mill design
Product Description
We have a lot of videos about our product,but because Alibaba banned inbound links,they may not be shown here directly.If you need to know more by our video.Pls kindly send us your email . we will send you detail data about our product including the video link.
Product Description
Introduction of cement ball mill design
The cement ball mill design for cement are often used in the cement production line to make the steel slag into granulated blast-furnace slag powder, which is usually used in concrete in combination with Portland cement as part of blended cement. It is widely used in the cement industry, Iron and Steel industry.

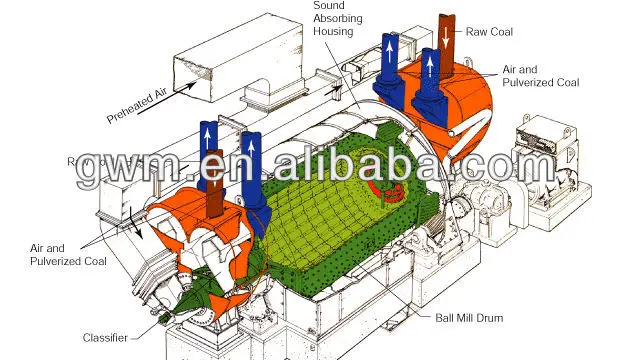

Working principle of cement ball mill design
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Product advantage
Advantage of cement ball mill design
1.Simple structure. easy maintenance
2.Uniform ore particle. low incidence of overly grinding
3.Long operating life
The feature of cement ball mill design
Strong adaptability to raw material
Continuous production
Large crushing ratio
Easy to adjust the size of the products
High wear resistance, impact resistant
More convenient operation
High gear bending strength
Good lubrication, reliable operation
Data of cement ball mill design
| Model (m) | Output (t/h) | Rotate Speed (r/min) | Feeding Ganularity (mm) | Grinding Media Load (t) | Effective Volume (m³) | Motor (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|
| Φ2.4×7.5 | 21-23 | 20.4 | ≤25 | 37.5 | 29.5 | 475 | 76 |
| Φ2.4×10 | 30 | 20.4 | ≤25 | 50 | 39 | 570 | 94 |
| Φ2.6×8 | 20-24 | 19.57 | ≤25 | 52 | 38.1 | 630 | 97 |
| Φ2.6×9 (closed-circuit) | 42 | 19.57 | ≤25 | 58 | 42.7 | 710 | 125 |
| Φ3.0×9 | 28-32 | 18.3 | ≤25 | 78 | 57.4 | 1000 | 150 |
| Φ3.4×7.5 | 60 | 16.9 | ≤25 | 80 | 58 | 1000 | 167 |
| Φ3.8×7.5 | 90 | 17 | ≤25 | 95 | 91.8 | 1600 | 218 (excluding motor) |
| Φ4.0×9 | 120-140 | 16 | ≤25 | 140 | 106 | 1800 | 269 |
| Φ4.6×10+3.5 | 190 | 15 | ≤25 | 190 | 177 | 3550 | 352 (excluding driving parts) |
| Φ4.6×10.5+3.5 | 210 | 15 | ≤25 | 200 | 185 | 3550 | 358 (excluding driving parts) |
Packaging & Shipping
Packaging Detail : The main machinery is in nude packing,and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
Delivery Detail:within 30days after your payment
Our Services
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
Company Information
Xinxiang Great Wall Machienry Corporation, establelished in 1958, is one of the biggest Xinxiang Great Wall Casting Co., Ltd .cement making machine manufacture and supplier in Henan Province of China.Total area of the factory is 330000 m2, over 1100 employees including technicians.The annual processing capacity is over 80000 ton. Besides, we have a self-governed casting subsidiary, Xinxiang Great Wall Casting Co., Ltd, whose annual output is up to 50000 ton. That’s why we can supply you the best quality machinery with less lead time.
our customer
FAQ
1 how long is the product warranty period ?
A: the product warranty period is 12 months
2. I am a foreign customers, if the machine works wrong, how your company resolved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3. how much is MOQ of your machine?
A:our machines MOQ is 1 set and also support the mixed batch.
4.Where can we buy the machine's parts?
A: Our company can provide machines for your any time
