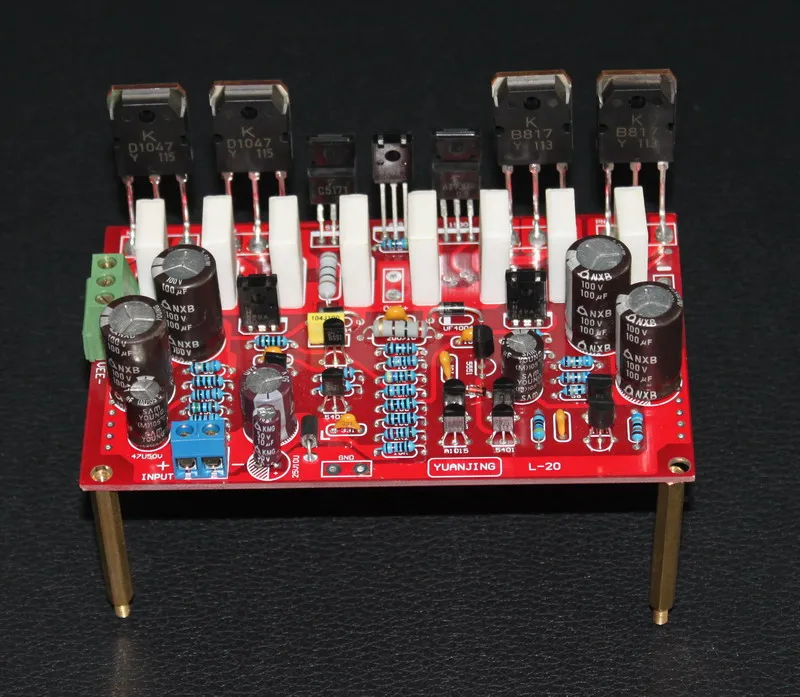

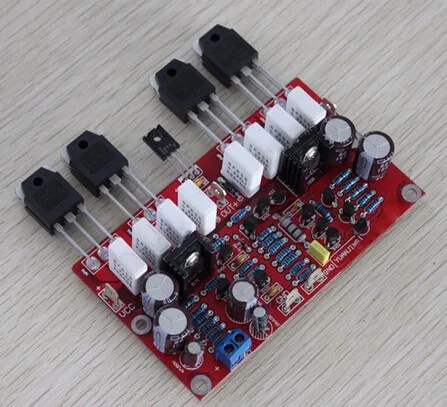

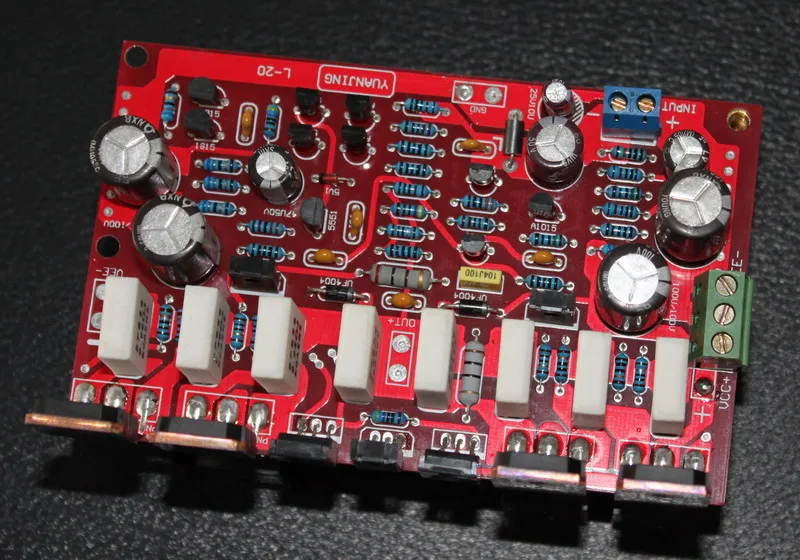

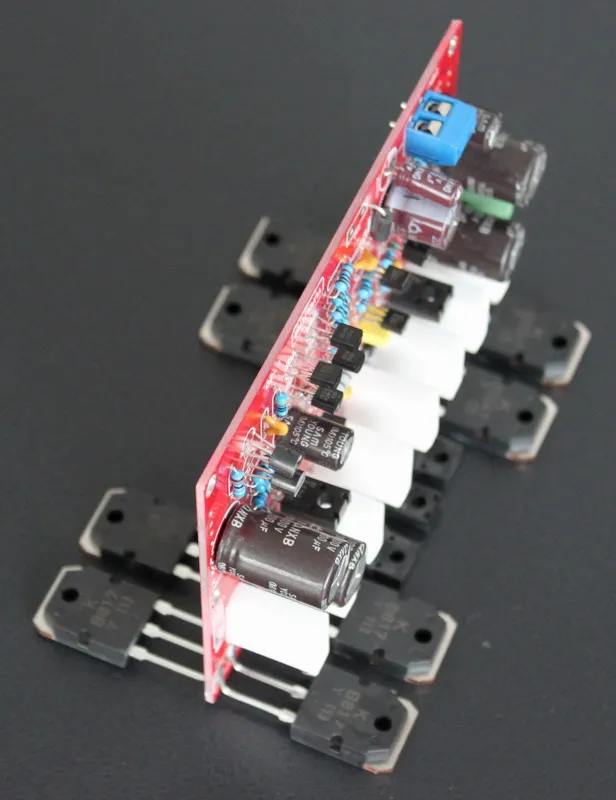

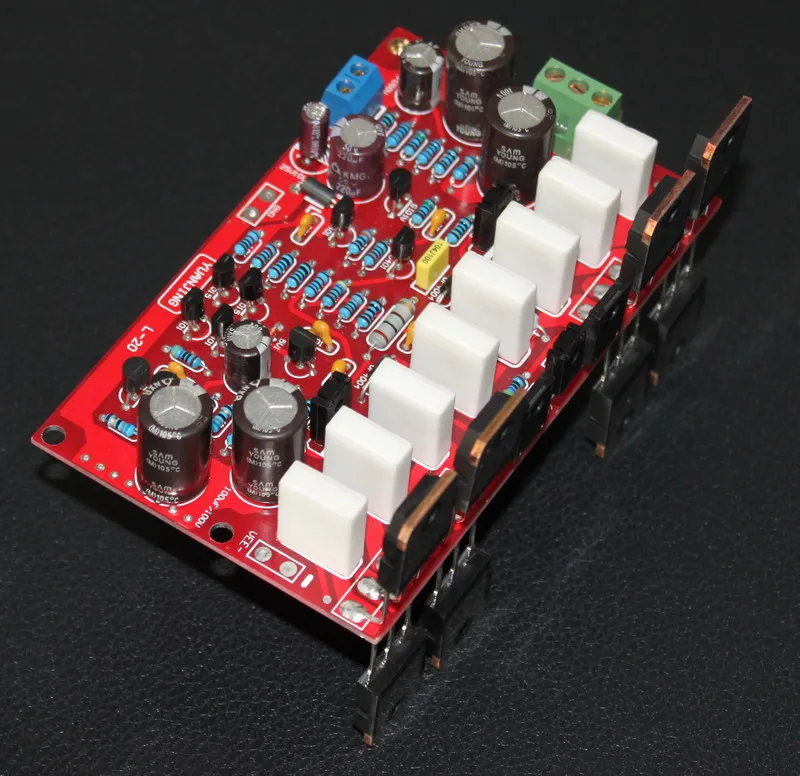

Taidacent 200 Wat 8 Ohm Stereo Mono Amplifier Finished Board for Subwoofer L20 200W 8R Amplifier Board
The circuit board adopts 1.6MM thick PCB,
Four pairs of high-power tubes per channel in mono.
Support 200W 8 ohm output power.
So far, the power amplifier with the best control.
L-20 pure post-amplifier.
L-20 has excellent control, ultra-low distortion, and wide voltage support range. High-power and high-current output load.
Each channel has four pairs of big tube output, and the current load is up to 40A.
The voltage support range is wide, and two pairs per channel and four pairs of high-power tubes can be installed arbitrarily.
Four pairs of high-power tubes per channel in mono.
Support 200W 8 ohm output power.
So far, the power amplifier with the best control.
L-20 pure post-amplifier.
L-20 has excellent control, ultra-low distortion, and wide voltage support range. High-power and high-current output load.
Each channel has four pairs of big tube output, and the current load is up to 40A.
The voltage support range is wide, and two pairs per channel and four pairs of high-power tubes can be installed arbitrarily.
Basic parameters:
1. Power 200W (8R) 350W (4R)
2. Voltage: DC +-45V
3. The AC voltage range before rectification: AC dual 12V to AC dual 32V
4. THD = 0.009% 1K HZ 50W 8R
5. SR= 35V /US
6. Noise 92DBU
7. EIN=114 DB
8. Frequency response 20-20KHZ +-0.5 DB
9. Voltage gain 34 times
10. All resistors use precision copper feet 1% high-precision resistors, including high-precision output high-power resistors.
11. PCB size: 116MM * 72 MM
12. All capacitors are imported and original. Use imported original KEC audio high-power tube.
13. The driving tube and high-power tube adopt B817 D1047 and A1930 C5171 audio special imported original transistors.
2. Voltage: DC +-45V
3. The AC voltage range before rectification: AC dual 12V to AC dual 32V
4. THD = 0.009% 1K HZ 50W 8R
5. SR= 35V /US
6. Noise 92DBU
7. EIN=114 DB
8. Frequency response 20-20KHZ +-0.5 DB
9. Voltage gain 34 times
10. All resistors use precision copper feet 1% high-precision resistors, including high-precision output high-power resistors.
11. PCB size: 116MM * 72 MM
12. All capacitors are imported and original. Use imported original KEC audio high-power tube.
13. The driving tube and high-power tube adopt B817 D1047 and A1930 C5171 audio special imported original transistors.
Product Description
Specification
item | value |
Certification | Other |
Brand Name | Taidacent |
Model Number | TDJLL20 |
Type | Mini Amplifier |
Channels | 1 |
Place of Origin | China |
Guangdong | |
