Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 90 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation

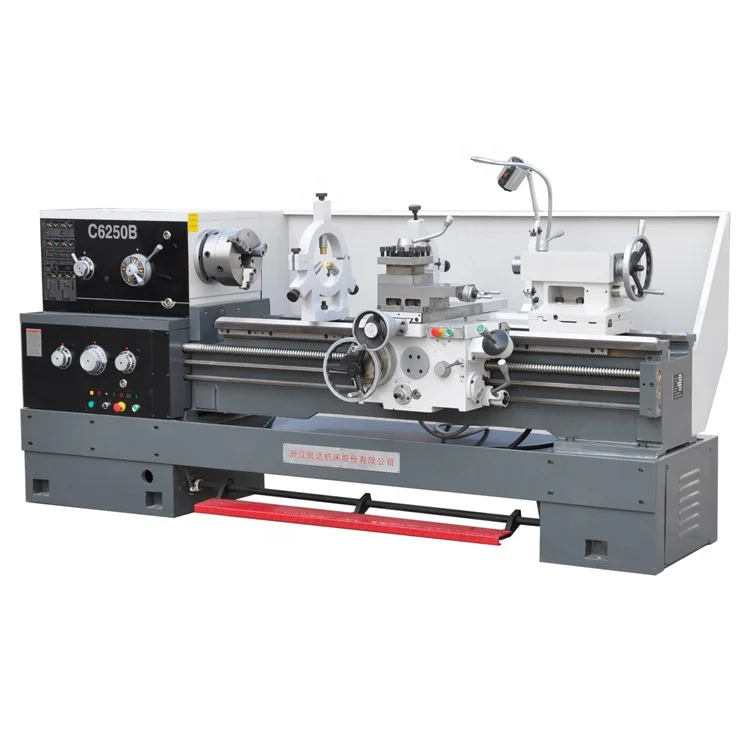

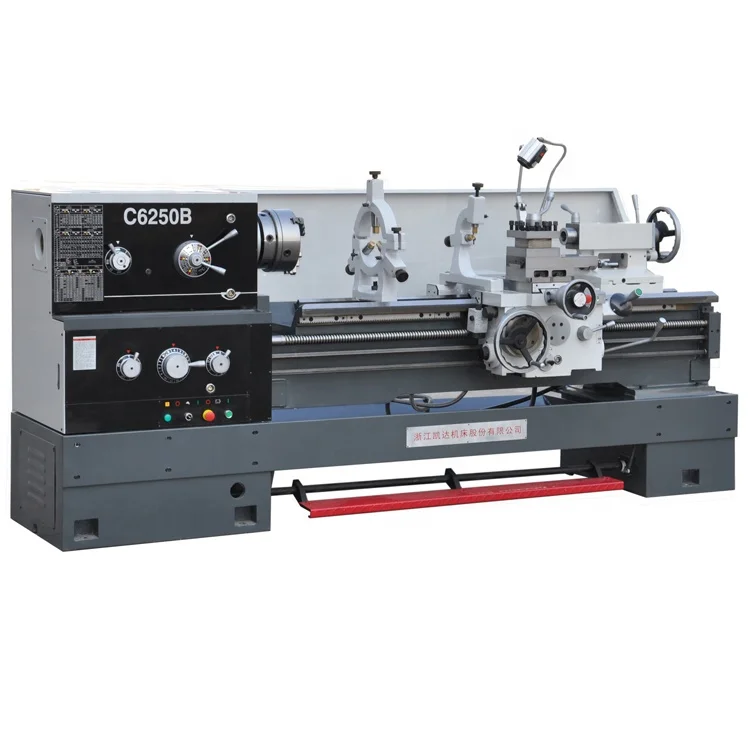

Front elevation
PRODUCT SPECIFICATIONS
MODELS | C6250B | C6266B | ||
CAPACITY | ||||
Max.swing over bed | Ф500mm | Ф660mm | ||
Max.swing over carriage | Ф260mm | Ф420mm | ||
Max. swing over gap | Ф710mm | Ф870mm | ||
Distance between centers | 1000/1500/2000/3000mm | |||
Bed width | 405mm | |||
SPINDLE | ||||
Spindle nose | D8 | |||
Spindle bore | Ф80mm | |||
Taper bore of spindle | M.T.NO.7 | |||
Steps of spindle speed | 24 | |||
Range of spindle speed | 9~1600rpm | |||
FEED | ||||
Range of longitudinal feeds | 0.063~6.43 (0.0023″~0.2392″)mm | |||
Range of cross feeds | 0.027~2.73(0.0010″~0.1016″)mm | |||
RAPID TRAVEL | ||||
Longitudinal | 4500mm/min | |||
Cross | 1900mm/min | |||
THREAD RANGE/ NUMBER | ||||
Metric pitch threads | 1~224mm/ 46 | |||
Whit-worth threads | 28~1/8 TPI/ 26 | |||
Module threads | 0.5~112mm/ 42 | |||
D.P.Threads | 56~1/4 DP/ 45 | |||

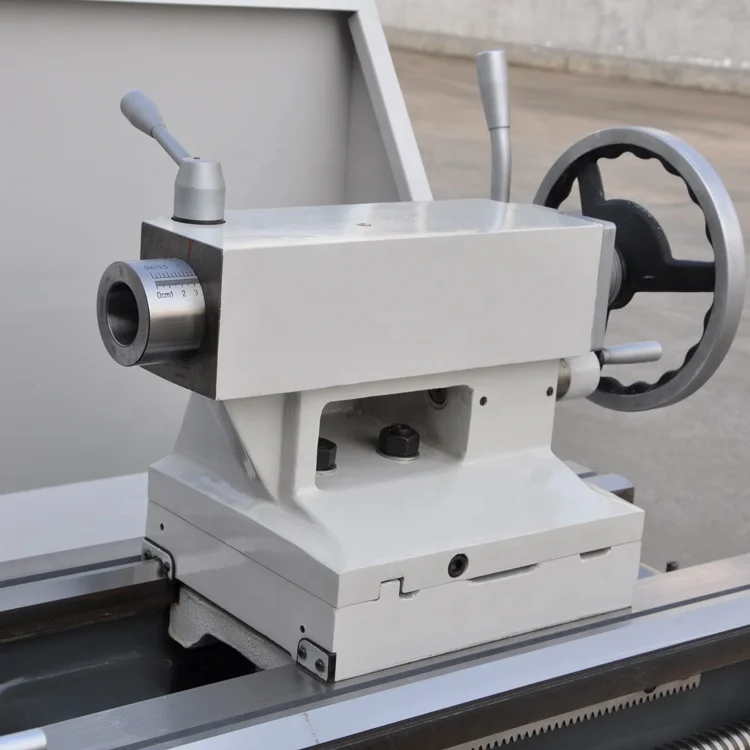

TAILSTOCK SLEEVE | ||||
Taper bore | M.T.NO.5 | |||
Max.travel | 150(5~29/32″)mm | |||
External diameter | Ф75(2~61/64″)mm | |||
OTHERS | ||||
Size of tool shank | 25×25mm | |||
Max travel of cross slide | 360mm | |||
Max.travel of top slide | 145mm | |||
Main motor power | 7.5kw (10HP) | |||
Overall dimensions(L×W×H) | (2500/3000/3500/4500)×900×1259mm | |||
Net weight | 2750/3000/3250/3600kg | 3000/3200/3400/3900kg | ||
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.
Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.
Manual tailstock
Tool box with accessoires.
