layout novel Automatic Control Concrete Mixer Machine for Sale Forced double horizontal shaft mixer

Product Overview

Description

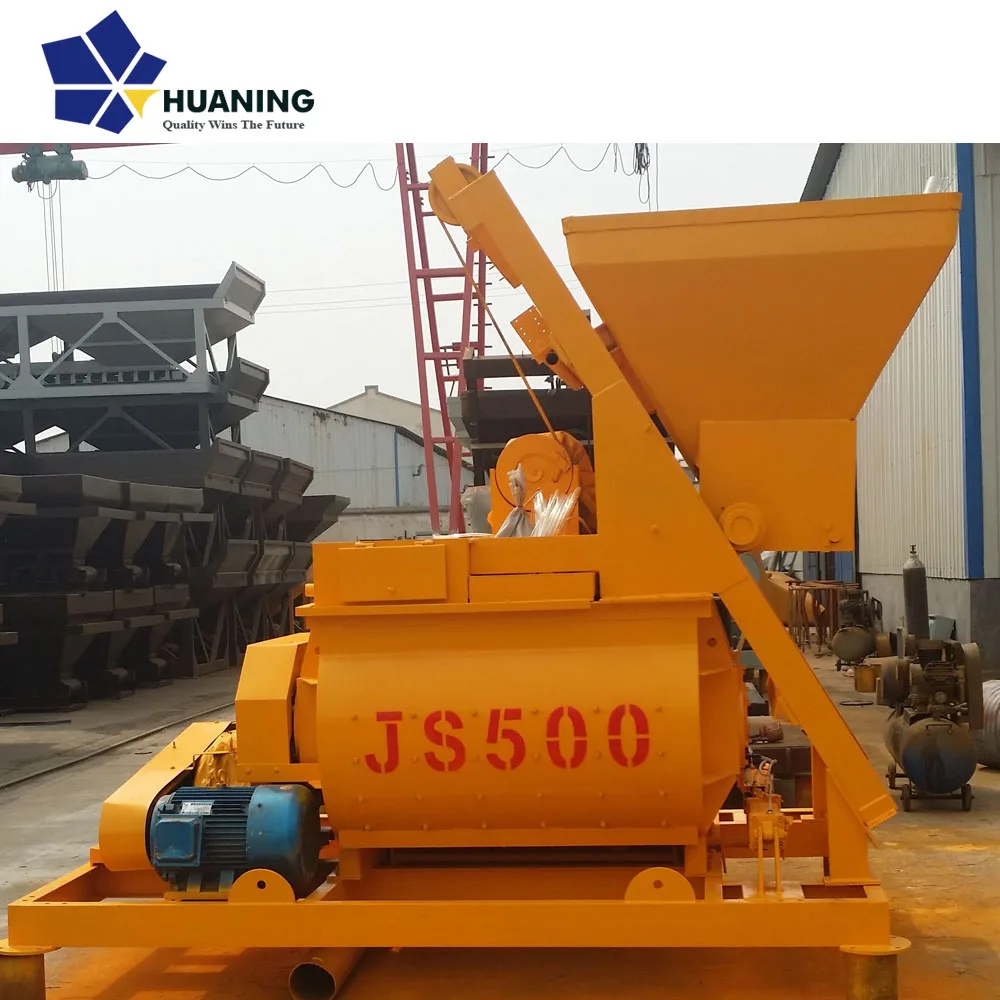

Overview of JS 500 is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar. It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant. Besides, it also acts as the main machine for the corresponding mixing plant.This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Type		JS500
Discharge Capacity (L)		800
Feed Capacity (L)		500
Productivity (m3/h)		≥25
Max. Aggregate Size: Pebble/Gravel (mm)		≤40/50
Work Cycle Time (s)		72
Mixing Blades	Speed (r/min)	31
	Quantity	2*7
Mixing Power (kw)		18.5
Winch Power (kw)		5.5
Pump Power (kw)		1.1
Dimensions (L *W* H)	Tansport Status	2900*2530*2680mm
	Work Status	4461*3050*4180mm
Total Weight(kg)		4000
