Automatic chocolate bar pillow packaging machine
- Category: >>>
- Supplier: Foshan Suk Precision Machinery Co. Ltd.
Share on (60226022716):
Product Overview
Description
Automatic chocolate bar pillow packaging machine
Product Description
Chocolate stick SZ-320B packing machine/pillow packaging machine
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as chocolate bar ,biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Code applying machine
2. Extra big screen
IV. Specification:
Type | SZ-320B | SZ-320D |
Film width | Max.320mm | |
Bag length | 65-190/120-280mm | 90-220/150-330mm |
Bag width | 50-160mm | |
Product height | Max.40mm | Max.55mm |
Film roll diameter | Max.320mm | |
Packaging rate | 40-230bag/min | |
Power | 220v 50/60Hz 2.6KVA | |
Machine size | (L)3770×(W)720×(H)1450mm | |
Machine weight | 700kg | |
Remarks | Optional air filling device | |

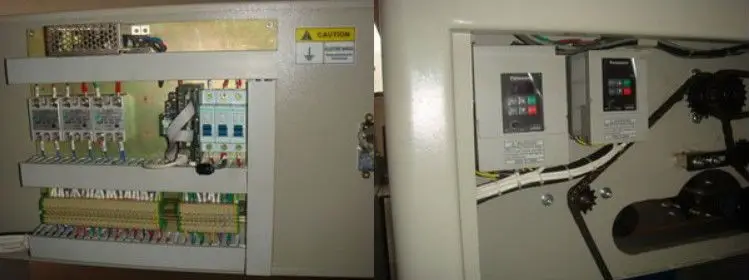

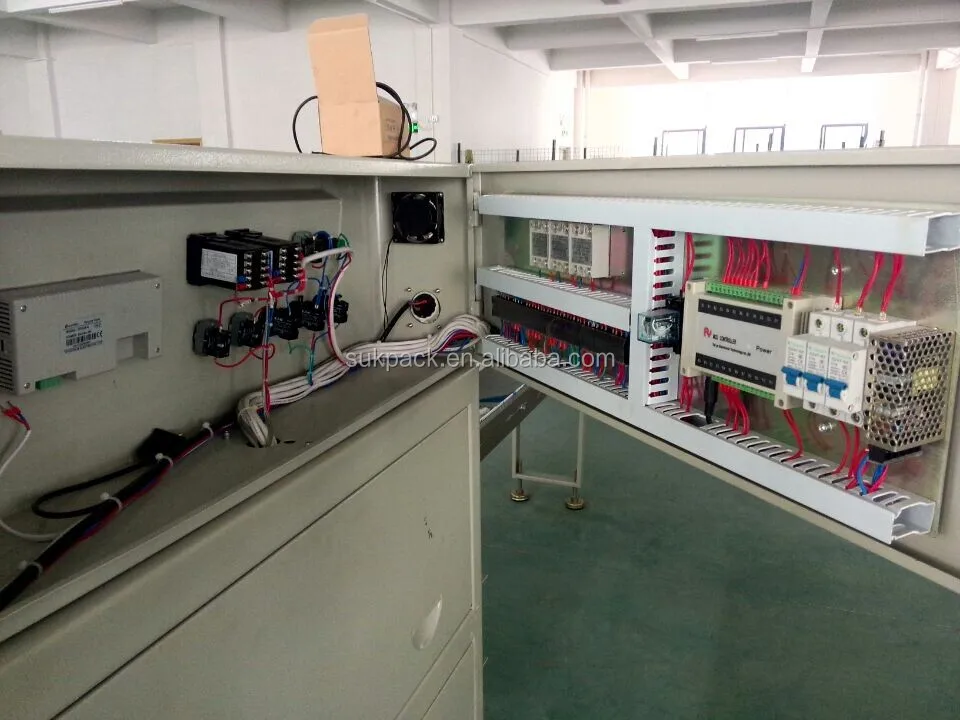

V. Electric detailed list:
| No. | Product Name | Brand |
| 1 | PLC | Panasonic/Japan |
| 2 | INVERTER | Schneider |
| 3 | 7 inchTouch screen | Wei Lun/Taiwan |
| 4 | Intermediate Relay | OMRON |
| 5 | Switching power | Meanwell/Taiwan |
| 6 | solid state relay | Schneider |
| 7 | Temperature controller | Yatai/Shanghai |

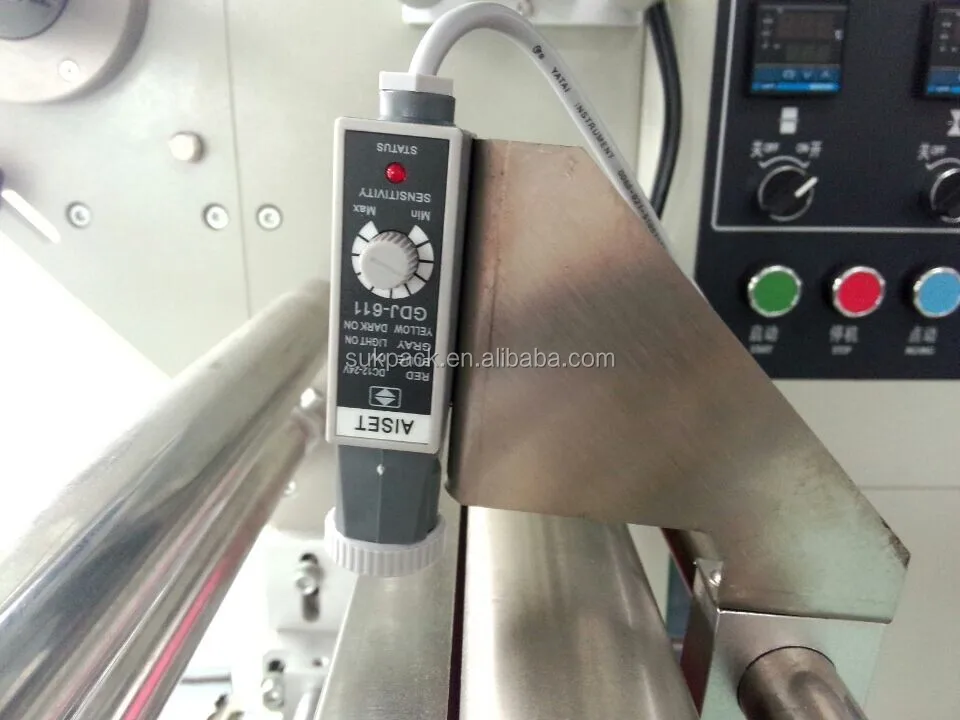

| 8 | Photoelectricity colour code | Aiset |

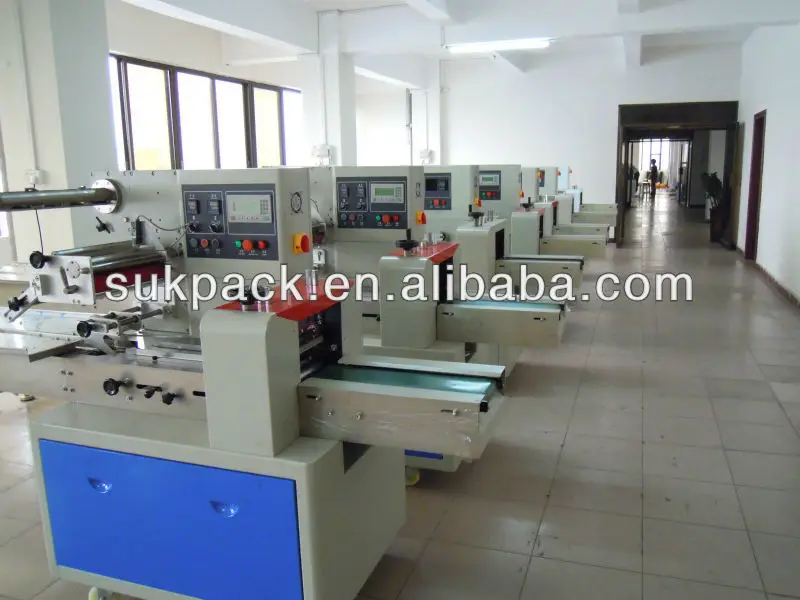

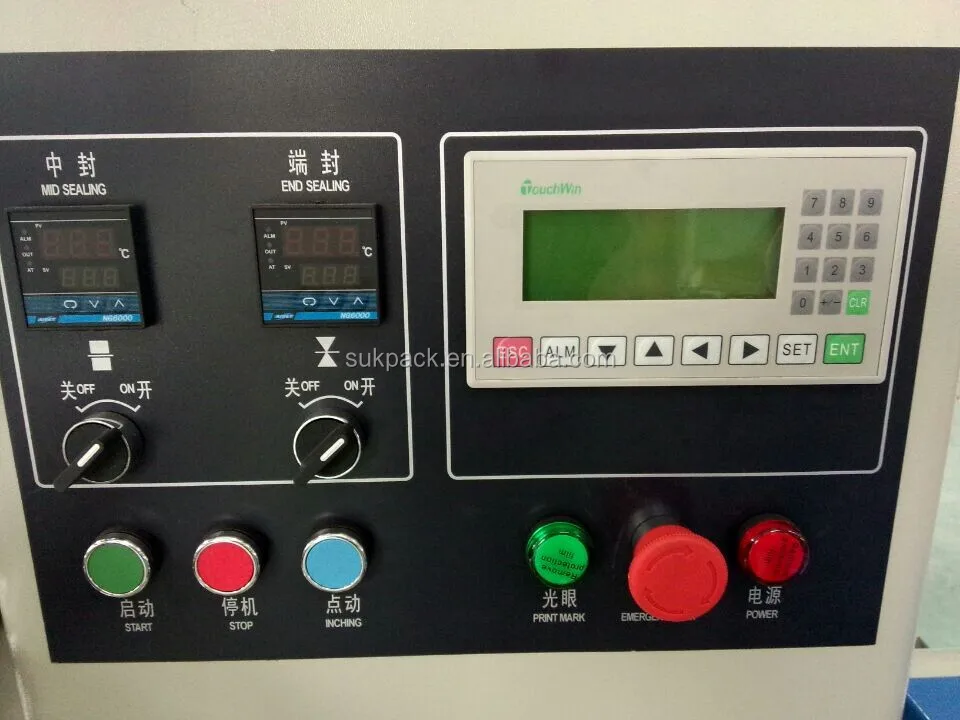

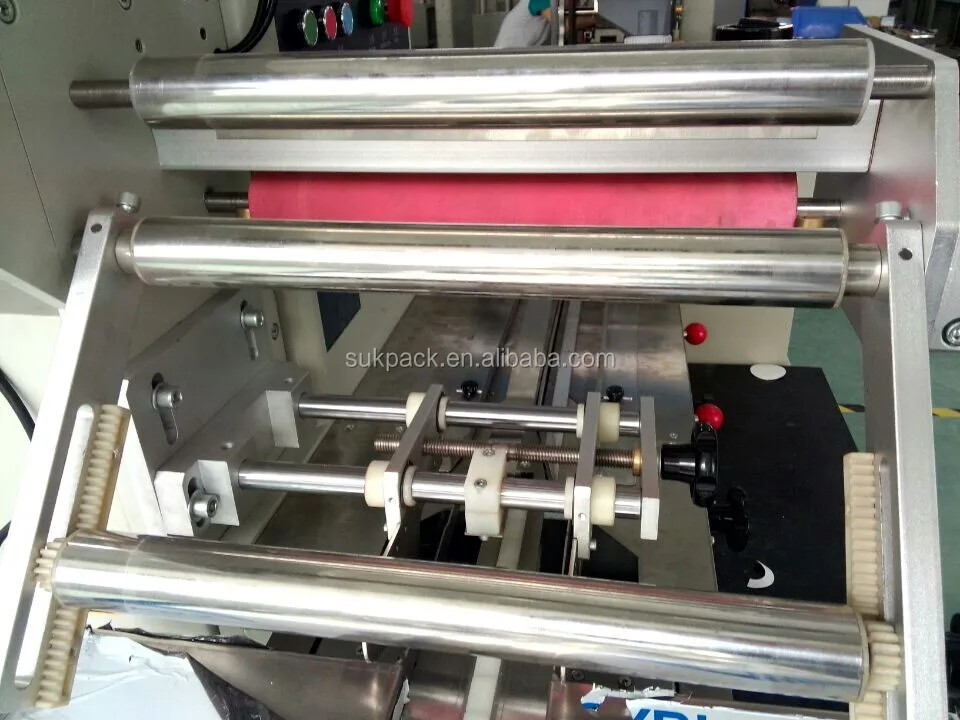

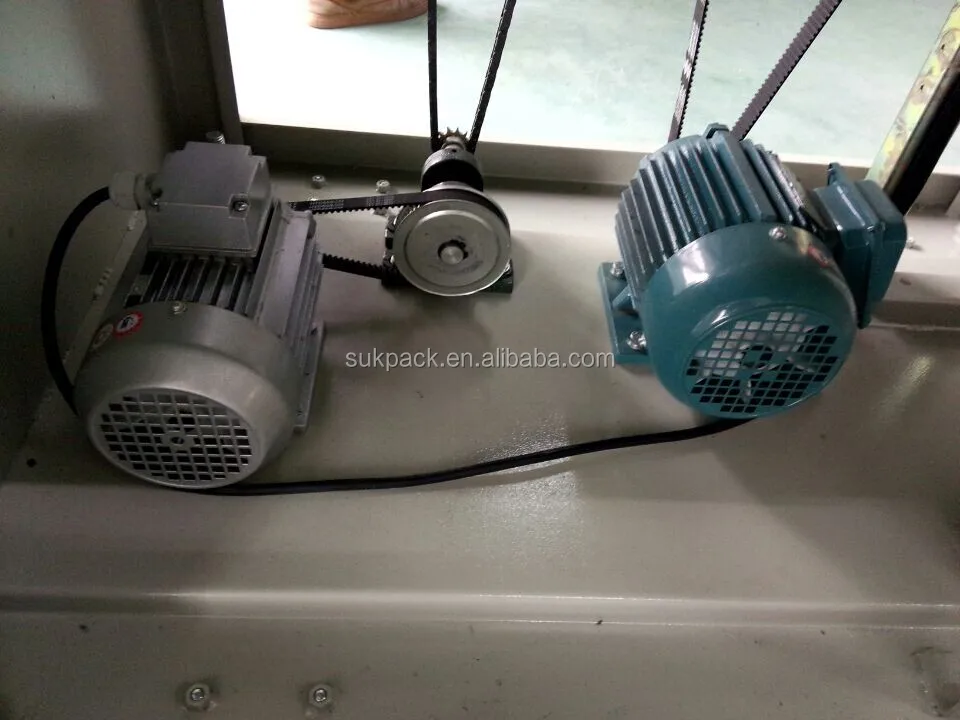

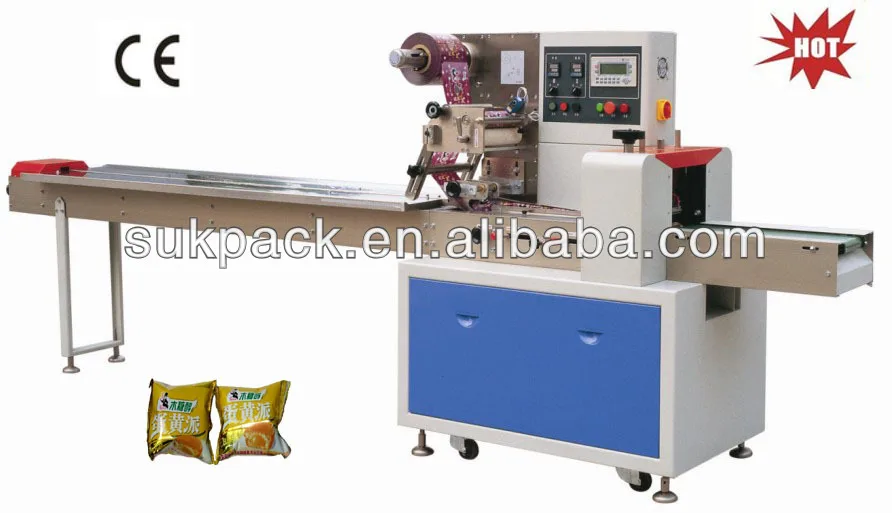

Machine pictrues:

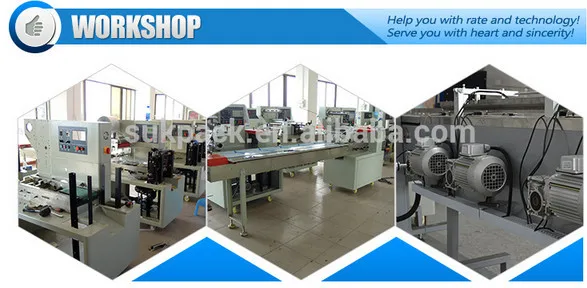

Company:
Effect of packing :
Welcome to for shopping!
Worthy Commodity, Competitive Price, Customer First!
Packaging & Shipping
Our Services
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use a large number of 304 stainless steel.
4. Each machine use good quality electric elements.
5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
6. The warranty time is one year.
Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
7. Beside the warranty days, we continue to provide life-long maintenance services.
FAQ
Terms:
1. Original: made in China
2. Package: wooden case.
3. Loading port: Foshan
4. Payment terms: 30% deposit with the order, 70% balance before shipment.
5. Delivery time:45 days after receiving deposit and samples
6. Guarantee: 1 year
7. Installation: We can send one technician to buyer's factory to install machine and train their worker. The buyer has to pay USD80 per day for the technician as subsidy. All the expense, such as visa, round trip tickets, and accommodation should be born by buyer.
8. Remark: If you have special demand of some parts like motor, cylinder, control panel, filling, material, conveyor, collect table, plexiglass cover and others, please tell us.
