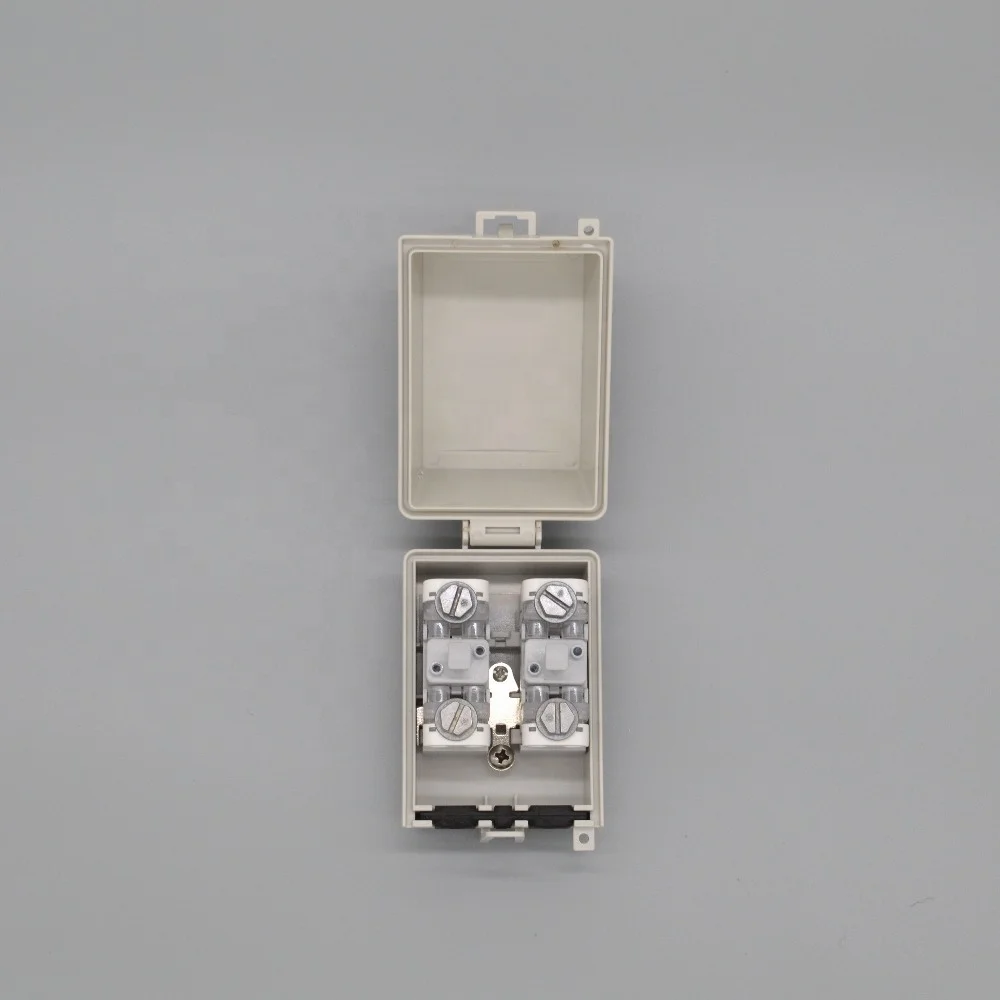

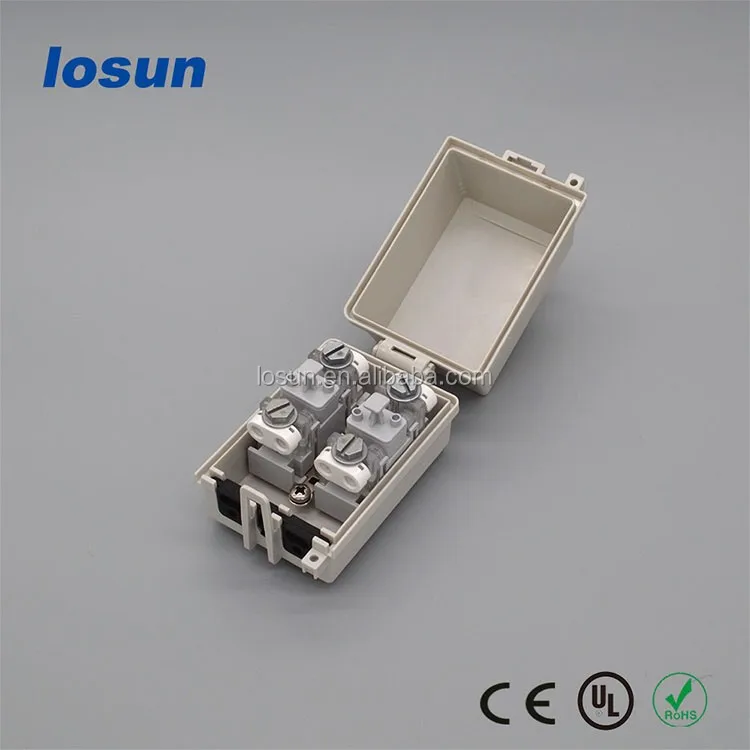

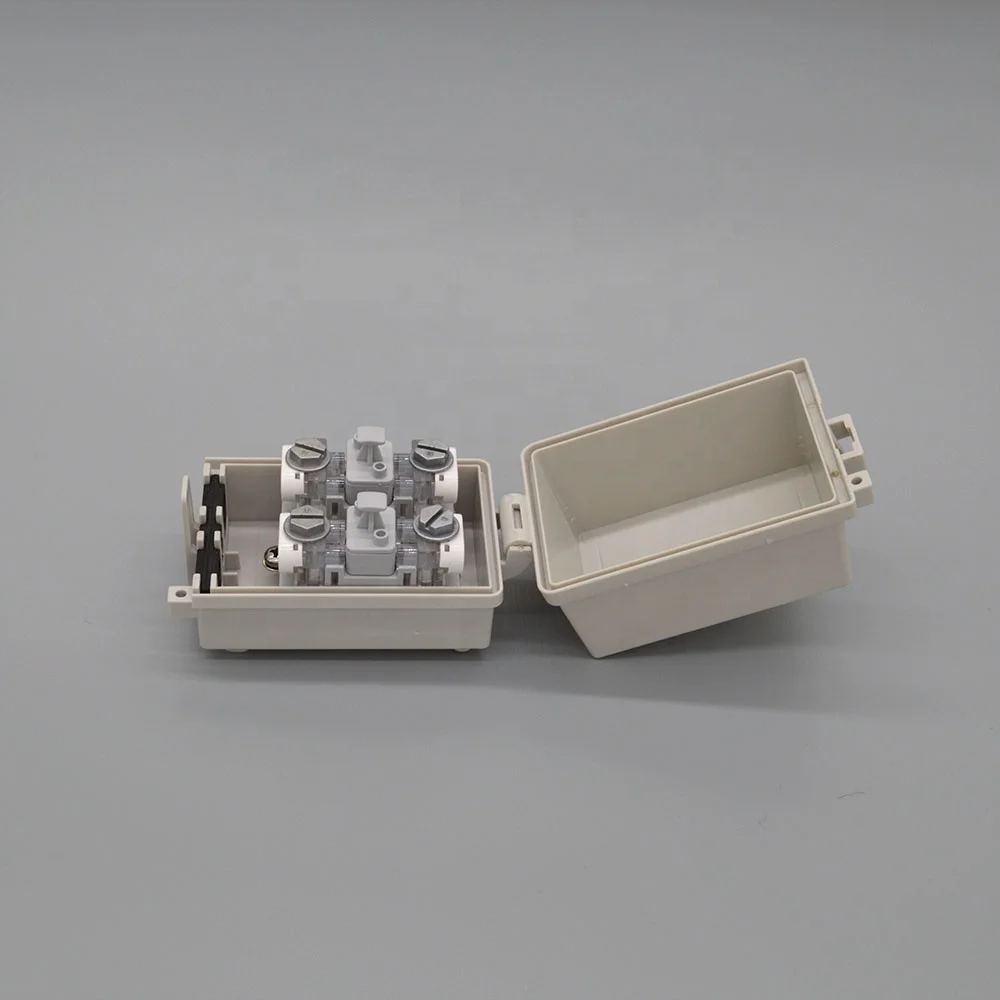

2 pairs stb distribution box with vx connection modules

Product Overview

Description

Product Discription



2 pairs stb distribution box with vx connection modules

Detailed Product Description

1. 1 pair drop wire module  without over-voltage protection

2. Plug-in module Configuration: 1×3-pole GDT 230V 5A/5KA



3. Suitable for waterproof

4. With screw lock



Contact characteristics
Drop wire connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	5 mm max. Ø
Pair connector
Gauge range	0.4 to 1.05 mm Ø
Insulation diameter	3 mm max. Ø



Current conducting capacity 20 A, 10 A per conductor for 10 minutes at least without causing deformation of the module       (If > 20 A up to 30 A is required,this is possible using a different GDT)



Insulation resistance
Dry atmosphere	> 1012Ω
Damp atmosphere (ASTM D618)	> 1012Ω
Salt fog (ASTM B117)	> 1010Ω
Immersion in water (15 days in 3 % NaCl solution)	> 1010Ω
Contact resistance
Rmaterial + Rbridge contacts   Rwire contacts	< 10 mΩ
Increase in contact resistance
After climatic tests		< 2.5 mΩ
After 50 reinsertions		< 2.5 mΩ
Dielectric strength		> 3.000 Vdc for 1 minute
Pair/drop wire housing screw		Special passivated direct +lacquered Zamac alloy
Housing body		ABS Flame retardant
Stb module		Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Insertion contacts		Tinned phosphor bronze
Ground contacts		Cu - Zn - Ni - Ag alloy
Continuity contacts		Tinned hard brass
Lower sealant		Polymeric resin
Upper cable sealant		Silicone fluid
Pair/drop wire bearing cover		Polycarbonate
Plug-in module body		Flame retardant (UL 94) glass-fiber reinforced polycarbonate
Plug-in module sealant		Gel
“O”-ring		EPDM
Spring		Stainless steel
Cable/drop wire membrane		Thermoplastic rubber



Packing & Delivery





Delivery:



1.Most samples: 2~3 days.

2.wholesales orders:15~20 days.

3.OEM orders:30~40 days after confirming the samples and receiving payments.
