China Wholesale High Quality Auto Wheel Hub bearing DAC48860042/40 Used for Car
- Category: >>>
- Supplier: Jinan LBR Bearing Co. Ltd.
Share on (60226095879):
Product Overview
Description
LBR auto hub bearing /front wheel bearing
1.complete auto wheel bearing models
2.high quality high productivity wheel bearing
3.large quantity ex-stockwheel bearing
4.wheel bearings used for car hub industry
Product Description
The DAC type auto front wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals. Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component. Traditional automotive wheel bearing is composed of two tapered roller bearings or ball bearings combination, bearing installation, oiled, and adjust the clearance seals are conducted in automotive production line. This structure makes it difficult in the automotive assembly plant, high costs, poor reliability, maintenance and car maintenance, but also the need for bearing cleaning, oiling and adjustment. Developed on the basis of the hub bearing unit is the standard angular contact ball bearings and tapered roller bearings on, it will be two sets of bearings as a whole, with a good assembly performance can be omitted clearance adjustment, light weight, compact structure, load capacity large, sealed bearings can advance into the grease, hub seals and maintenance, etc. are omitted from the outside wheel, has been widely used in cars, and in the truck also has a tendency to gradually expand the application.
Wheel bearing Specification:
Name | wheel bearing | ||||||
Model | DAC20420030/29-2 rs, DAC24450060-2 rs, DAC255200206-2 rs, DAC25521037-2 rs, DAC25520042-2 rs, DAC25520043-2 rs, DAC25620048-2 rs, | ||||||
DAC27520045/43-2 rs, DAC27530043-2 rs, DAC28580038-2 rs, DAC28580042-2 rs, DAC28590038/28 - E, DAC28610042 - E, DAC29530037 - ZZ, DAC30580042-2 rs, DAC30600037-2 rs, | |||||||
Material | GCr15 | Certificate | ISO9001:2001 | ||||
Precision | P0, P6, P5 | ||||||
Bore Size: | 25mm-200mm | Outside diameter | 52mm-420mm | ||||
Clearance | C0,C1,C2,C3,C4,C5 etc. | ||||||
Cage Type | Brass cage or Stainless cage | ||||||
Seals Type | RS, 2RS, R2, Z, 2Z, 2RZ etc | ||||||
Features | Auto front wheel bearings play a critical role in keeping vehicles safe and smooth. Wheel bearings are typically located at the spindle of the wheel hub to allow free wheel movement. They are designed to support the weight of the vehicle and allow it to roll with minimal force while withstanding the loads from high speed cornering and hard acceleration and braking. Wheel bearings must withstand outrageous temperatures and conditions. | ||||||
Application | It is used widely for the application of auto industry , Fiat,Volvo,Audi, Volkswagen, Peugeot ,Honda and uesd cars etc. | ||||||
Package | pallet, wooden case,industrial package or as customers' requirement | ||||||
Price | FOB, CRF, CIF | Delivery Time | 1-3 days | ||||
Payment Terms | A.Paypal | ||||||
B.30% T/T in advance, 70% against copy of B/L | |||||||
C. Western Union | |||||||
D. Others | |||||||
Hub bearing Specification:
| Dimension(mm) | ||
| Bearing No. | d*D*H | |
| DAC255200206 | 25*52*20.6 | 156704 |
| DAC25520037 | 25*52*37 | 445539AA |
| DAC25520042 | 25*52*42 | 25BWD01 |
| DAC25520043 | 25*52*43 | |
| DAC25520045/43 | 25*52*45/43 | |
| DAC25550045 | 25*55*45 | 7701208058 |
| DAC25550048 | 25*55*48 | |
| DAC25560032 | 25*56*32 | BAH5000/445979 |
| DAC25620048 | 25*62*48 | |
| DAC25680045 | 25*68*45 | |
| DAC27530045/43 | 27*53*45/43 | |
| DAC27530043 | 27*53*43 | |
| DAC28580042 | 28*58*42 | 28BWD03A |
| DAC28580044 | 28*58*44 | |
| DAC28610042 | 28*61*42 | 28BWD01ACA60 |
| DAC29530037 | 29*53*37 | 801023AB/BTH1026/516007 |
| DAC30600337 | 30*60.03*37 | BA2B633313C |
| DAC30620038 | 30*62*38 | |
| DAC30630042 | 30*63*42 | 30BWD01 |
| DAC30640042 | 30*64*42 | DAC3064W2RKB |
| DAC30680045 | 30*68*45 | 30BWD04CA19 |
| DAC32720025/19 | 32*72*25/19 | 32BCV07S |
| DAC32720045 | 32*72*45 | 90369-32003/32BWD06 |
| DAC32730054 | 32*73*54 | DAC3273W |
| DAC34640037 | 34*64*37 | 34BWD11 |
| DAC34660037 | 34*66*37 | 636114A |

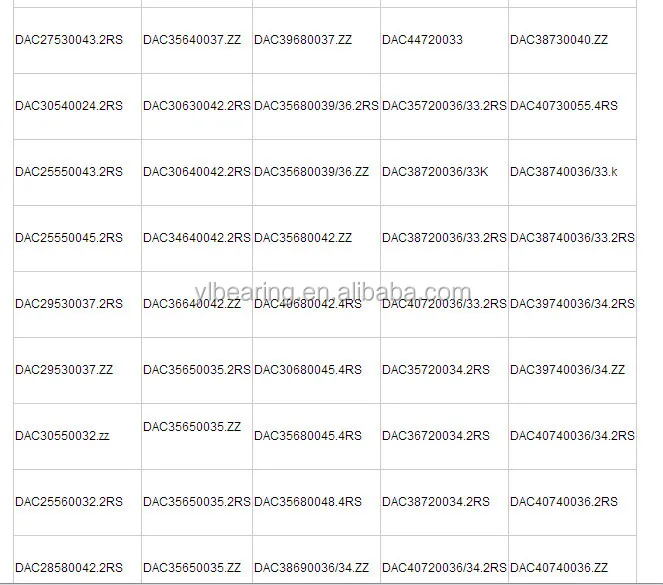

You also can found following types

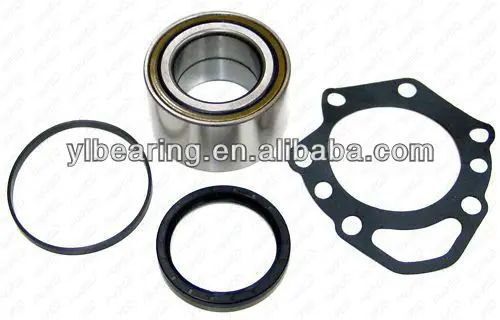

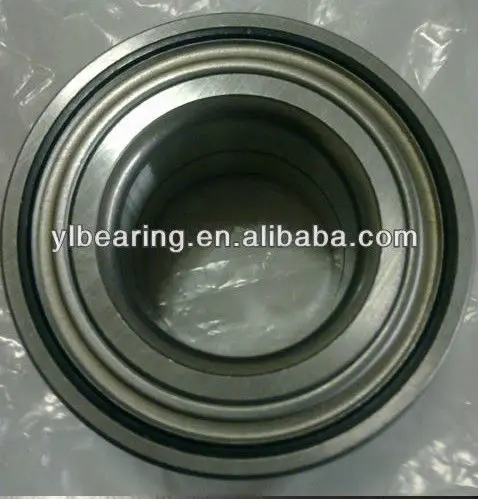

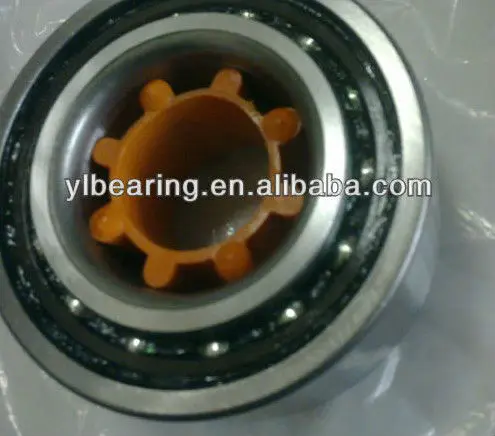

Some pictures of hub bearings
Our factory:
Packaging & Shipping
Our Package:
standard export package for the long and rough shipment distance or as requested
Transportation
Our company have TNT international express, DH, EMS, FEDEX, UPS, etc., we have cooperation shipping, air freight.
Our Services
Our Advantages in the line of hub bearing
1. Many years bearing products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
Method of extending the bearing lifetime:
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2. Don't allow strong impact, such as hammer striking, transfer roller pressure
3. Use the accurate installation tool, avoid to use cloth kind and short fibers
4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5. General inspection, such as the surrounding temperature, vibrate, noise inspection
6. Keep bearing cleaning from dirt, dust, pollutant, moisture.
7. Bearing should not be ultra cooled.
Company Information
LBR BEARING CO.,LTD is a professional bearing manufacturer and dealer in China.We have been engaged in bearing industry for 20 years and made international trade of bearing import and export for more than 7 years.We have our own brand "LBR" . Our company is specialized in ball bearing,roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
Advantage of our company:
1. More than 10 years industry experience
2. Our own brand LBR
3. Accept OEM, customization, customers’ logo
5. Reply your inquiry within 12 hours
6. Professional technical support
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors
Certification :
FAQ
Q1:How about your technical support of bearings?
Our bearings are produced in modern facilities using state of the art manufacturing techniques.
Q2:How about the quality of bearings?
Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
Q3:What kinds of bearings you can manufacture?
We produces standard and custom ball bearings,roller bearings.We also produce custom bearings designed for your special needs.
