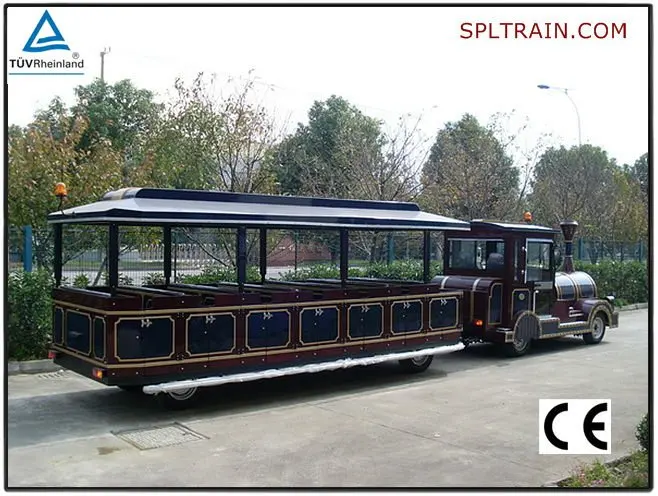

60seats Tourist Road Train

Product Overview

Description

The tourist train is design specially for city tour and sightseeing, with max. speed of 25km/h, we also call it city train, or park train for park use. It is a trackless fun train.







More details as follows:



LOCOMOTIVE DIMESION

Length: 3965mm

Width: 1620mm

Height: 2210mm



MOTOR

IVECO Sofim 8140.43S diesel engine, common rail, 4 cylinders, Turbo-charged, intercooler, direct injection, Displacement of 2798cc, Rated power of 92/3600 KW/(r/min), EURO 3, TUV approval



CHASSIS

Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power.



STEERING

Professional steering column assembly, 4-direction adjustable (forward-backward, up-down).



BRAKES

Hydraulic drum brakes on wheels; parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking.



TRANSMISSION

Original IVECO transmission, 3 forward gears with reverse, speed is reduced by using helical gears.



BODY

Made of reinforced fiberglass, with ROSH approval.







More details as follows:



Specification as follows:



Max. speed	km/h	25
Passengers	people	58
Climbing capacity	%	15



More details please visit our website at:

WWW.SPLTRAIN.COM



SUZHOU PLAYER MACHINERY & EQUIPMENT MANUFACTURING CO., LTD.



We welcome you to contact us formore information and look forward to working with you.
