Product Overview

Description

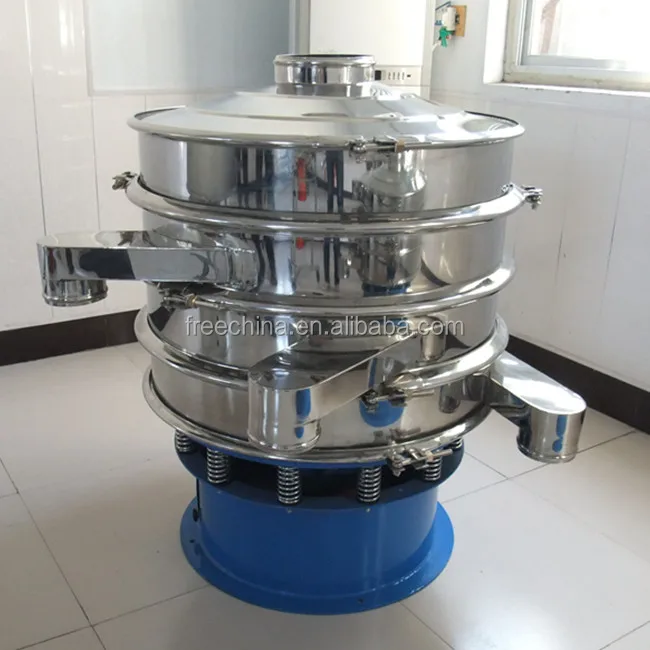

  commercial flour sifter/sifter/electric vibrating sand screen for rice,grain,sugar



We adopted the new type vertical motor which can make the movement into the 3-D movement:  horizontal, vertical and incline movement and then pass the movement to the screen surface.While adjusting the phase angle of hammers at upper and lower ends of motor, the movement path of material on the screen surface can be changed.



Function



1.Classification

Anyone of our products can screen and separate precisely and continuously Multi—layer type can screen and separate five groups of different particles once,and ensure low percentage of undersize and oversize mixture.It is suitable for dry materials.

2.Filtrating of Specific Gravity

The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.

3.Screen the impurity

commercial flour sifter/sifter/electric vibrating sand screen can quickly separate a few oversize or undersize particles from a quantity of material.





  Application



Chemical industry:resin, powder, paint ,fine powder ,soda , citric acid

Ceramic industry:alumina, quartz sand, slurry, glaze and pigment

Foodstuffs industry:sugar, salt, alkali milk, powder, soybean milk, yeast

Papermaking industry:black and white liquid paper, pulp, waste water recycle

Metallurgy:metal powder, welding rod powder

Pharmacy:Chinese medicine powder, western medicine powder

Pollutant treatment:rubbish waste, oil animal, droppings

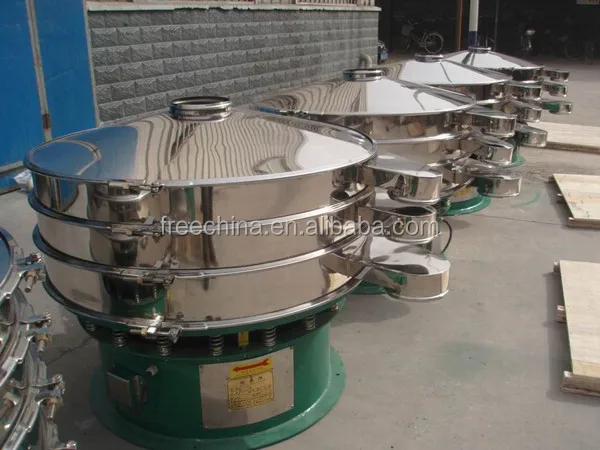

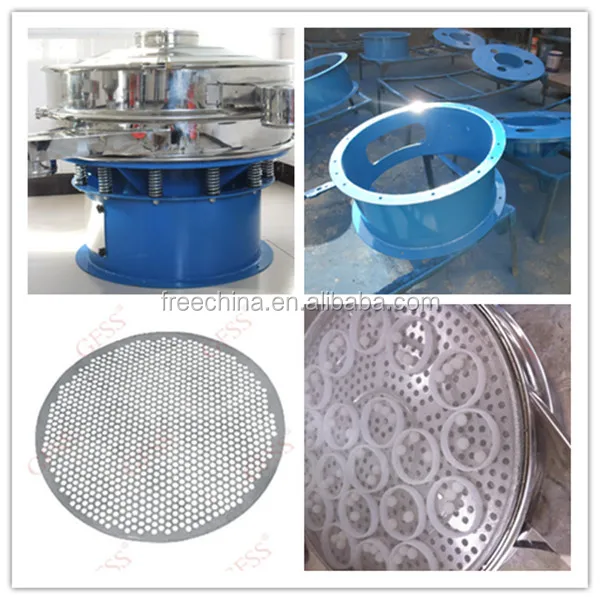

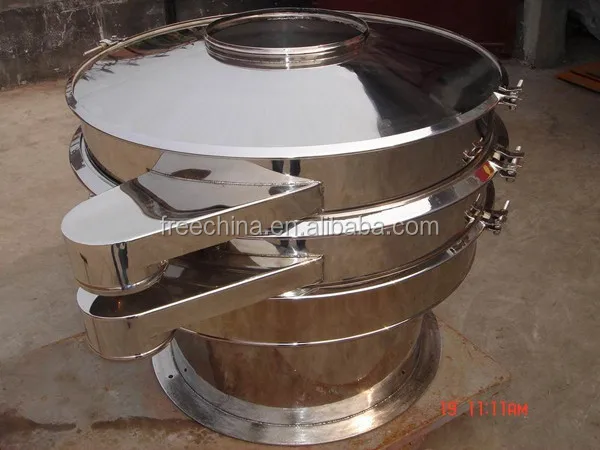

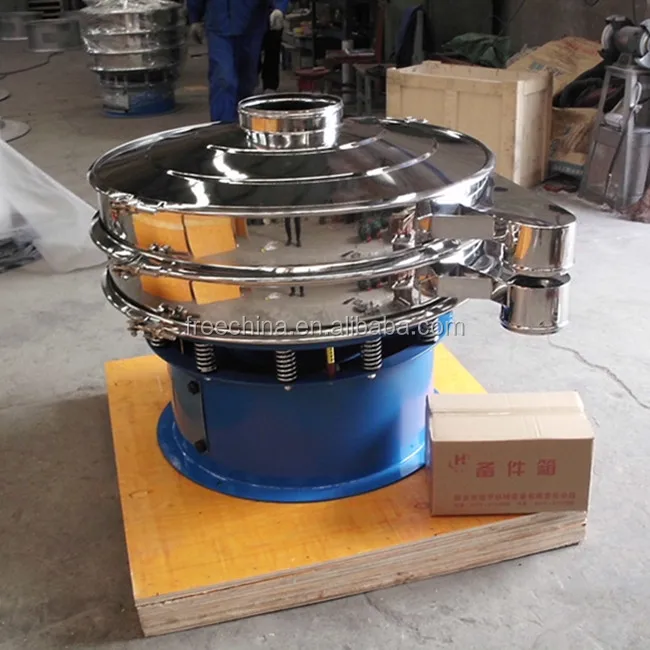

Detail picture


Technical parameters



Model

Layer

Power(KW)

Sieving Diameter(mm)

Dimension

L x H x W(mm)



FR-400

1S





0.18





350

580 x580x560

2S

580x580x670

3S

580x580x780



FR-600

1S





0.25





550

800x800x750

2S

800x800x890

3S

800x800x1030



FR-800



1S





0.55





750

900x900x750

2S

900x900x890

3S

900x900x1030



FR-1000

1S





0.75





920

1160x1160x810

2S

1160x1160x950

3S

1160x1160x1090



FR-1200

1S





1.1





1120

1360x1360x885

2S

1360x1360x1050

3S

1360x1360x1275



FR-1500

1S





1.5





1420

1850x1850x990

2S

1850x1850x1185

3S

1850x1850x1380



FR-1800

1S



2.2



1720

2200x2200x1050

2S

2200x2200x1250

3S

2200x2200x1450

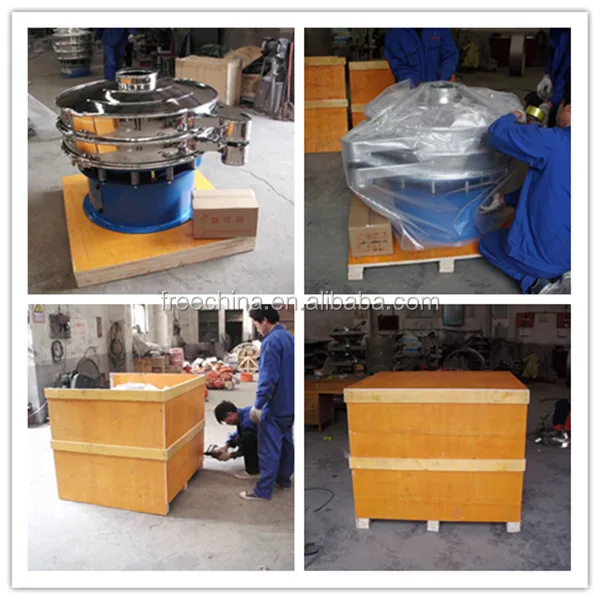

Packaging & Shipping

commercial flour sifter/sifter/electric vibrating sand screen with wooden case/plywood; Or with container based order quantity.
