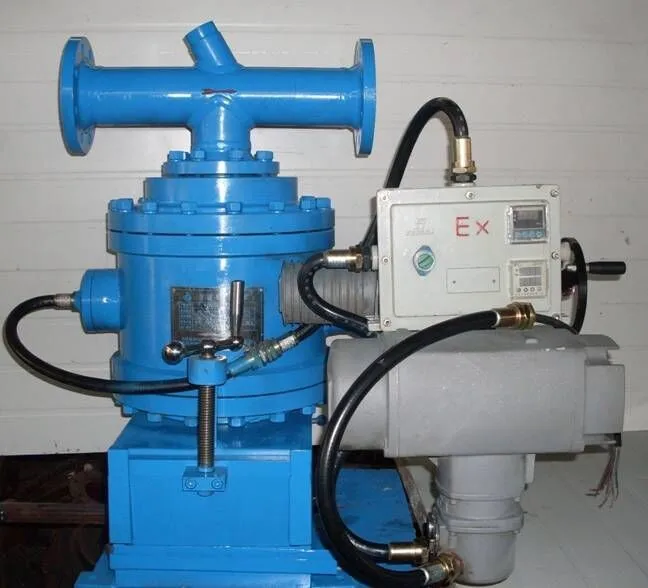

Intelligent pigging valve for gas and oil pipe clean

Product Overview

Description

Pig Launcher and Receiver

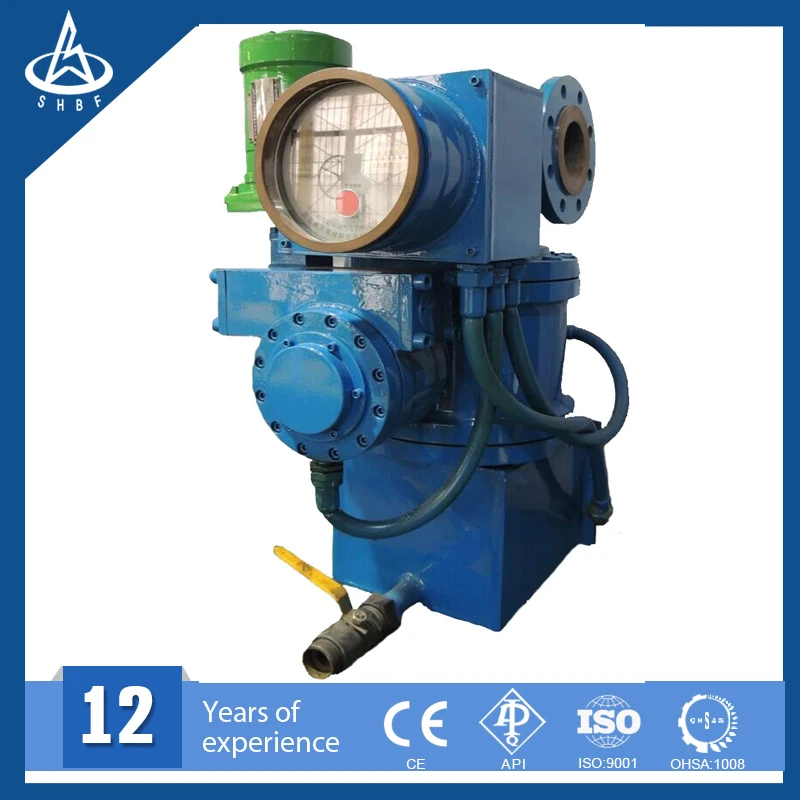

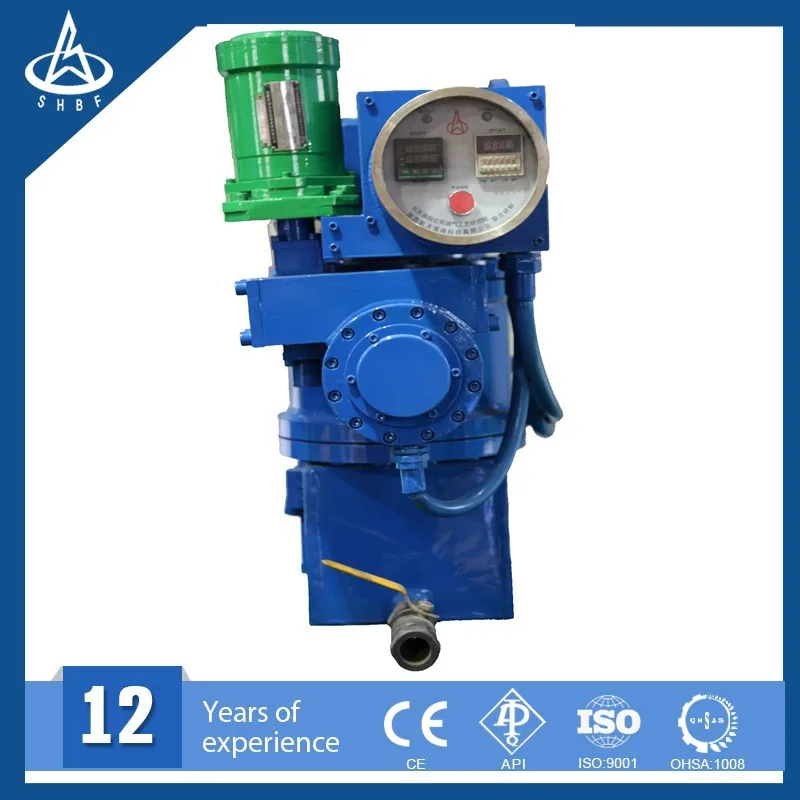

Automatic pitching balldevice

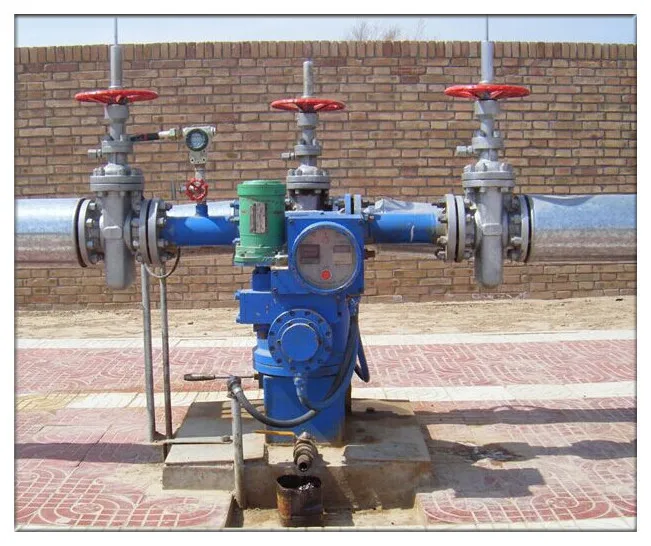

YQY-ASB50/4.0-Ⅲ type safe and environmental online intelligent ball device is used in wellhead gathering line. By the default program, realized the automatic online pitches, effectively purge the lines of wax and impurities, no manual operation, the device without heating at the same time, plus the ball does not need to vent pressure, save a large amount of manpower, safe environmental protection.





Basic parameter:



DN(mm) Nominal diameter		50
PN(MPa) Nominal pressure		4.0
Ps(MPa) Testing pressure	Strength	6.0
	Sealing	4.4
(MPa) Working pressure		4.0
(℃) Operating temperature		≤80
Motor Voltage		AC380V
Motor rated power		0.55KW*2 Sets,25W*1 Set
Ball barrel max storage capacity		15
Applicable medium		Water,crude oil and other fluids
Applicable ball specification		Φ35~Φ48  Oil resistant rubber ball

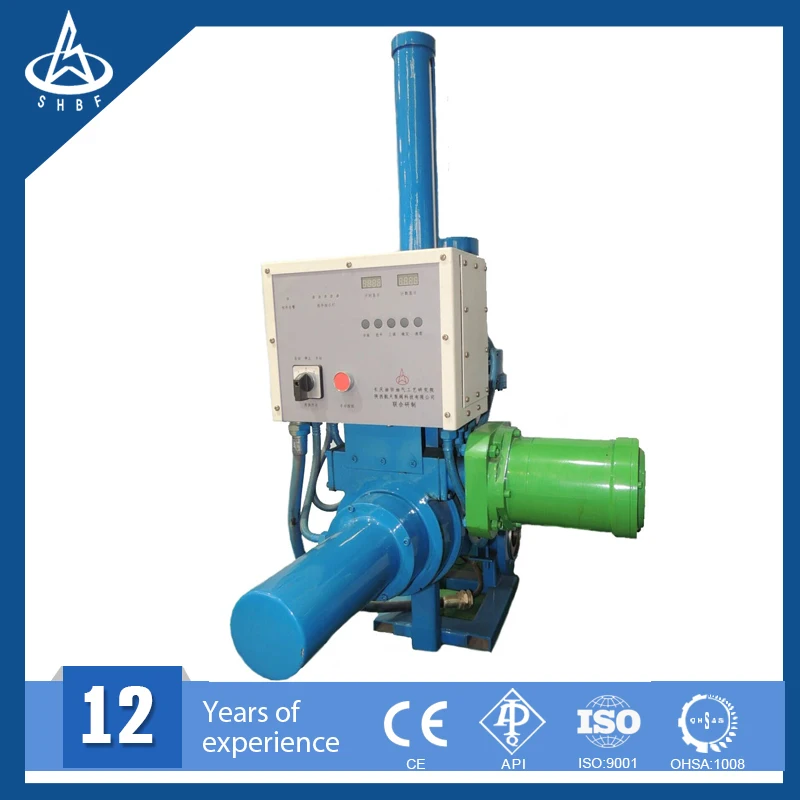

Automatic ball collecting device

YQY-ARB80/1.6 type Automatic ball collecting device is wildly used in the wellhead oil gathering pipeline, by default procedures of the ball collecting program, realized the automatically online receive the ball, no manual operation, save huge manpower and material resource. Safe and environmental protection, the heat tracing for adjustable constant temperature heating.



Basic parameter



Nominal diameterDN(mm)		80
Nominal pressure  PN(MPa)		1.6
Ps(MPa) Test pressure	Strength	2.4
	Sealing	1.76
Working pressure(MPa)		1.6
Medium temperature(℃)		-40~80
Motor voltage		AC380v
Motor rated power		0.37KW
Storage barrel max storage		35 pcs ball(φ48)
Applicable medium		Water,crude oil and other fluid
Applicable ball specification		Φ35~Φ48   Oil resistant rubber ball





Please send me your requirment,  then we could offer you the suitable style and competitive price.
