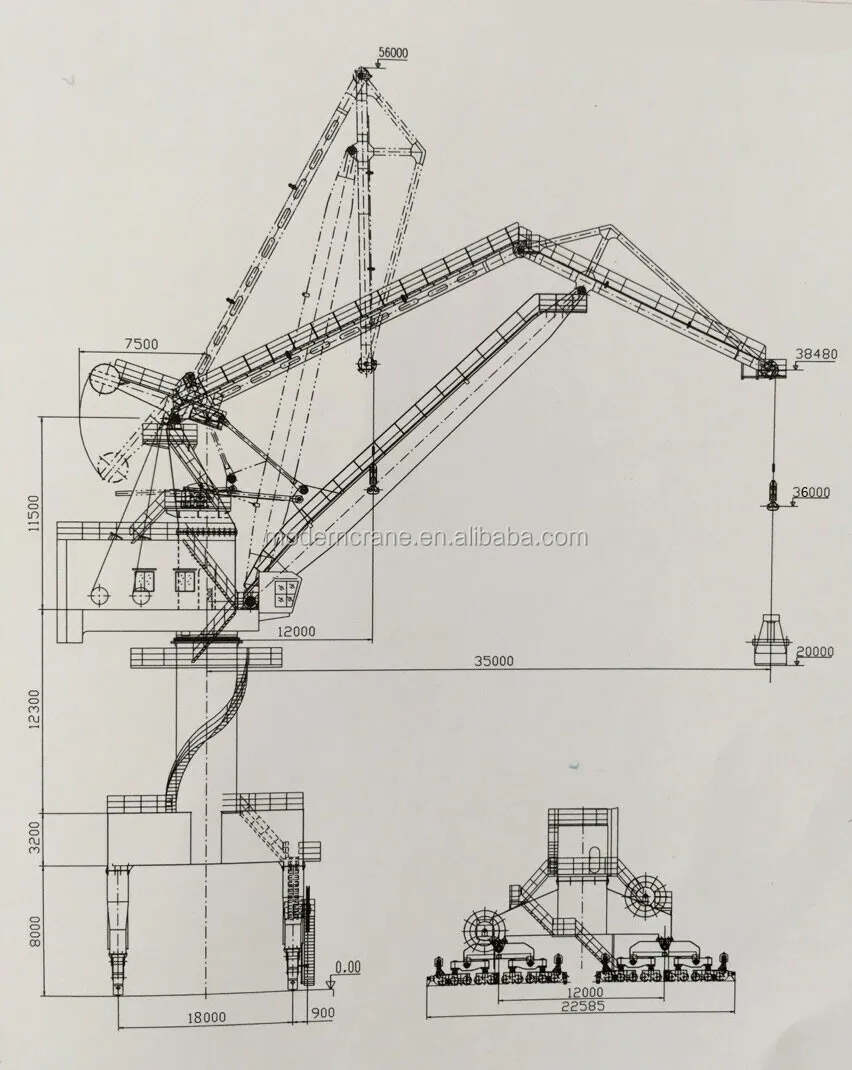

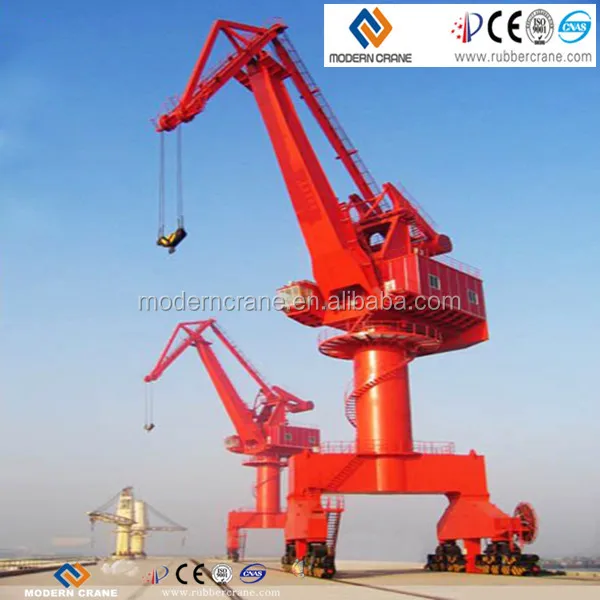

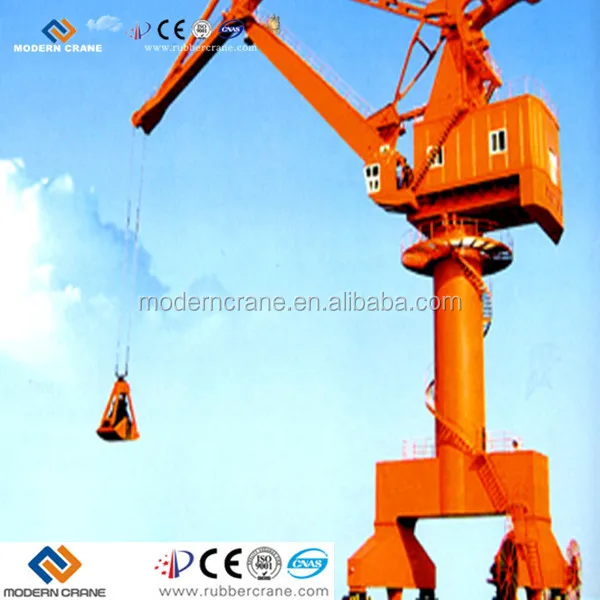

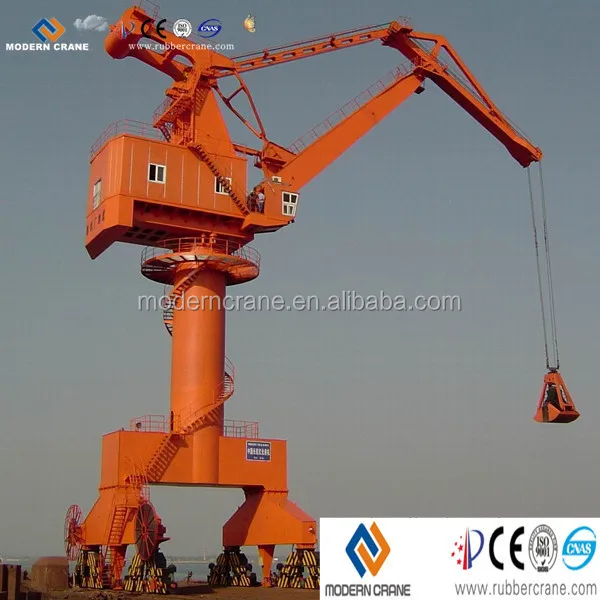

Port or harbour portal crane is used for loading and discharging cargos from ships or shipbuilding. It is suitable at various of ports and shipyards with the help of hook, hanger, grab, container spreader etc. Portal Jib crane is also called mobile slewing and luffing crane due to its working features.
the most important parameter is the lifting capacity and working radius.
Parameters and data
Specification
MQ0518
MQ1030
MQ1625
MQ2519
MQ2525
MQ4019
Job Level
A8
A8
A8
A8
A8
A8
From the weight(grab/hook)
5
10
16
25
25
40
Margin
Maximum(grab/hook)
m
18
30
25
19
25
19
Minimum
8
8.5
10
10
9
9
Lifting Height
Rail(grab/hook)
m
12
25
16
16
16
18/25
Under rail
13.5
15
15
15
12
15
Operating speed
Lifting(grab/hook)
m/min
40
60
35
23
28.4
17.3
Amplitude
30
50
21
21
15.5
15.5
Rotation
Rpm
1.32
1.5
1.2
1.2
1.03
1.03
Walk
m/min
25
25
16.5
16.5
18.2
18.2
Max. Wheel Loading
KN
190
230
200
200
230
230
Gauge
m
7.5
10.5
10.5
10.5
10.5
10.5
Substrate distance
m
7.5
10.5
10.5
10.5
10.5
10.5
Recommended track
43kg
QU70
QU70
QU70
QU70
QU70
Installed capacity
KW
216.8
262
262
Power Supply
3-Phase A.C 50HZ 380V

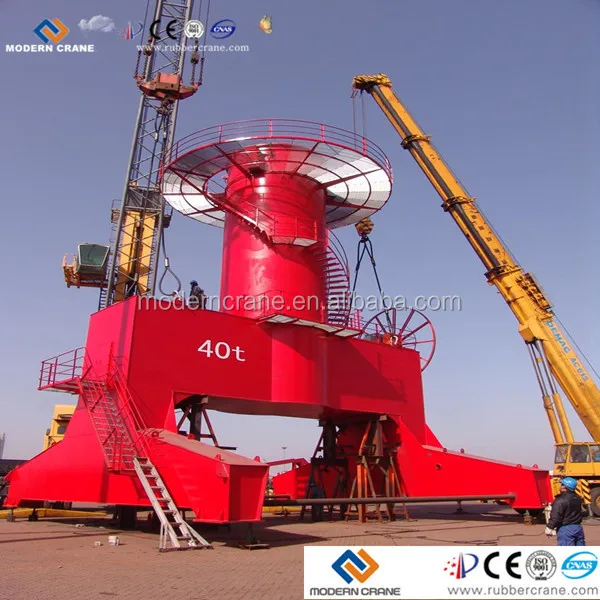

Produce progress
Produce progress
Professinal test equipment
Packaging & Shipping
3t-50t pedestal jetty Crane
Electricals and other parts are packed by high quality plywood crates, Main beam packaged by plastic film and woven plastic cloth.
Company Information
3t-50t pedestal jetty Crane
We Modern Crane Company is professional at cranes & hoists for over 10 years, our products cover cranes, hoist, winches and the end beam lifting accessories etc.
Hope we can have opportunity to cooperate with you.
Customer vists
Our Services
Certifications
Certifications
Modern crane welcome your visit, hope to cooperate with you!
