C51/52 cnc and conventional vertical lathe machine/vtl vertical lathe
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (602272270):
Product Overview
Description
C51/52 cnc and conventional vertical lathe machine/vtl
Related Vertical VTL
Main features:
1. CE is approved;
2. There are four series of vertical lathe machine in our company:
Universal single-column vertical lathe, universal dual-column vertical lathe; CNC single-column vertical lathe and CNC dual-column vertical lathe.

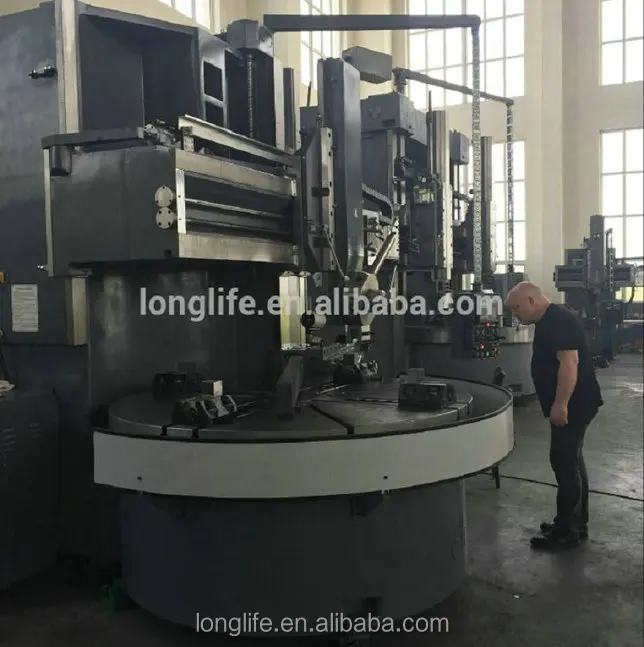

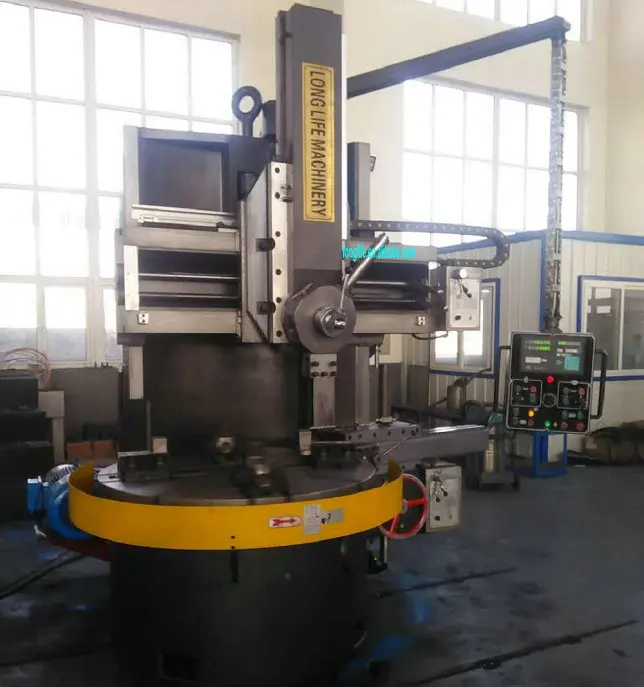

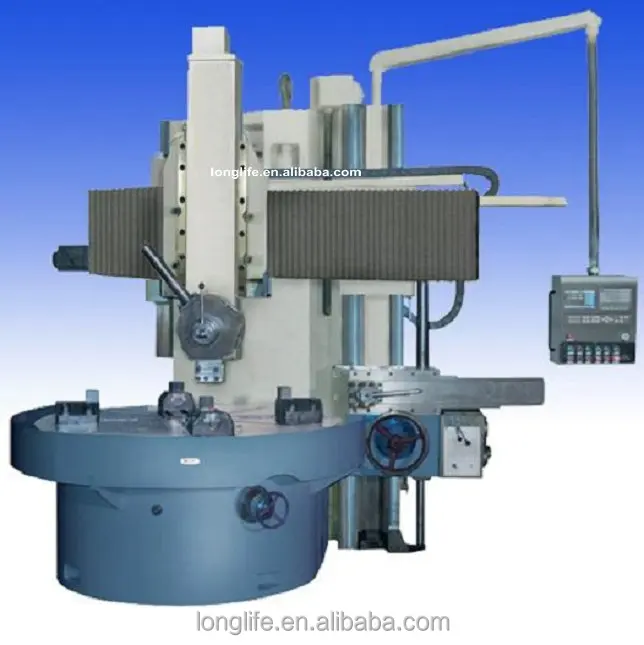

3. Universal Single-column Vertical Lathe: C517 C518 C5110 C5112 C5116 C5120 C5123 C5126 C5132;

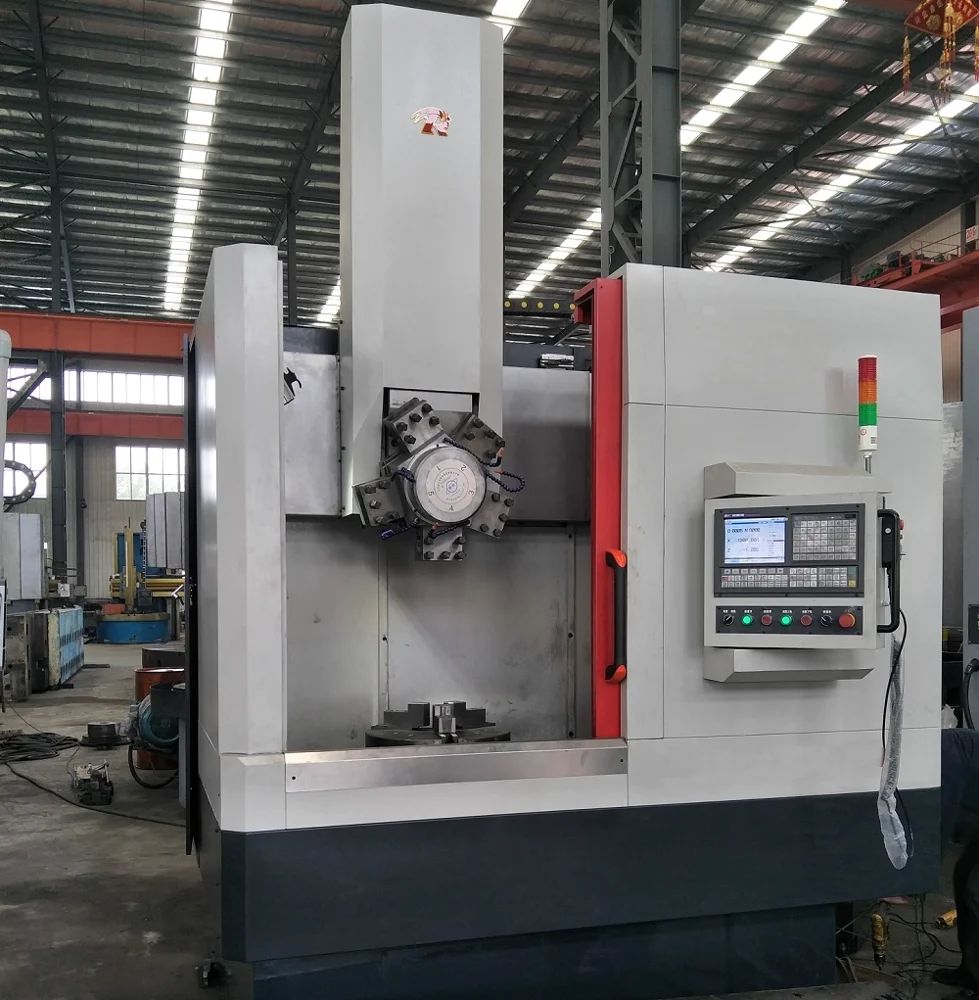

4. CNC controllers: Fanuc, Siemens and other world famous brands;
Main Technical Data:
Universal Single-column Vertical Lathe Machine: C517 C518 C5110 C5112 C5116 C5120 C5123 C5126 C5132:
Specifications | Unit | C518A | C5110 | C5112A | C5120D | C5126D | C5132 |
Max. turning diameter of railhead | mm | 800 | 1000 | 1250 | 2000 | 2300 | 3200 |
Max. working height | mm | 800 | 800 | 1000 | 1200 | 1500 | 1600 |
Max. weight of workpiece | T | 1.2 | 2 | 4 | 8 | 10 | 10/30 |
Table diameter | mm | 720 | 900 | 1000 | 1800 | 2300 | 2830 |
Speed range of table | r/min | 10~315 | 8~250 | 6.3~200 | 4~125 | 1.2~40 | 2~63 |
Speed-step of table | steps | 16 | 16 | 16 | 16 | 16 | 16 |
Power of main motor | kW | 15 | 22 | 22 | 30 | 37 | 37 |

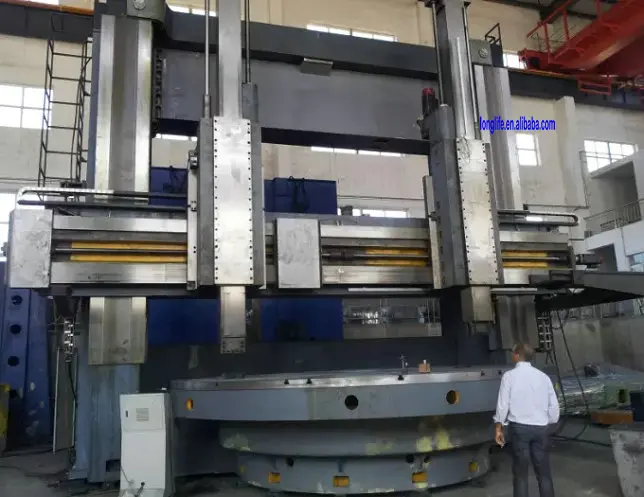

Universal double column vertical lathe machine: C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125:
Specifications | Unit | C5225 | C5232 | C5240 | C5250 | C5263 | C5280 | C52100 | C52125 |
Max. turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. working height of workpiece | mm | 1600 | 2000 | 1600 | 2000 | 3000 | 4000 | 4000 | 4000 |
Max. weight of workpiece | T | 10 | 10/30 | 10/32 | 30/50 | 50 | 100 | 100 | 100 |
Table diameter | mm | 2250 | 2830 | 2830/3200 | 3600/4500 | 3800 | 5700/6000 | 7100 | 7500 |
Speed range of table | r/min | 2~63 | 2~63 | 2~63 | 0.2~40 | 0.5~50 | 0.2~20 | 0.16~16 | 0.16~16 |
Speed-step of table | steps | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Travel of right tool post (Vertical) | mm | 1300~1500 | 1000~1500 | 1000~1500 | 1250~1600 | 1600~2000 | 2000 | 2520 | 2520 |
Travel of left tool post (Horizontal) | mm | 1400 | 1735 | 2150 | 20~2630 | 3415 | 50~4400 | 50~4400 | 50~4400 |
Power of main motor | kW | 55 | 55 | 55/75 | 75/75 | 75 | DC132 | DC132 | DC132 |
Free Std Accessories
S.N | Name | Remark |
1 | 4-jaw chuck | 1 set |
6 | Operation tools | 1 set |
8 | Certificate of Conformity | 1 set |
9 | Packing List | 1 set |
10 | Instruction Manuals | 1 set |
