Product Overview

Description

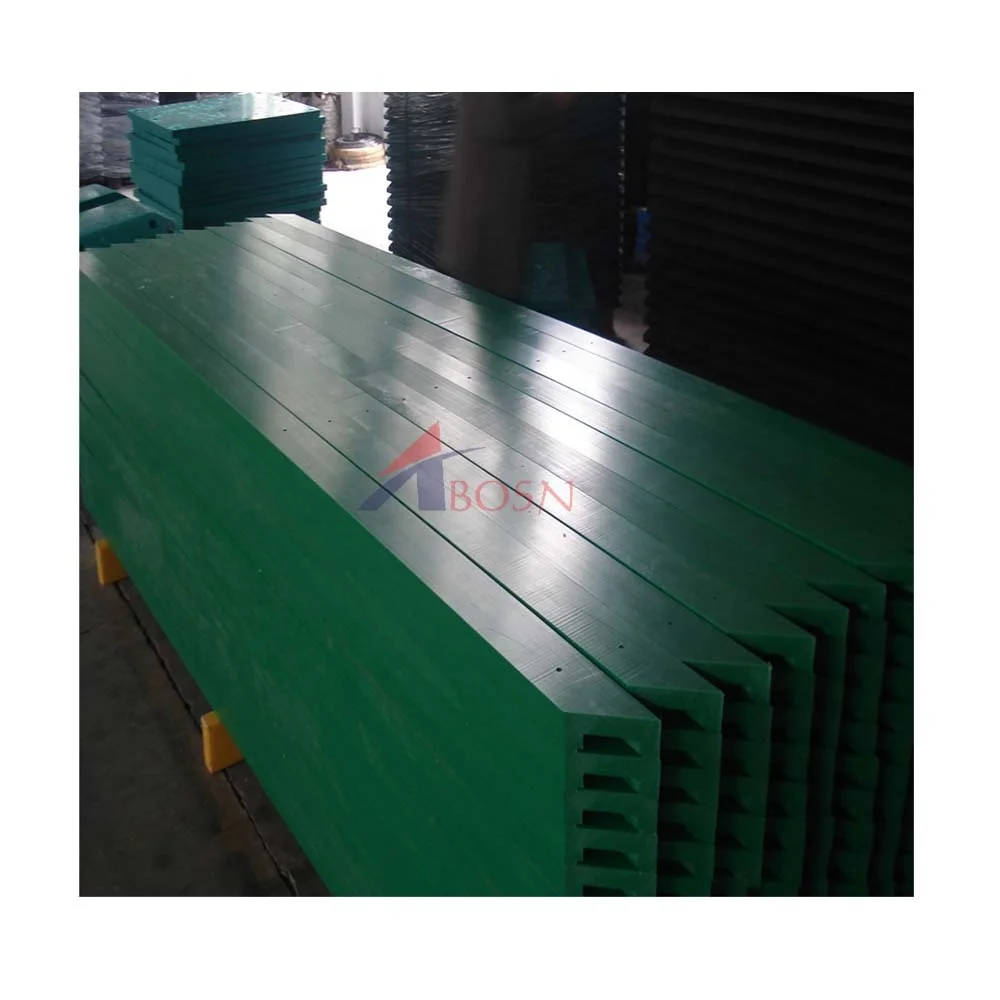

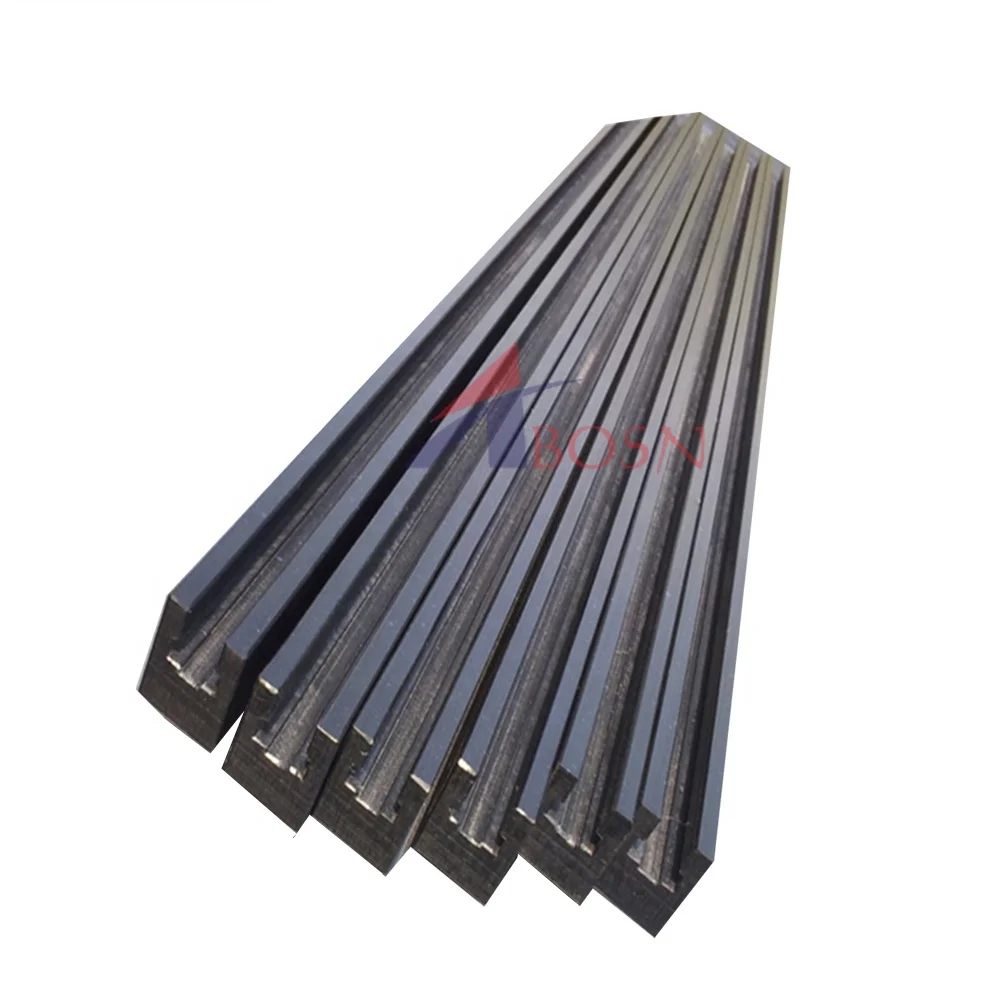

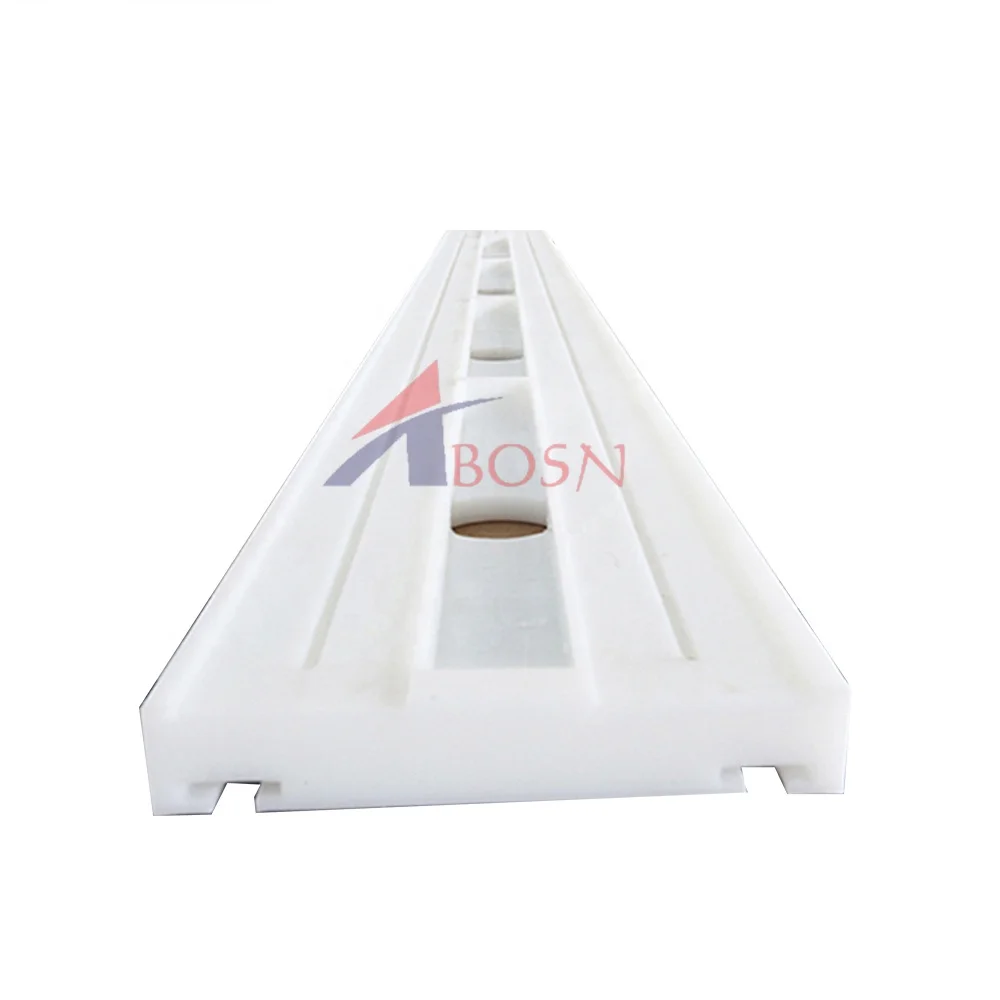

UHMWPE Chain Guide/Wear Resisting Plastic Chain Guide for conveyor Rail



UHMWPE Chain Guide/Wear Resisting Plastic Chain Guide for conveyor Rail

Wide variety of standard products in stock, ready to ship today!

Two-piece guide and channel design simplifies installation and replacement.

Our Chain Guides are produced using only the highest quality virgin black UHMW-PE material to ensure minimum friction and maximum wear resistance.

UHMWPE Chain Guide/Wear Resisting Plastic Chain Guide for conveyor Rail





Advantages of UHMWPE/HDPE Chain Guides



Quiet operation



Lightweight



Excellent chemical and corrosion resistance. See product specification for details.



Mounting channels available to simplify installation



UHMWPE Application
1.Food machinery and packing machinery leather



Curved rail for food making machine,guide rail and planet wheel for container,propeller screw,powder or particle hopper,sauce or stuffing shaper,liquid filling line gear,chain wheel(which reduce the chance of glass bottle damage and production line noise)thanks ro plastics alloy’s non-toxic,impact resistant and noise absorbing and light weight features.



2.Car shipping ceramies



Bunker liner,coal ash and cement tipper liner,cleaning tipper liner,scraper liner,tunel driller pad.



3.Electric power metallurgy paper



In the electronics industry, the use of this product to make magnetic powder mixing impeller, phone assembly line sensor main quantum, elevator guide shoe, automatic elevator movement device, cassette tape lining and so on, performance is superior to other engineering plastics



4. Metallurgy equipment



Roller for conveying section steel,steel plate and thin steel in steel mills;liner of hopper for limestone,gypsum,metal chip,silica sand,cast sand and carbon power,liner of muller.The material reduces machine noise,improves machine life and reduce power consumption.



5.Sports ,recreation,medical



Skating ground,skating ground,amusement part slide,slide way,sled board,artificial breast,artificial limb,artificial joint.



6.Ship fender panels



Ship or boat inner hull liner,copper liner,inner liner for chain bucket of dredger.The material ensures normal operation of cargo ship self-dumping system,prevents block arching,thus improves cargo discharging speed by 30%.It is also used for ship dock board,block,steamer bottom plate,stern bush bearing.



7.chemical



Propeller,shaft sleeve,acid washing channel guard lining board of acid resistant pump or chemical pump owing to plastics alloy corrosion resistant,abrasion resistant,lubricating and non-sticking features.It is also used for channel lining board of sprial conveying system.



8. Paper milling



Water absorbing tank panel,log belt conveyer roller,dehydration tool,formed board and wiper panel owing to platics alloy’s non-sticking,corrosion resistant and non-water absorbing features.



And we have other wear-resisting parts, UHMWPE/HDPE pipe support blocks, suctions box covers for dewatering elements.



 UHMW-PE is a super engineering plastic that is probably not as well known as some other engineering plastics but can out perform its relatives in a number of important areas. UHMW offers a combination of excellent properties – outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating properties and excellent mechanical properties, even in cryogenic conditions. UHMW product reduces noise from impact & vibration. It is a self-lubricating material that is chemical, corrosion, and wear-resistant. And it’s food safe. The weight is light; the proportion is 1/8 of the rolled steel. Life is higher than steel. The wear resistance is 3 to 7 times of carbon steel and steel.



Guide rail was designed in response to demands from the packaging and material handling industries that require exceptional frictional and resistant properties. And it provides effective protection for expensive conveyor systems, especially in wet and corrosive environments.
We offer a wide variety of custom designed UHMW-PE chain guide that meet client specifications. Each one of them is made-to-order utilizing WM’s top of the line fabrication equipments. Those guide rails provide high abrasion, low coefficient of friction, high impact of resistance, and excellent chemical resistance. Their unique characteristics help conveying systems operate with minimal wear and extended life.

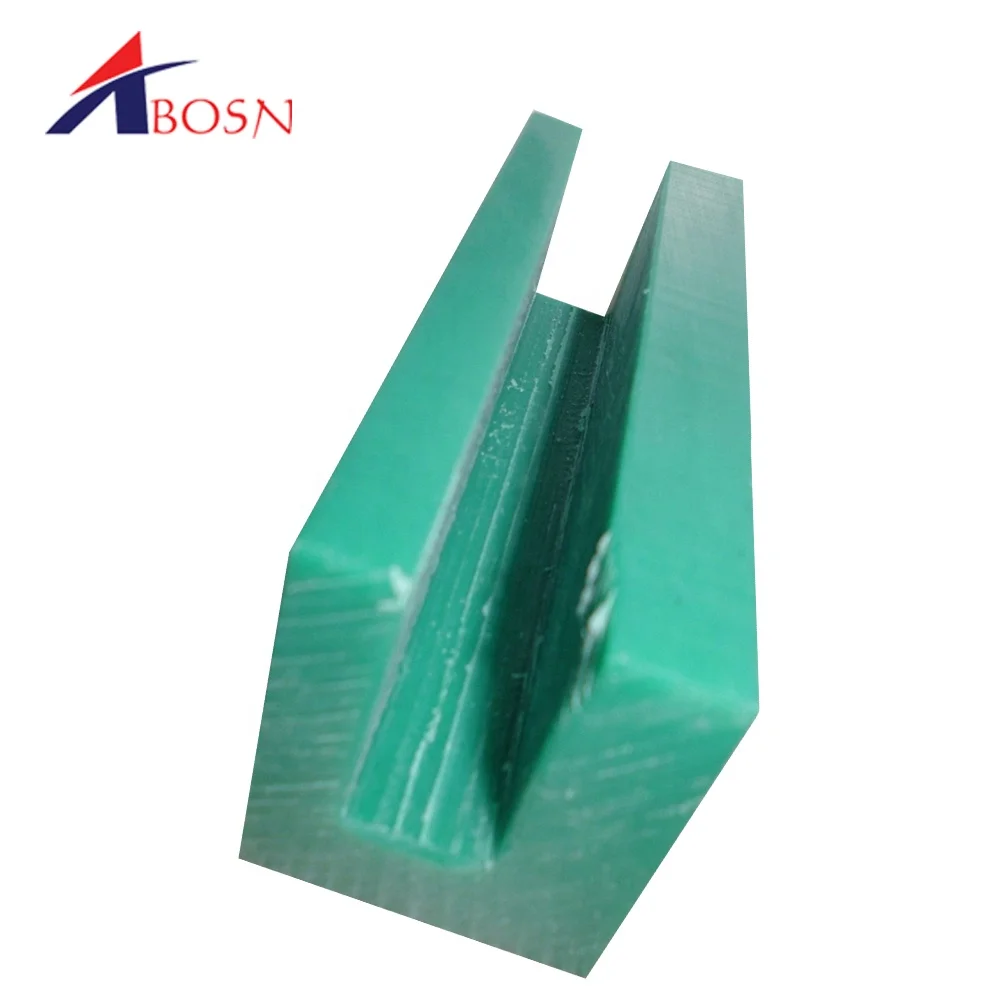

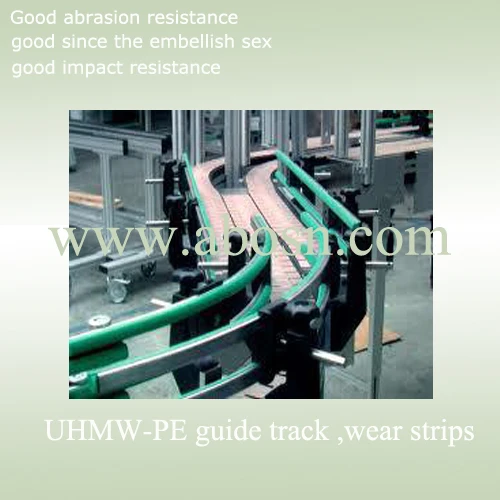

  UHMWPE chain guide/ UHMWPE engineering plastic slide rail/slide strips

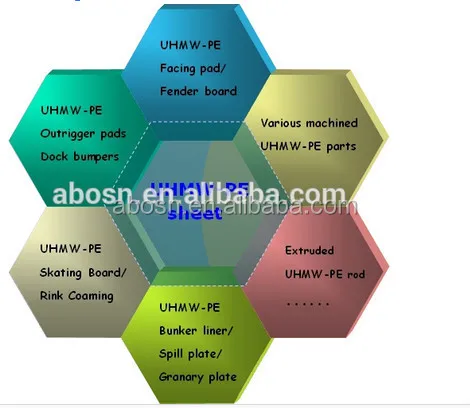

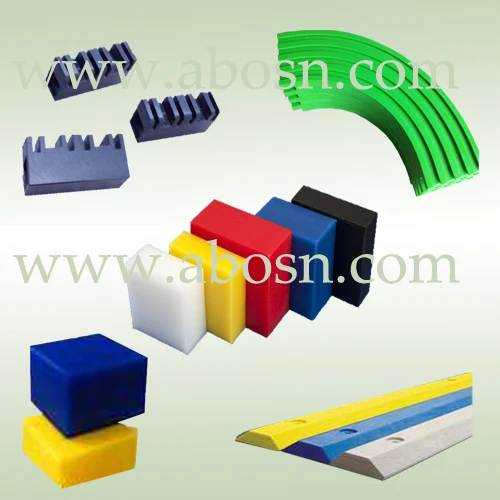

Application of UHMWPE wear-resisting strips and parts
Food machinery	Guides, conveyor, liner panel, sliding block, bearing,  star wheel...
Mining machinery
Conveying machinery
Filling machinery
Marine machinery	Marine parts, wear-strips block...
Paper machinery	Suction box cover, scraper, wear-resisting strips...
Other machinery	Bearing, gear, braking parts...

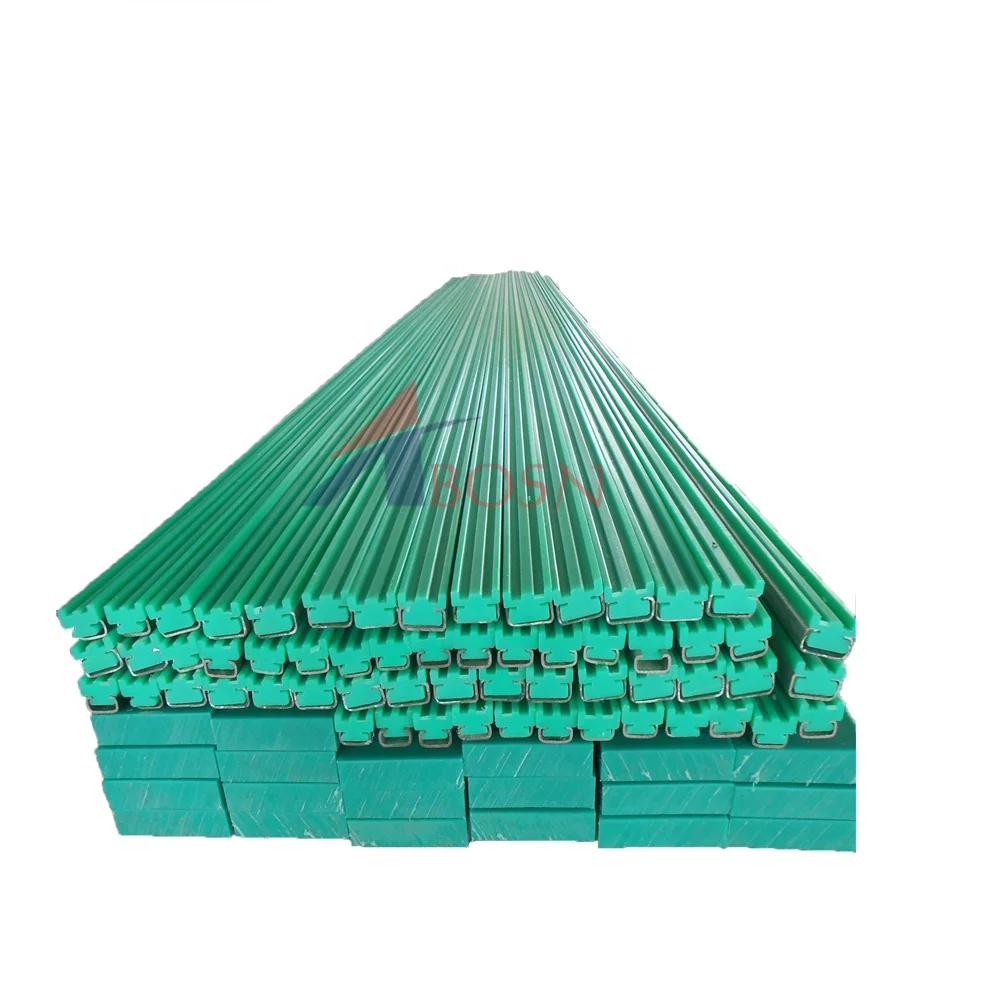

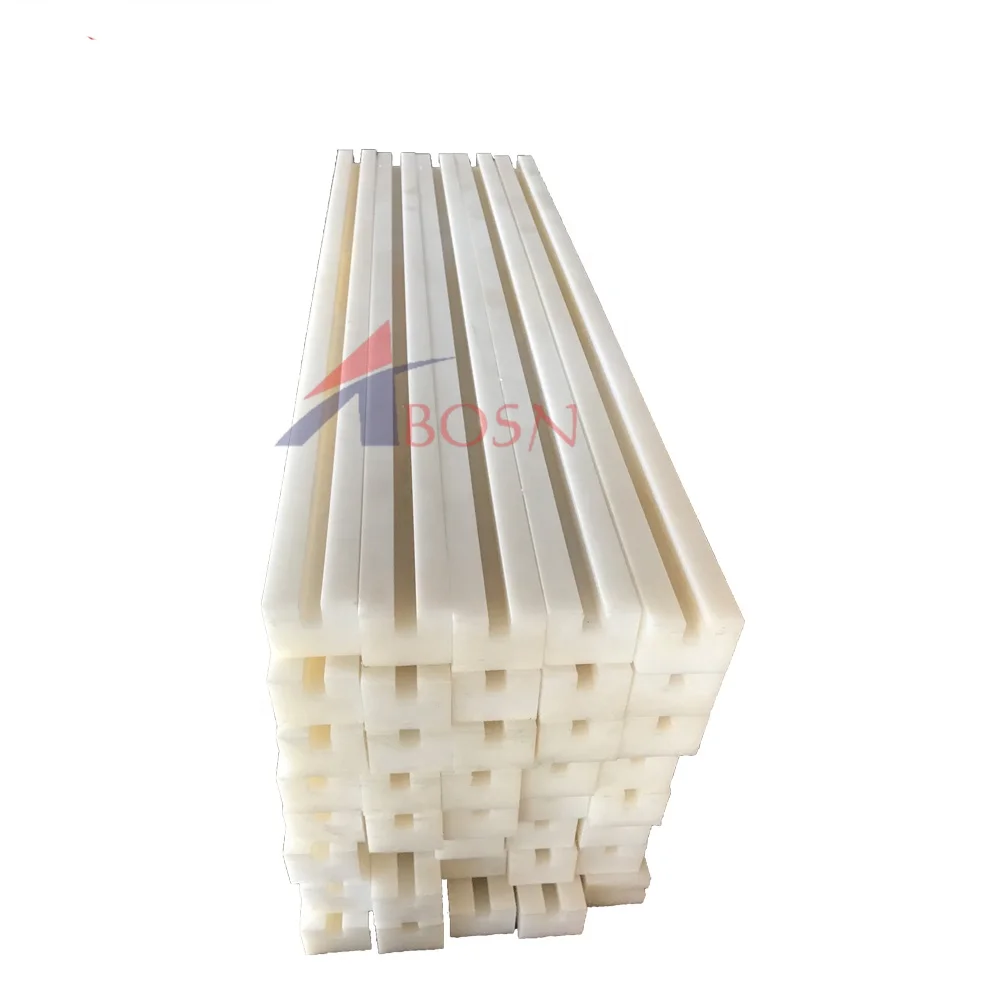

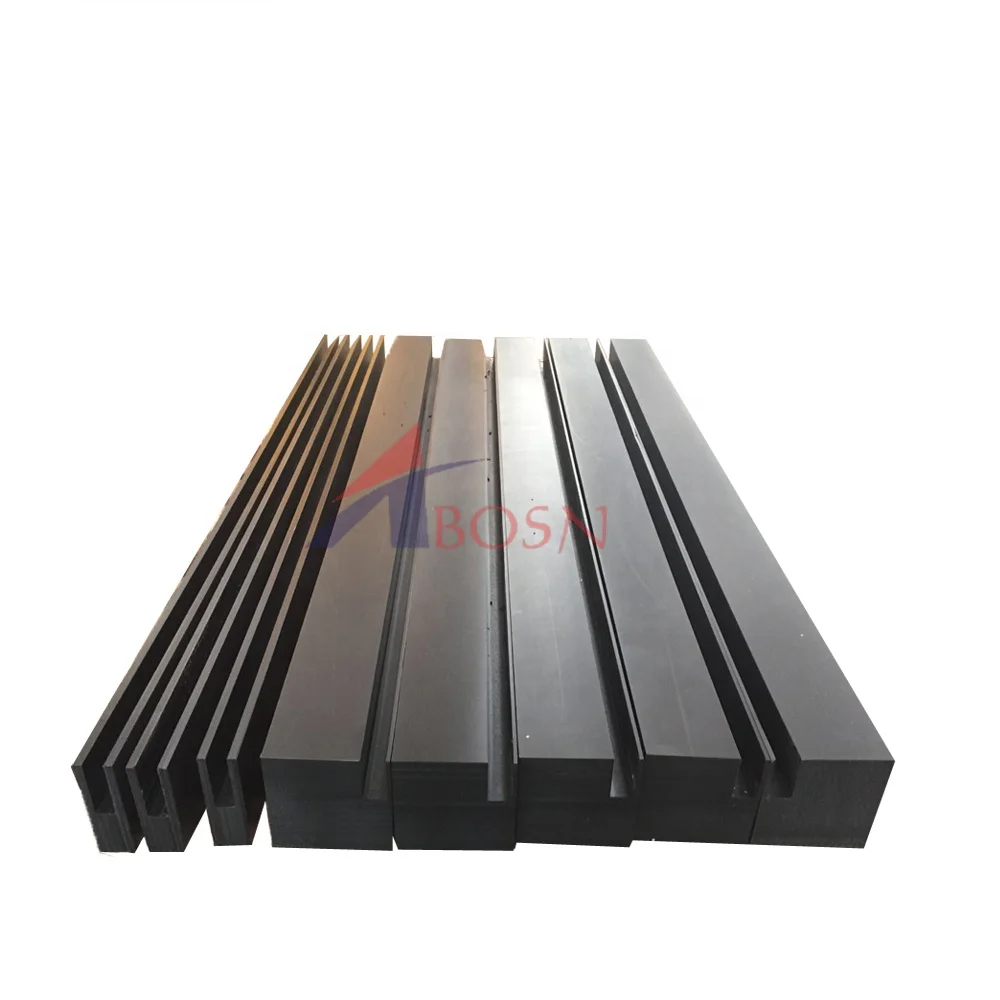

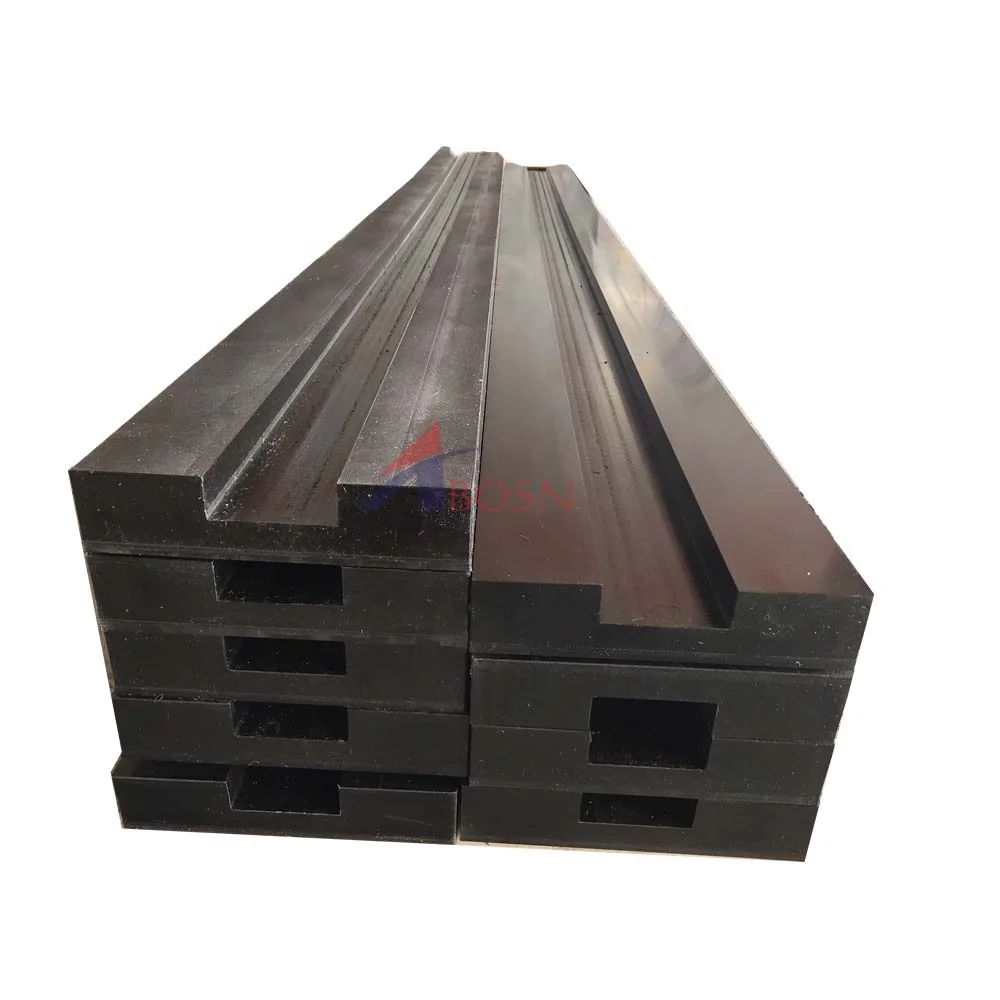

 UHMWPE Chain Guide Track Rail:

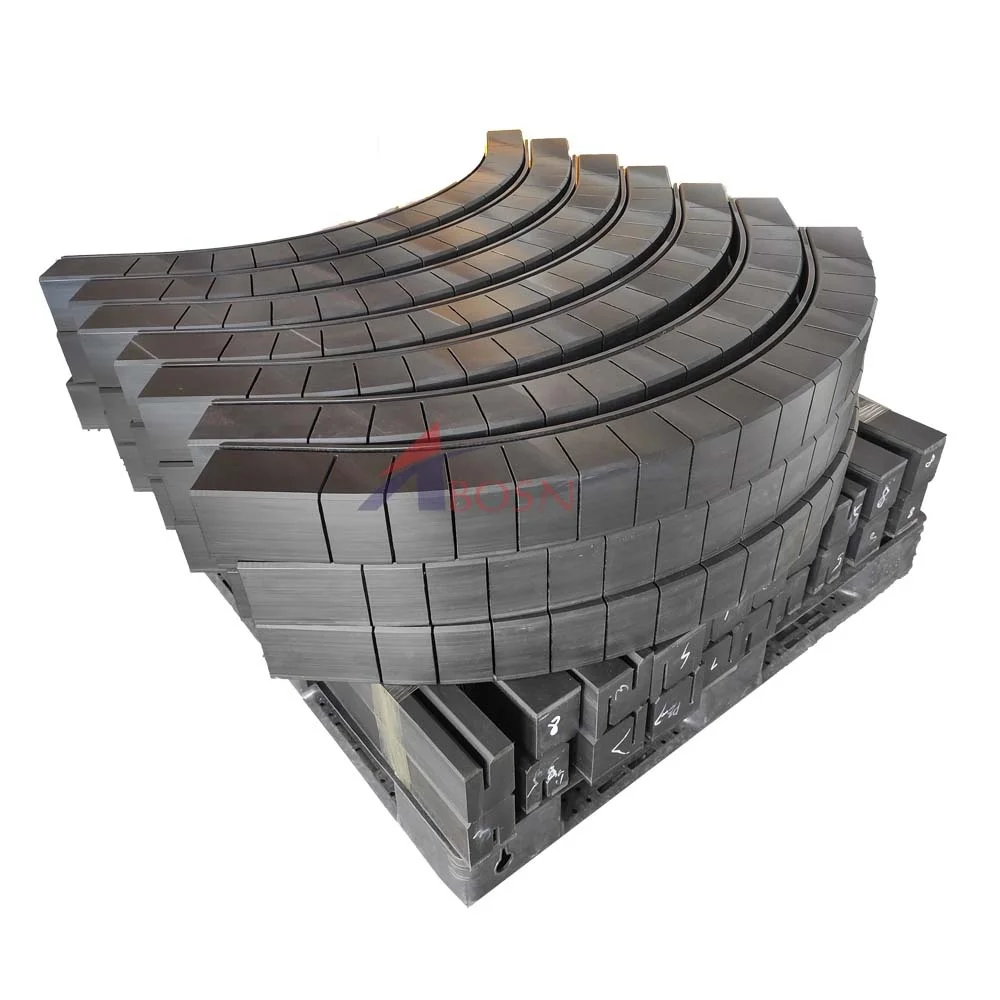

UHMWPE track rails is one of our new products, it has all the advantages of UHMWPE, and its good condition made UHMWPE track in conveyor track, protective curve track, ect. And we have developed many types UHMWPE track , all available in several grades of UHMW plastic. UHMW chain guides extend chain life, reduce noise and friction. You can order them in standard sizes, or have a custom order. The canning, packing and bottling industries often utilize our conveyor components for their ease of use, compatibility with other European suppliers, resistance to abrasion and lownoise properties. Machined tracks offer a convenient and easy way to guide side flexing chain around a corner. Made from Virgin UHMWPE they have a low coefficient of friction, silent operation and permit high speed lines.



















The color of UHMWPE :

Black,Blue,Yellow,Green,White,Red,Orange or other customer color according to your requirements.
