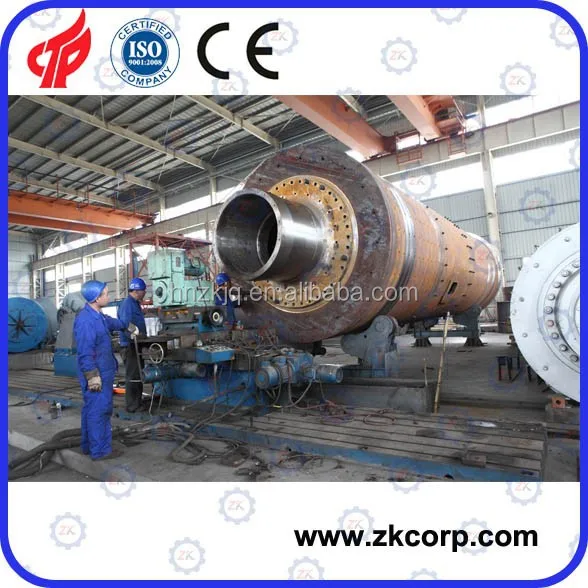

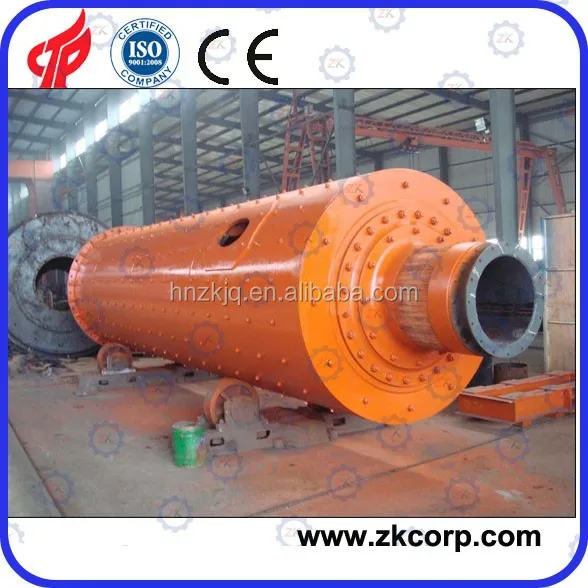

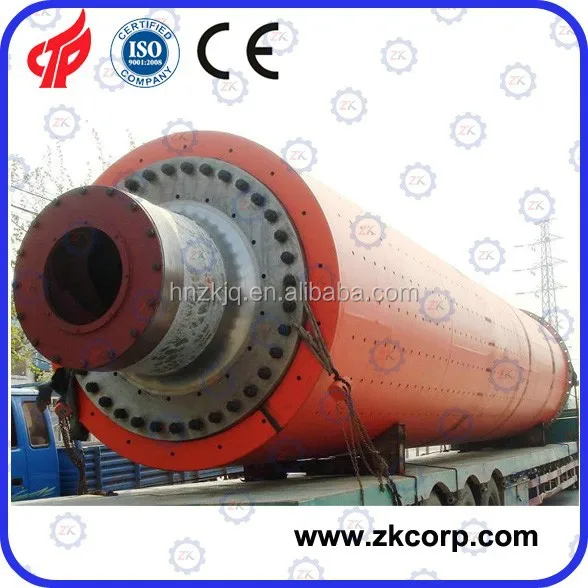

Dry process clinker grinding ball mill for cement production

 1.Introduction of cement clinker grinding ball mill

This series of cement clinker grinding ball mill is suitable for cement,ore dressing, chemical and refractory industry to operate fine grinding.Bearing-type drive cement clinker grinding ball mill is a technological changing type, compared with the traditional grinding ball mill ,15% lower operating current and reduce the starting current 50%, according to Babbitt burning, downtime, the phenomenon of stopping production, not enough to improve the ball concentricity, run instability, current fluctuated,  wear serious phenomenon hollow shaft. While use of rolling bearing, the hollow shaft can continue to use, save 90% lubrication oil, improve the loading of 20%, increase production by 15%, 10% speed increase , each saving at 20%-30% power.

2.Working priciple of cement clinker grinding ball mill

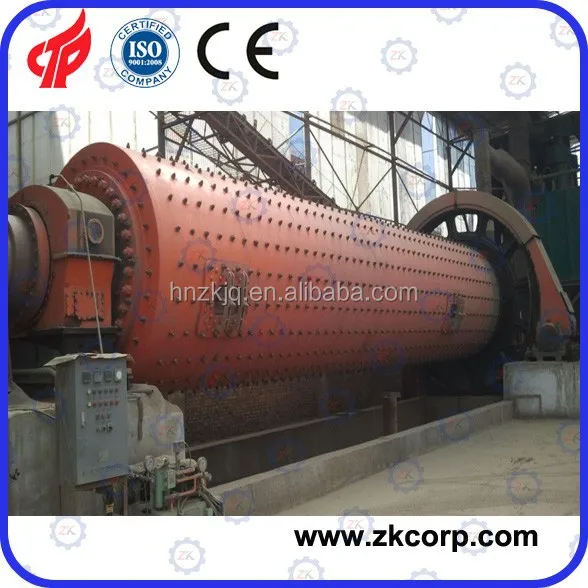

1) This cement clinker ball mill,a horizontal type and tubular running device, has two chamber. This machine is grid type. The material enters first warehouse spirally and evenly along the input material hollow axis by input material device.

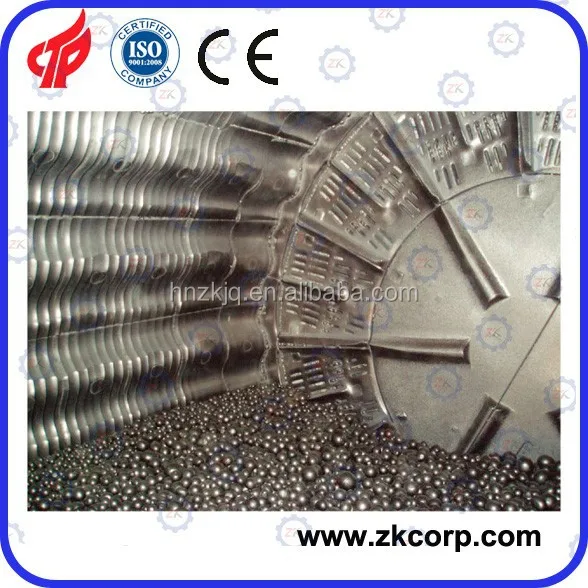

2) The cement clinker grinding ball mill is usually divided into at least two chambers,(Depends upon feed input size presently mill installed with Roller Press are mostly single chambered), allowing the use of different sizes of grinding media. Large balls are used at the inlet, to crush clinker nodules (which can be over 25 mm in diameter). Ball diameter here is in the range 60–80 mm. In a two-chamber mill, the media in the second chamber are typically in the range 15–40 mm, although media down to 5 mm are sometimes encountered. As a general rule, the size of media has to match the size of material being ground: large media can't produce the ultra-fine particles required in the finished cement, but small media can't break large clinker particles.

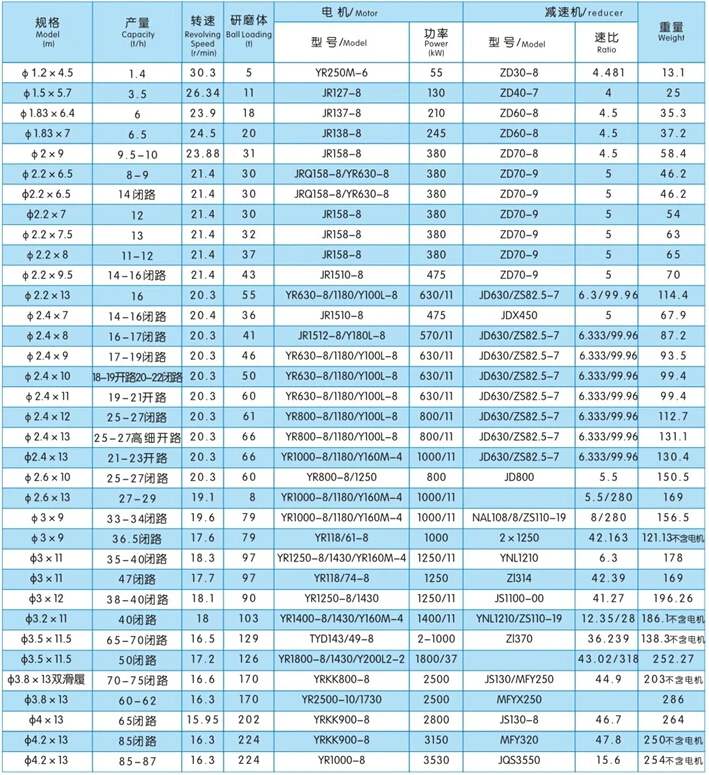

3.Technical parameter of cement clinker grinding ball mill

4.Main constrction of cement clinker grinding ball mill :

• Rotation Cylinder
• Driving Device
• Main Bearing
• Feed Device
• Discharge Device

• We can design and make plan for customers;

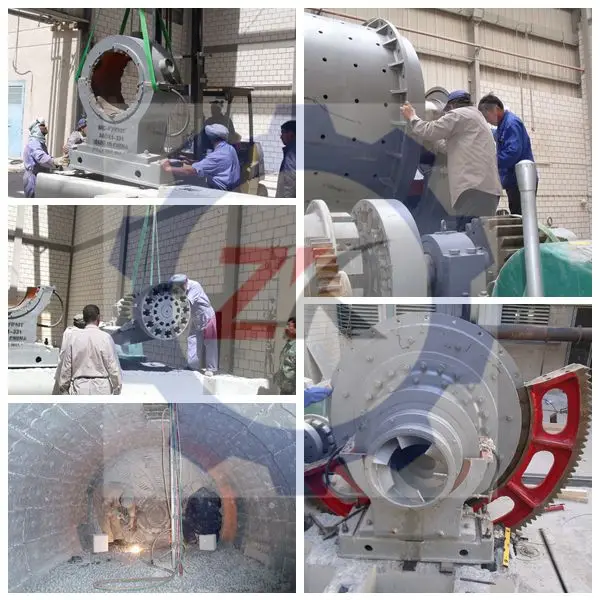

• We can arrange engineer to service overseas;
• We can supply EPC/Turn Key Basis project Service;
• We can guidance  commissioning until manufacture normal.

QC from materials to finish production according to GB and Industry Standard.

We Got

• ISO9001:2008 Quality Management System Certification
• CE Certification (Ball Mill)
• ISO14001:2004 Environmental Management System Certification
• OHSAS 18001:2007 Occupational Health&safety Management System Certification

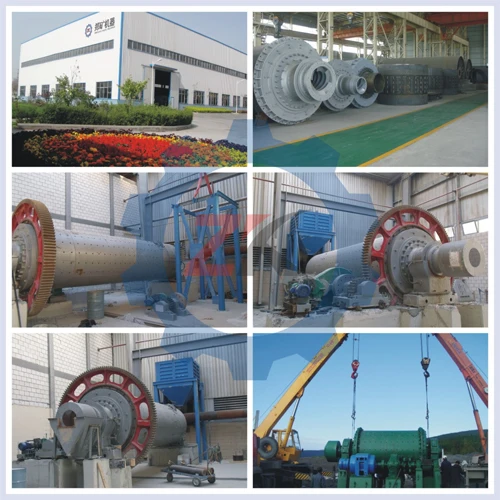

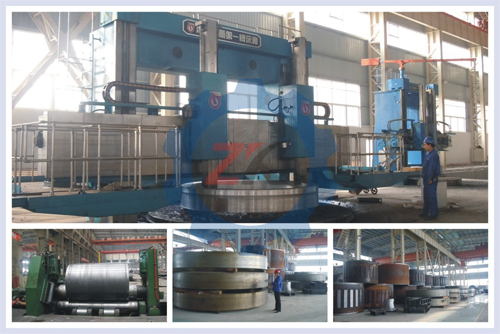

Henan Zhengzhou Mining Machinery Co., Ltd. was founded in 1956 and it is the designated manufacture plant of National Mechanical & Electrical Industry Bureau in Henan Province for cement building materials and beneficiation equipments. After more than half a century of development, Henan Zhengzhou Mining Machinery Co., Ltd has developed to an area of 70000 square meters, plant construction area of 40000 square meters with six modern workshops, two heavy machinery workshops, one Municipal Technology Center and more than 260 sets of machining, assembling, welding and other equipments. Its fixed asset value has exceeded 100 million RMB. Henan Zhengzhou Mining Machinery Co., Ltd has become an integrated modern enterprise with scientific research, design, development, manufacturing, sales, installation, commissioning and training services.

 The main products of company include: cement clinker ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions. At present, Henan Zhengzhou Mining Machinery Co., Ltd is the largest equipment supplier for magnesium production and has been on the leading position for 25 years in the market. Henan Zhengzhou Mining Machinery Co., Ltd has modern and mature administration system and perfect quality control system. It has got the ISO9001 International Quality System Certification, Environmental Protection Certification and many other certificates, patents and honors.
