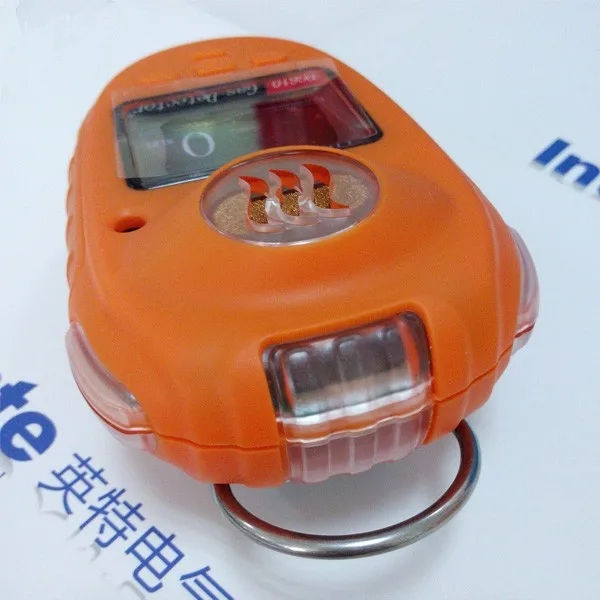

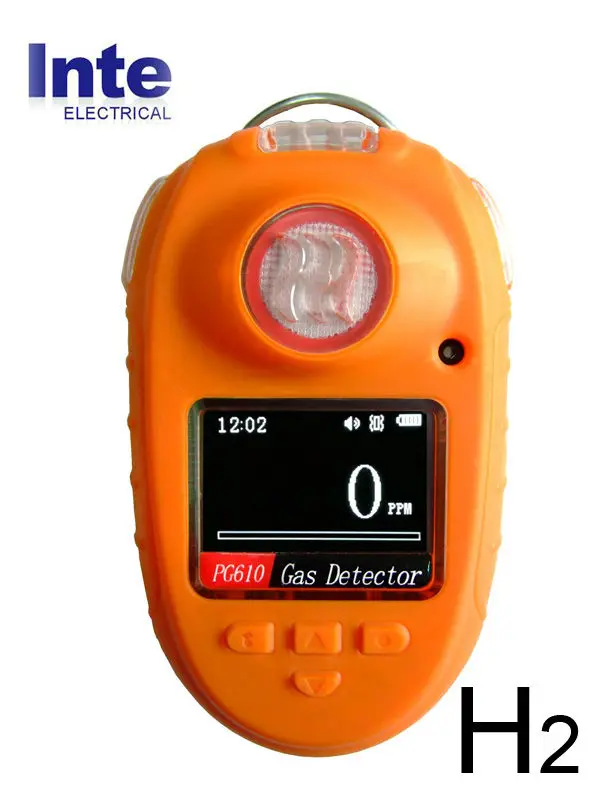

PG610 combustible gas detector H2 hydrogen gas leak detector

Product Overview

Description

Product Overview:

PG 610- H2 gas detector is portable. it monitors the leakage of hydrogen. PG610- H2 gas detector is widely used in municipal emergency rescue, oil chemical industry, metallurgy, coking, environmental protection and other industries.

Of course,we can also produce this series detector for you detecting other kind of combustible gas,toxic gas and oxygen.



PG610- H2 gas detector uses electrochemical sensor. catalytic combustion sensor for combustible gas detector. It has excellent sensitivity and good repeatability.

PG610- H2 gas detector is portable, nonskid, waterproof, dustproof and explosion-proof.



Main features:

l   Big OLED display, Highlighted, High-definition

l   Automatically save the detecting data for 5000 articles

l   Data progress bar display mode

l   Low power consumption

l   Real-time clock display function

l   The key operation needs to input password.

l   Automatic calibration function

l   Recover key data, avoid the loss of data

l   Battery power real-time display, under-voltage hint, low pressure automatic shutdown

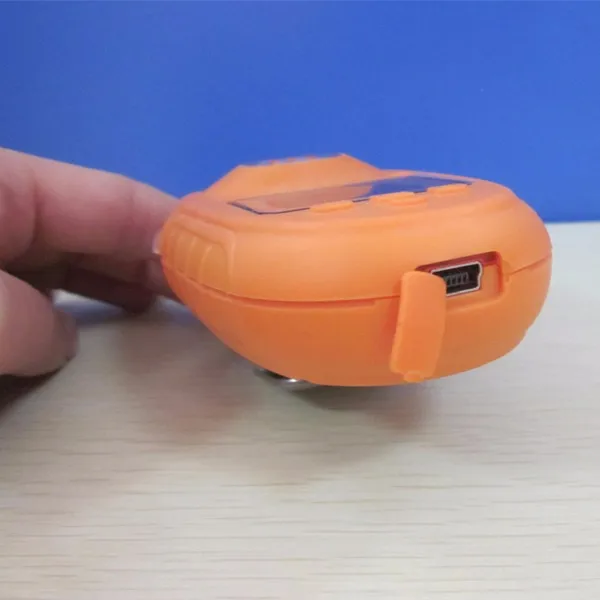

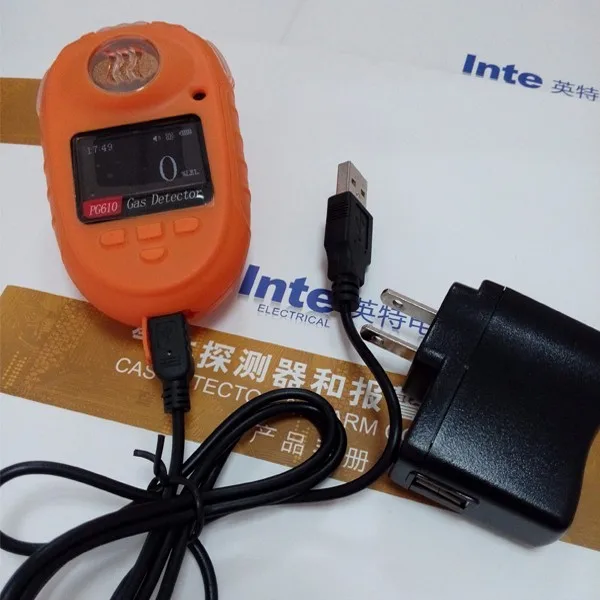

l   Standard MINI-USB charging interface; charger is compatible with computer and cell phone's

l   Charging protection function; when battery is full, charger will shut down automatically.

l   Computer connection function; (optional)

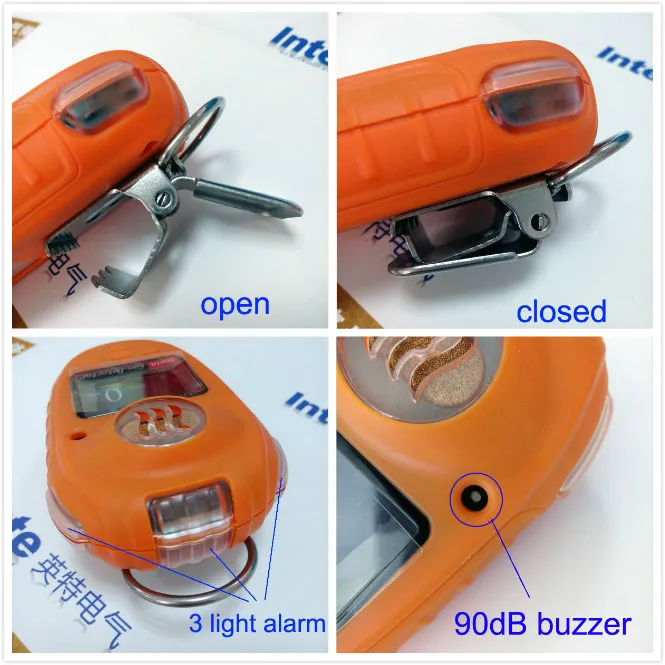

l   Audible and visual alarm, vibrating alarm

l   STEL and TWA alarm function

l   Power on self-test function

l   Adjustable high and low alarm level

l   Replaceable modularized sensor



Technical parameters:

Detecting Gas	H2, hydrogen
Measuring Range	0-1000ppm
Sampling Method	diffused or pump suction (external electric sampling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	toxic gas: - 20 °C ~ + 50 °C
Working Humidity	< 95% R.H. no condensation
Sensor service life	2-3 year
Display Mode	OLED screen shows density, time, battery power, Alarm state, percentage progress bar
Data Storage	5000 records
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode Sound: 90 Db humming; when concentration increased, frequency increases Vibration: oscillator speed of 1300 r/min
Working Voltage	DC3.6 V lithium ion battery, 1000 mAh
Charging Time	4 h ~ 6 h
Working Time	Toxic gas more than 72 h (continuous),combustible gas more than 8 h
Protection Class	IP66
Weight	140 g
Appearance Size	98 mm × 60 mm × 24 mm



Standard configuration: instrument box, gas monitor, specifications, certificate of approval, warranty card, charger, gas hood





Product Information Chart

Product Model	Detected Gas	Measuring range	Resolution	Respond Time	Sensor service life
PG610-CO	CO	0-1000ppm	1ppm	≤20 s	2-3 year
PG610-O2	O2	0-30%VOL	0.1%vol	≤20 s	2-3 year
PG610-O3	O3	0-10ppm	0.1ppm	≤30s	2-3 year
PG610-H2S	H2S	0-100ppm	1ppm	≤30 s	2-3 year
PG610-H2	H2	0-1000ppm	1ppm	≤30 s	2-3 year
PG610-CL2	CL2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NH3	NH3	0-200ppm	1ppm	≤30 s	2-3 year
PG610-SO2	SO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NO	NO	0-250ppm	1ppm	≤30 s	2-3 year
PG610-NO2	NO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-CH2O	CH2O	0-50ppm	0.01ppm	≤30 s	2-3 year
PG610-HCL	HCL	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-HCN	HCN	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-ETO	ETO	0-100ppm	1ppm	≤30 s	2-3 year
PG610-CLO2	CLO2	0-10ppm	0.1ppm	≤30 s	2-3 year
PG610-CO2	CO2	0-5.00%vol	0.01%vol	≤30 s	≥5 year
PG610-EX	Combustible gas	0-100%LEL	1%LEL	≤30 s	3-5 year
As for unlisted detected gas and measuring range, please contact with our company

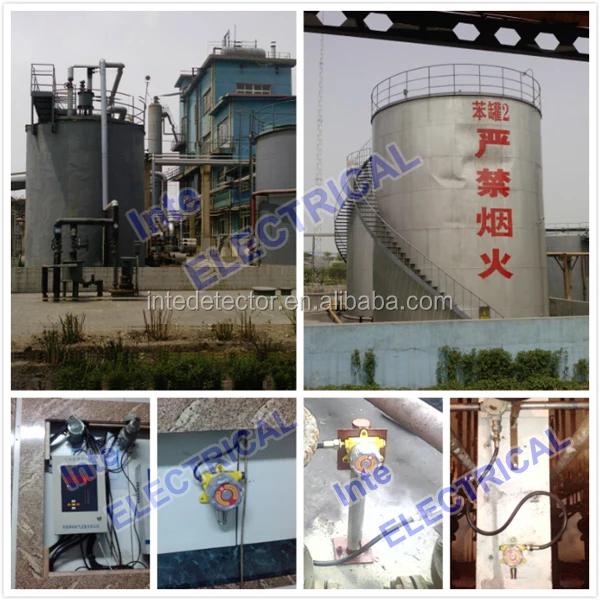

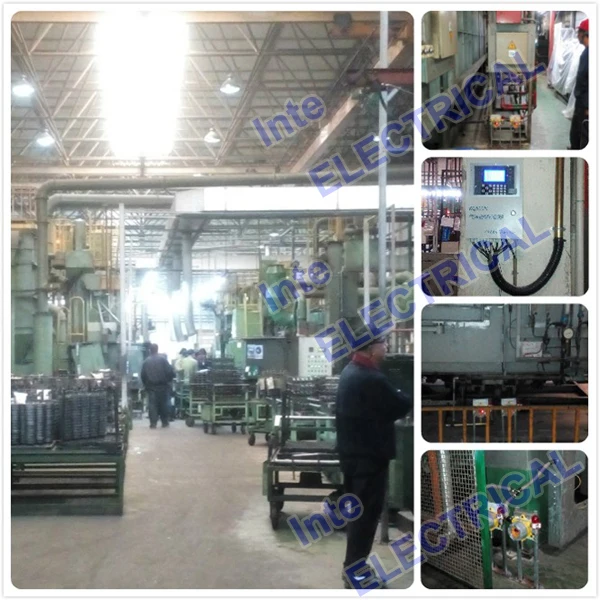

Installation case:

Application:
