Permanent Magnet Synchronous Motor Electric Tourist Bus

Product Overview

Description

Permanent Magnet Synchronous Motor Electric Tourist Bus



1. Company Profile of Permanent Magnet Synchronous Motor Electric Tourist Bus :



1. Our company is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. Anyone who is interested, contact us freely, looking forward to your cooperation.



2. Our main products:



1) Pickup (Single & Double Cabin; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);



2) SUV (off-road vehicle: 5 / 7 seats; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);



3) Van (7-8 seats, 9-15 seats, Gasoline & Diesel Engine; 4x2 drive; LHD & RHD);



4) Mini Moke (Gasoline & Electric, 4x2 drive, LHD & RHD);



5) Bus (Mini Bus, Middle bus, City Bus, and Long-Distance Bus);



6) Providing the assembling equipments and assembing technology of the above mentioned automobiles (pickup, SUV, Van, Moke and Bus) as well as the complete SKD/CKD parts.

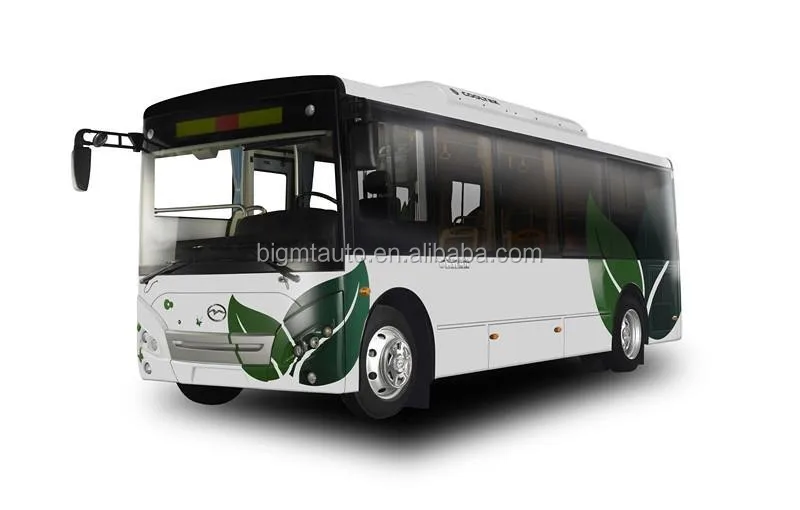

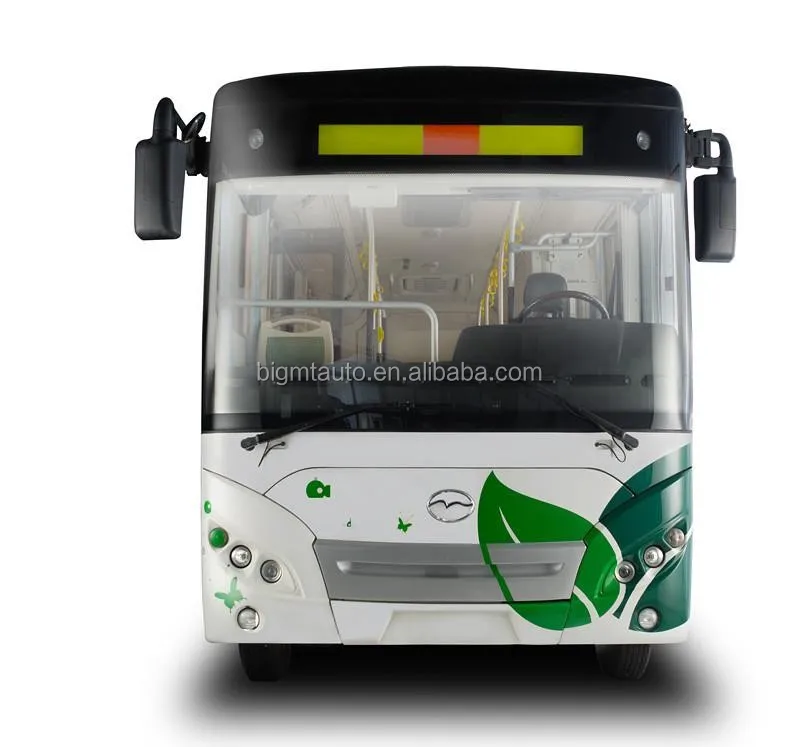

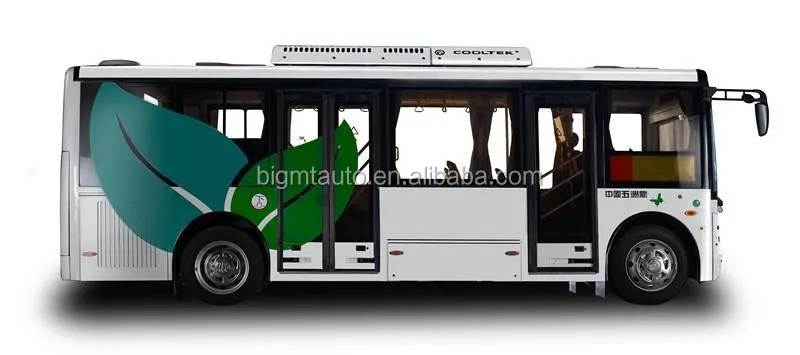

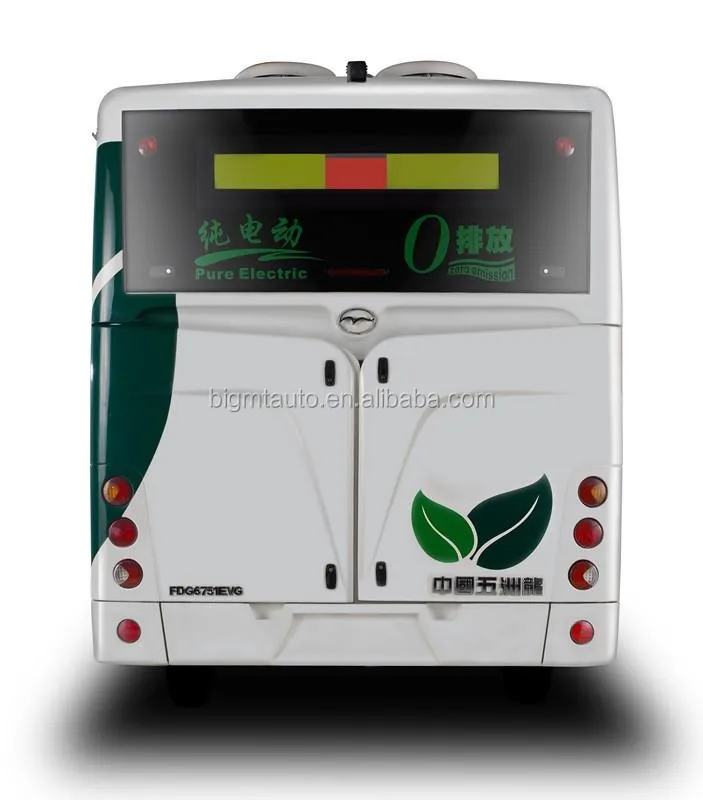

3.Photos of Permanent Magnet Synchronous Motor Electric Tourist Bus :



3.Specification of Permanent Magnet Synchronous Motor Electric Tourist Bus :





Overall Parameter
overall length    (mm)		7495
overall width    (mm)		2340
overall height    (mm)		3035
wheelbase  (mm)		4800
Front/Rear overhang   (mm)		920 /1775
approach angle/ departure angle (°)		19/9
maximum gradability		20
front/rear tread  (mm)		1940/1800
gross weight(kg)		10800
rated passenger		39
top speed   (km/h)		80
Motor Parameter
Power motor model		YPQ220M-6
Power motor type		Permanent magnet synchronous motor
Rated power / Peak power		90kW
Max. torque		1800N.m
Motor controller		WZL150
Battery		Lithium lron Phosphate Battery
Battery capacity		345v 200ah
Driving range		80-100Km
Charging issue		Plug in
Charging time		3H
storage battery		100Ah*2
Displacement (L)		0
Emission standard		0
Chassis Parameter
chassis model /manufacturer	FDG6731D
transmission	QJZJ505
clutch	single dry diaphragm spring, Driven plate diameter φ325, Hydraulic long-distance manipulation, air booster.
front axle	“H” section, two fist type
driving axle	Fine grinding, single reduction gear. Ratio 5.13
suspension	Leaf spring (front 3 / rear 4)
steering	Integral Power steering
braking	Dual circuit air brake, Energy storage spring parking brake, Drum brake. Automatic slack adjust Automatic Slack Adjuster, ABS
tyre	8R22.5
Other	Electric blast pump, auxiliary transducer, DC/DC









4.Factory Show of  Permanent Magnet Synchronous Motor Electric Tourist Bus :



5.Our Auto Overseas SKD Project in Nigeria:





6.Our Services:



Our company is focusing on the overseas automobile assembly project, including Mini Truck, Pickup, SUV, Van, Mini Car, Sedan, and Bus, now let me introduce you the automobile assembly project as below



Brief Introduction of the automobile assembly project in local (suitable for any country, whose customs duty difference between CBU and SKD / CKD is large, i.e., at least 30% or so):



1) save customs duty, this is the most important factor, usually, in most of the countries, the customs duty rate for the KD parts (knocked down auto parts) is much less than the rate for the complete vehicle, the government wants to protect or develop their own industry, for example, in Nigeria, the tax rate on CBU (complete vehicle) is 35%, while only 5% for SKD, and zero percentage for CKD, this is a very good policy;



2) save other taxes in your country for assembling such a vehicle in KD parts instead of importing the complete vehicle, for example, to exempt the VAT for 10 years at least in some countries, etc.;

3) save shipping cost, for promote this automobile Assembly Project to the world, it can save the shipping cost, why? To take this small passenger car as an exampl, with CBU term (complete built unit), one 40HQ container can only load 4 units, but with KD parts, in bulk with large quantities, 6-10 units on average can be loaded in a 40HQ container.



4) Earn your own Intangible Assets: with the automobile assembly project, you can develop and have your own auto brand and logo, and you can also enlarge your markets to your neighboring countries by making use the preferencial tariff policies among your communities.





What about After-Sales Service?







We propose and provide "REPAIR & MAINTENANCE" After-Sales Service:



1) Found a professional "Repair & Maintenance" service company to ensure the After-Sales Service;



2) Car spare parts supply;



3) Driving & repairing training guidance;



4) Technical advisory and training;



5) Market data feedback and disposing;



6) The most important - Technology Support.
