hydraulic power unit pack for DC Motor Pump Group
- Category: >>>
- Supplier: Wuxi Jinle Automobile Motor Factory
Share on (60227765958):
Product Overview
Description
hydraulic power unit pack for DC Motor Pump Group
Product Description
General Description

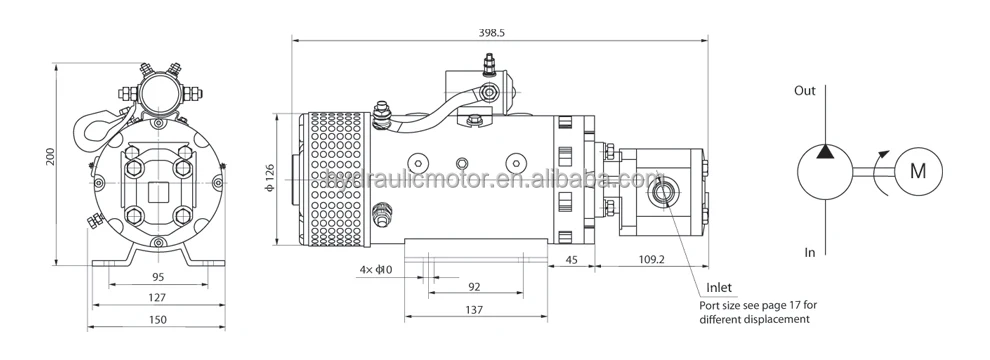

Consisting of a heavy duty DC motor and the CB1S gear pump , this pump- motor group is typically used as a power station of a complex hydraulic system.
Model Specifications
Model | Motor Volt | Motor Power | Displacement | System pressure | Rated Speed |
DMP-1SE2.7-2MXU-A | 24VDC | 2.2KW | 2.7mL/r | 16MPa | 2500rpm |
DMP-1SF3.2-2BXU-A | 3KW | 3.2mL/r | 20MPa | ||
DMP-1SE4-2BXU-A | 4mL/r | 16MPa | |||
DMP-1SD6-2BXU-A | 6mL/r | 10MPa | |||
DMP-1SC9-2BXU-A | 9mL/r | 6.5MPa |
Special notes
1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended.
4.The pump station should be mounted horizontally.
Packaging & Shipping
Our Services
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Certifications
