Машина для производства гранул бентонита серии XKJ
- Category: >>>
- Supplier: Jiangyin Xinan Machinery Manufacturing Co. Ltd.
Share on (60227993132):
Product Overview
Description

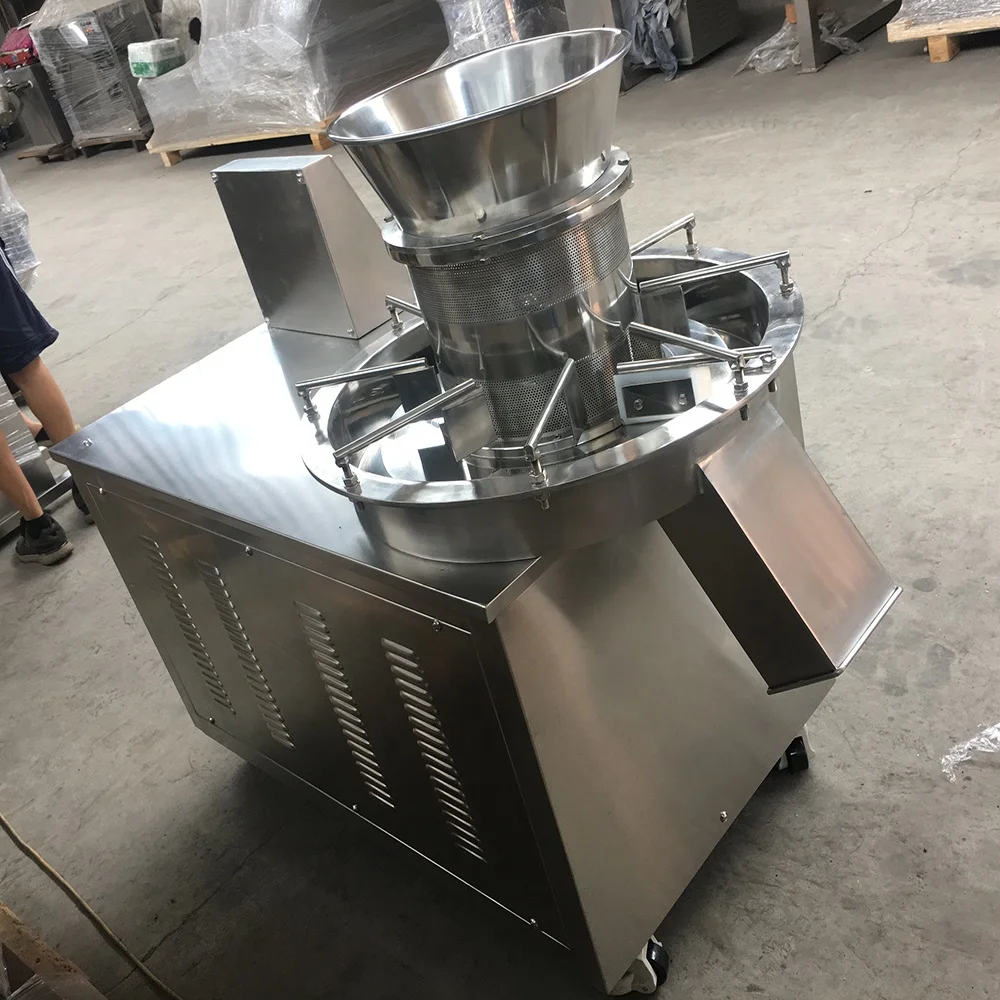

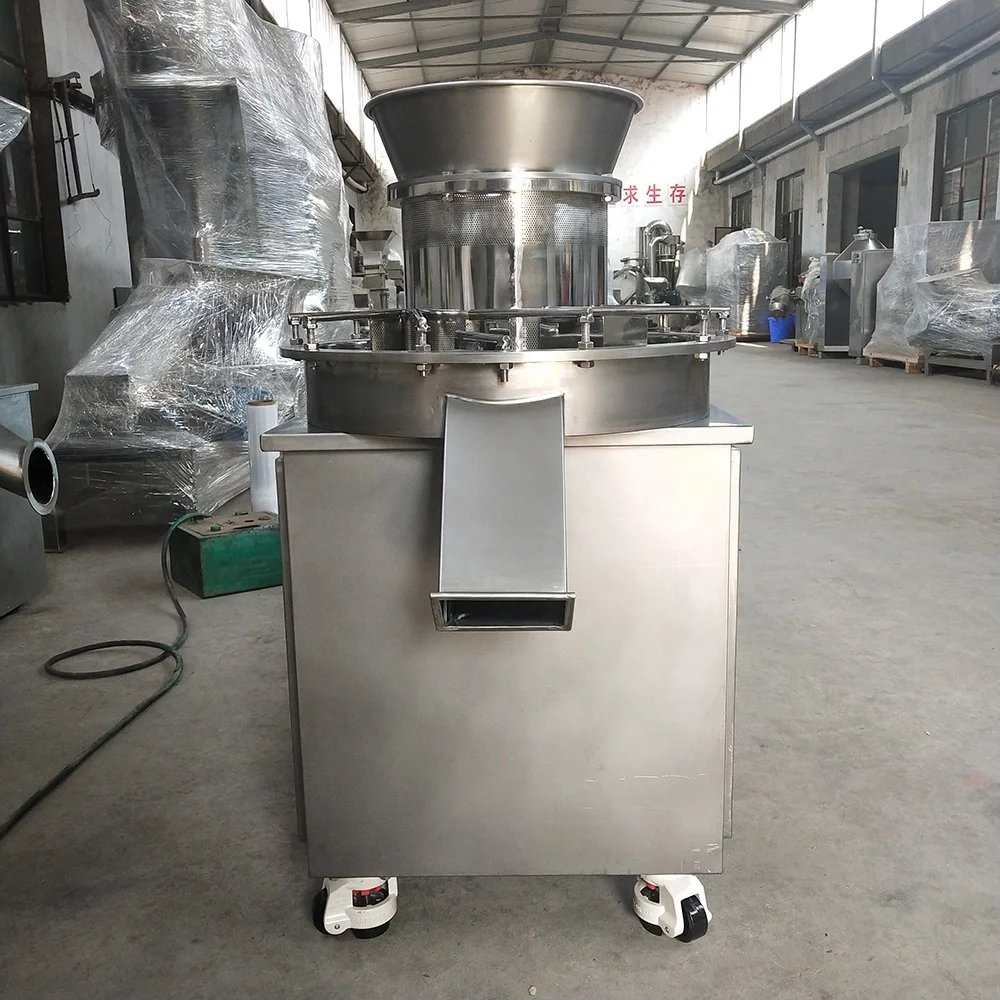

XKJ Series bentonite granules making machine
Product Description
Main Application:
XKJ Series Rotary Granulator is applied in the industry of pharmaceutical,chemical and foodstuff.It grinds slightly wet powder into granules and crushes power block to grind.
Operating Principle:

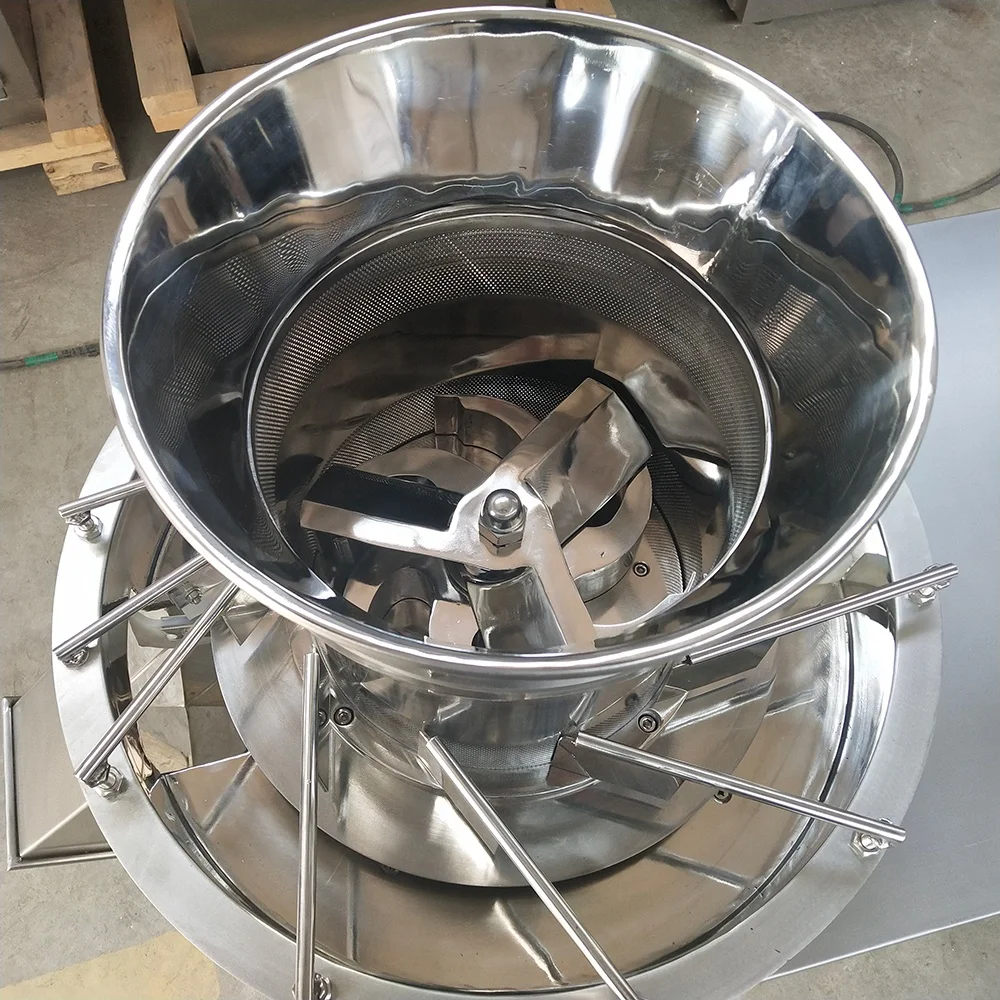

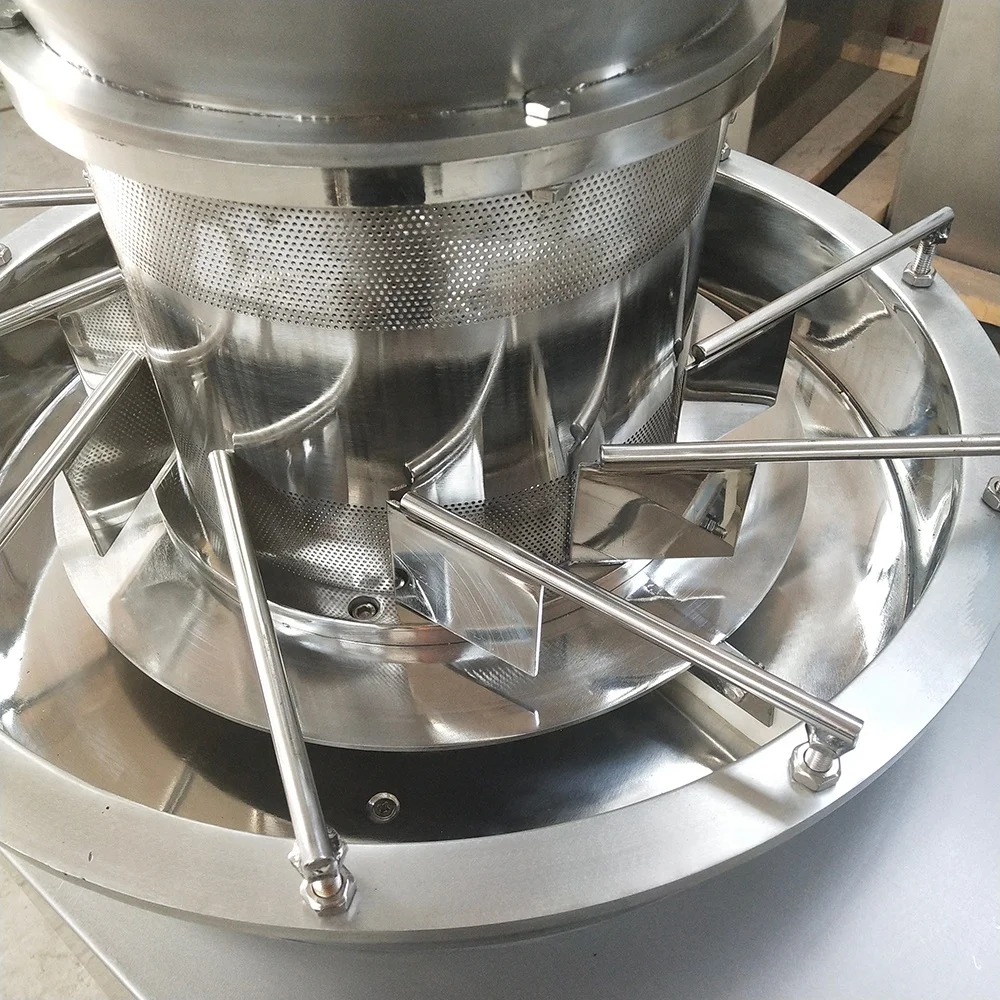

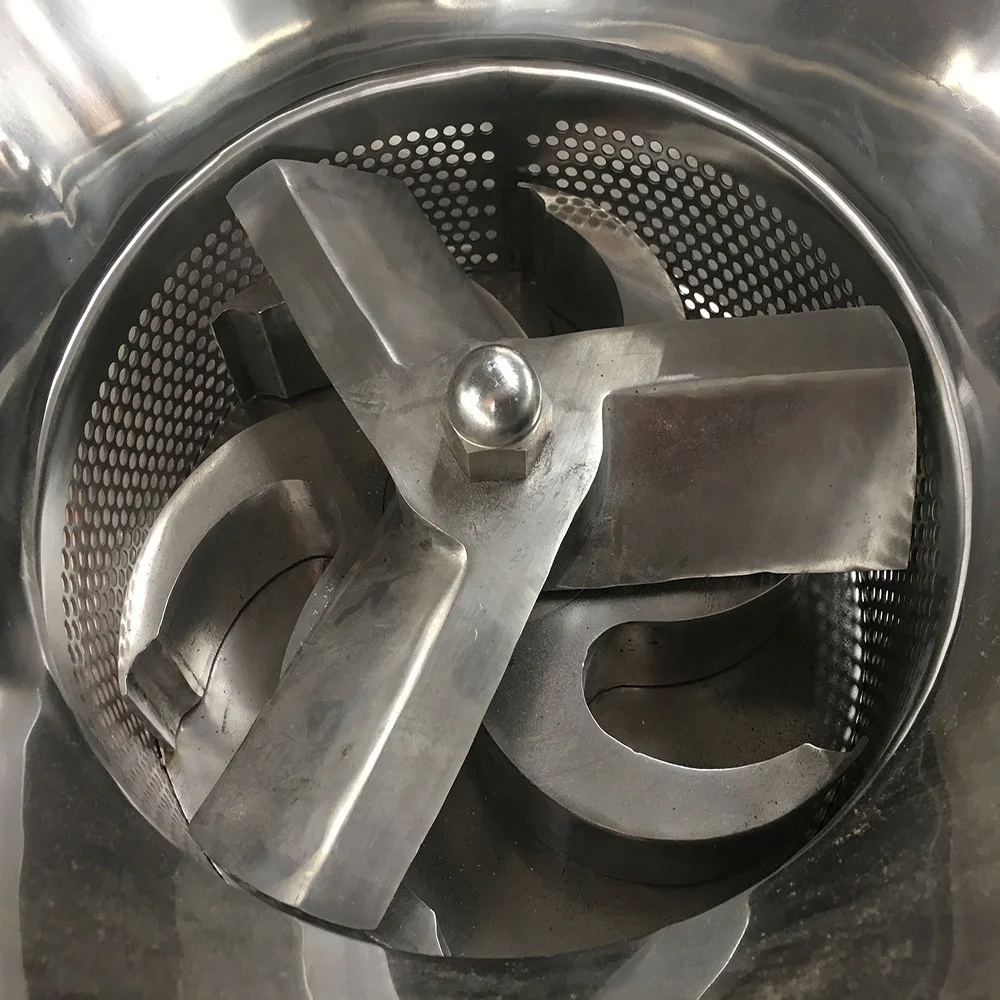

The material pressing knife and the helical knife rotate in the opposite direction.Material pressing knife pushed raw material down and the helical knife pushes them to the wall of sieve.Granules are extruded out and get collected.
Technical specification:
| Model | 250 | 300 |
| Capacity(kg/h) | 100-200 | 120-300 |
| Granule diameter(mm) | 0.5-3 | 0.5-3 |
| Power(kw) | 4 | 5.5 |
| Weight(kg) | 350 | 480 |
| Overall size(mm)L×W×H | 700×540×1400 | 800×650×1400 |
Machines Part:
Packaging & Shipping
Company Information
Certificate:
Factory condition:
Activity:
Our Services
One year guarantee for whole machine
24 hour technical support by email
Calling or door-to-door Service
User manual and detailed video/CD
FAQ
If you want to send inquriy to me about our powder grinding machine , could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by powder grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
