Aluminium Strip Continuous Casting and Rolling Machine

Product Overview

Description

1. Product Information



1. Equipment use



Its production lines are the most advanced ones in the aluminum industry of China, which has been obtained the most patents and exclusively-owned technologies. Adopting continuous cast-rolling technology, it is best for producing aluminum plate and strip.



2. Simple process



Molten aluminum or prepared aluminum melts flows from the holding furnace via the launder into casting machine, where it is continuously casted into ingots. Then fed into the rolling mill and rolled into plate and strip, finally laid down in winder.



3. Equipment composition

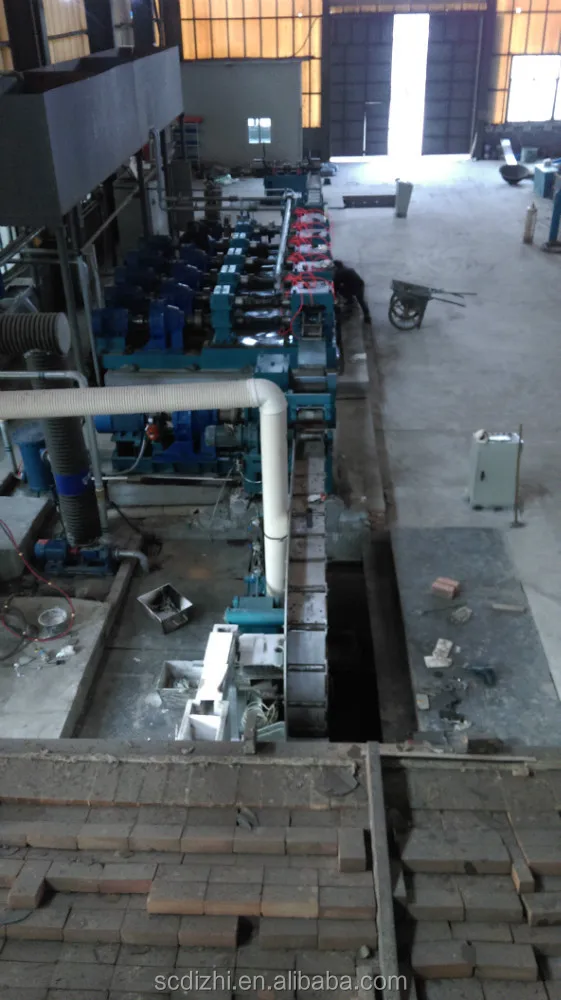

The line is mainly composed of casting machine, ingot tractor, front rolling shear,4-stands rolling mill, rear rolling shear, double winder, electric control system, etc.



4. Technical data

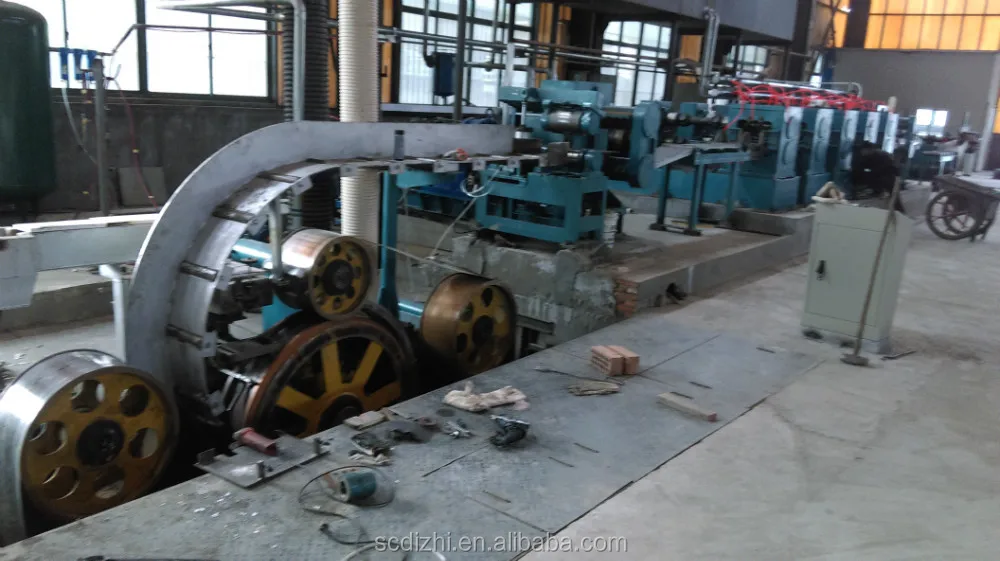

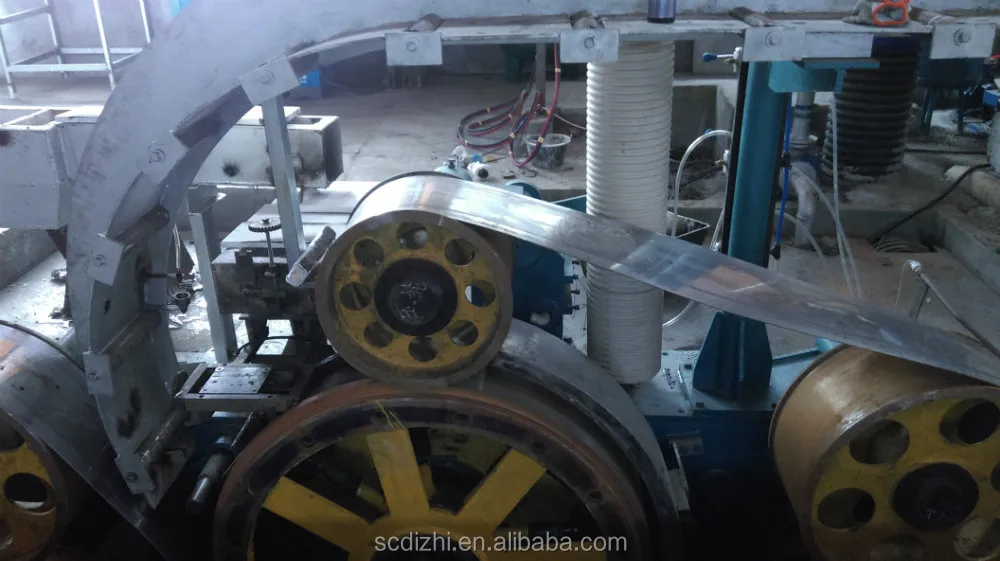

4.1. Casting machine



4.1.1. Crystallized wheels diameter        Φ1600mm

4.1.2. Section surface of casting ingot   8400mm²



4.1.3. Driven motor                              5.5 kw



4.1.4. Type                                          5-wheel



4.2. Rolling shear



4.2.1. Shearing length                           720 mm



4.2.2. Motor power                              22kw

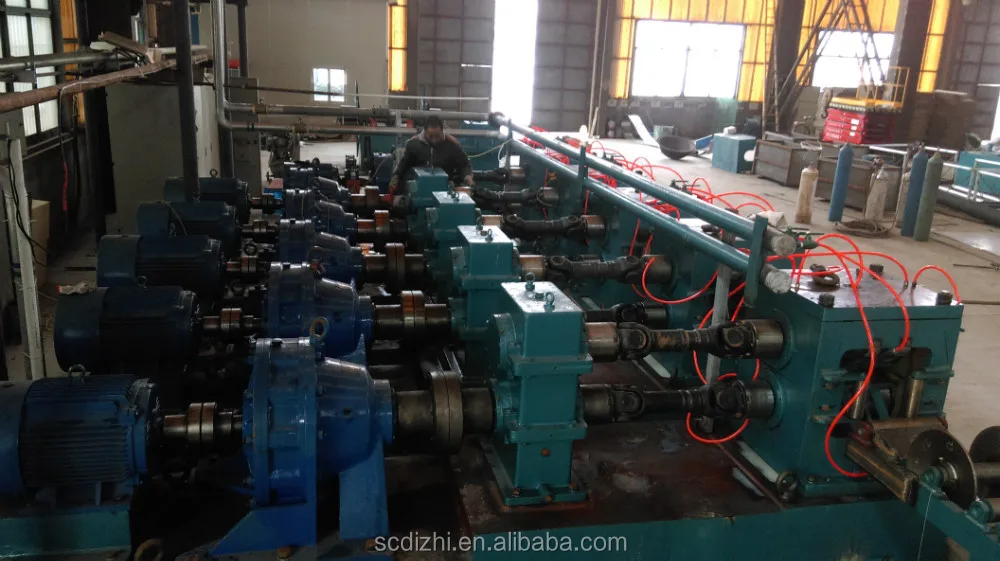

4.3. Continuous rolling mill



4.3.1. No. of rolling stand                     4 set



4.3.2. Outlet strip thickness                   8~5mm



4.3.3 Outlet strip width                         100-300mm (should be one fixed figure, such as 240mm, different width need to be equipped with different crystallized wheel )



4.3.4. Max. production capacity           8 t/h



4.3.5. Max. finish rolling speed            0.5 m/s



4.3.6. Rolling center height                  1350mm

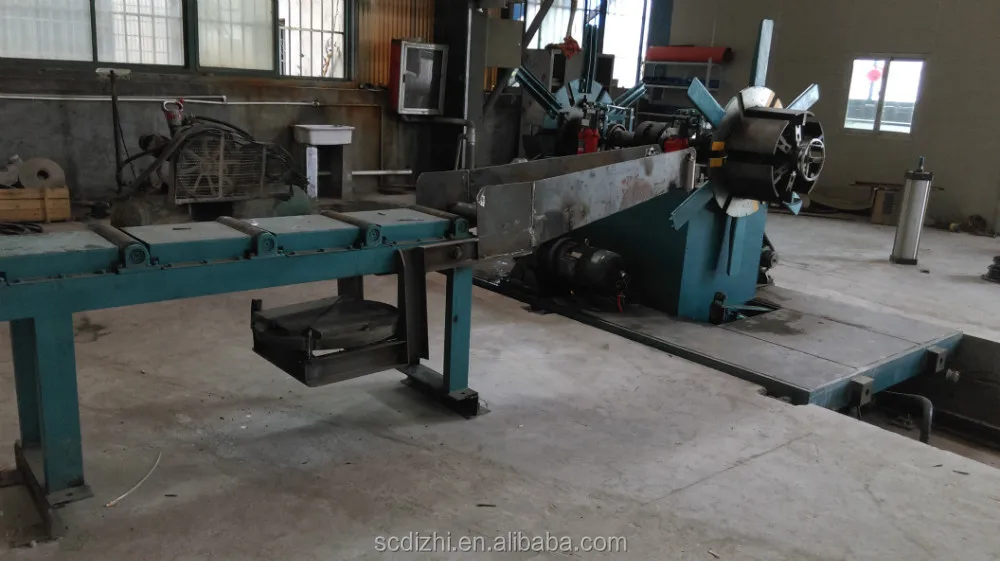

4.4. Double winder



4.4.1. Max. winding weight                 1000 kg



4.4.2. Max. winding diameter              ø1550 mm



4.4.3. Winding driven motor power     7.5 kw
