Product Overview
Description
Product Description

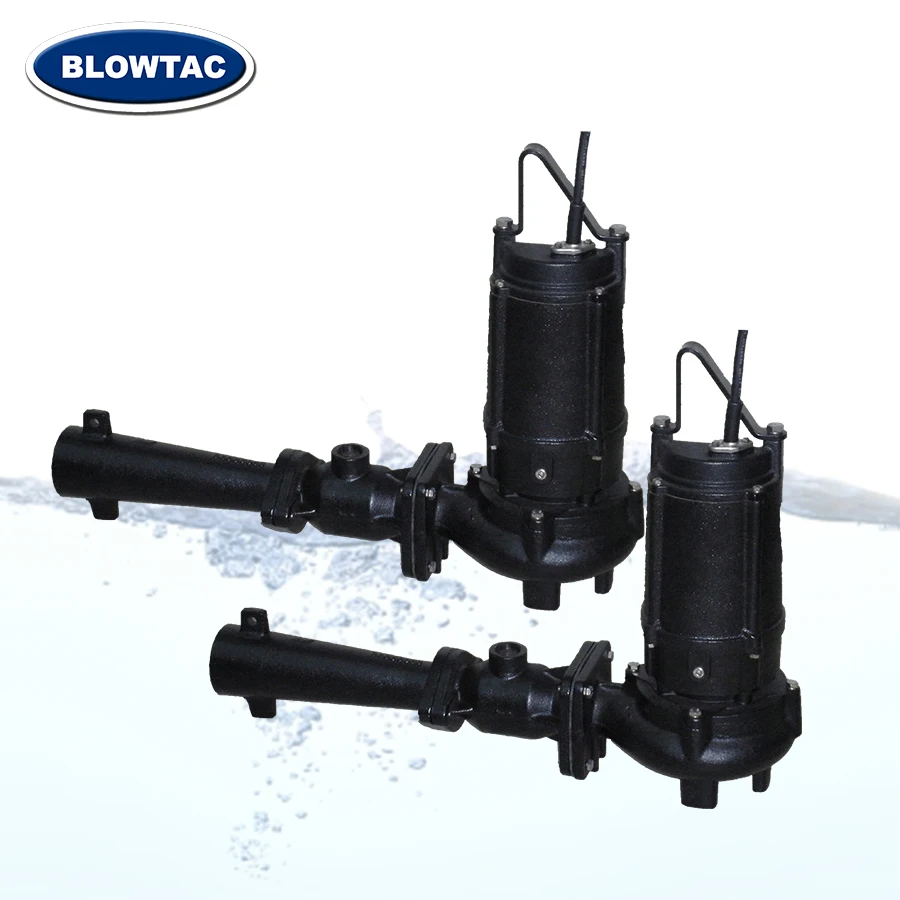

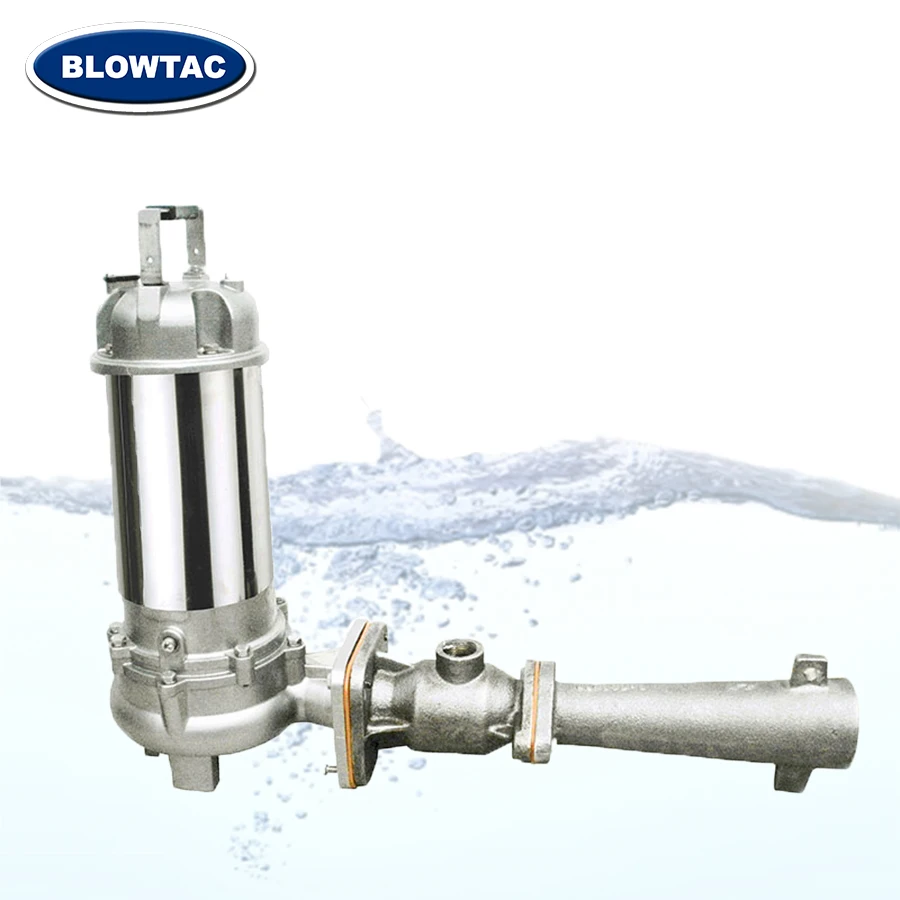

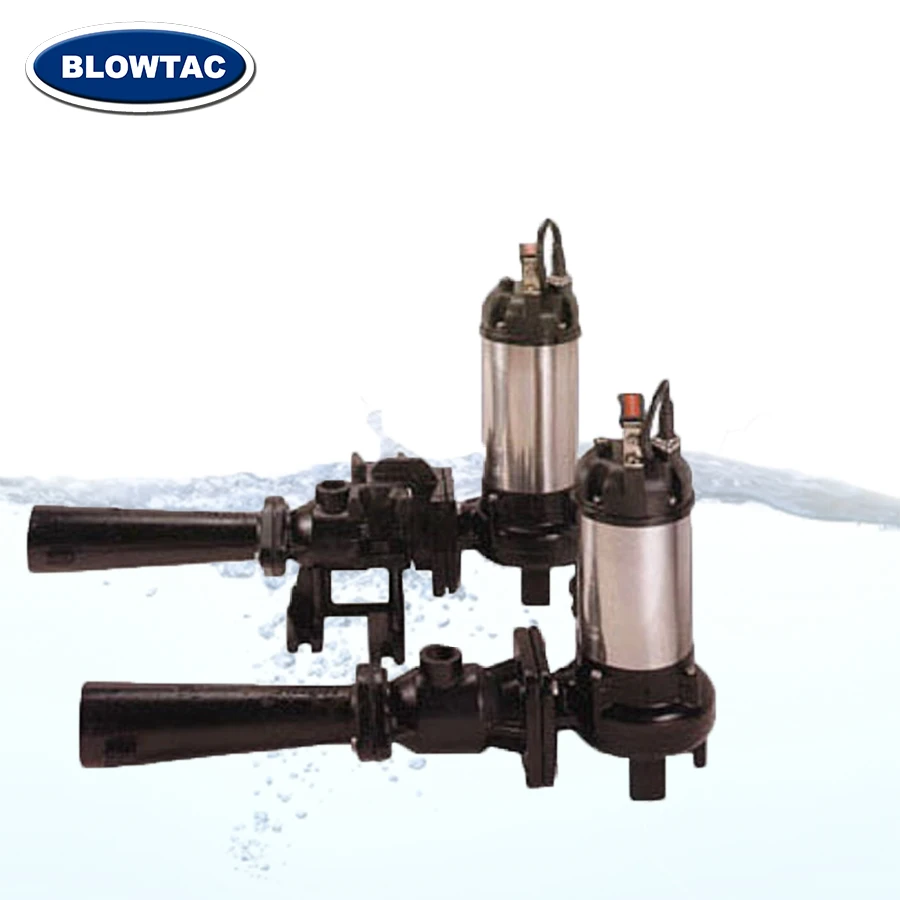

Price of 7.5Hp jet aerator

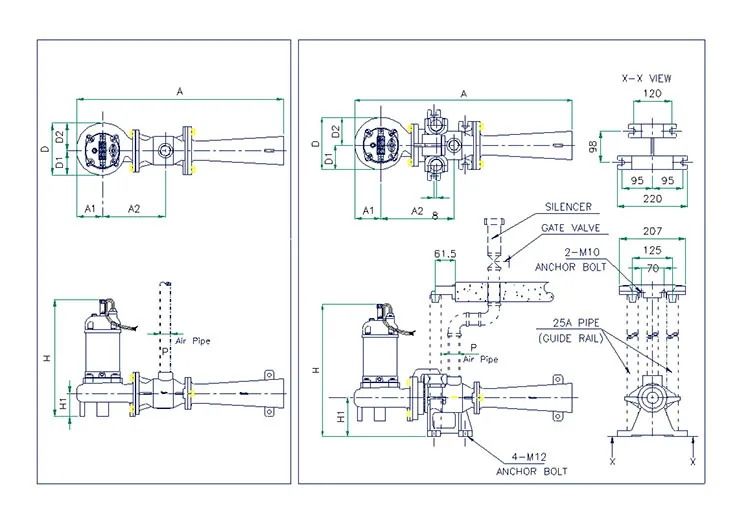

Specification Table
| Model | Output | Rated | Aeration Tank | Dimension (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air | OTR | W.Depth | Length | Width | Height | ||||||||||||
| HP | kW | m³/hr | kg-O2/hr | m | m | m | m | A | A1 | A2 | D | H | H1 | H2 | H3 | P | |
| JA-04 | 1/2 | 0.4 | 5 | 0.12~0.23 | 1.5 | 2.0 | 1.8 | 2.0 | 649 | 82 | 197 | 163 | 417 | 304 | 120 | 72 | 25A |
| JA-07 | 1 | 0.75 | 10 | 0.3~0.5 | 2.0 | 3.0 | 2.5 | 3.0 | 649 | 82 | 197 | 163 | 471 | 347 | 120 | 72 | 25A |
| JA-15 | 2 | 1.5 | 22 | 0.9~1.1 | 2.5 | 4.0 | 3.5 | 3.5 | 719 | 103 | 246 | 208 | 548 | 400 | 122 | 72 | 40A |
| JA-22 | 3 | 2.2 | 40 | 1.9~2.2 | 3.0 | 5.0 | 4.5 | 4.0 | 719 | 103 | 246 | 208 | 568 | 420 | 122 | 72 | 40A |
| JA-37 | 5 | 3.7 | 80 | 2.9~3.5 | 3.5 | 6.0 | 5.0 | 5.0 | 769 | 110 | 266 | 227 | 633 | 468 | 160 | 92 | 50A |
| JA-55 | 7.5 | 5.5 | 115 | 4.2~5.1 | 4.0 | 7.0 | 6.0 | 6.0 | 769 | 110 | 266 | 227 | 673 | 508 | 160 | 92 | 50A |
| Items | (T)JA | (T)KJA | |
|---|---|---|---|
| Working Fluid | Kind | Sewage and Waste Water | |
| Temperature | 0~40°C | ||
| PH value | 6 -- 8 | 3 -- 11 | |
| Pumps | Impeller | FC 200 | SCS16A |
| Casing | FC 200 | SCS16A | |
| Mechanical seal | CA / CE | Sic / Sic | |
| Motors | Insulation | Class | |
| Protector | Over-temperature and Over-current | ||
| Housing | SUS 304 | SUS 316 | |
| Shaft | SUS 410 | SUS 316 J2 | |
| Cable | H -- 07 (VDE) | H -- 07 (VDE) | |

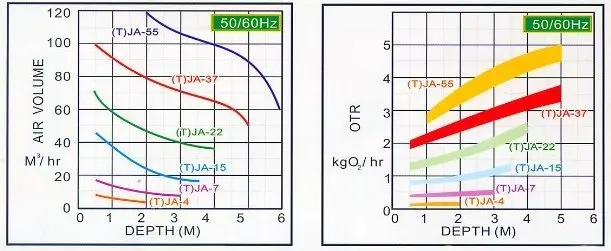

Performance Table
Warranty
We offer one year warranty for our Submersible Jet Aerator .

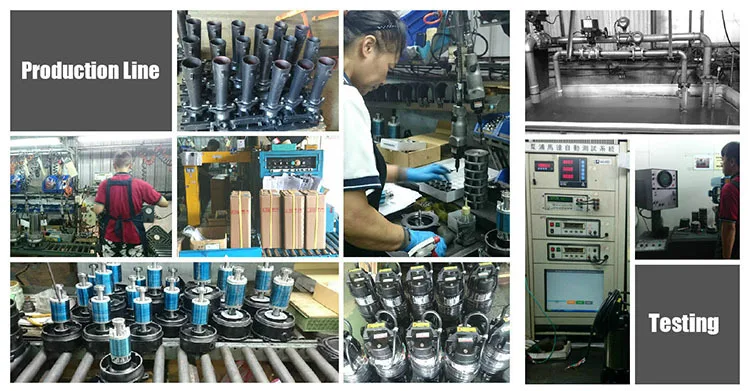

Production & Packing
Trade Information
Trade terms:
EX-work,CIF,CNF,Door To Door
Payment:
- T/T,L/C at sight
- Paypal
- Western Union
- Credit Card
Delivery Date:
About 7-14 days after receiving your payment or L/C at sight (Standard Specification)
Shipping:
By sea, By air,Express delivery
Company Information
CE / UL / SGS / D&B Certified and Patent
FAQ
| Q: What is your MOQ quantites ? |
| A: We have no MOQ limited for our standard specification products. We always prepare enough stocks to reduce the stock cost for our clients. |
| Q : What is your delivery date ? |
A : Normally we will ship you our standard specifications goods about 7-14 days after receiving your payment. It depends on the quantities you order. |
*The information provided here is for reference only

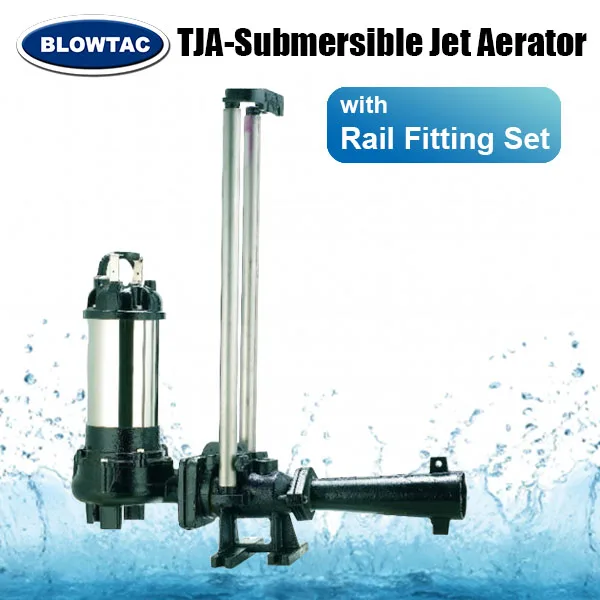

Related Product-TJA-with Rail Fitting Set
