Metal polymer bushing maintenance free oilless sliding composite plain bearings

Product Overview

Description

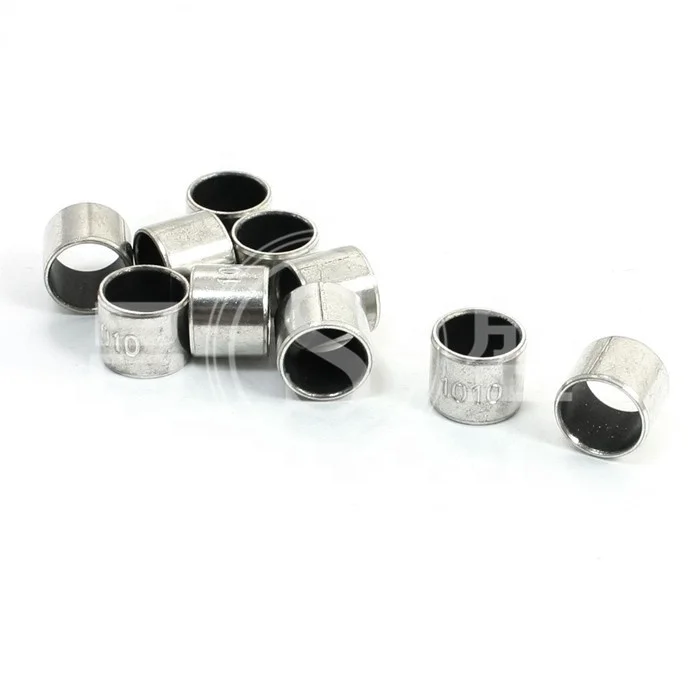

Metal-polymer bushing maintenance-free oilless sliding composite plain bearings





We CHANGSHEG BEARING is a direct manufacturer specialized in producing bushings with more than 10 years . We believe that we can provide you the best products and services!





Metal-polymer bushing maintenance-free oilless sliding composite plain bearings

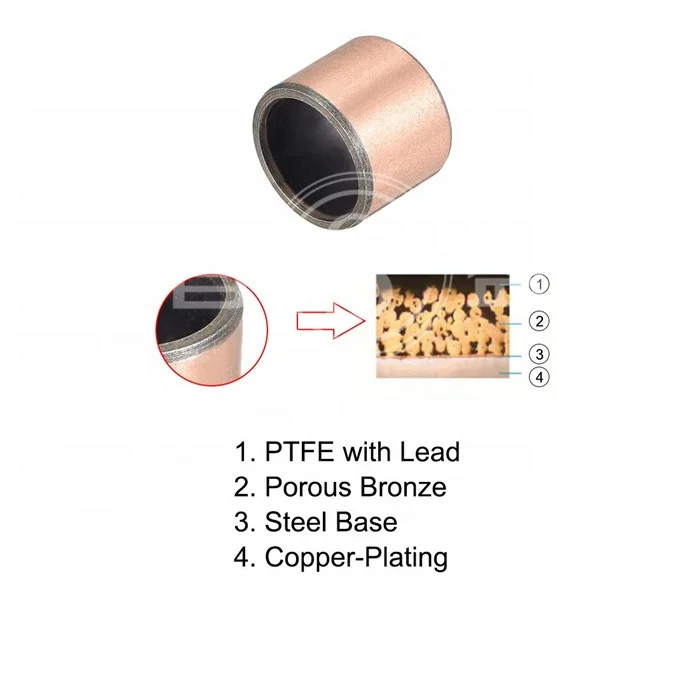

1. PTFE  2. Porous bronze sintere 3. Steel backing 4. Copper-plating/tin-plating     Note: Various materials are suitable for SF-1 Series products according to different working conditions ,such as bronze backing (SF-1B),stainless steel backing (SF-1S)…

Tech.Data Max.Load Static 250N/mm2 Dynamic 140N/mm2 Oscillating 60N/mm2 PV limit Dry 3.6N/mm2.m/s Oil 50N/mm2.m/s Temp.limit -195°C~+280°C Friction Coeff. 0.03~0.20μ Speed limit Dry 2m/s Oil 5m/s Thermal conductivity 2.41Kcal/M.br.c Coeff. Of linear expansion 27×10-6per°C

It may be used where no oil can be applied or oil is difficult to be applied .     It has the advantage of low wear,low friction and with long life. Load will spread over a wider area due to the bearing material’s elastic nature.     Low stick slip properties ensuring accuracy of machine operation under low sliding speeds.      Low vibration, low noise and non-pollution in operation.      PTFE and Lead film is transferred to the mating shaft to improve running properties.      It can be used in low harness of mating shaft,so the shafts process-ing is easy.      The machine will be compact because of the thin thichness and low weight of the bush.      Electro plating is possible to prevent corrosion.     It is widely used in various sliding motions of different kind of machines such as textile machine , tobacco machines ,hydraulic vehicles Aotomobiles, agricul-ture machines and so on.
