Product Overview

Description





The ball mill machine is usually applied in the comminution stage as a grinding mill to reduce the size of the feed. It can be applied in both primary and secondary grinding stage. According to the process conditions, the ball mill can be divided into wet balls mill and dry ball mills.



Applicable Materials





Cement, silicate, gold ore, copper ore, limestone, quartz stone, chromium, new building materials, refractory materials, ferrous and non-ferrous metal beneficiation, glass ceramics, etc.



Product Structure

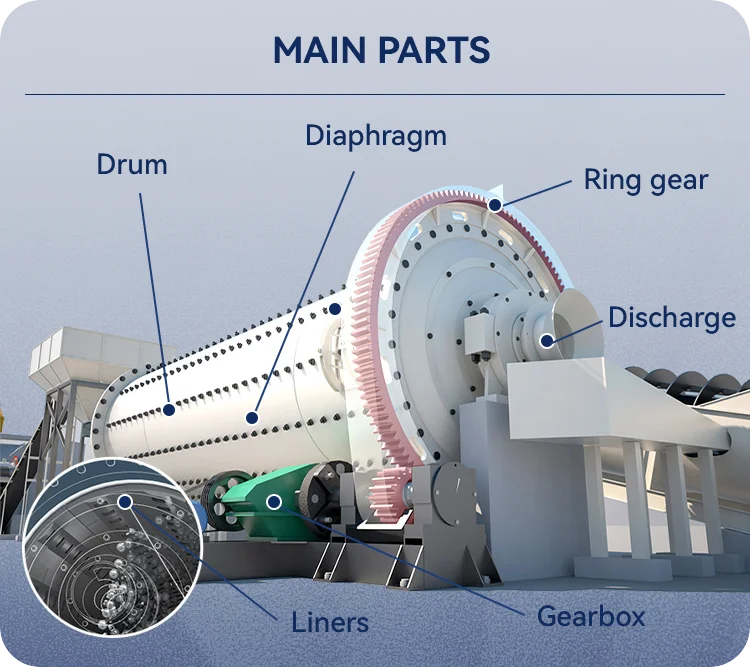

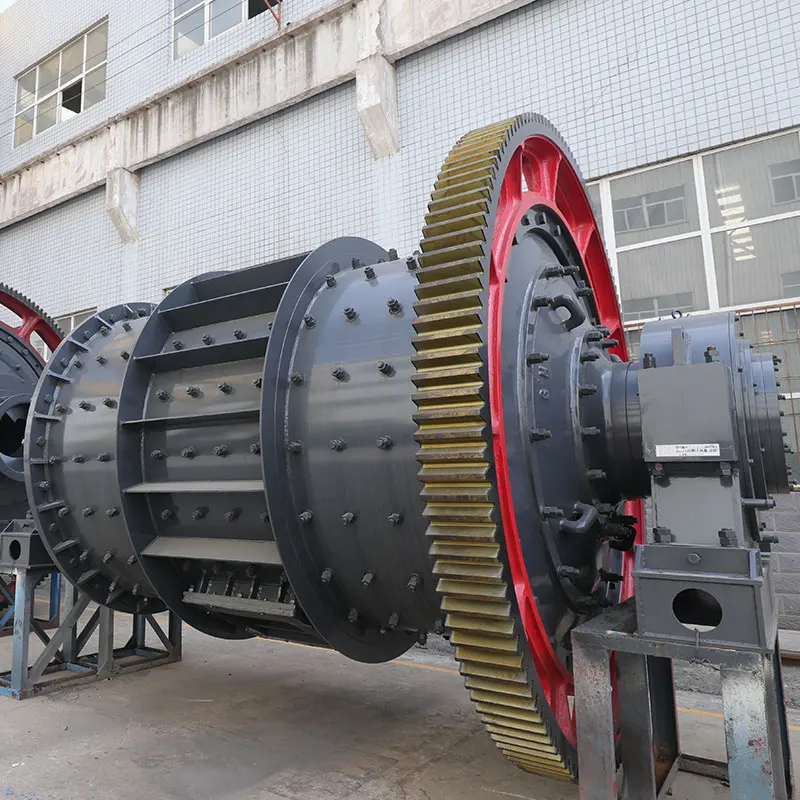

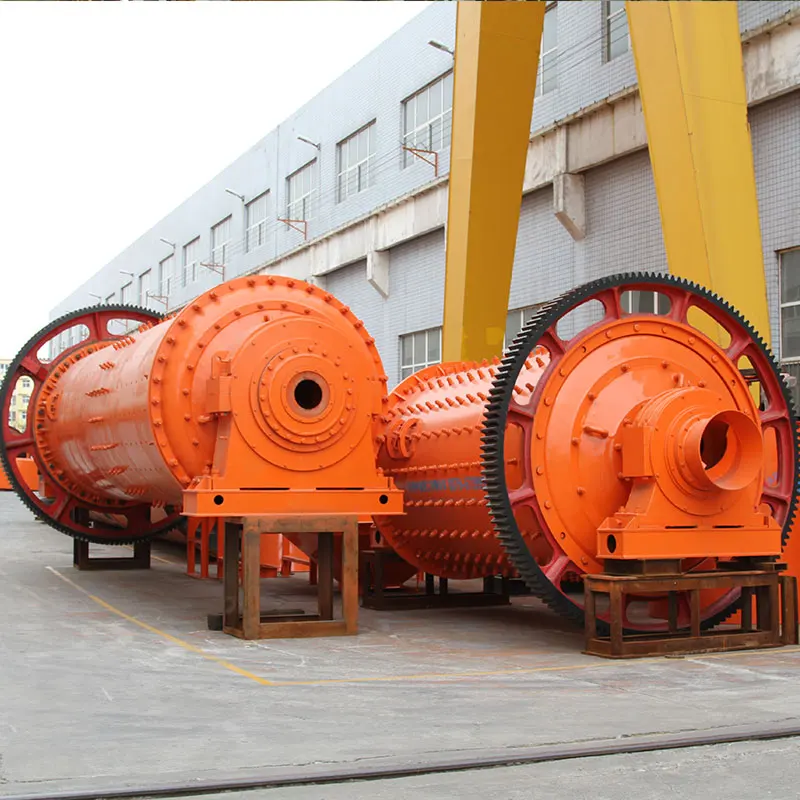

The important parts of the ball mill include the inlet, discharge, drum, ring gear, electric motor, gearbox, balls, and bearings. The hollow shaft is made of cast steel, with replaceable liners. The large gear is cast and processed with rolling teeth. The cylinder is lined with wear-resistant plates, providing excellent wear resistance.





Outstanding Advantages



1. High grinding efficiency: The lining plates and grinding bodies are made of alumina ceramic, quartz, SILEX, or special materials, with a maximum capacity of up to 615 t/h.



2. Energy saving: Our machines feature full hydraulic operation for easy automation and increased capacity.



3. Superior quality: The wearing parts of the ball mill are made of high-quality raw materials to minimize wear and extend service life.



E. cellent sealing performance: The machine adopts a closed system with negative pressure conveying, reducing dust and minimizing harm to personnel.



4. Flexible design of discharge port: The discharge port is designed reasonably, and customers can choose to equip it with an iron remover according to their needs.

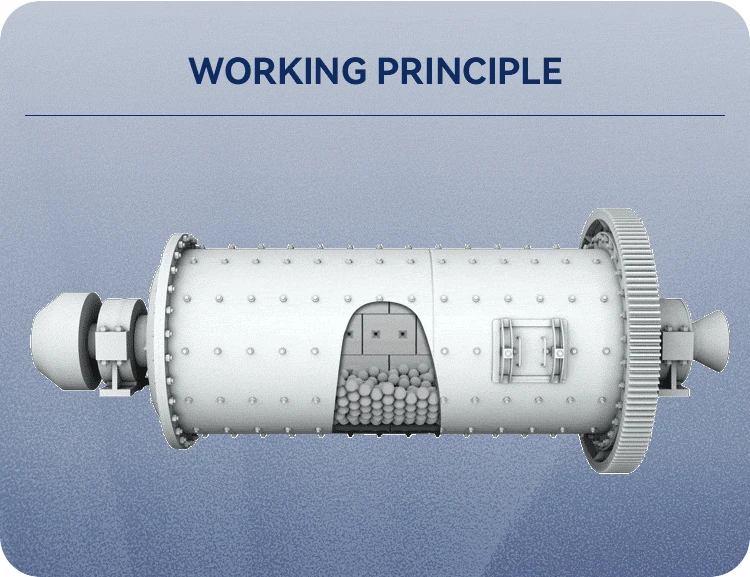

The material is fed into the first hopper by the feeding equipment through the hollow shaft spiral. The hopper is equipped with stepped or corrugated liners and filled with steel balls, which grind the material under the action of centrifugal force. After coarse grinding in the first hopper, the material enters the second hopper through a single-layer partition board, where it is further ground by steel balls on a flat scale plate. The powder is discharged from the grate plate, completing the milling process.



Model	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
900×3000	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
1200×4500	5	<25	0.074-0.4	1.6-5.8	55	15.6
1500×4500	11	<25	0.074-0.4	3-6	110	22
1500×5700	12	<25	0.074-0.4	3.5-6	130	25.8
1830×3000	11	<25	0.074-0.4	4-10	130	34.5
1830×4500	15	<25	0.074-0.4	4.5-12	155	38
2100×3000	15	<25	0.074-0.4	6.5-36	155	45
2100×4500	24	<25	0.074-0.4	8-43	245	56
2100×7000	26	<25	0.074-0.4	12-48	280	59.5
2200×4500	27	<25	0.074-0.4	9-45	280	54.5
2200×6500	35	<25	0.074-0.4	14-26	380	61
2200×7000	35	<25	0.074-0.4	15-28	380	62.5
2400×4500	30	<25	0.074-0.4	8.5-60	320	72
2700×4500	48	<25	0.074-0.4	26-90	480	102
3600×4500	90	<25	0.074-0.4	As per process conditions	850	169
3600×6000	110	<25	0.074-0.4	As per process conditions	1250	198
4000×5000	121	<25	0.074-0.4	45-208	1500	230









Henan Zhongde Mining Machinery Co., Ltd was founded in 1982 in Zhengzhou, Henan, the capital of Chinese machinery manufacturing. The company is large in scale and has four major production bases with a total area of 500,000 square meters, of which standardized heavy industry plants cover an area of 360,000 square meters, providing advanced and reliable infrastructure for production.





Our company focuses on the development and production of mining machinery, including crushers, mills, beneficiation equipment, briquette machines, rotary kilns and other products, which are widely used in mining, chemical industry, construction, coal, ceramics, and other industries. With excellent quality and professional solutions, it has won the trust of customers around the world.







Our Services



1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.



2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.



3. We visit customers regularly to provide lifelong service and technical support.



4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.





Quality Control



1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.



2. We take a test on each machine before delivery.





FAQs



How to get the best price for equipment?

• We are the direct manfacturer, so we can offer you the lowest price than the market price.


• The price of the machine can be given the largest discount based on quantity.

Our payment term?

• Paypal, T/T, L/C, and Western Union are all available.


• 30% deposit in T/T advance, 70% balance before shipment.


• We take photos of finished products before delivery.

Delivery time?

• Streamlined production allows for prompt delivery of most products within 6-8 weeks.


• The delivery time will be based on the machine type, selected shipping method, and parts availability.


• We take photos of finished products before delivery.

Packaging?

• The equipment is wrapped in plastic film before packaging to avoid moisture at sea.


• Bare machines are packed in export containers.


• The motors and small parts are packed in waterproof, sealed, and sturdy wooden cases.

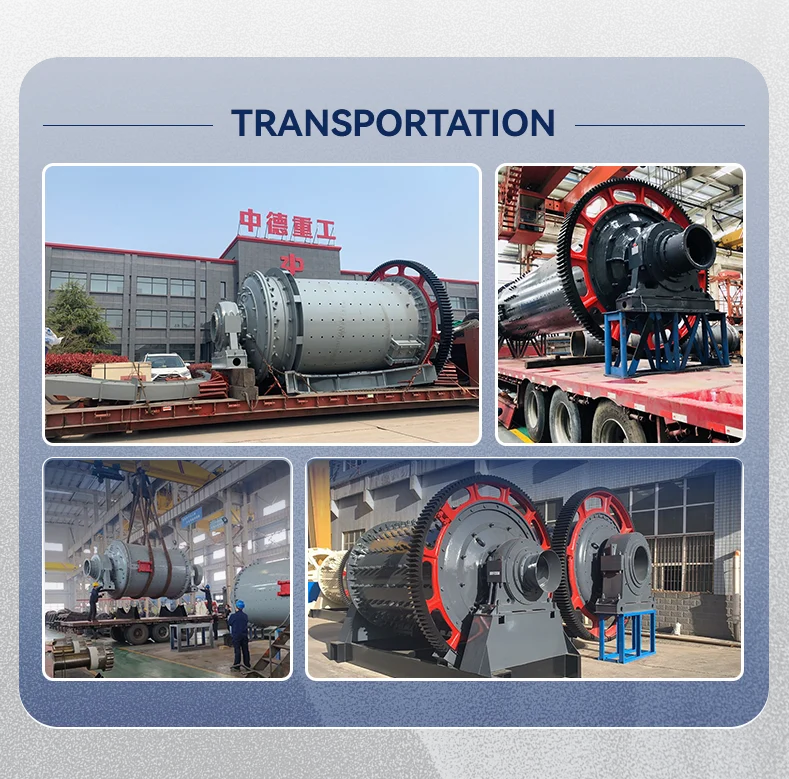

Transportation?
