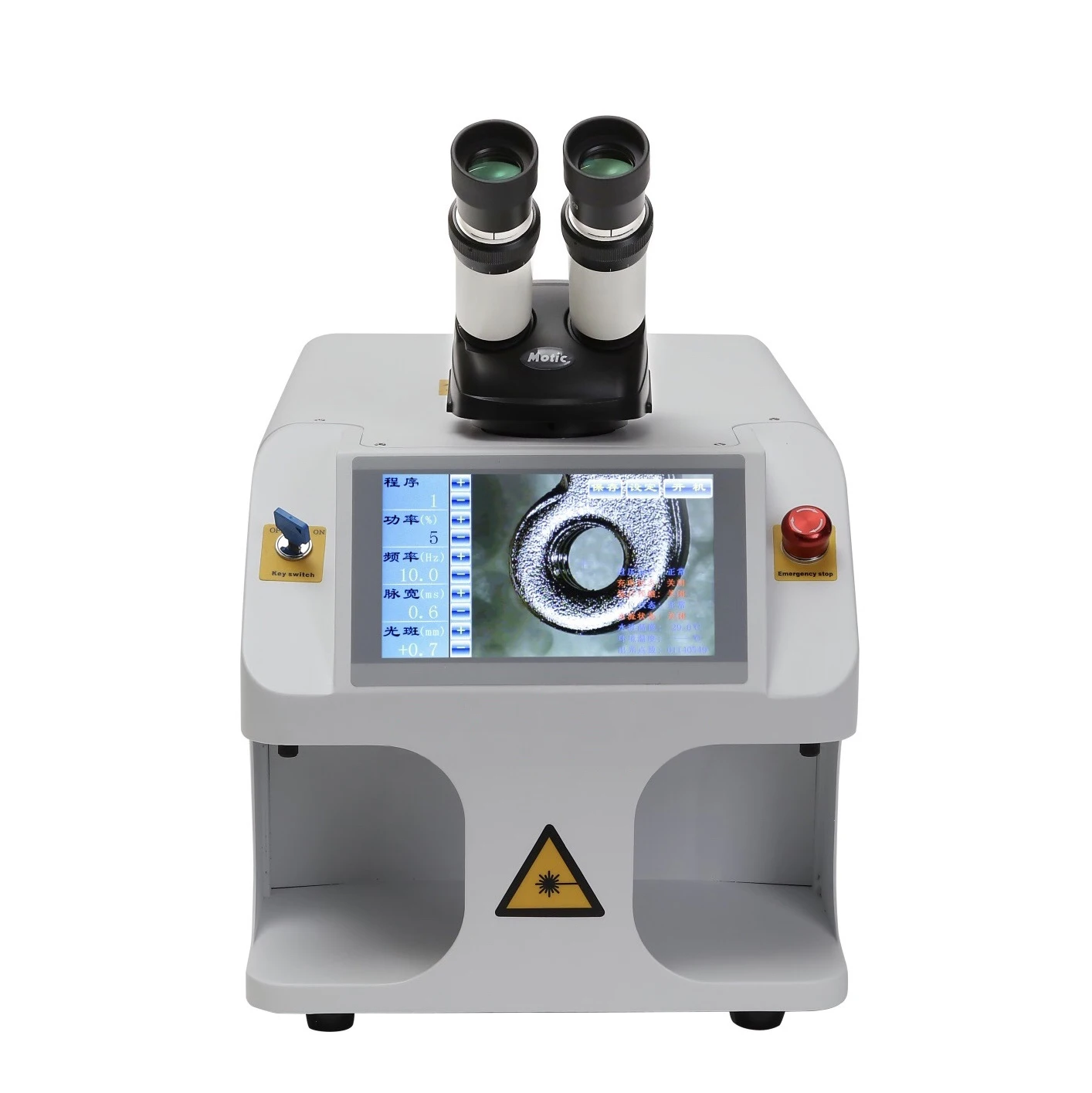

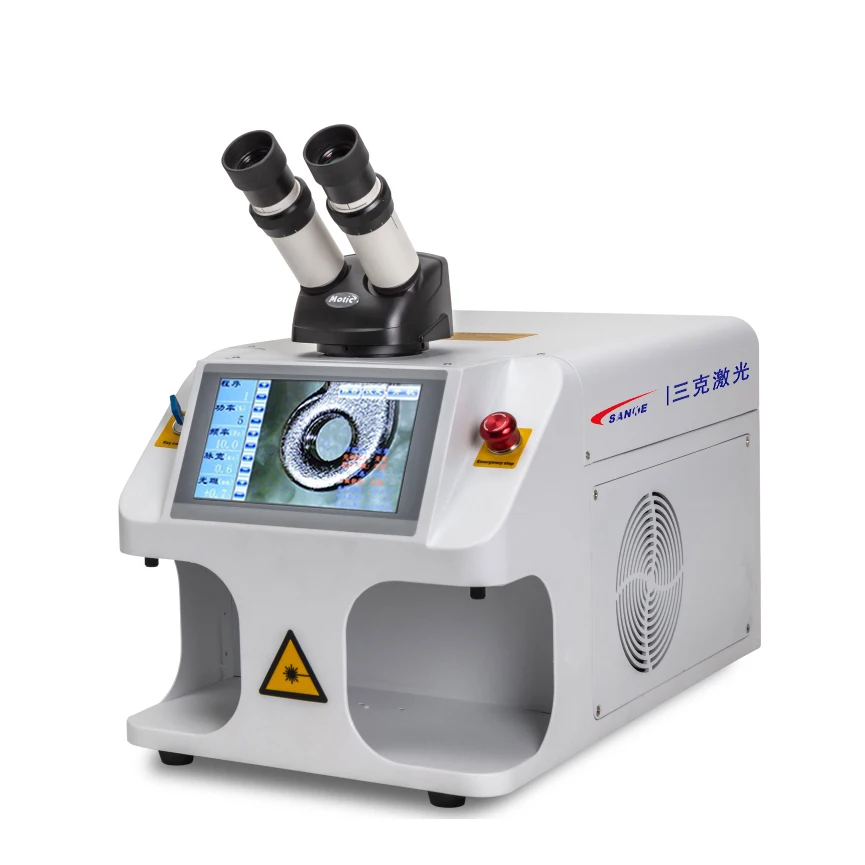

metal welding and spot welding withstand industrial, hand, line, aeon, module,high power, Jewelry laser spot welding machie

Product Overview

Description

Laser mold welding machine uses the high energy of heat that instantaneously produced by laser to melt the special purpose welding wire and connect it with the damaged parts of the mould, so it can

connect with the original material firmly, after that it shows a refacing by electric spark and grind&

cutting and some other processing and so the mould is repaired. It can repair tiny parts of the mould such as blisters, crack, burst pieces and attrition precisely. It is widely used in the industries of mobile phone, digital, car and so on.

1. Adopt the Germany’s combined type laser cavity technology, and the special laser beam to guarantee the high power output and excellent laser beam mode.

2. Jewelry laser welder is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
3. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
4. Dipulse hernia lamp drive, steady laser power supply, pulse can be programmed and intelligentize operation system, Also with the protection of incorrect operation and high temperature.
5. YAG red point position. Microscope system.
6. With complete structure, convenience use with reliable quality.
7. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
8. Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours
9. Human-based design accords with ergonomics, avoiding fatigue after long time working.



Laser power	200W	250W	300W
Laser wavelength	1064nm	1064nm	1064nm
Welding spot	0.2-2mm	1-50HZ	1-50HZ
Welding depth	0.3-2.5mm	0.3-3mm	0.3-4mm
Pulse frequency	1-50HZ	1-50HZ	1-100HZ
Controlling of worktable	Manual (Z axis electrical power)	Manual (Z axis electrical power)	Manual (Z axis electrical power)
Traveling distance of worktable	300*300*300mm	Microscope	Microscope
Coordinating system	Microscope	Microscope	Microscope
Power consumable	4KW	5KW	6KW
Power requirement	220V/50HZ	220V/50HZ	220V/50HZ
