Advantech SATA to IDE (44 pin) Converter Module card

Product Overview

Description

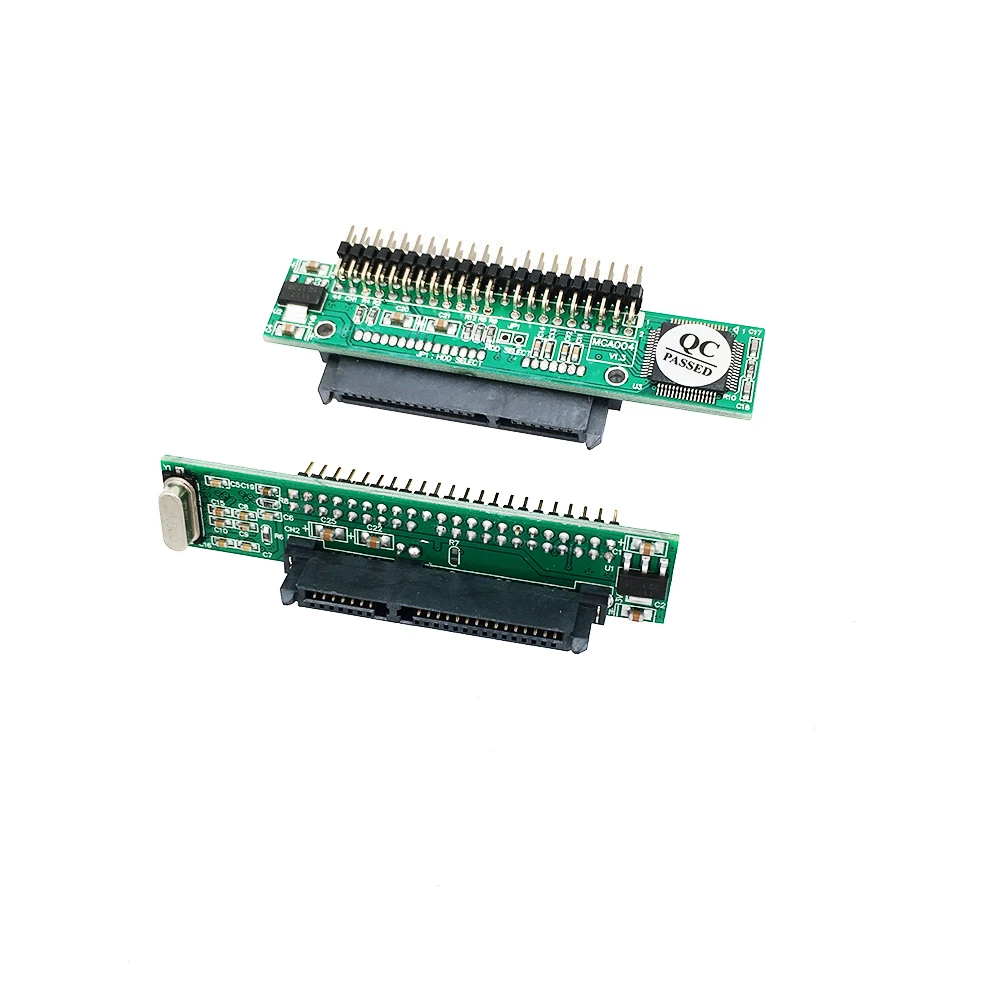

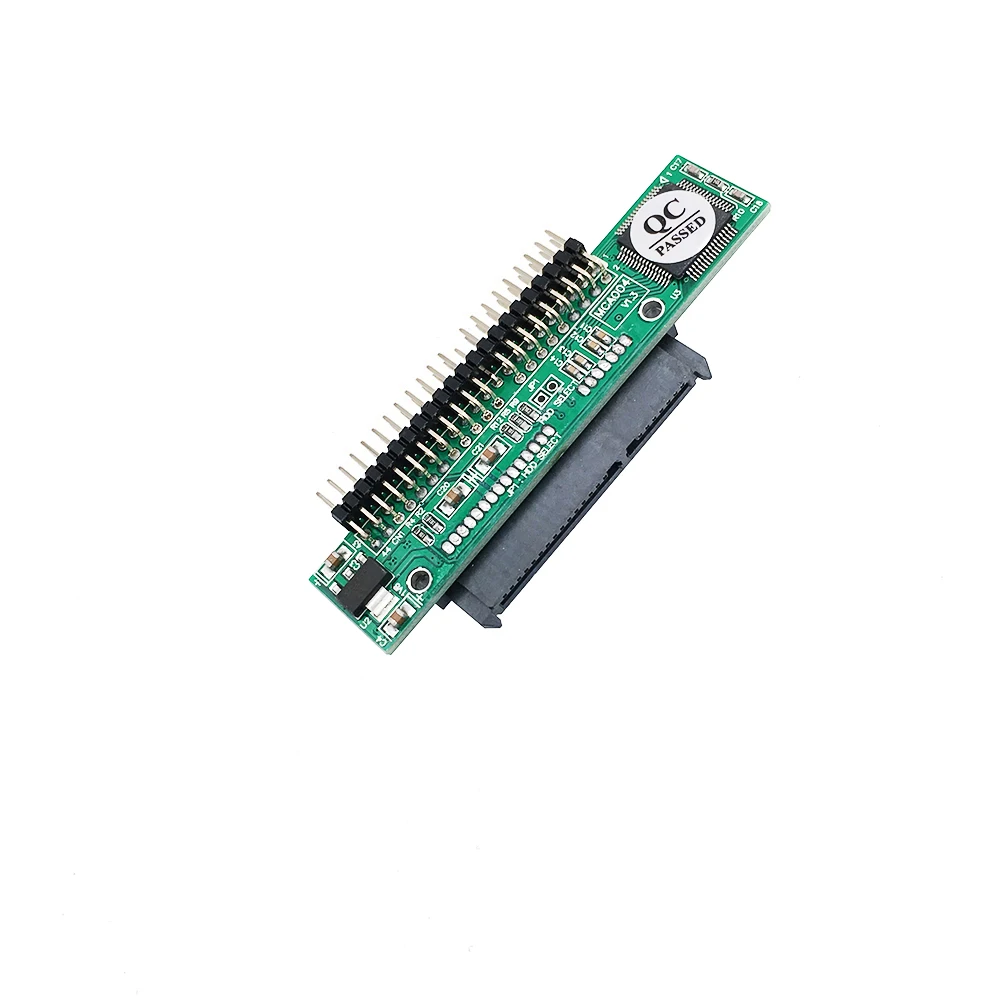

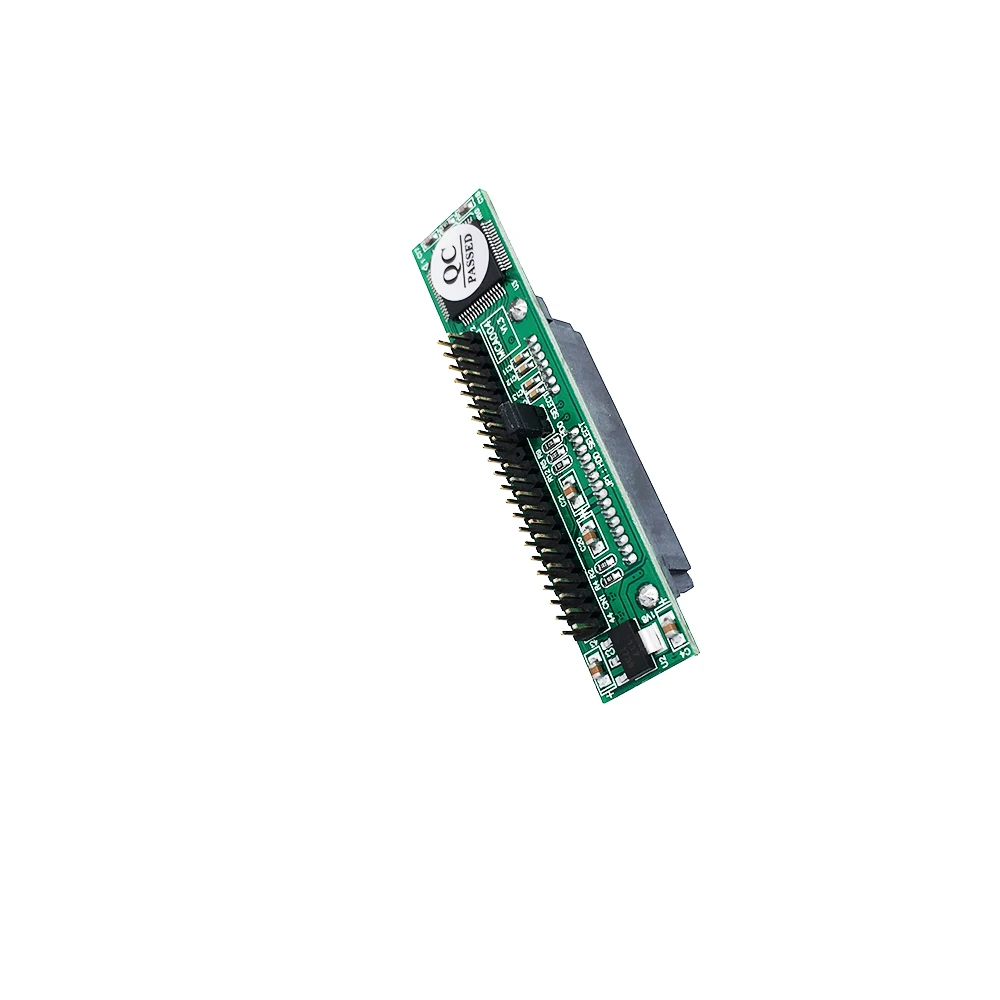

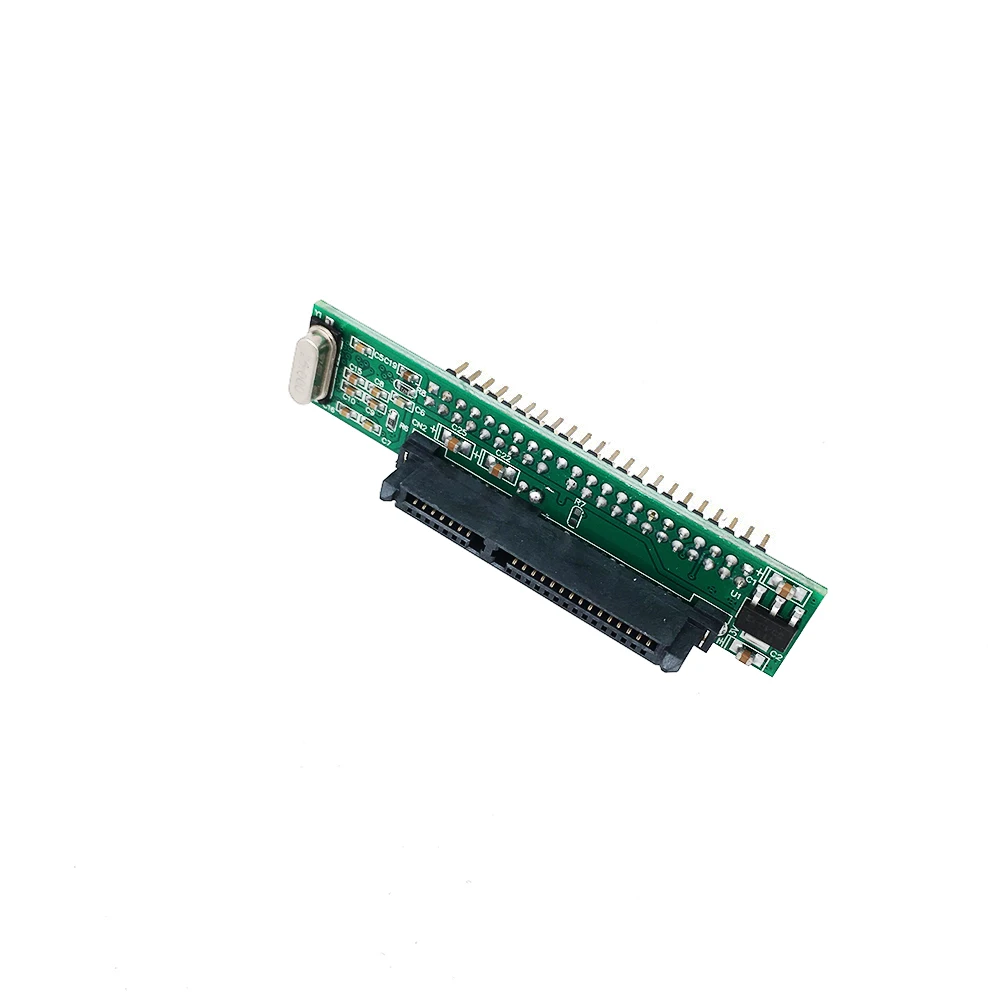

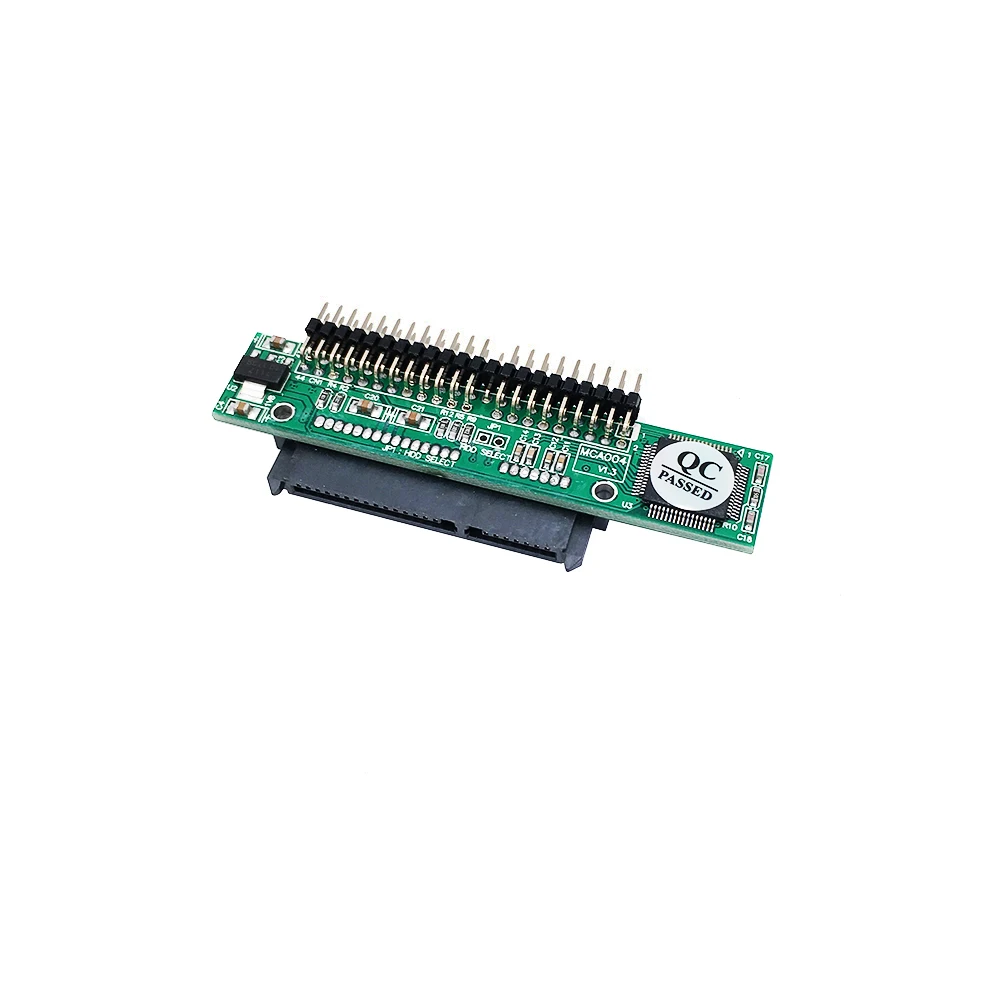

Advantech SATA to IDE (44-pin) Converter Module card





This IDE to SATA adapter is the perfect solution for adding SATA drives to motherboards lacking available SATA connectivity - SATA data and power connectors. A good adapter upgrade for older 2.5" IDE HDD to new 2.5" SATA HDD. IDE SATA adapter is a pure hardware solution to convert the IDE connection to SATA.





Features /Specifications

• Works with all SATA drives up to 500GB


• No driver needed, plug and play, not hot swappable


• One end of the IDE SATA converter is 44-pin IDE male connector and another end is 7 + 15 pin SATA female connector. The 7-pin is SATA data terminal and the 15-pin is SATA power terminal


• Supports IDE 66/100/133MB/s


• Power supply from 44-Pin IDE


• Compliant with serial ATA specification


• Dimensions: 2.72" x 0.55" x 0.69" (L 69mm x D 14mm x H 17mm )



 Package Includes

• One 22-pin SATA to IDE 2.5 male horizontal adapter.
