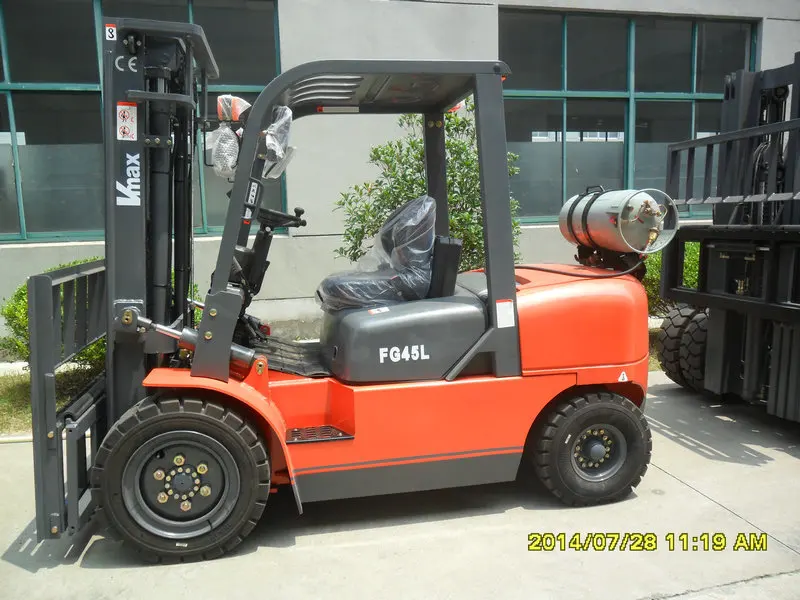

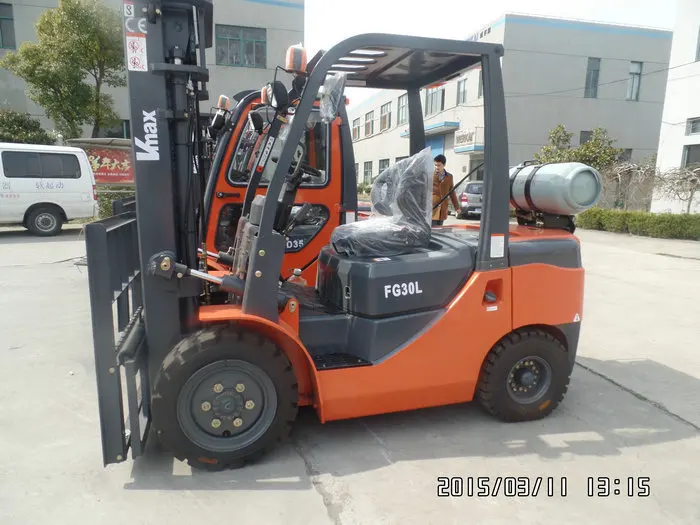

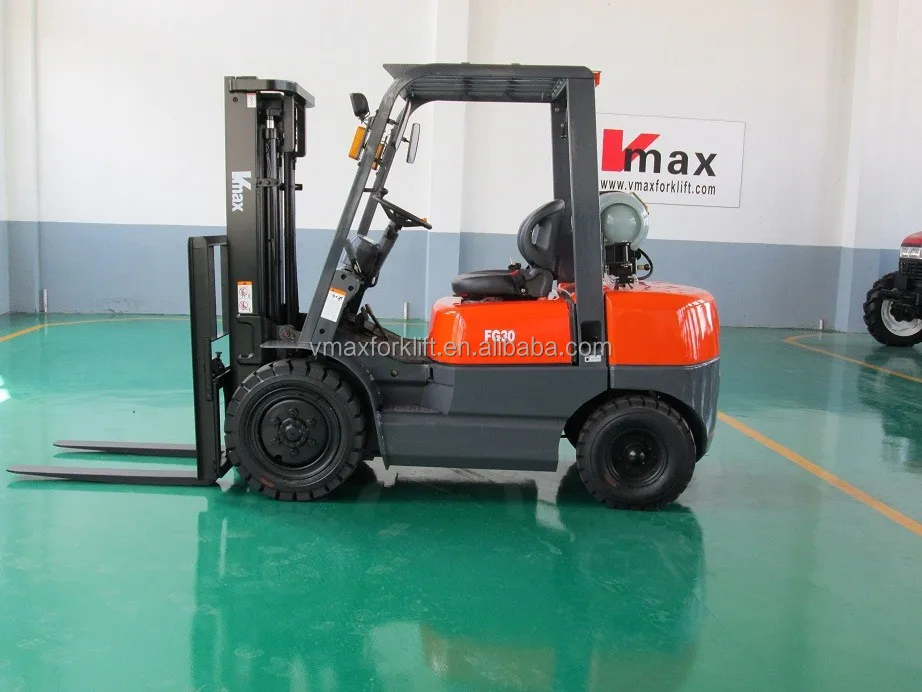

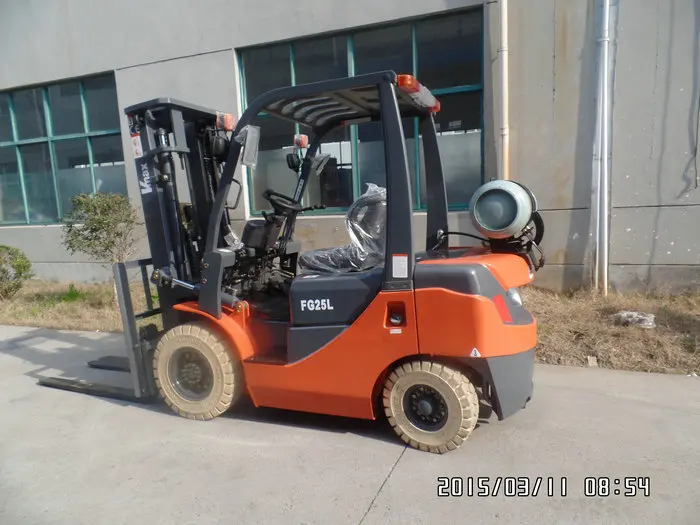

6 ton with full free 3 stage mast, lift height 4.8 meters Dual Fue, LPG forklift truck

Product Overview

Description









Complete cowl-to-counterweight service access contributes to rapid, efficient maintenance. The ergonomic design of gasoline forklift truck makes operation and maintenance easy. Vmax brand LPG forklift is available with a loading capacity ranging from 5 tons to 7 tons. Specifications of lpg forklift trucks:

General		Manufacturer			Vmax
	1	Model			FG50L	FG60L	FG70L
	2	Power type			LPG	LPG	LPG
	3	Rated capacity		kg	5000	6000	7000
	4	Load center		mm	600	600	600
	5	Lift height		mm	3000	3000	3000
	6	Fork size	L*W*T	mm	1220x150x50	1220x150x60	1220x150x65
	7	Mast tilt angle F/R		o	6/12	6/12	6/12
	8	Turning radius		mm	3300	3300	3300
	9	Ground clearance		mm	170	170	170
	10	Overhead guard height		mm	2450	2450	2450
	11	Fork overhang		mm	595	595	595
	12	Max driving speeds (with load)		km/h	24	24	24
	13	Max lifting speeds (with load)		mm/s	300	300	300
	14	Max grade ability (with load)		%	20	20	20
Dimensions	15	Overall length (without forks)		mm	3540	3540	3540
	16	Overall width		mm	1910	1910	1910
	17	Overall height fork raised (with backrest)		mm	4380	4380	4380
	18	Mast height		mm	2732	2732	2732
	19	Front tyres			8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
	20	Rear tyres			8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
	21	Wheelbase		mm	2300	2300	2300
	22	Tread	Front/ Rear	mm	1400/1534	1400/1534	1400/1534
Performance	23	Self Weight		kg	7900	8160	8400
	24	Battery Voltage/Capacity		V/Ah	24/65x2	24/65x2	24/65x2
	25	Engine	Model		GM4.3	GM4.3	GM4.3
	26		Rated output	kw/r.p.m	70/2200	70/2200	70/2200
	27		Rated torque	N.m/r.p.m	220/1800	220/1800	220/1800
	28		NO.of cylinder		6	6	6
	29		Displacement	L	4.294	4.294	4.294
	30		Fuel tank capacity	L	140	140	140
	31	Transmission	number of speed F/R		2/2 AT	2/2 AT	2/2 AT
