Screen printing machine UV Dryer, uv dryer screen printing

Product Overview

Description

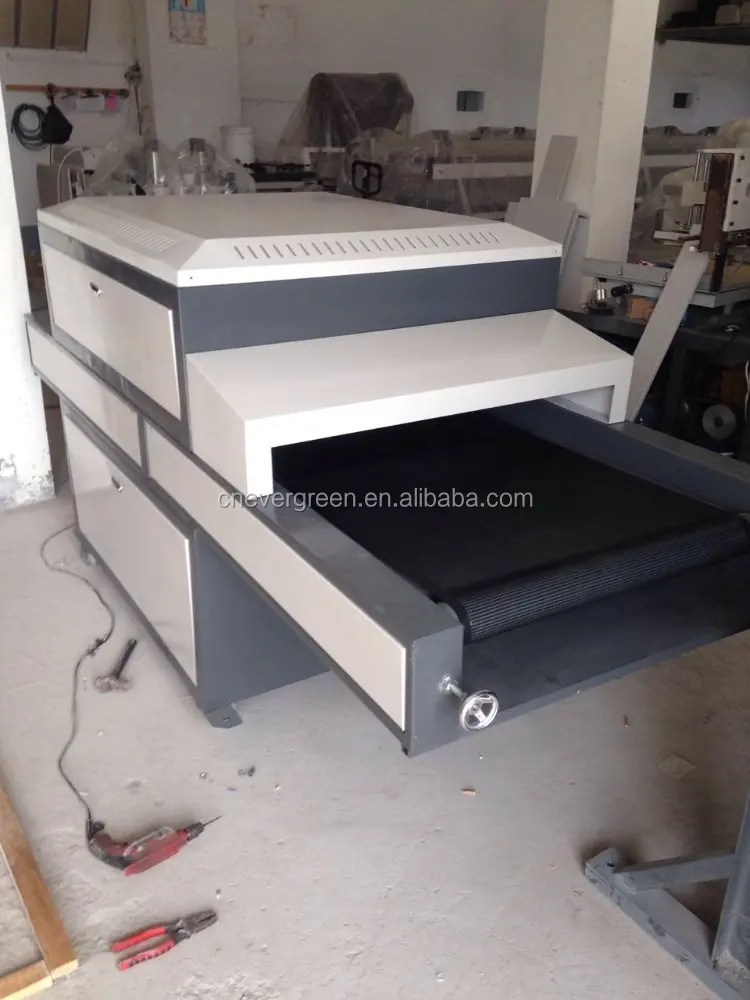

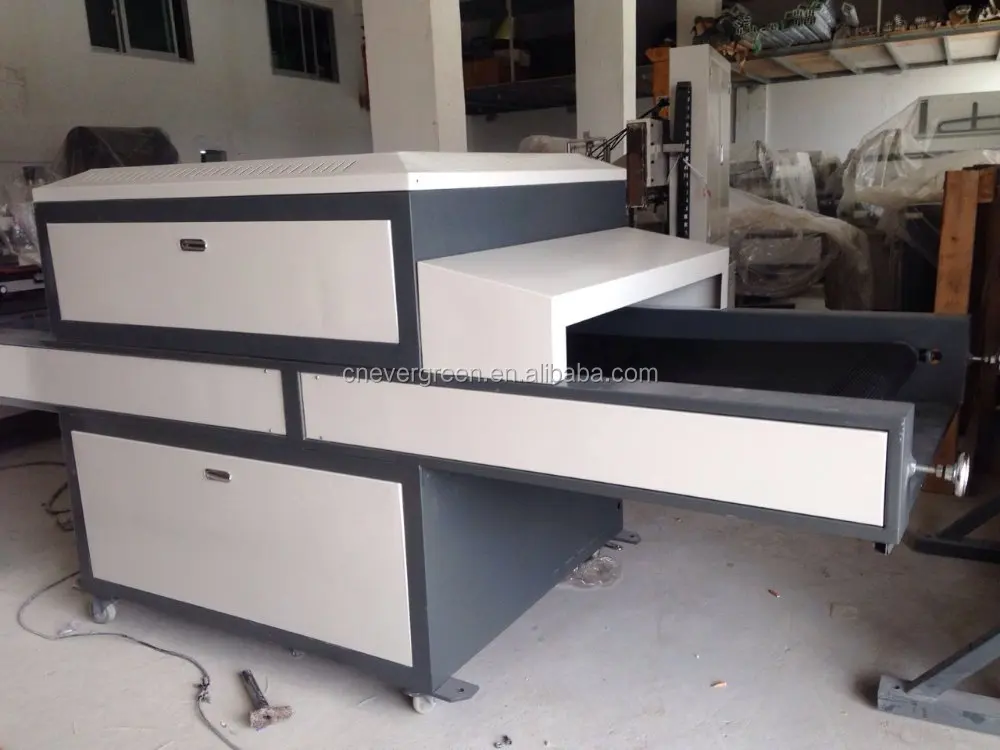

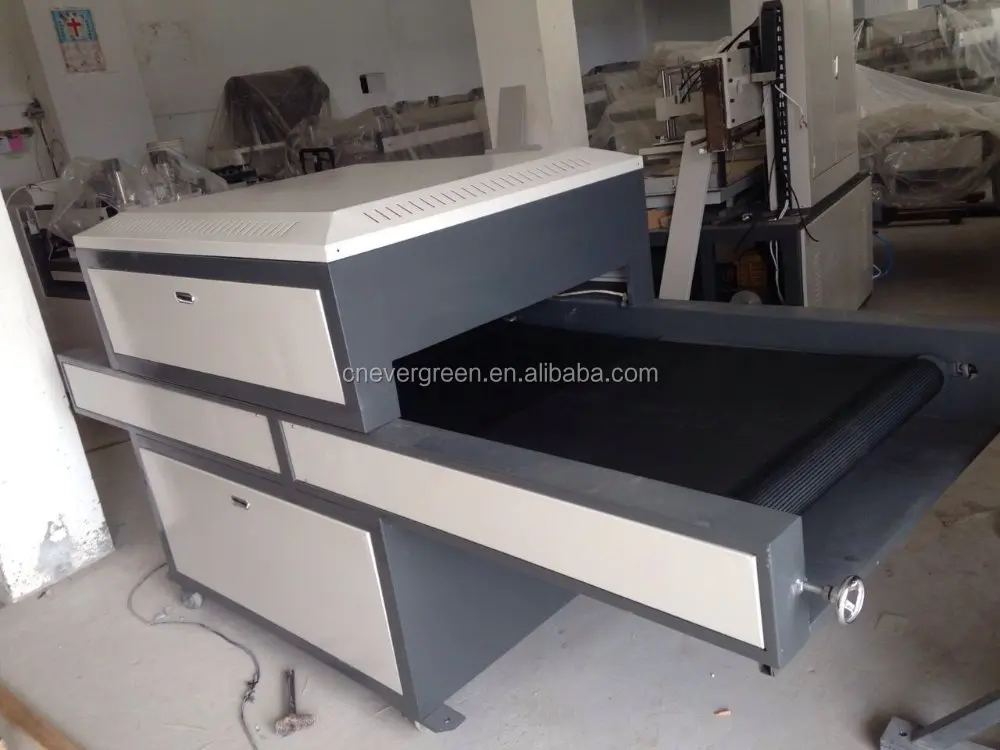

PY-UV800-Ⅱ IMMOBILIZING MACHINE( UV DRYER)

UV Drying machine for screen printer

1. Product Usage:

PY 800-ⅡF flat/cylindrical UV machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. It can also be used for the curing on flat surfaces after the light irradiation angle adjustment.

2. Features:

Sealed structure and conveyor transmission are adopted in this machine. Moreover, semi-scale light (5.6kw) or full-scale light (11.2kw) can used, or conveyor speed/distance between substrate and UV light can be adjusted according to the size and material of substrate in use so as to optimize the curing result.

Heat in the chamber can be well let out through the excellent

exhaust system at any time so that the lifetime of UV lamp

can be lengthened

It is a machine with advantages such as reliable quality, superb curing result, beautiful appearance, and easy as well as safe operation.

3,Basic Technical Date: Uv Drying machine

Term	PY-UV800Ⅱ	PY-UV1100Ⅱ
La mp Wattage	5.6kw×2	8.4kw×2
width	800MM	1,100MM
Conveyor Motor Power Supply	60W/1P/220V	90W/1P/220V
Speed adjust	Adjustable	Adjustable
Power	380V	380V
Conveyor Speed Range	0-25 M/min	0-25 M/min
Dimension	2500×1050×1400 MM	2500×1350×1400 MM
