Product Name:

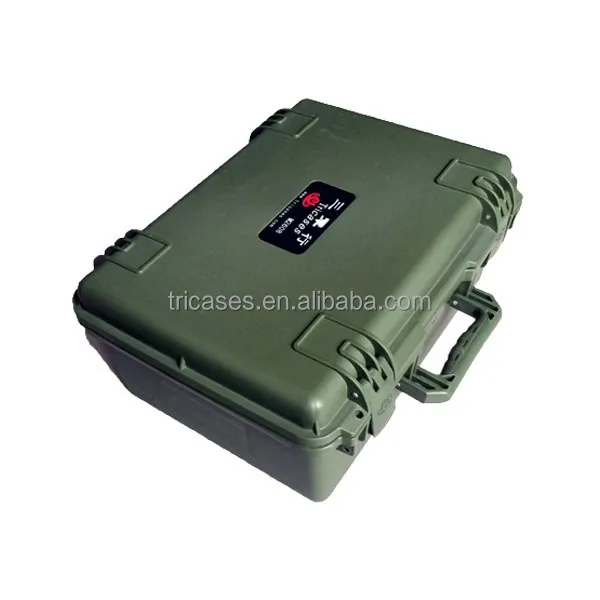

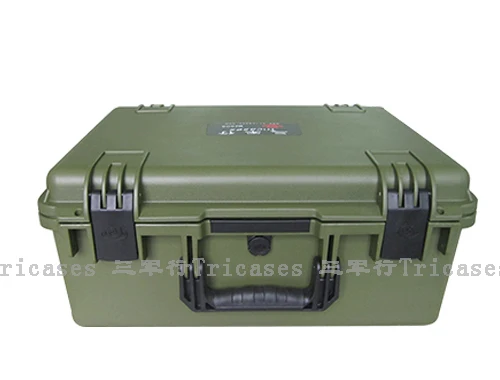

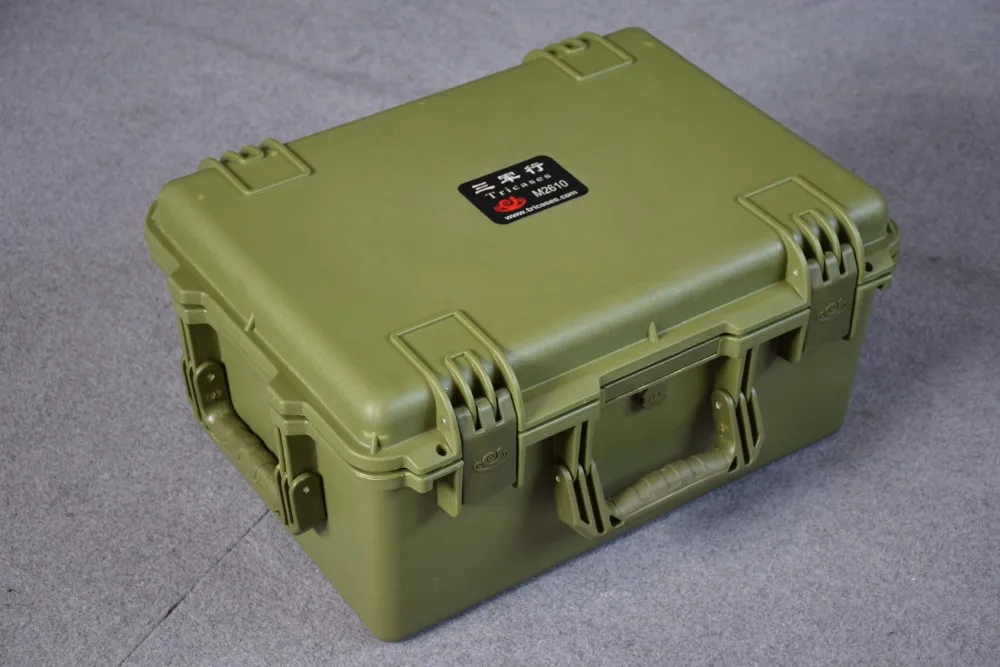

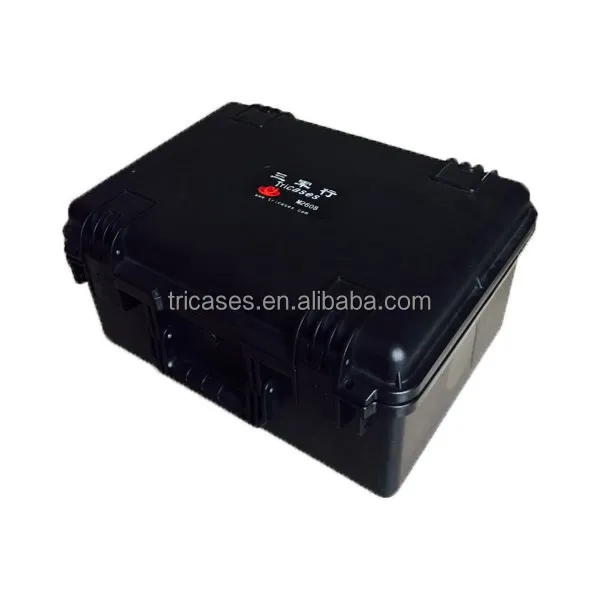

Shanghai China OEM/DOM Factory Tricases Carrying plastic dji phantom 2 vision case

MORE DJI CASES
DJI Ronin m case without wheels: M2608


DJI Ronin M case with wheels: M2620
DJI phantom 3/4 case:
DJI inspire 1/ inspire 1 PRO case:
| Type | DJI Phantom Vision 2 case |
| Model No. | M2608 |
| Standard | U.S.A. MILIT Standard |
| External Dimension | 624*498*285 mm (24.6''x19.6''x11.2'') |
| Internal Dimension | 563*437*254 mm (22.2''x17.2''x10'') |
| Depth | 48+172 mm |
| Net Weight | 4 KG |
| Color | Black/Green |
| Wheels & Pull Rod | Without |
| Material | Engineering modified plastics PP |
| Protection Level | SGS IP67 |
| Temperature Resistant | -40°C~90 °C |
| Properties | Waterproof, dust-proof, anti-crush, anti-explosion |
| Foam | EVA/PU/EPE or up to client's requirements |
| Warranty service | For lifetime |
Features:
(01) Patented Spring Lock with MILIT standard is noiseless, labor-saving and convenient to use.
(02) O-shaped solid waterproof seal ring with good insulation is resistant to low temperature of -40°C.
(03) Long hinge-type axis is waterproof and firm.
(04) Waterproof plug and nice groove are designed for customized label/Logo.
(05) Waterproof automatic air valve is able to bear pressure of 21 PA, ensuring air pressures inside and outside equivalent.
(06) Soft arc-shaped handle designed according to Ergonomics is more comfortable for a long-time use.
(07) Noiseless wheels are strong to bear over eighty kilograms.
(08) The upper cover' groove is anti-skid and easy to fix the case on slippy ground.
(09) The fixation hole is suitable for customers to fix and panel screen.
(10) Sling hole is easy for clients to install straps.
(11) Password lock is customized as a double protection.
(12) Lengthened pull rod accord with Ergonomics.
(13) The box slot is designed more convenient to install and fix panel and fragile object.

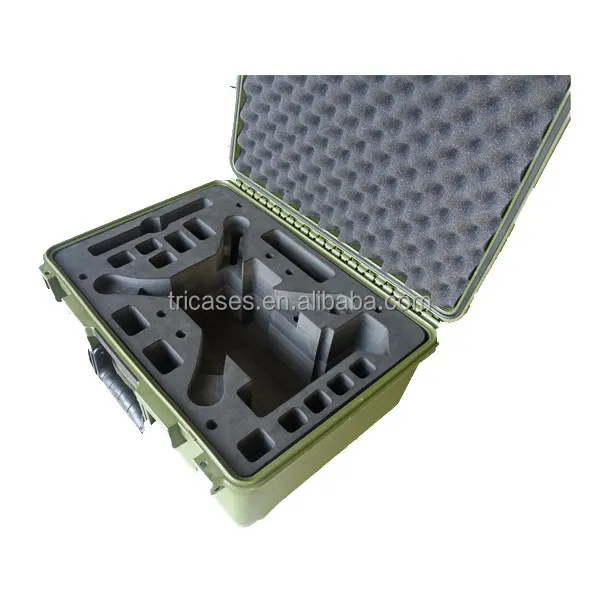

(14) EVA/PU/EPE foams and sponges can be customized.

The case did not crack after had been crushed by a car of three tons.

Sprayed by water for over 3o minutes. 1 metre below water for an houre Droped from 10 metres above

Tested by an independent firm Being tested ISO certificates

Package Payment
1 case in 1 transparent pe bag in 1 carton PayPal, T/T, L/C, etc.
-Send an inquiry telling us which case you need, how many pcs you need.
-If you're satisfied with the price, we will send you our PayPal account or bank info.
-After you pay, we will arrange and send the cases out.
Kind reminder:
For sample order, we recommend PayPal for its charges are less than T/T.
Please CLICK the item number for more information:
| M Series- Injection Moulding Middle and Small Size | |||||||
| Item | External size(mm) | Internal size(mm) | Depth(mm) | Color | Net Weight(kg) | Pull rod | Wheels |
| M2100 | 395*299*148 | 334*237*132 | 32+100 | Black/Yellow/Green | 1.78 | No | No |
| M2200 | 413*328*168 | 381*267*152 | 48+104 | Black/Yellow | 2.3 | No | No |
| M2360 | 464*358*208 | 432*297*193 | 48+145 | Black/Yellow | 2.86 | No | No |
| M2400 | 493*395*185 | 462*334*170 | 48+122 | Black/Yellow | 2.916 | No | No |
| M2500 | 587*358*221 | 525*297*192 | 48+144 | Black/Yellow | 4.95 | Yes | 2 |
| M2608 | 570*418*228 | 508*356*220 | 48+172 | Black/Green | 4 | No | No |
| M2620 | 570*418*285 | 508*356*254 | 48+206 | Black/Green | 5.2 | Yes | 2 |
| M2720 | 624*498*285 | 563*437*254 | 48+206 | Black | 7.5 | Yes | 2 |
| M2750 | 624*498*353 | 563*437*323 | 48+275 | Black | 8 | Yes | 2 |
| M2950 | 802*522*298 | 741*461*267 | 78*189 | Black | 8.9 | Yes | 2 |
| RS Series- Rotational Moulding cases | |||||||
| Item | External size(mm) | Internal size(mm) | Net weight(kg) | Volume(L) | Wheels | Color | Level |
| RS820 | 800*530*380 | 700*445*350 | 15 | 100 | Yes | Green | IP65 |
| RS830 | 800*600*560 | 730*530*450 | 18 | 170 | No | Green | IP65 |
| RS860 | 961*697*398 | 871*615*355 | 20 | 190 | Yes | Green | IP65 |
| RS870 | 1100*530*360 | 1020*450*340 | 18 | 150 | Yes | Green | IP65 |
| RS880A | 1200*800*620 | 1100*730*600 | 33 | 480 | No | Green | IP65 |
| RS880B | 1200*800*700 | 1100*730*680 | 37 | 550 | No | Green | IP65 |
| RS890 | 2120*1070*625 | 2000*960*600 | 65 | 1150 | Yes | Green | IP65 |
| RU Series- Rotational Moulding Rack cases | |||||||
| Item | External size mm | 19 inch size mm | Depth(mm) | Dampener | Wheels | Pull Rod | Color |
| RU040 | 760*621*364 | 181*483*450 | 100+560 | 8/or without | 2/4 | 4 | Green |
| RU060 | 860*592*446 | 270.5*483*600 | 90+680 | 8/or without | 2/4 | 4 | Green |
| RU080 | 860*592*535 | 359.5*483*600 | 90+680 | 8/or without | 2/4 | 4 | Green |
| RU110 | 850*621*675 | 493*483*550 | 100+650 | 8/or without | 2/4 | 4 | Green |
Or you could click the following info to find more details:
DJI Phantom 2 case DJI phantom 2 vision Plus case Dji phantom 2 case with pull rod
DJI phantom 3 case Dji phantom Ronin-m case Dji phantom Ronin-m case with pull rod
DJI inspire 1 case Frsky case MILIT MILIT case
Camera case Camera case with pull rod Waterproof first aid case
Small plastic case Medium MILIT plastic case Large MILIT equipment case
Instrument case 4u rack case 6u rack case
8u rack case 11u rack case MILIT case(1)
MILIT case (2) MILIT case (3) MILIT/shortMILIT case
Large plastic case Air-drop plastic case Heavy duty large case
Shanghai Tricases Plastics Technology Co., Ltd is located in Fengxian District of Shanghai.
We are China MILIT's cases supplier and used to be multinational corporations' OEM manufacturer.
We have four series for choosing now:
M series (Injection molded Case) , RS Series(Rotomolded Case) , RU series (Mount Case) , and RD Series (Mobile Desks) . More cases are being developed and presented continuously.
