                                            Plywood  Prodcution Line

   Our company specializes in manufacturing woodworking machinery. We mainly produce press machine,veneer peeling lathe,drying machine and other woodworking machinery for plywood,block board,particle board,etc.

   we can design and produce the whole plywood, block board , MDF or HDF hot press or production line as requested.

  1.Log Debarking Machine


ModelBPZY130
Specification of Wood(D*L)Φ420*1300
Maximum Stroke of Knife420mm
Speed Ratio1:17
Motor Power                                                                       Twin-roller Motor 7.5KW,Single-roller Motor 7.5KW
Overall Dimension(L*W*H)2780*2060*1320mm
WeightAbout 2300 KG



  2.Veneer Peeling Lathe with Spindle








ModelLXQ130A
Peeled Logs length1300mm
Peeled Logs diameterΦ700mm
Minimum diameter of leaving shaftΦ80mm
Peeling thickness0.4-3.6mm
Peeling knife specifications1400*130*12.7mm
Main Motor11/14KW
Fast-forward Motor1.1KW
Clamping Motor2.2KW
 Equipment weightabout 1800KG
Spindle speed58/87 r/min
Dimensions of Main frame3300×1550×1220mm
Weight4000 KG



  3.Knife Grinding Machine(for grinding the knives on the veneer peeling lathe)




  4.Veneer Cutting Machine



ModelZDZ-1400
ControlMicrocomputer Automatic
The width of veneer1400mm
The Thickness of veneer0.5-4mm
Transmission speed10-100m/min
Power3KW
WeightAbout 1200KG

  5.Veneer Drying Machine








ModelBG11-4*8-15
Quantity of Layers15 layers
Heating platen(working table size)2600*1300mm
No-load Closing TimeAbout 35S
Separation between layers60mm
Motor Power3KW
Dimensions4100×1380×2600mm
Gross Weight3500KG
Heating platenSeamless Steel pipes(heating with steam or oils)

  6.Glue Mixer






7.Glue Spreader






ModelBS34-1400
Maximum width of spreading 1400mm
Thickness of spreading0-25mm
Speed of spreading40rev/min
Length of spreading rolls1400mm
Diameter of spreading rollsΦ248mm
Length of squeezing rolls1416
Diameter of squeezing rollsΦ217mm
Motor power3KW
Dimensions 2670*1200*1400mm
Weight940KG



  8.Prepress Machine




ModelBY81-4*8/400
Pressure capacity400T
No. of cylinder4 pieces
Diameter of cylinders2 units Φ320mm ,2units Φ63mm
Stroke of cylinder800mm
Hydraulic systemAutomatic-controlled
Pressure of hydraulic system25Mpa
motor power5.5KW
Pressurized oil pump10ml/rev plunger oil pump
Width between nether and top crossbeam1700mm
Dimensions3560*800*4200mm
Height of top crossbeam,nether crossbeam900,1000mm
Thickness of steel board35/22/12mm
Dimension of active crossbeam2700*1370*400mm
Weight13,000KG

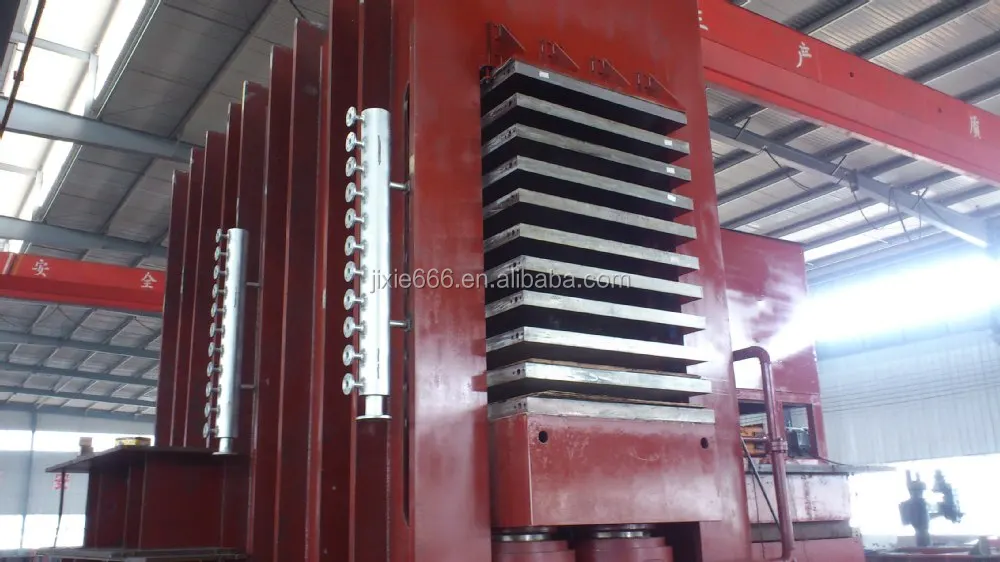

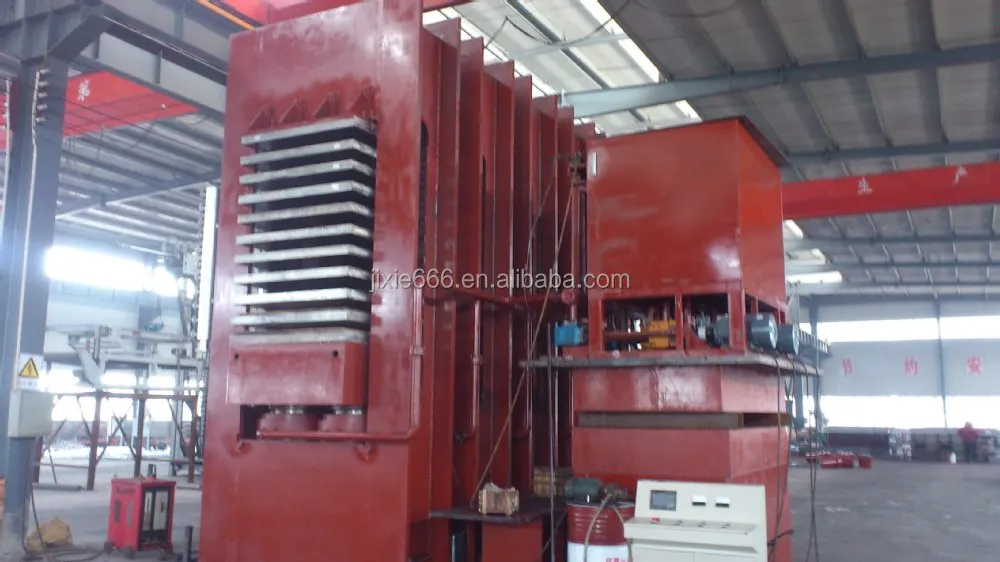

  9.Commercial Plywood Hot Press Machine(to make base panel)




ModelBY21-4'*8'/40-15
Frame styleCombination frame
Quantity and Diameter of Cylinder2 units Φ320mm
Nominal Pressure400Tons
Quantity of layers15 layers
Separation between layers70mm
Stroke of Cylinder1050mm
No-load closing timeAbout 15s
Hydraulic system control methodManually/Automatic controlled
Hydraulic system pressure 25MPa
Main motor11KW
Pressurized motor7.5KW
Main pumpShanghai Aviation 250 pump
Pressurized pump10ml/rev  plunger  pump
Heating platen(working table size)2700*1370*42mm
Heating Meduim in the heating platensteam or heat transfer oils
main frame steel plate thickness35,22,12mm
Upper, Bottom crossbeam900,800,400mm
Movable crossbeam2700*1370*400mm
Dimensions of Main frame3560*1370*4240mm
Weight32000KG
Production Capacityabout 30 sheets of plywood in one hour

  10.Full Automatic Panel  Saw




11.Sanding Machine



12.Hydraulic Lifiting Table



13.Hydraulic Panel Turnover Machine



14.Film Faced Plywood Hot Press Machine (to press film or veneer on the base panel)


ModelBY21-4'*8'/50-8
Frame styleCombination frame
Quantity and Diameter of Cylinder2 units Φ360mm
Pressure Capacity500Tons
Quantity of layers8 layers
Separation between layers70mm
Stroke of Cylinder700mm
No-load closing timeAbout 15s
Hydraulic systemMicrocomputer Manually/Automatic controlled
Hydraulic system compression resistance25MPa
Main motor11KW
Pressurized motor5.5KW
Main pump1 piece of Shanghai Aviation 250 pump
Pressurized pump10ml/rev  plunger  pump
Heating platen working table size2700*1370*42mm
main frame steel plate thickness40mm,22mm,12mm
Upper, Bottom, Movable crossbeam1000mm,900mm,400mm
Movable crossbeam2700*1370*400mm
Dimensions of Main frame3560*1370*3554mm
Gross Weight25 tons
Procuction Capacityabout 48sheets in one hour





Packaging & Shipping


Company Information

 about us.jpgzhenghsu.jpg

mp.jpgWe export plywood making machines to all over the world .

Any question, please feel free to contact me!
