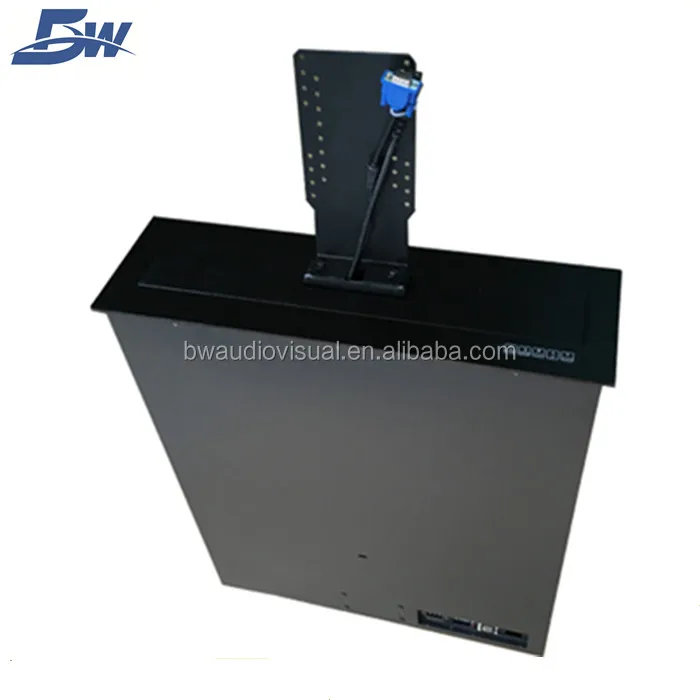

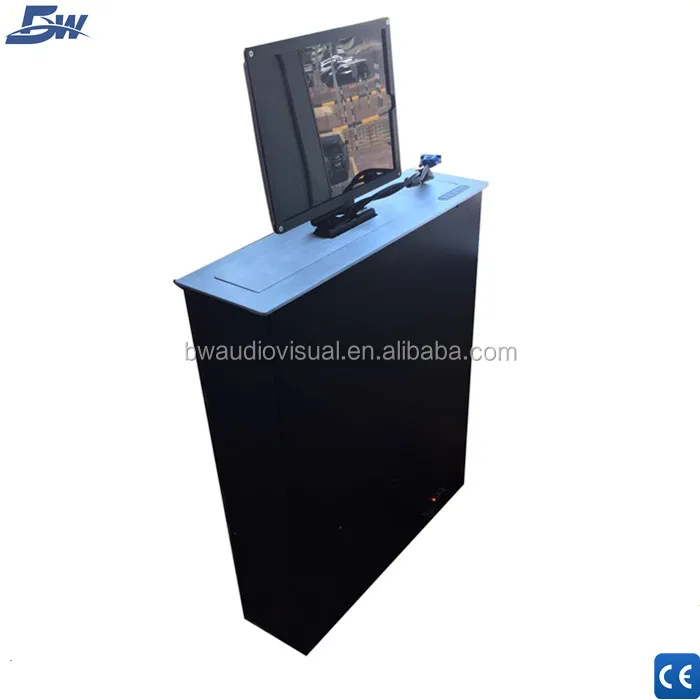

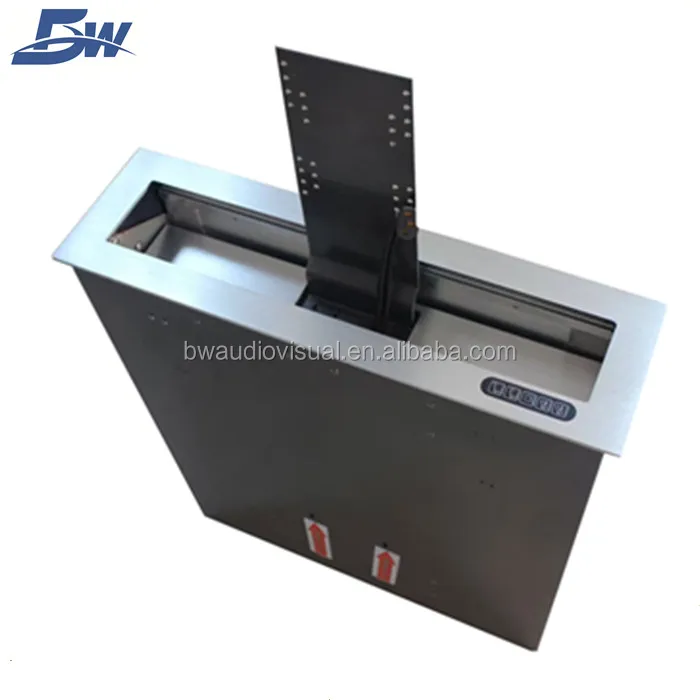

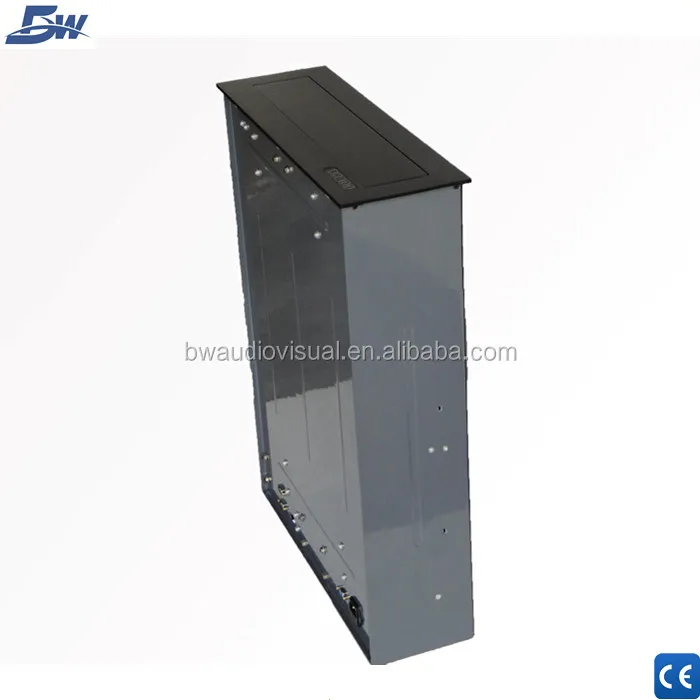

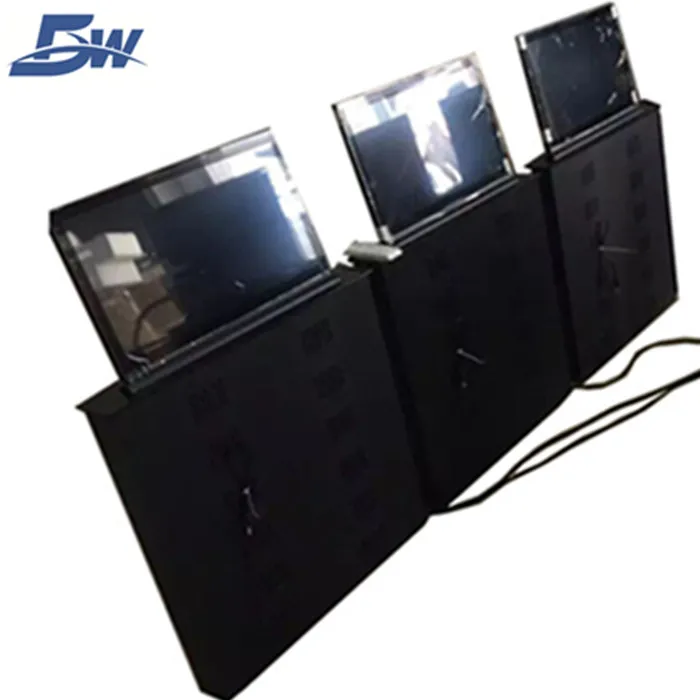

Remote Controlled Motorized Pop Up Display System/Electric LCD Monitor Screen Lift

Product Overview

Description

Remote Controlled Motorized Pop Up Display System/Electric LCD Monitor Screen Lift



  DESCRIPTION Of Pop Up Display System



   BW-LU series pop up display system specially designs for high-class conference solutions. With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.



   With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc. The lift is usually used together with our tabletop sockets to produce unexpected results.



   Characteristics Of Pop Up Display System

1. 17”, 19”,22”, 24” available, others can be customized


2. Aluminum oxidation with drawing polishing surface process to make sure smooth and bright panel


3.  Adopting superior gear machine to produce precise gear to ensure stable and reliable lift;


4. Selecting qualified mute motor with CE CCC marked


5. Drive sytem: constructed by belt gearing and dual-rack system that highly improve the operation stability and also make very low noise.


6. Provided with English buttons to control the lift, UP, DOWN, STOP, FORWARD, BACKWARD


7.  Remote control ,manual control and central control;


8. Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption


9. Adjustable angel of the screen after lifts up.


10. Equipped with different data interfaces for convenient data access.

Item NO.	BW-LU17		BW-LU19		BW-LU22
Style	LCD Lift with monitor		LCD Lift with monitor		Lcd lift with monitor
Products	Monitor+lift+remote control		Monitor+lift+remote control		Monitor+lift+remote control
Panel size	490*160*4mm		550*160*4mm		620*190*4mm
Box size	470*150*655mm		530*150*655mm		600*175*665mm
Panel thickness	4mm		4mm		4mm
Lift mount size	420*80mm		480*80mm		540*105mm
Packing size	578*250*770mm		650*270*780mm		720*300*850mm
N.W	22kg		24kg		28kg
Voltage	110-220v		110-220v		110-220v
Power	20W		20W		20W
Pitch angle	0-15°		0-15°		0-15°
Single trip time	≤20s		≤20s		≤20s
Working Temp.	0-45°		0-45°		0-45°
R.H.	≤80%		≤80%		≤80%
Color	silver/black		silver/black		silver/black
Remote distance	35m		35m		35m
Operation noise	≤30db		≤30db		≤30db
Material	Wiredrawing aluminum alloy		Wiredrawing aluminum alloy		Wiredrawing aluminum alloy
Control way	Touch key-press/Remote control/RS485 central control		Touch key-press/Remote control/RS485 central control		Touch key-press/Remote control/RS485 central control
Running way	double motor with gear drive		double motor with gear drive		double motor with gear drive
Protecting way	protecting finger from nipping		protecting finger from nipping		protecting finger from nipping
Accessory	stator 2pcs  screw(5*10mm)4pcs  power line 1 pc

 Package&Shipping Of Pop Up Display System

Pop Up Display System BW-LU17 package, usually is with standard export cartons:

    1pc/ ctn   58*25*77cm

    3pcs/wooden case 64*63*73cm

    by courier like DHL, FedEx, UPS, TNT, TOLL etc.

   by air to any airport around the world

   by sea to any port around the world

   by trail to inland countries





 Service

1. Sample service is available

2. OEM is warmly welcomed

3. Shipment and sample quality tracking.

4. Quick response , enquiry will be repond within 24 hours

5. high qualified after sale service
