Short stroke Micro swing type voice coil motor
- Category: >>>
- Supplier: Suzhou Unite Precision Machinery Technology Co. Ltd.
Share on (60229729454):
Product Overview
Description
voice coil motor:
Product Description
The main application of a voice coil motor: |
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
4.Vibration System:Shaking table, vibration platform. |
5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
6.Aviation Technology:Flight control system, pilot feedback system. |
7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution
limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 Nm.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators
rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,
industrial and aerospace industries.
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |

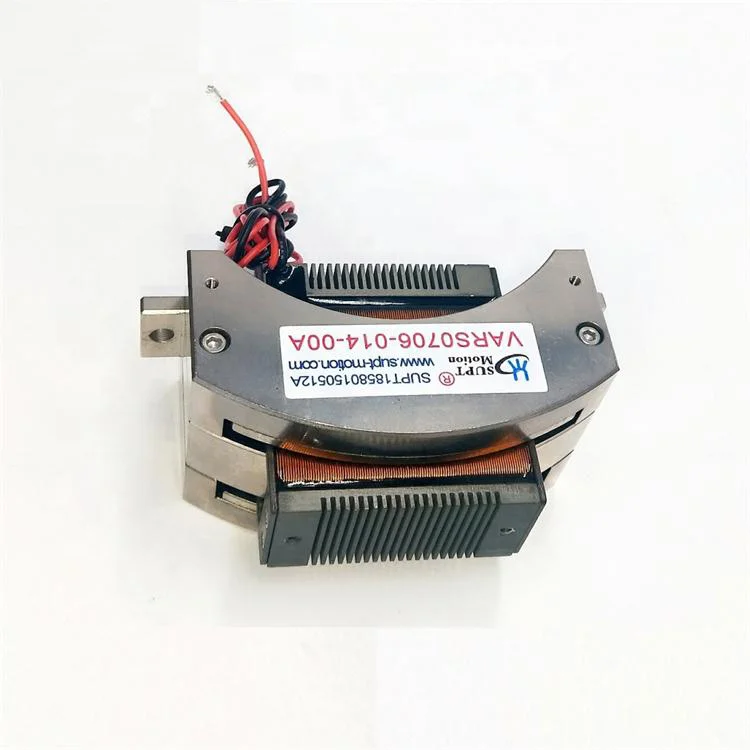

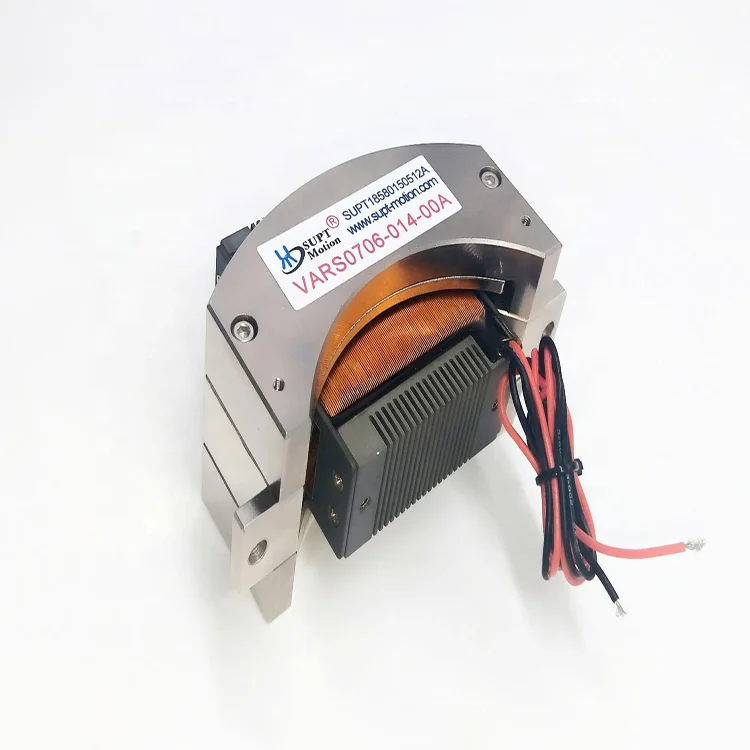

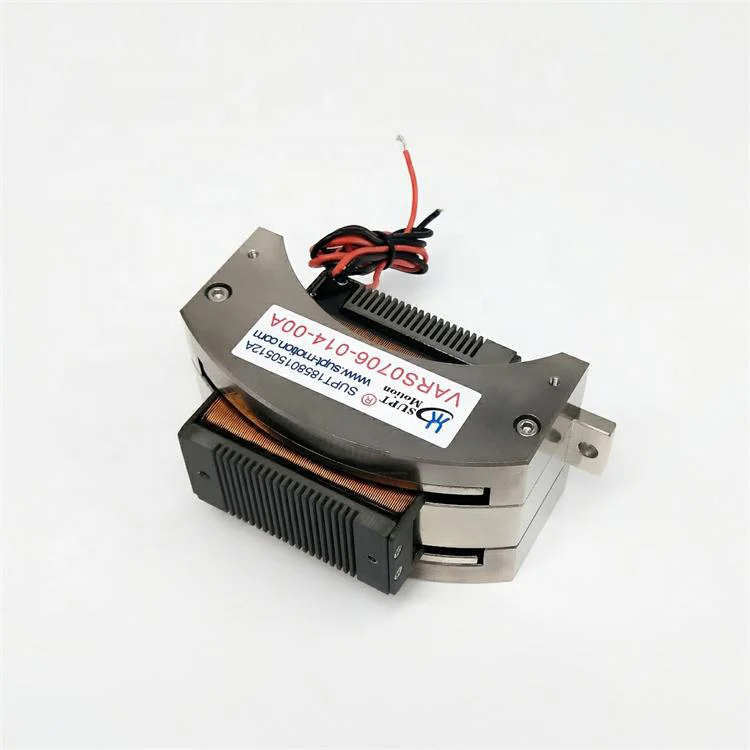

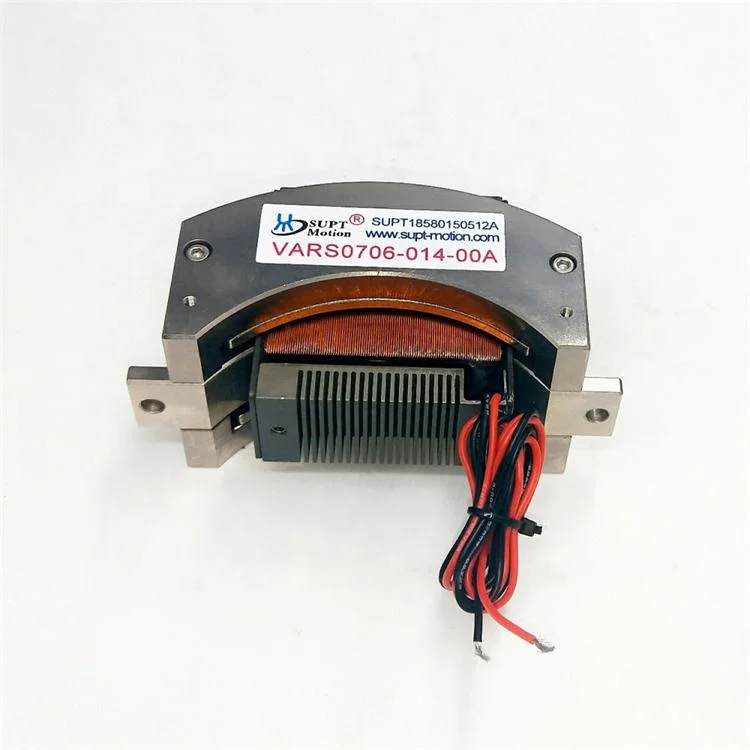

| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Our Services
Technical indicators & specifications can be customized
Free sample,freight collect
Satisfactory after-sales service
