High quality fiberglass reinforced plastic L angle bar, anti corrosion FRP Z shape angle beam
- Category: >>>
- Supplier: Zhengzhou Yalong Pultrex Composite Materials Co. Ltd.
Share on (60229877628):
Product Overview
Description
Product Description

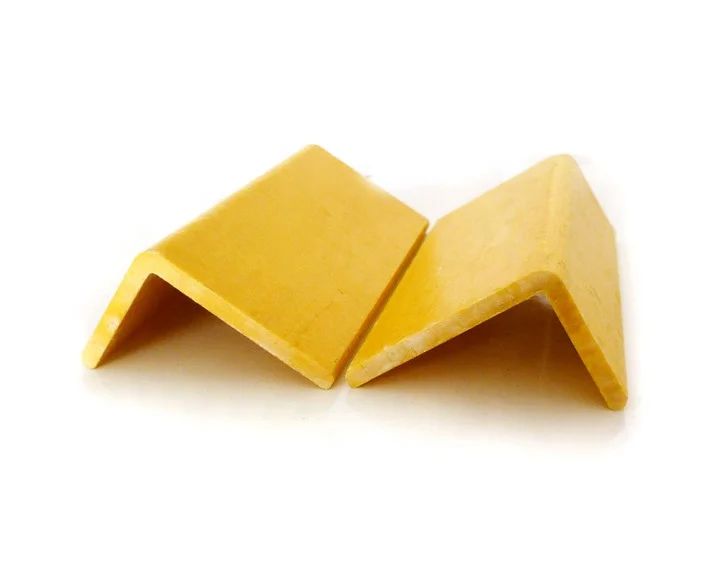

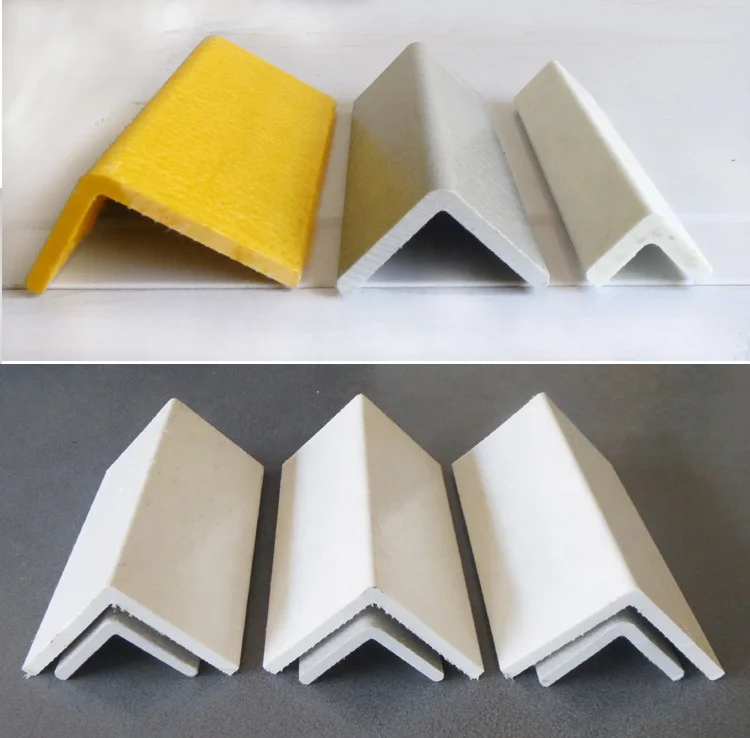

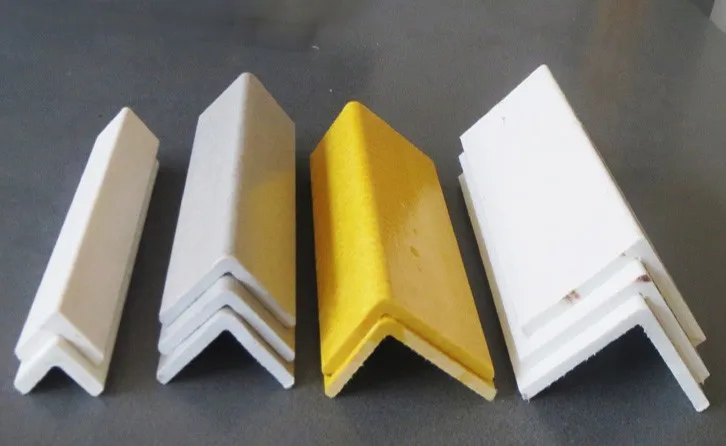

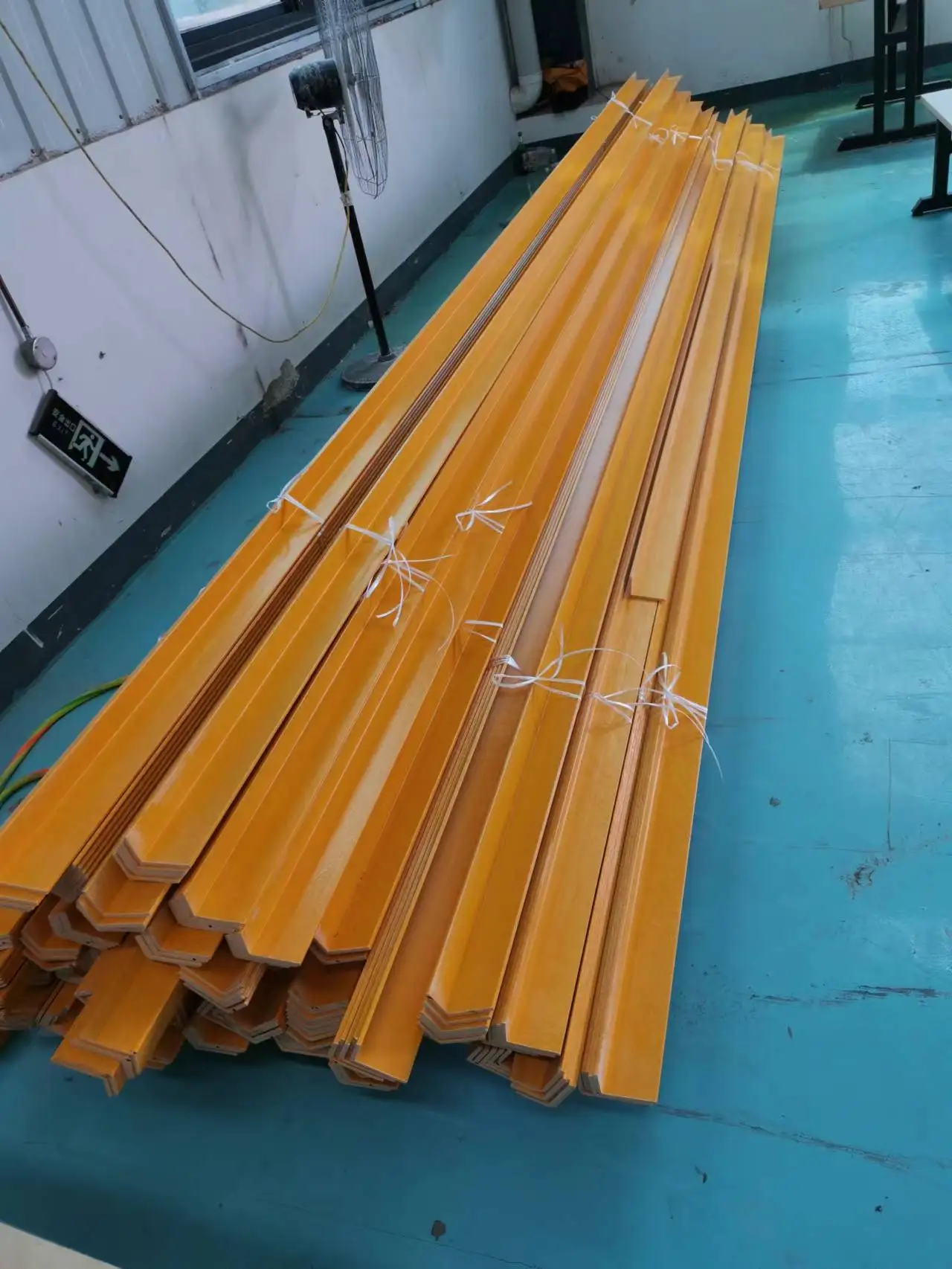

High quality fiberglass reinforced plastic L angle bar, anti-corrosion FRP Z shape angle beam
Parameters | ||
Type | Fiberglass L angle, Z shape angle | |
Material | Fiberglass + Resin base (ORTHO,ISO,VE)+Filler(ATH,CaO) | |
Density | 1.8-2.0g/cm^3 | |
Specification | L angle: 20*20*2mm, 25*25*6mm, 30*25*3mm, 40*40*5mm, 47*42*2.3mm, 60*40*5mm, 60*60*6mm, 76*50*6.35mm. Z shape angle: 60*30mm, 83*60mm | |
Length | customized, tolerance±0.5mm | |
Color | Red, Yellow, Green, Orange, Black, White, Blue, Gray or as request | |
Surface | Smooth | |
Properties | ||
Light Weight, High Strength | Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength is superior to ordinary carbon steel. Anti-creeping. Impact endurance. | |
Anti-aging | Have more than 20 years effective service life under normal outdoor working condition. | |
Safety | Good performance of electric insulation. 10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84. | |
Anti-Corrosion | No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. It has predominant advantages in anti-corrosion field. | |
Anti-fatigue | Moderate flexibility reduces the workers` pressure on legs and waist which is more comfortable. | |
Anti-skid | Different process mode on surface, concave, gritted, increase friction factor. Have good anti-skid function. | |
Excellent economic benifits | Excellent comprehensive economic benefits. | |
Attractive appearance & easy maintenance | Have alternative and bright colors. Non-fading. Easily for clean. | |
Application | ||

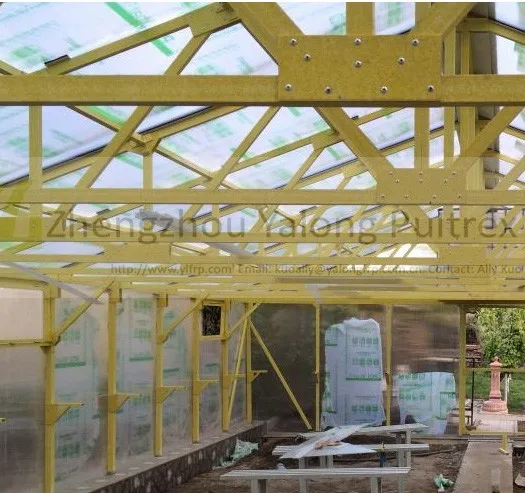

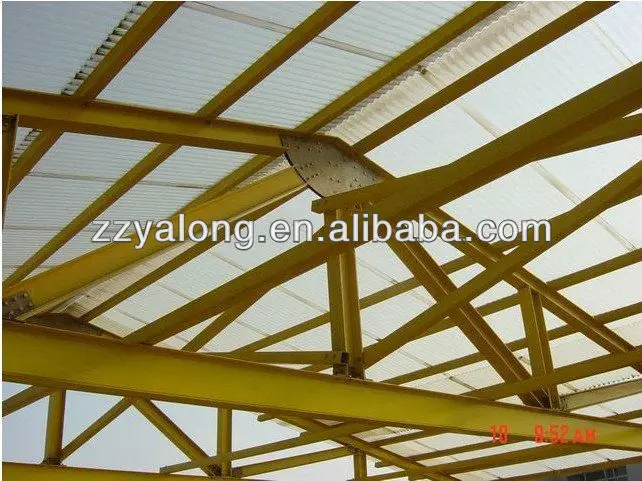

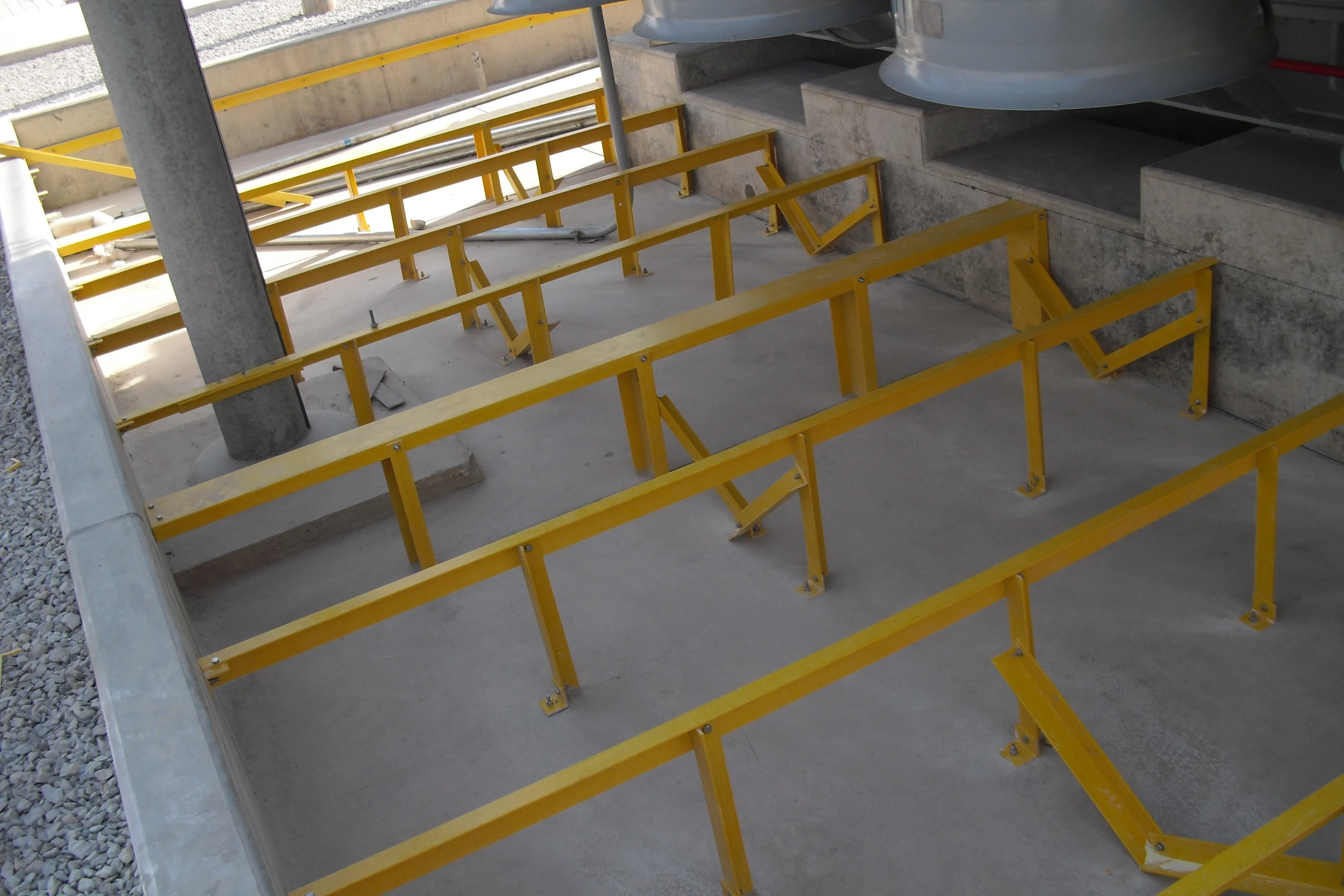

L shape angle | Edge protect, structural support, etc | |
Z shape angle | Freezer truck structural support beam, etc. | |
Related Products
Click photos for more details
Yalong standard frp profile size list: if not find the one you need, please contact us for more details | ||||||
rectangular tube | ||||||
19X2.6mm | 20x13x2.2mm | 24.5x16x2.2mm | 35x22x3mm | |||
30x20x2x2.25mm | 30x20x2.5mm | 38×4mm | 50x30x4mm | |||
50x50x4mm | 60x32x3.5mm | 64x26x3.5mm | 65x31x4mm | |||
67x30x3mm | 65x62x4mm | 67x65x4mm | 73x65x4mm | |||
76x51x4mm | 110×50×4.5×4mm | |||||
frp rod | ||||||
6.9mm | 7.3mm | 7.9mm | 8.5mm | |||
9.5mm | 10mm | 11mm | 12mm | |||
12.7mm | 16mm | 18mm | 25mm | |||
frp round tube | ||||||
18x11mm | 25x2mm | 30x3mm | 30x2.4mm | |||
30x4mm | 40x3mm | 40x5mm | 45x3mm | |||
50x5mm | 50x4mm | 50x2.5mm | 51x3mm | |||
64×3.5 mm | 64×7.2mm | 76×6.4 mm | 89×3.2 mm | |||
89×5mm | 89×6.4 mm | 99×5 mm | 100×6.4mm | |||
114×3.2 mm | 114×5 mm | 114×6.4mm | 114×9.5mm | |||
150×3.2 mm | 150×5.4mm | 150×6.4 mm | 150×9.5 mm | |||
Channel(mm) | ||||||
18x10x2.5 | 20×15 | 50x32x5 | 50x25x2.5 | |||
55x25x3.5 | 55x28x4 | 50x26x3.3 | 50x32x5 | |||
63x30x3 | 70x26x3.5 | 70x30x3.8 | 70x30x4.5 | |||
76.2x25.4x6.35 | 79x28.5x3 | 80x25x3 | 80x30x3.5 | |||
80x30x3*5 | 80x30x4.5 | 84x30x4 | 84×30×3.8×4.5 | |||
84x30x3.5x5 | 88x35x5 | 94.5x20x2.8 | 100×65×4.6 | |||
110×30×4.6 | 180x50x6 | 180x50x8 | 200×100×4.6 | |||
210×30×4.6 | 300×150×5.6 | 312×50×5.6 | ||||
I beam(mm) | ||||||
19×19×4 | 20x15x3.5 | 25×15×3.5 | 25×30×3.6 | |||
38×15×3.5×4 | 38×15×4.5×5.5 | 40×30×3.6 | 40*40x5 | |||
50x15x4 | 58×15×4.5×5 | 58×15×5×6 | 65×30×3.6 | |||
70×15×4.5×6 | 80×15×4.5×5 | 80×30×4. | 110×50×4 | |||
Angle | ||||||
20x20x2 | 25x25x5mm | 30x25x3 | 40x40x5 | |||
35x30x3mm | 40x60x5 | 42x47x2.3 | 60x60x6 | |||
76x50x6.35 | 150x99x3 | |||||
Flat bar/plate | ||||||
30x4 | 40x4 | 43.2x16 | 45×16 | |||
50x3 | 64x6 | 147x3 | 150x4 | |||
254x3.5 | 646x3.5 | 770x3.5 | 796x5 | |||

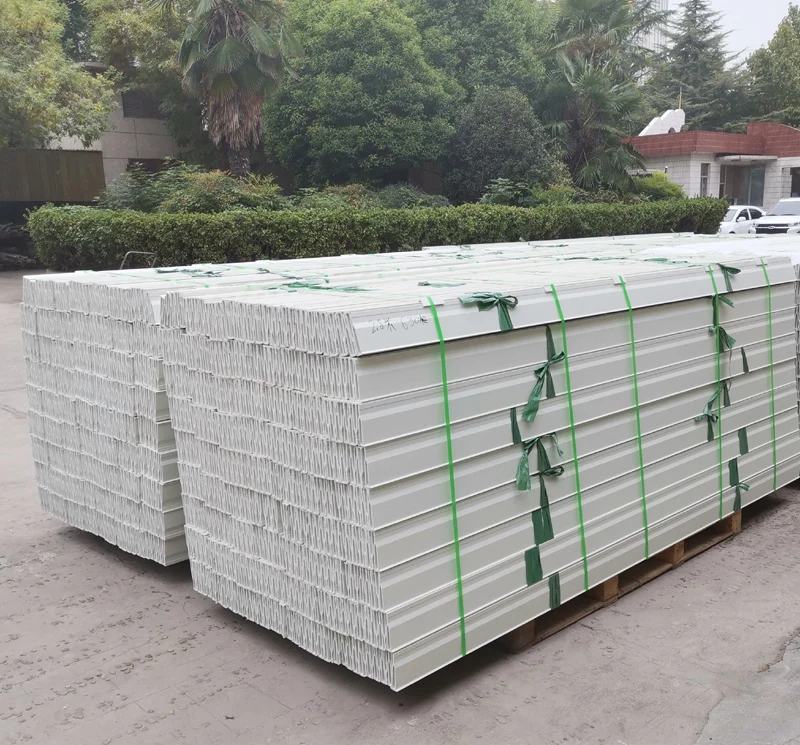

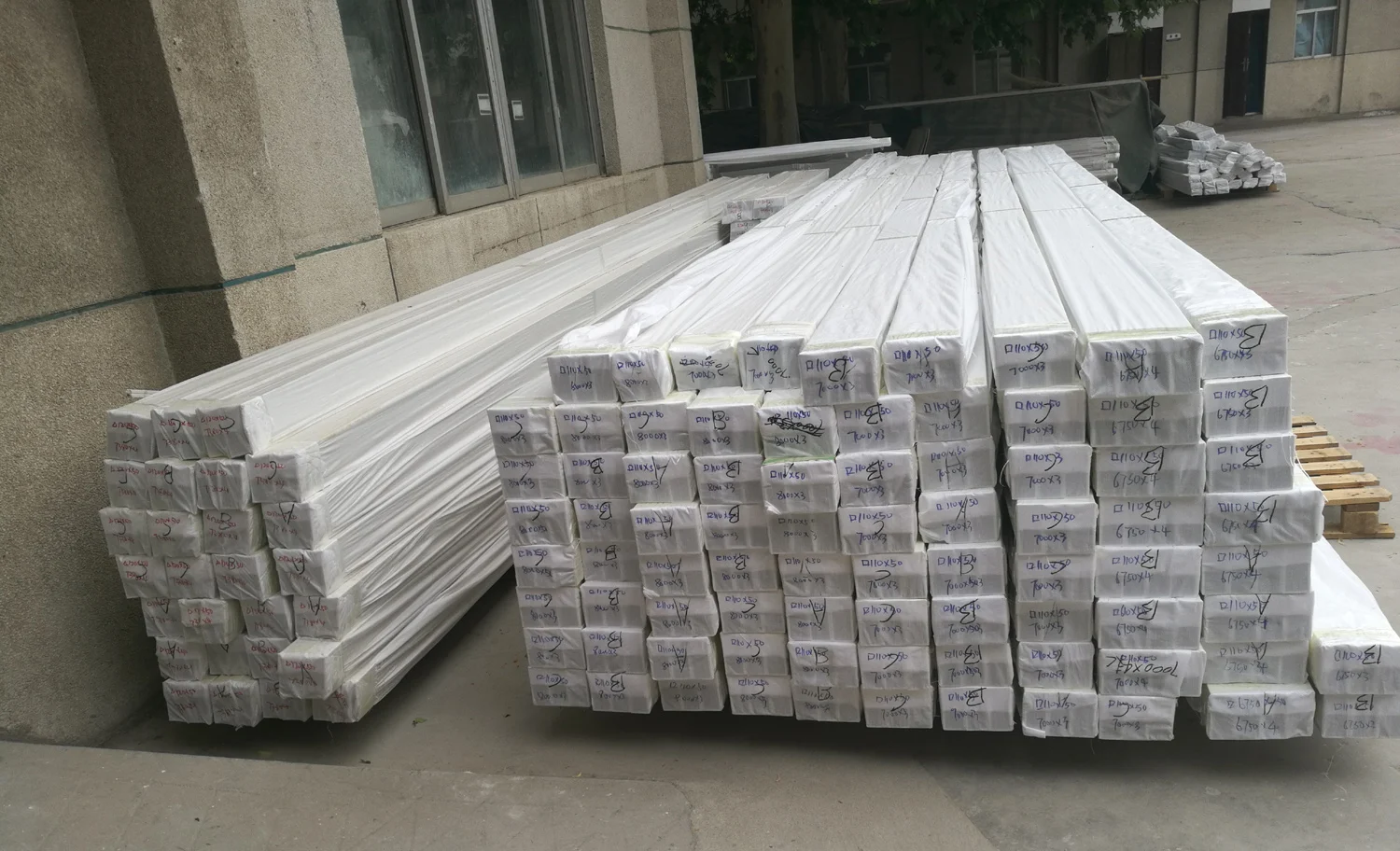

Packing And Shipping
Packing type: woven bags, paper carton, pallets, wood carton, etc. also could packing according to customer's requirement.
Shipping： land shipping, air shipping, railway shipping, express delivery
Certifications
Our Company& service
Simple instruction
Zhengzhou Yalong Pultrex Composite Materials Co., Ltd. Established in 1994, cooperated with UK Pultrex Ltd, brought in advanced production technology and imported pultrusion machine.
As the earliest batch fiberglass pultrusion manufacturer in China, we keep improving us in technology to ensure product quality and variety.
Factory area is 6667 square meter, own Eight pultrusion production lines, three assembly workshops, annual production is around 1000 tons, ISO9001-2015 certificate.
Our service
1. Your inquiries related to our products will be replied in 24 working hours;
2. Free samples offered in certain quantity and delivered in 3-7 days;
3. OEM service are provided, we can design and produce according to your needs;
4. Arrange shipping and custom declaration.
5. Colors are available on request. Our regular colors include red, white, black, yellow, green, blue ect. we can offer any color you request.
6. Unit length is also on your request, if it’s easy for shipping.
7. Relevant products sourcing and management service.
8. Trial orders are acceptable.
9. Form E, Form A, CO, etc. can be supplied, if needed.
Honor
The fiberglass supports that developed by us won the third prize of Henan province science and technology progress awards, strongly recommended by Electric Power Planning & Design Institute of State Power Cooperation.
Address
Factory located in high-new technology development district, Zhengzhou, China, convenient transportation ensure prompt delivery time and low shipping cost.
Our Customer
Which country did we export before?
UK | Japan | Canada | Portugal |
UAE | India | Nigeria | Slovenia |
Fiji | Russia | Morocco | Australia |
Oman | Ireland | America | Philipine |
Pakistan | Kazakhstan | Thailand | Indonesia |
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer with 23 years production experience in Zhengzhou.
Q: How long is your delivery time?
A: 7-15 days after receiving the deposit based on the order quantity. Normally, within 30 days to finish the order for 20ft container. More details about the delivery time, please feel free to contact us.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer certain samples for free charge but you need pay the cost of freight. Please contact us to confirm.
Q: How can you guarantee your product quality?
A: Our products passed the quality control system certification ISO9001:2015 which we always follow strictly. Double checking is one of essential steps before packing. No matter where our product delivery, we are responsible for its quality. Customer's satisfaction is very important for us, it's decide to our long term cooperation.
Q: What is your terms of payment?
A: 30% deposit, the balance before shipment or L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are acceptable for sample order. More details, please don't hesitate to contact us.
Q: Can I visit your factory?
A: Welcome to our factory and we will pick you up at the Zhengzhou Xinzheng International Airport.
Our address: No.3 Xuesong Road, Hi-Tech industrial development zone of Zhengzhou, China.
