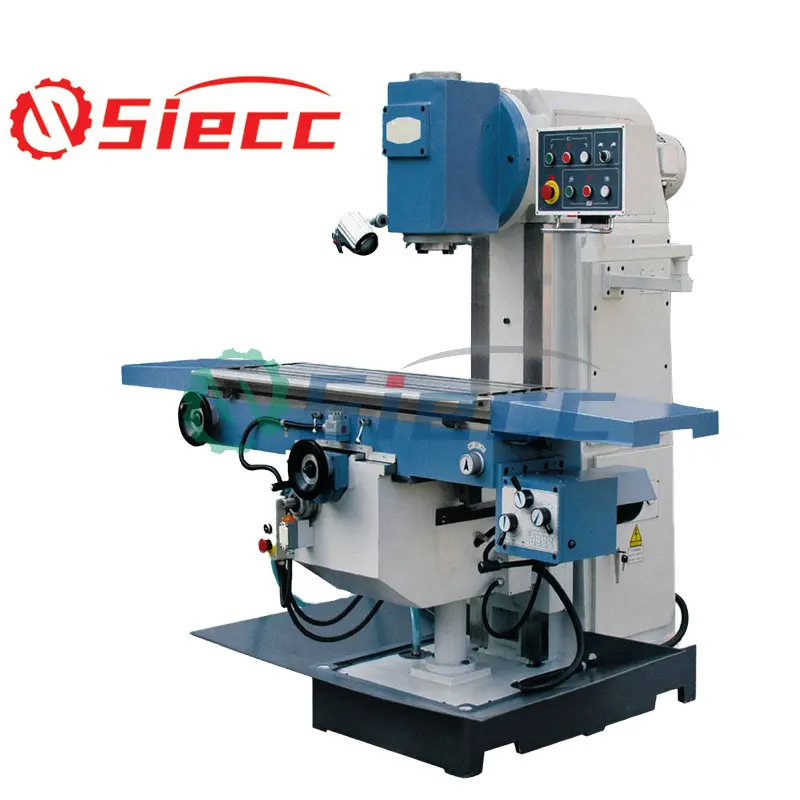

knee type universal milling machine X6032B FROM SIECC
- Category: >>>
- Supplier: Shining Industrial Enterprise (china) Co. Ltd.
Share on (60229934360):
Product Overview
Description
Product Description
| Item | X6032B |
| Spindle taper | ISO40 |
| Distance from spindle to table | 0-450mm |
| Spindle speeds | (12 step)40-13700 r.p.m |
| Table size | 1370x320mm(1250x320mm) |
| Table travel(Horizontal/Cross/Vertical) | 720/300/450mm(600/300/450mm) |
| Feeding range of longitudinal.cross travel | 22-550mm/min(8 step) |
| X,Y axis rapid feed speed | 1080mm/min |
| Z axis rapid feed speed | 590mm/min |
| Z axis motor power | 750W |
| Max weight of workpiece | 300kg |
| T-slot number/width/distance | 3/14mm/70mm |
| Milling head moving(Vertical) | Rectangular axis |
| Cross slide way | Rectangular axis |
| Longiudinal slide way | Dovetail axis |
| Horse power for main motor | 3kw |
| X,Y axis driving motor | 750W |
| Overall dimension | 1700x1500x2000mm |
| Packing size | 1750x1650x2250mm |
| 2300x1600x2250mm | |
| N.W/G.W | 1750/1900kg(3500/3700kg) |

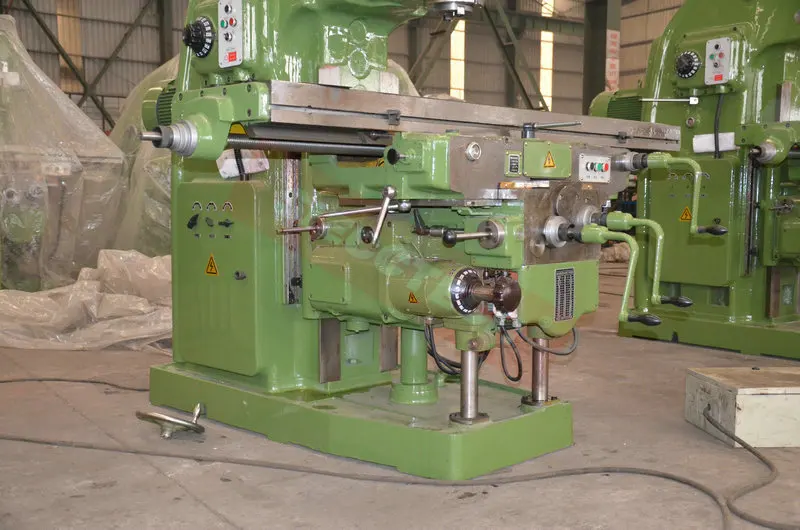

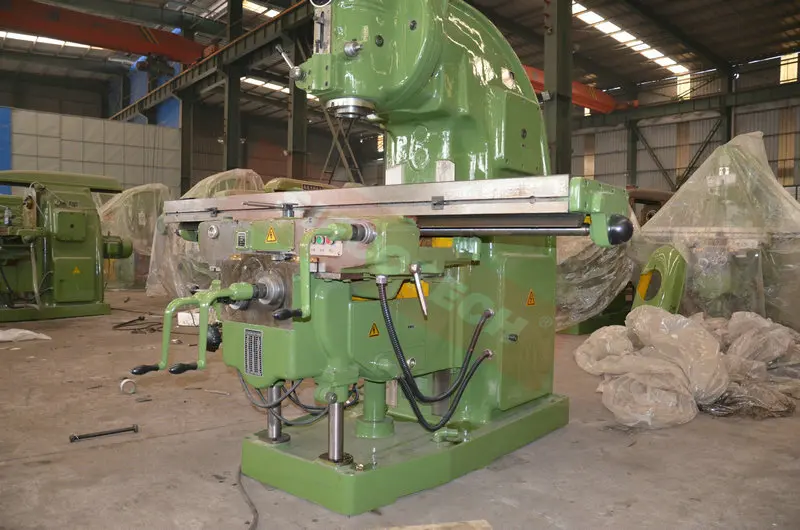

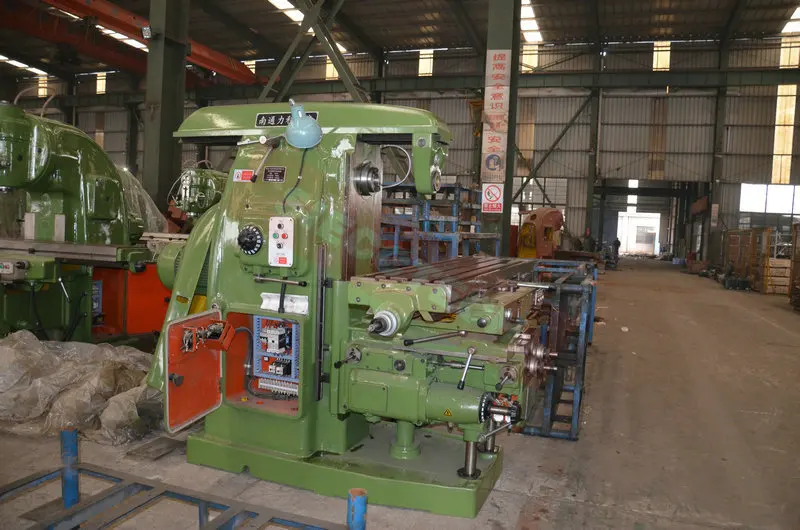

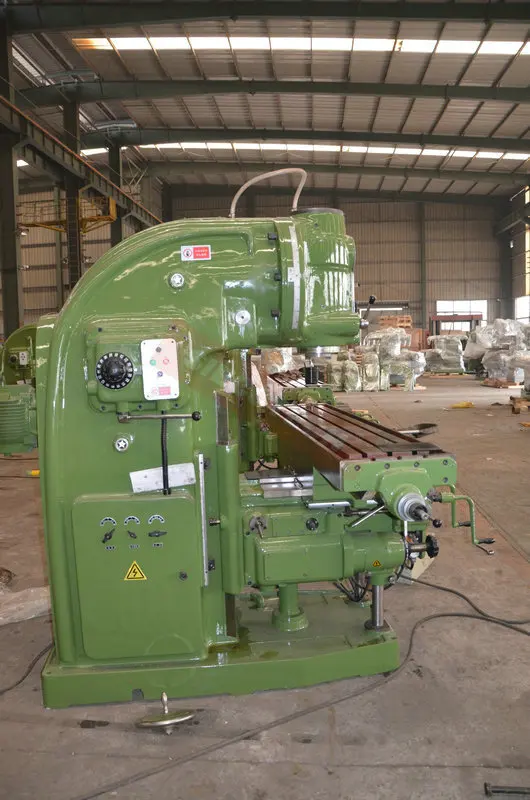

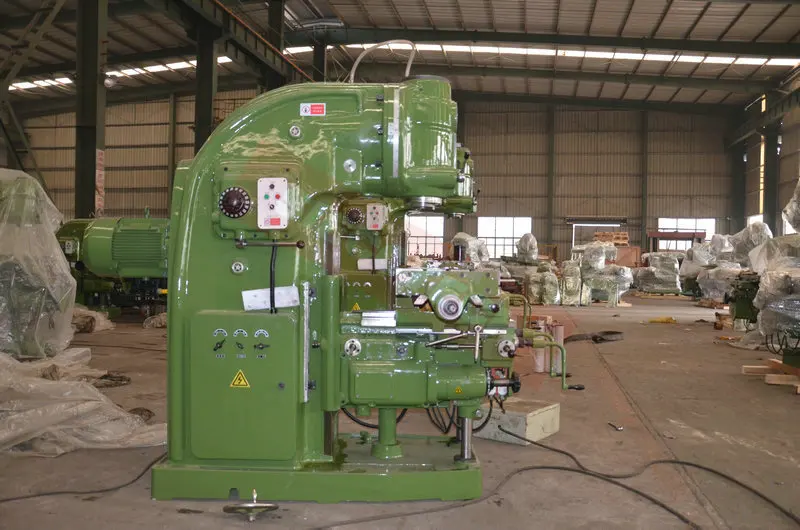

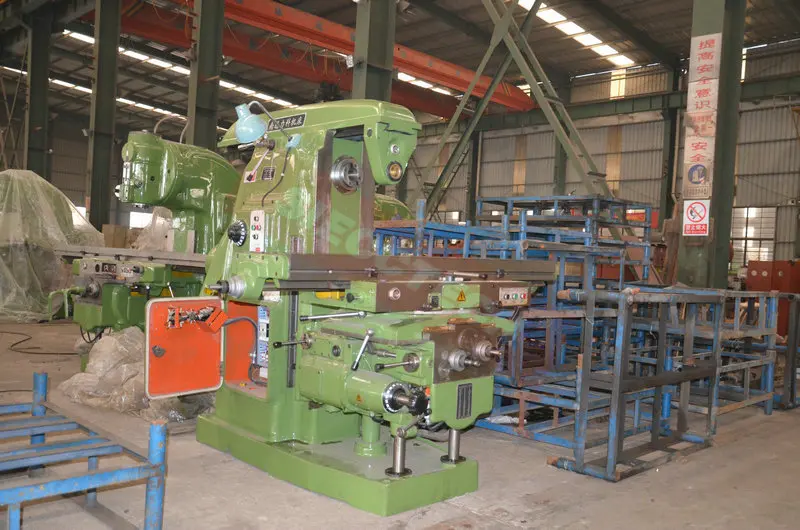

knee type universal milling machine X6032B
1.High power,Motorized lift on Z axis
2.Processing range widely
3.Automatic feeds on two axes
4.hardened treatment
5.CE
rectangualr table guidways with high stability

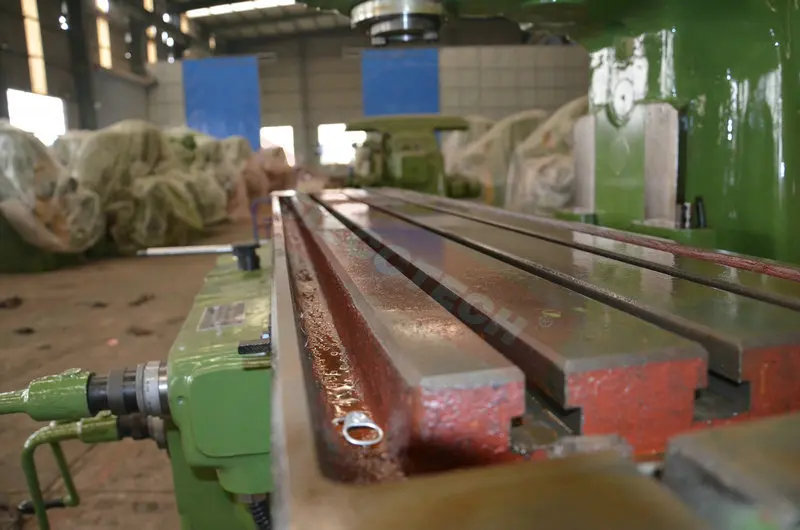

hardened and ground table surface
automatic feeds on X, Y axis, motorized lifiting and falling of table on Z axis
headstock swivels ±45°
