100% non asbestos high temperature resistant calcium silicate board (external wall using)
- Category: >>>
- Supplier: Jiangxi Yuanyang Weili Industrial Co. Ltd.
Share on (60230236563):
Product Overview
Description
Product Description
Waterproof wall partition calcium silicate board
Specification | Size | 2440*1220mm; |
Thickness | 4.5 to 20mm | |
Surface treatment | With or without sanded surface; bevelled | |
Custom Specifications available on request | edges available | |
Outstanding characteristics | Environmental friendly, 100% asbestos-free or 3%containing, outstanding fire resistance, high tensile and bending strength, remarkable moisture resistance, stable dimension, durable, excellent heat insulation and soundproofing, easy Installation | |
Main usage | Partitioning wall, ceiling tile | |
Other usage | Protecting wall system, movable floor, countertop, panel | |
billboard, kitchen and bathroom wall, | ||
pipeline insulation | ||
Physical property | Raw material | Tobermorite, cement, Quartz sand, fiber |
Density | 1.1-1.3 g/cm3 | |
Flexural strength | >13 Mpa; real test >15 Mpa (GB/T7019-1997) | |
Moisture content | <10% | |
Fire rating test | Class A incombustible material (GB8624) | |
Soundproofing | 45-55 dB (GBJ75-84) | |
Thermal conductivity | ≤0.3W/MK (JC/T564) | |
Radiation | Accordance with standard (GB6566-2001) | |
Incombustibility | 4 h | |
Moisture movement | ≤0.25% (GB/T7019-1997) | |
Dry shrinking rate | <0.09%(GB/T7019-1997) | |
Application | Commercial, industrial, and apartment buildings | |
Application:

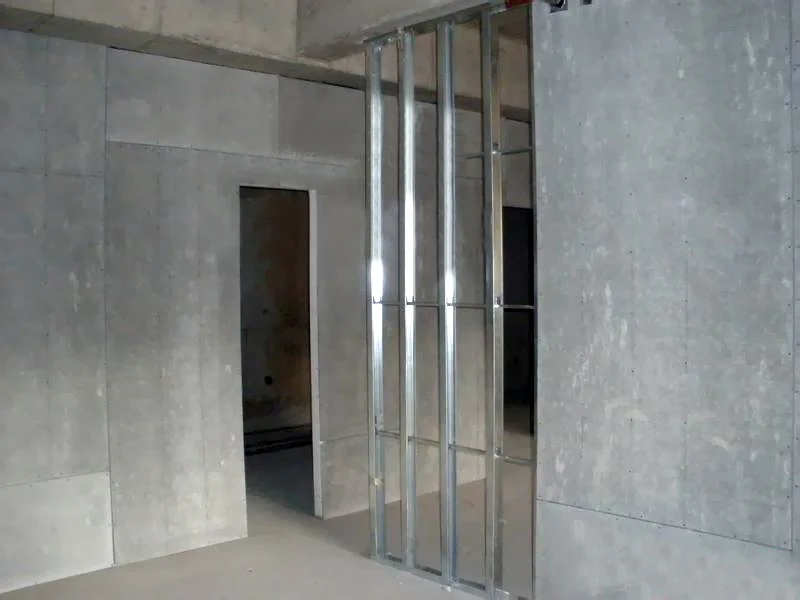

Can be used in washrooms as the ceiling, partition and backer boards. Additionally, Due to the features of fire prevention, thermal insulation, mildew proof and moisture proof, Bestinboards are also applicable to places where high security is needed.
Product Features:
1.Fire-retardant
2.Thermal-insulated
3.Mildew proof
4.Moisture proof
5.Sound insulated
6.Low moisture and water absorption
7.100% asbestos free and other hazardous substances.
Loading quantity and weight
SIZE (MM) | WEIGHT (KG/SHEET) | LODAING QUANTITY FOR ONE 20GP CONTAINER (SHEET) | PALLET |
1220*2440*5 | 20 | 1100 | 8 |
1220*2440*6 | 24 | 900 | 8 |
1220*2440*7 | 28 | 780 | 8 |
1220*2440*8 | 32 | 686 | 8 |
1220*2440*9 | 36 | 600 | 8 |
1220*2440*10 | 40 | 540 | 8 |
1220*2440*11 | 44 | 500 | 8 |
1220*2440*12 | 48 | 450 | 8 |
1220*2440*18 | 72 | 300 | 8 |
Package
1.Hold by Wooden Pallet
2.Covered by PVC and Bonded with plastic belt
3.Fasten around the corners
4.Mounted in container to protect your purchasing.
Trade Term
1. Payment: T/T
2 .Lead time: Samples:15 Working days;
3. Shipping freight are quoted under your requests.
4. Shipping port: Foshan,Guangzhou or Shenzhen port, Mainland China.
5. Discounts: discount based on the order quantity.
Certificate
Products are Calcium Silicate Board (Fiber Cement Board), exterior wall plate, Facade Board and lining board, etc. Our products have passed ISO certificates,SGS.CE Certificates are on progress.
