Product Overview
Description
| PRODUCTS ADVANTAGES | |
1.Technical patent: A. Shorted heater protection B.Malposition wiring between heater and therocouple C.Electronic protection against neutral malfuction 2.Auto-tuning +phase angle fired output,delivers smooth and exact power 3.Softsart function for smooth start-ups 4.Mold doctor(troubleshoot your mold ) 5.All standard size design ,fitted into 1-12zone and upon cabinet 6.Low temperature inside the cabinet,even in bad working condition | |
| Input Specifications | |
| Thermocouple (T/C) Sensor | J/K |
| External T/C Resistance | 10K |
| T/C Isolation | yes |
| Cold Junction Compensation | yes |
| T/C Break Protection | yes |
| Reverse T/C Protection | yes |
| Shorted T/C Protection | yes |
| Input Type | Common-Mode |
| Input Impedance | 160 GΩ |
| Input Protection | YES |
| Input Amplifier Stability | 0.3μV/Mo |
| Input Dynamic Range | 1uV-80mV |
| Common Mode Rejection Ratio | 123DB |
| Power Supply Rejection Ratio | 5uV/V |
| Communication Inputs | RS485 Bus |
| Output Specifications | MAX 30A |
| Voltage Power Capability | MAX |
| Output Drive | SCR |
| Overload Protection | FUSE BREAK |
| Transient Protection | FUSE BREAK |
| Power Line Isolation | 100MΩ |
| Power | Three Phase + Zero line +Gnd lin |
| Performance Specifications | |
| Auto & Manual control Mode | Yes |
| Temperature Range | 50°C-537°C |
| Control Accuracy | 1±0.3% of span |
| Temperature Stability | ±0.5% |
| Compensated Manual Control | yes |
| Advance diagnostics Indicators | yes |
| Calibration Accuracy | 0.1% of span |
| Cycle Time | 200ms |
| Temperature Reset | Yes |
| Ramp Start TM(RS) | yes |
| RS Duration | 10mins |
| RS Override temperature | 1% of span |
| Operational Mode Priority | OFF MODE |
| Electrical Power Specifications | |
| Input Voltage | AC185V-245V |
| Frequency | 50/60HZ |
| DC Power Supplies | NO |
| Module Power Usage | NO |
| Dimensions | |
| UNIT PRICE (EXW SHENZHEN) | |

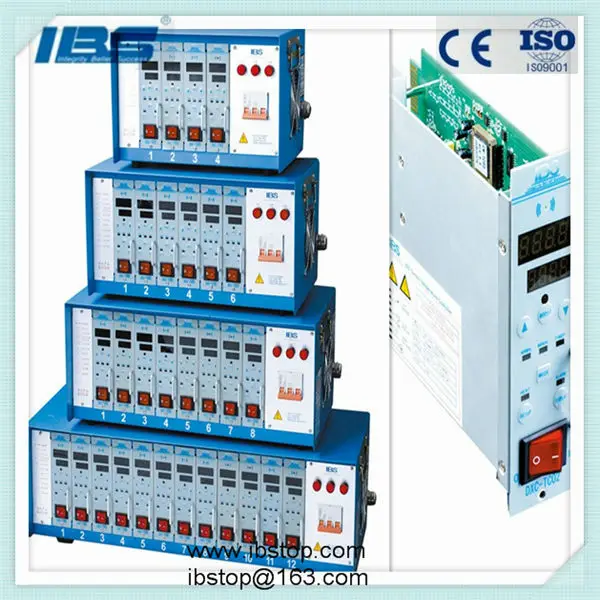

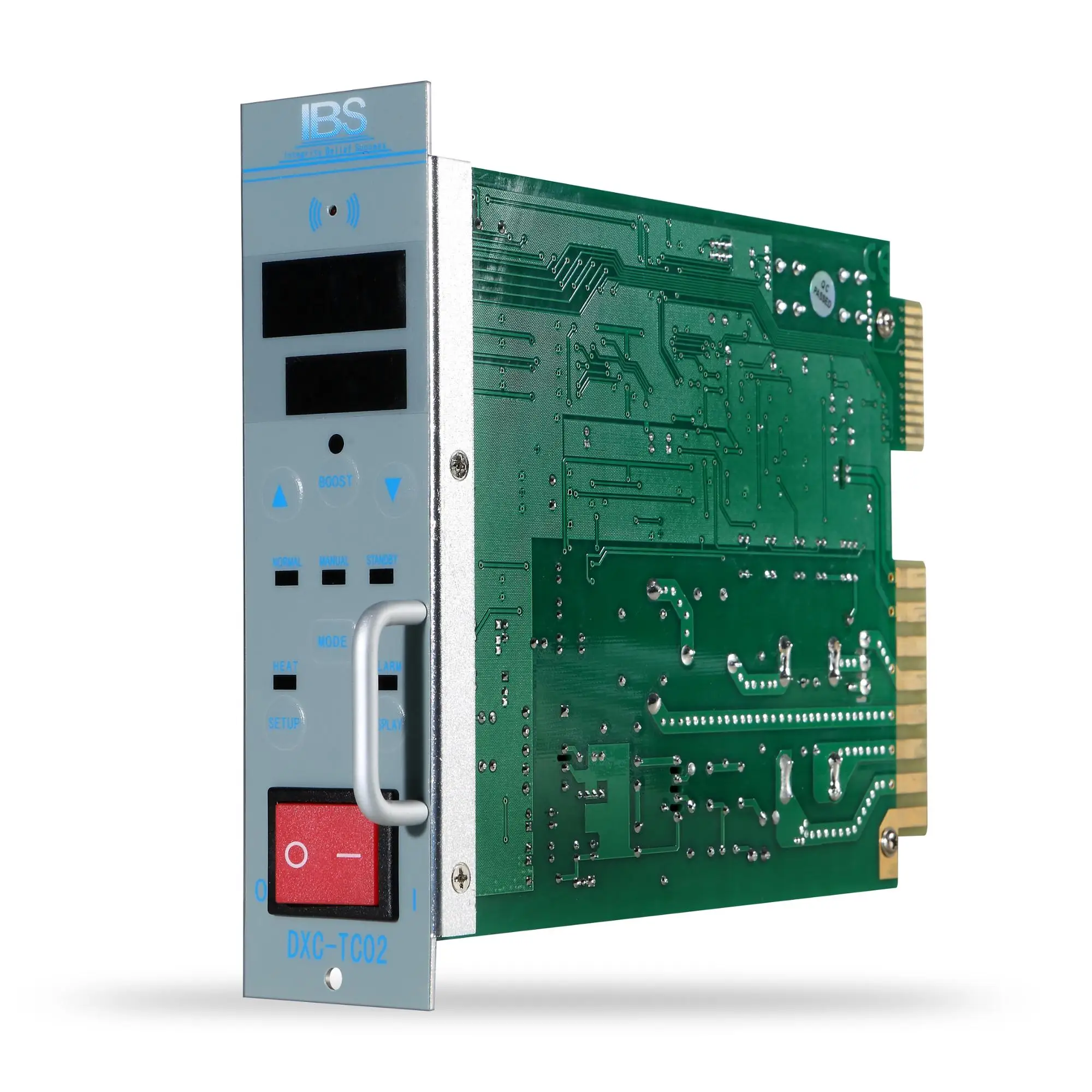

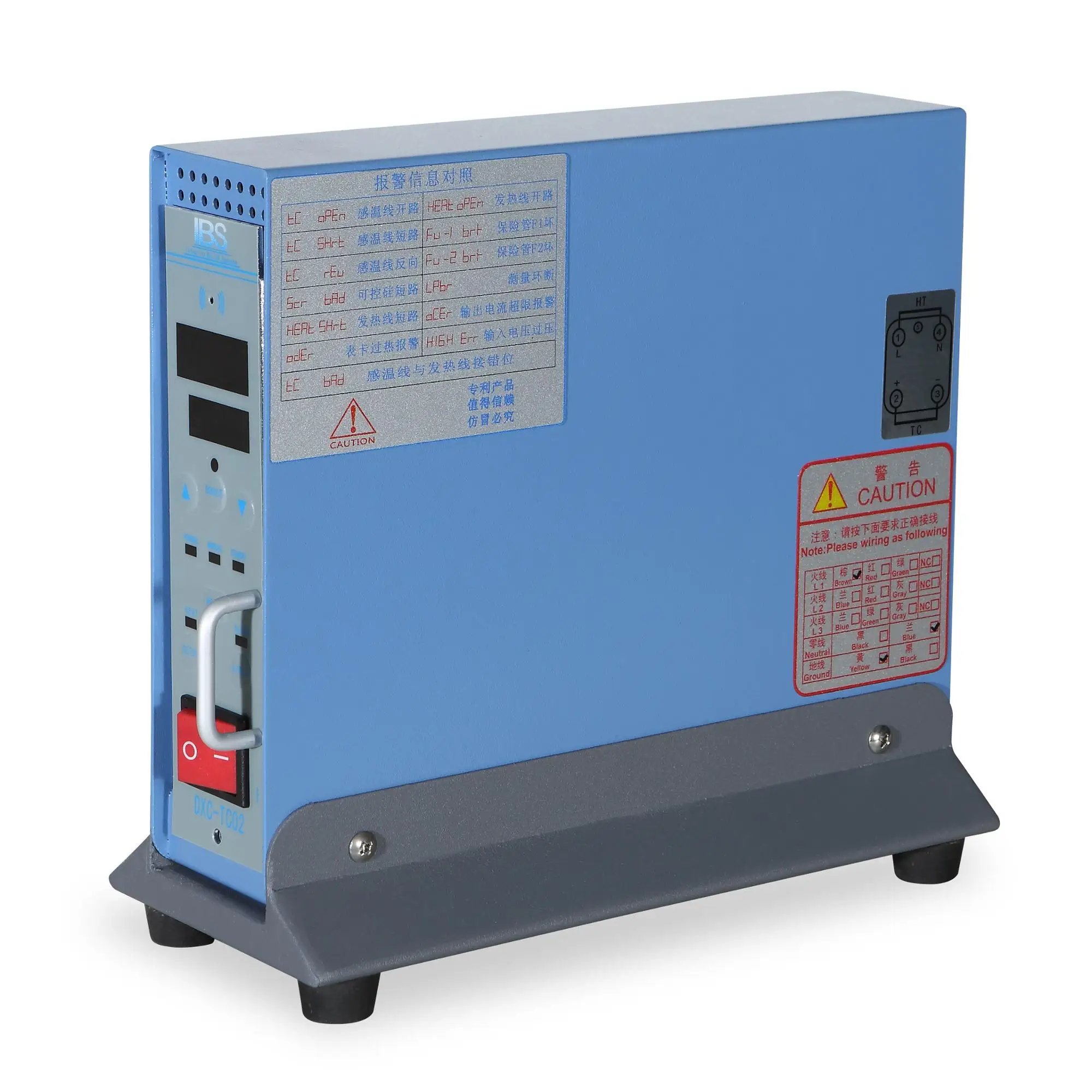

3. IBS DXC-TC Hot runner temperature controllers picture:
4. IBS DXC-TC Hot runner temperature controllers Accessories:
5. IBS DXC-TC Hot runner temperature controllers Packing details:
6. IBS Certificate:
7, Our sales team:
Chinaplas Fair
8. Our service;
1: 24 online service, email will get back in 24 hours.
2: After sale service available.
3:Have professional R&D group, all your technical requirement will be customized.
4, Research and develop state of the art hot runner controllers.
Welcome to contact us, we’re sure any of your inquiry will get prompt reply
