Telescopic mast pole light tower mast
US $380.00-$480.00
buy 3m to 35m tripod aluminium telescopic antenna mast pole FOB price
- Category: Telecommunication Tower & Accessories >>>
- Supplier: Tianjin Talents International Trade Co. Ltd.
Share on (60231052270):
Product Overview
Description
Product Description

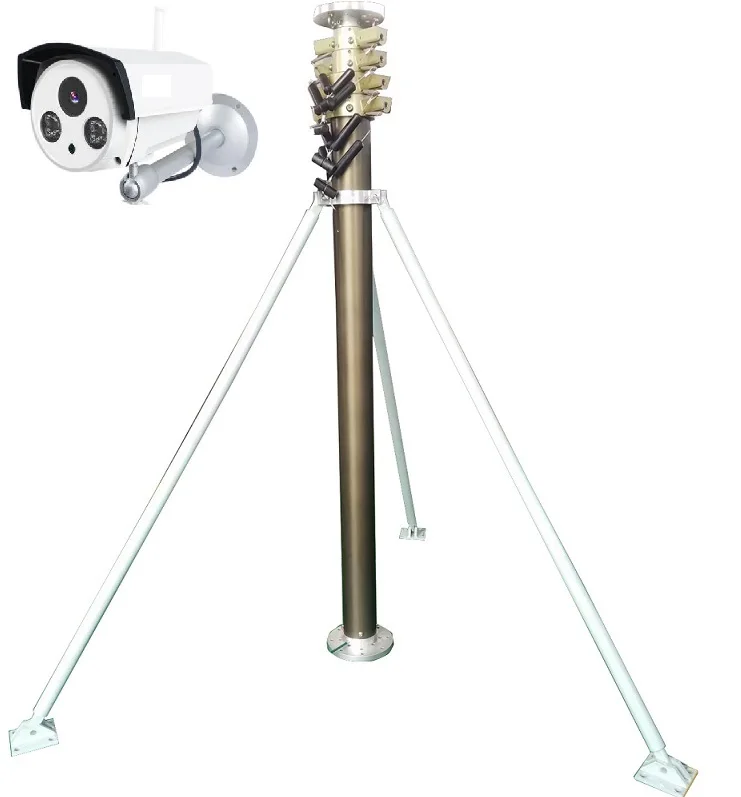

3-35m tripod aluminium telescopic antenna mast
technical data | ||||||
main spec. | 1)Extended height: 6m 2)Retracted height: 2m 3)Outer diameter range：66-82-98-118mm 4)Thickness: 3-3.5-4-4mm 5)Maximum head loads: 30kgs 6)Number of sections: 4 sections 7)Wind load :100 km/h 8)Max Working pressure of air compressor：0.25MPA 9)Working temperature :-15--+60℃ 10)cable:1pc CAT5 for camera+2pcs AWG14 for light+2pcs RG59 for VHF antenna All cables installed inside of mast | |||||
Accessories | Car clamp--------------------------------------------------1 unit Ground anchor------------------------------------------8 pieces Guy wire----------------------------------------------------8 pieces Air pump---------------------------------------------------1 piece Tripod -----------------------------------------------------1 piece Top plate---------------------------------------------------1 piece | |||||
Material | Al-Mg alloy 6063 | |||||
Color | light brown with | |||||
accessories
model | unit |
guy wire | 1 set |
ground anchor | 1 set |
air compressor or manual pump | 1 unit |
tripod or car clamp | 1 unit |
top plate | 1 unit |
bottom base | 1 unit |
more details as follows

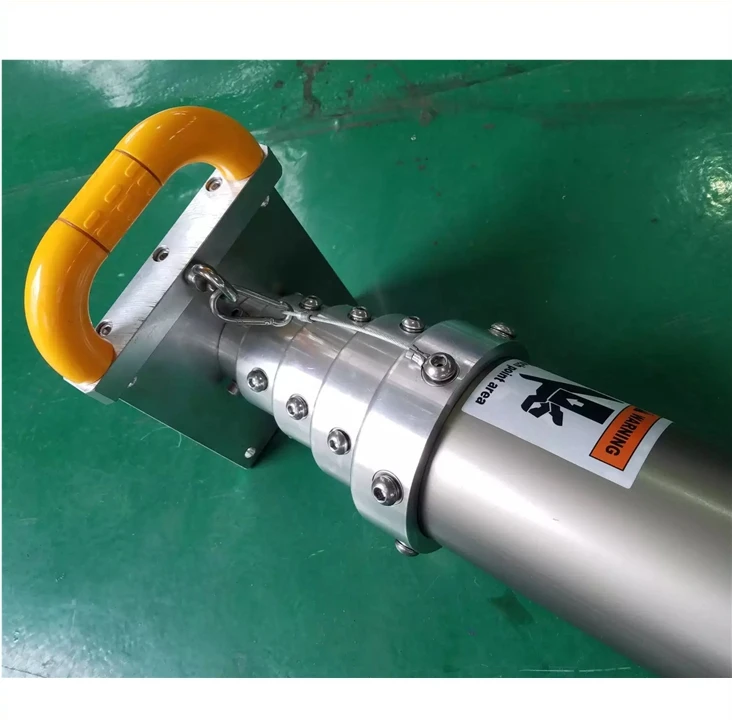

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast
Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a truck or car
Assist the pole to be fixed to a truck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories

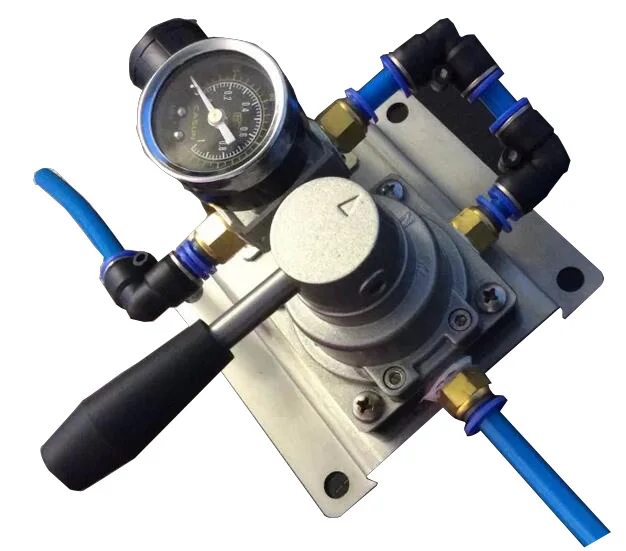

Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Air pipe,Pressure gauge
Basic guy accessories
manual hand pump
Detailed Images
3-35m tripod aluminium telescopic antenna mast
Bottom flange
mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.
locking
Designed for long-term use. For preventing the mast slide down.
power cable
can be inside or outside of mast
Packing & Delivery
3-35m tripod aluminium telescopic antenna mast
package | ||||||
carton packed | normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request | |||||
plywood packed | normal package is plywood case for extended height more than 10m, weight more than 70kg mast | |||||
After-sale service
Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
it’s better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
using 10 thousand times.
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height (m) | No. of section | retracted height (m) | outer tube range (mm) | max. head loads(kg) | self weight (kg) |
2 | 2 | 1.3 | 118-98 | 150 | 22 |
3 | 4 | 1.1 | 87-43 | 30 | 25 |
6 | 5 | 1.7 | 118-51 | 30 | 42 |
8 | 7 | 1.8 | 140-36 | 30 | 65 |
10 | 7 | 2.20 | 140-36 | 30 | 72 |
12 | 7 | 2.6 | 140-36 | 15 | 85 |
15 | 7 | 3.0 | 140-36 | 20 | 90 |
16 | 8 | 3 | 180-51 | 30 | 175 |
18 | 10 | 3 | 279-66 | 100 | 330 |
20 | 9 | 3.3 | 229-66 | 55 | 300 |
30 | 13 | 4 | 316-51 | 30 | 630 |
Welcome to contact
contact person: Ms.Grace Wang
Talents Enterprise Company Limited
T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106
whatsapp:0086 18222428293
wechat: 1093812653
W: //www.tjtalents.cn
if you get interested in our telescopic mast, please contact us at any time for catalog and videos
