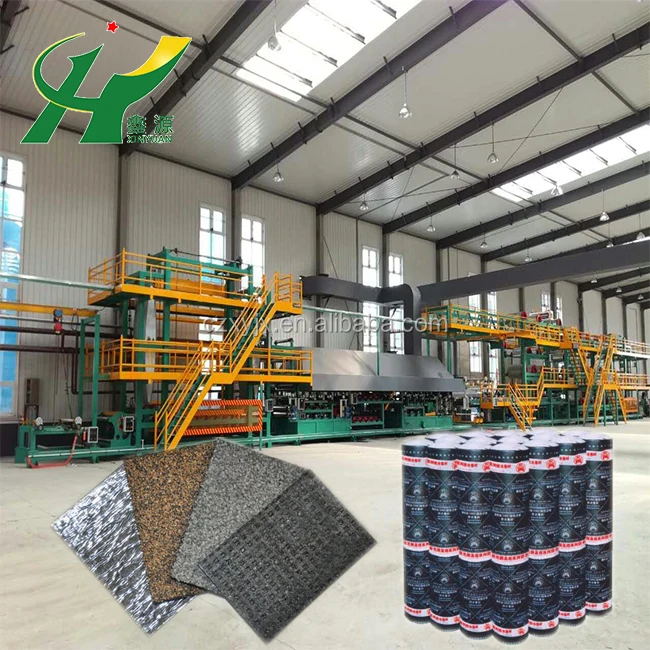

Construction Material SBS Modified Asphalt Waterproof Membrane Machine

Product Overview

Description

   Changzhou Xinyuan Waterproof Equipment Factory

                                        ---Over 20years professional waterproof equipment supplier

Bitumen Products Modified Bitumen Membrane Making Machinery

1. Brief introduction

The production line is to produce bitumen waterproof membrane.

Bitumen waterproof membrane production line could produce SBS/APP modified bitumen waterproof membranes(Asphalt Felt).

Bitumen Membrane (Bituminous Membrane) is widely used in industrial and civil buildings, such as roof, basement, toilet, bridge, park, swimming pool, tunnel for waterproof and moisture-proof. Bitumen is kind of hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membrane is therefore a sustainable way of storing carbon on the Earth's surface.

2. Technological process

1.scale: 100/200/300/500/1000/1200million sqm/year,all kinds of modified bitumen waterproof membrane.

2. basement: polyester mat, fiberglass mat, compound.
3. modified material: SBS, APP, Rubber Powder.
4. surface materials: PE and metal foil, sand, mineral.
  1) one side is PE, other side is aluminum foil.

  2) two sides are PE.
  3) decorated with decorative pattern or plane.

  4) one side sand coated.
 5.production thickness: 2.0mm-4.0mm.
 6.product line speed: 4m-45m/min (adjustable).
 7.fuel consumption: 1,500,000kcal/h, thermal efficiency≥88%.

3. Finished product

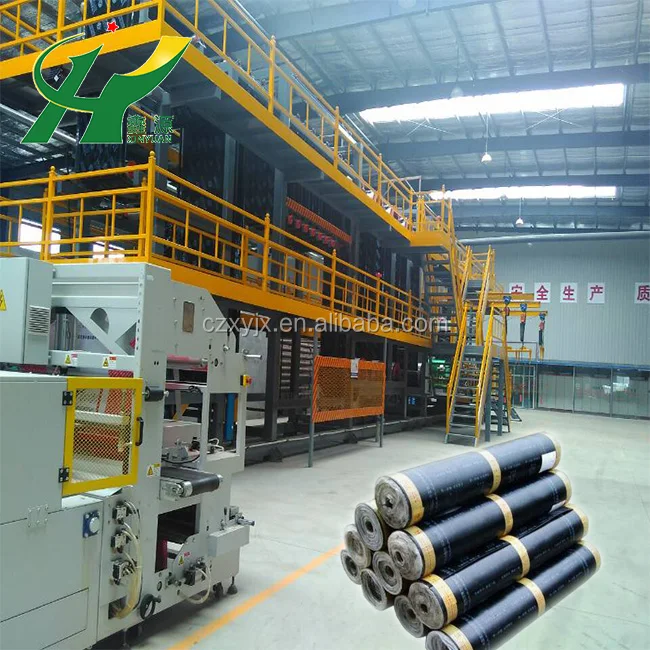

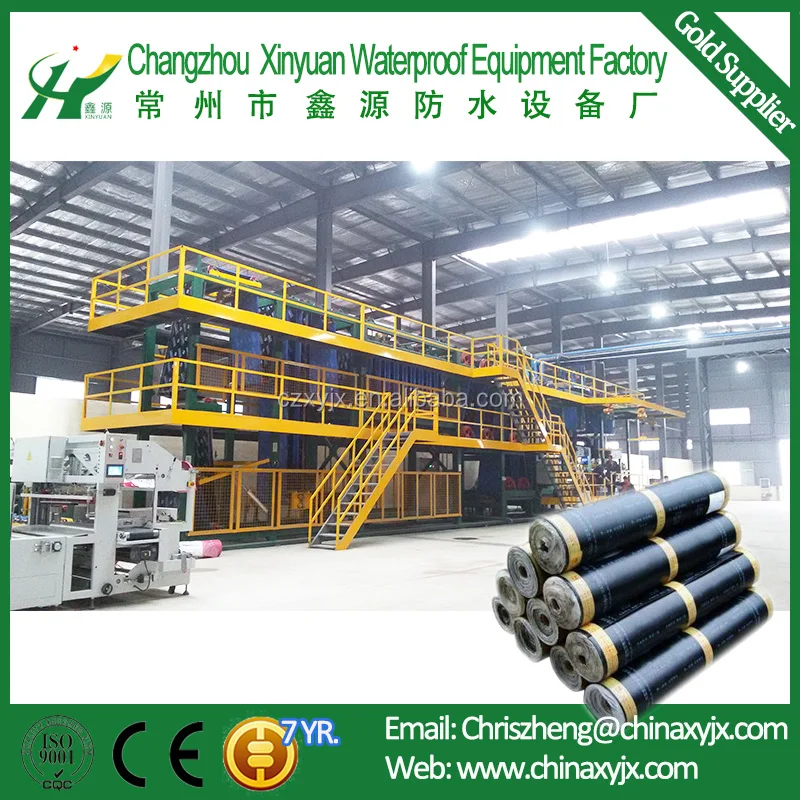

SBS APP modified bitumen membrane production line/making machine

Bitumen - Mixed with rubber powder, talc powder. Meanwhile polymers are added to the bitumen such as APP (atactic polypropylene) a plastic additive that gives rigidity and tear resistance or SBS (styrene butadiene styrene) a rubber additive that gives more elastic benefits. At last it to be covered with limestone or sand or PE film or aluminum film.

Base Material (Reinforcement) - Polyester, fiberglass, etc.

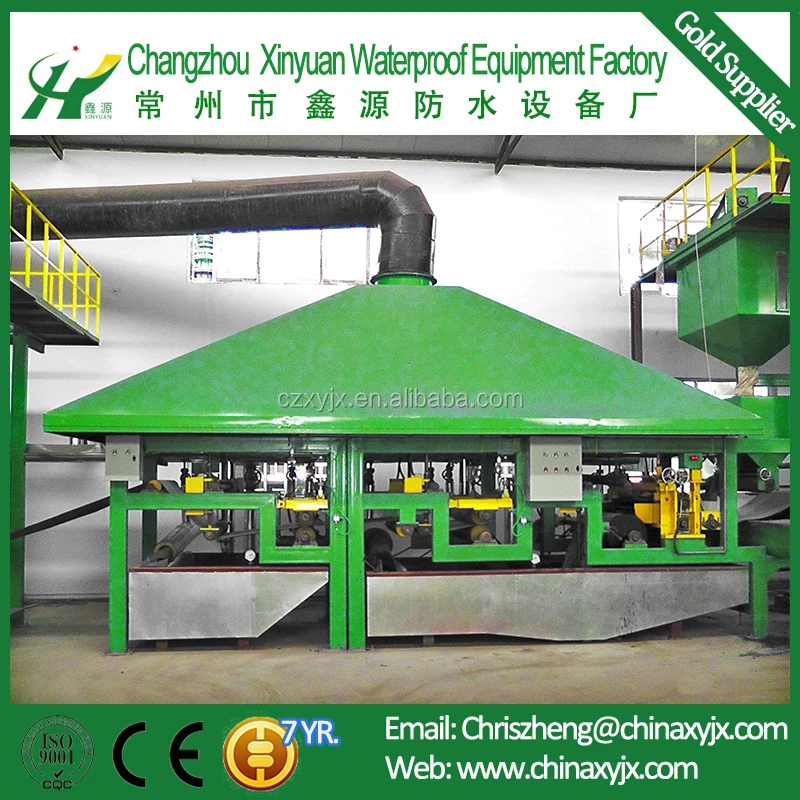

4. Production Details

5. Advantages:

1)10million square meters per year
2)The system can produce SBS ,APP modified bitumen waterproof
3)Production line part/oxidation part/ oil furnace part
4)we can adjust the equipments to your factory size.
5)The equipments can be used in 10 years
6)Rational structure
7)Low transportation ,installation, adjustment cost
8)Convenient to operate

6. Product Application

Where to use:

1) Roof and underground in industrial and civil buildings, wall, toilet.

2) Bridge, subway, tunnel, swimming pool, etc.

3) Waste landfill, sewage plant, irrigation system, etc.

How to use:

1) Clean.
2) Brush foundation.
3) Heat surface of waterproof membrane with flame spraying equipment.
4) Roll waterproof membrane hard, edges should be covered at least 10cm.
5) Press waterproof membrane hard, make it be firm.

7. EXHIBITION SHOW

8. Company Information

Changzhou Xinyuan Waterproof Equipment factory is a professional manufacturer which specialized in researching, manufacturing, selling and servicing various waterproofing material making machine.Our factory was founded in 1990.As a corporate enterprise, our factory is a very famous supplier in the line of waterproof equipment in China, is also a new prominent in international markets.On the basis of absorbing foreign advanced science and technology, our factory has developed several of advanced waterproof equipment plants, and has got many national patents. Our factory has obtained ISO9001-2008 international quality system certification, are also strictly in accordance with international quality system to ensure product quality.
