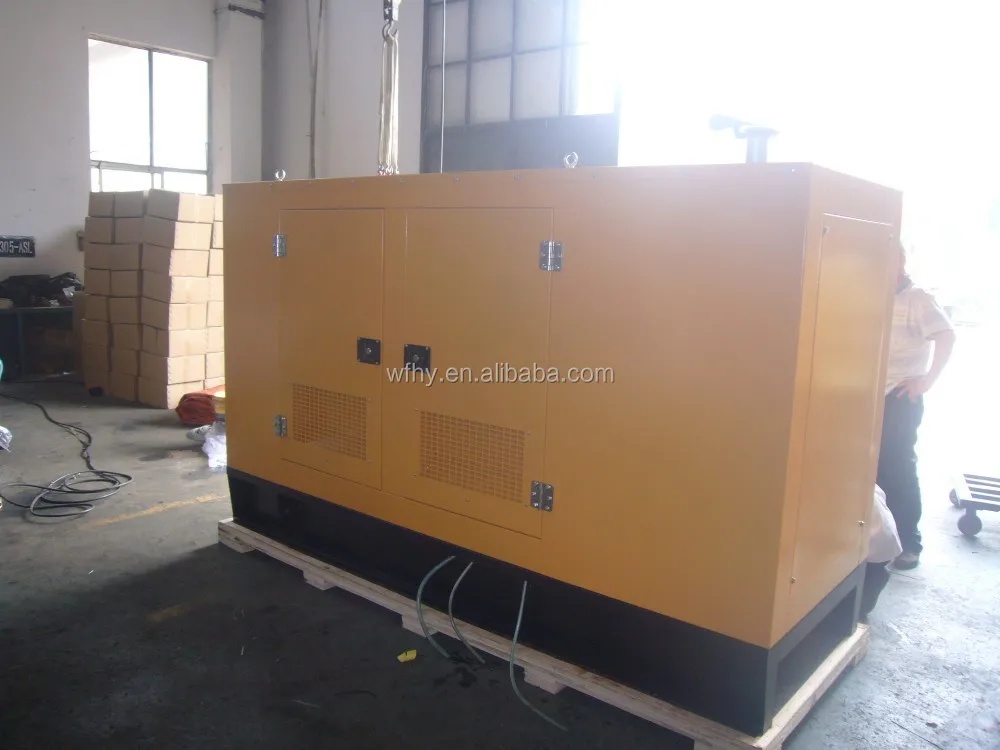

27.5KVA Silent Generators price good

Product Overview

Description



27.5KVA SILENT GENERATOR PRICES SPECIFICATION



1. Prime ratings: 22KW, Frequency:50HZ

2. Composed of Cummins diesel engine& Faraday alternator

3. Radiator 40°C max, fans are driven by belt, with safety guard

4. 24V DC start motor and storage battery

5. Brushless, self-excited, IP23, insulation H alternator

6. Engine cooling system: water cooled

7. Control system: Protection kits

8. 8 hours operation base fuel tank

9. High efficient muffler

10. silent/soundproof type

11. Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load,110% and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

12. Cortication: ISO9001:2000, CE (ESC/070119)



Main data

Engine Model	Cummins 4B3.9-G2
Type	4 cycle, in line, turbocharged
Rating power(kw)	36
Bore*stroke(mm)	102*120
Number of cylinders	4
Displacement litre	3.9
Battery charging alternator	60amps
Starting voltage	24V, negative ground
Fuel system	Direct injection
Lube oil capacity(l)	23.8
Flywheel dimension	2/11.5



Alternator brand	PI144E
Number of phase	3
Prime output	22KW
Frequency	60HZ
Voltage	380V
Number of bearing	1
Power factor	0.8
Protection grade	IP22
Altitude	≤1000m
Excite type	Brushless, self-exciting
Insulation Class, Temperature Rise	H, H





27.5KVA SILENT GENERATOR PRICES CONFIGRATION







27.5KVA SILENT GENERATOR PRICES PRODUCTION LINE

27.5KVA SILENT GENERATOR PRICES SHOW





 QUALITY CONTROL



CUSTOMER VISITING





FACTORY SHOW



CERTIFICATES



BUSINESS PARTNER





Guarantee and after-sale service

*One year guarantee for whole machine from date of bill of loading or 1000 hours of running.

*Quality warranty is according to our standard conditions: 12 months from date of bill of lading or 1000 hours of running.
