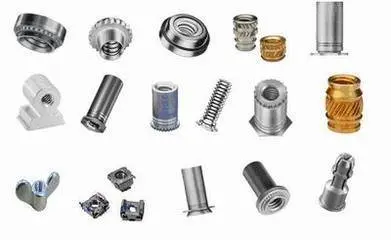

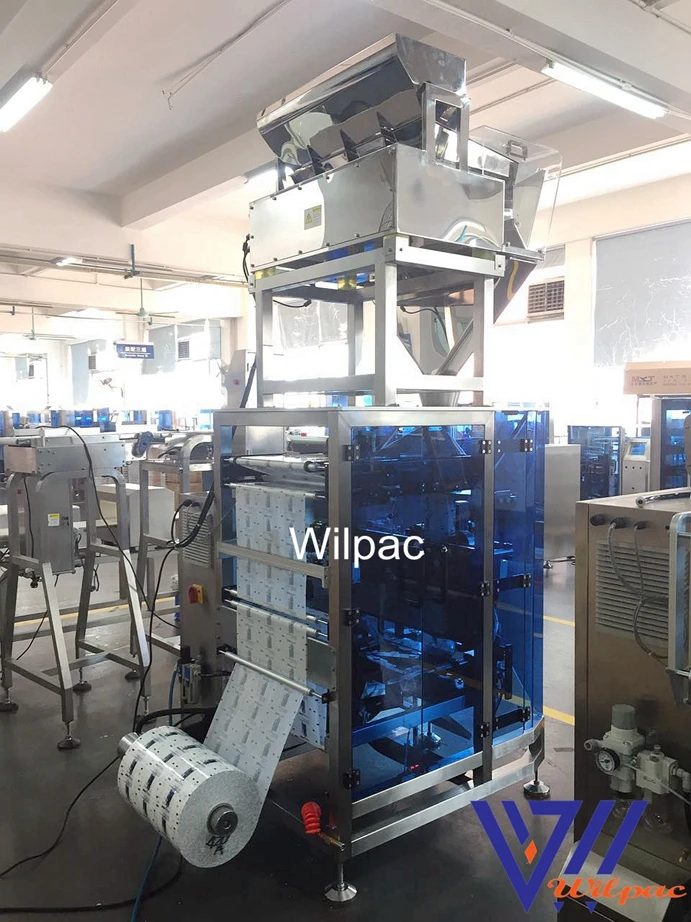

hardware parts/small metal pieces peanuts granule Candy vffs Packaging Machine
- Category: >>>
- Supplier: Foshan Wilpac Packaging Machinery Co. Ltd.
Share on (60231706892):
Product Overview
Description
Product Description

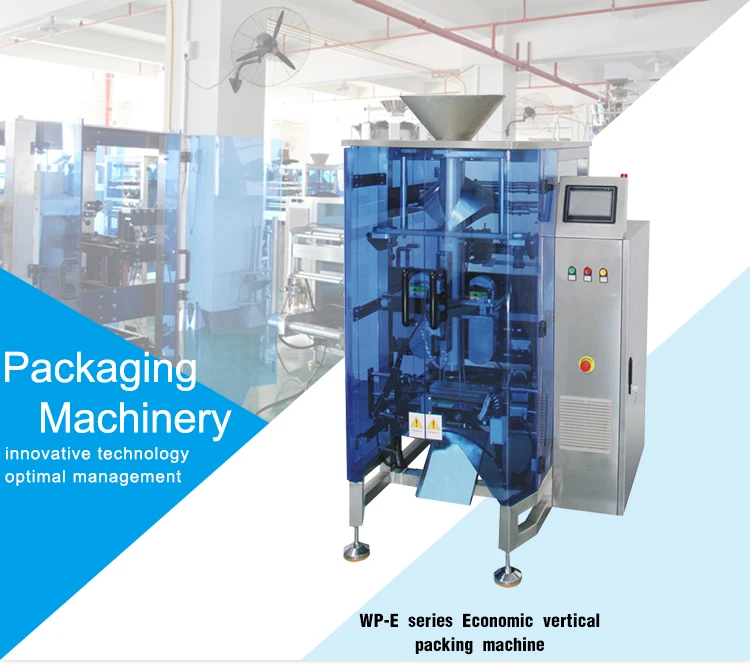

Model No. | WP-E4230 | WP-E5235 |
Film Width | 140-420mm | 160-520mm |
Bag Size | L*W=(40-330)*(60-200)mm | L*W=(40-350)*(70-250)mm |
Max. Packing Speed | 60bag/min | 60bag/min |
Power Requirement | 2.9KW/220V/50(60)Hz | 2.9KW/220V/50(60)Hz |
Gas Consumption | 0.6-0.8MPa | 0.6-0.8MPa |
Gas Pressure | 0.6m³/min | 0.6m³/min |
Machine Size | L*W*H=1596*1166*1708mm | L*W*H=1696*1276*1808mm |
Machine Weight | 450kg | 540kg |
Applicable packing material:
Snack food, chips, biscuits, cookies, nuts, coffee beans, oatmeal, sugar, rice, frozen food, IQF fruits, salad, vegetables, powder, liquid, paste etc.

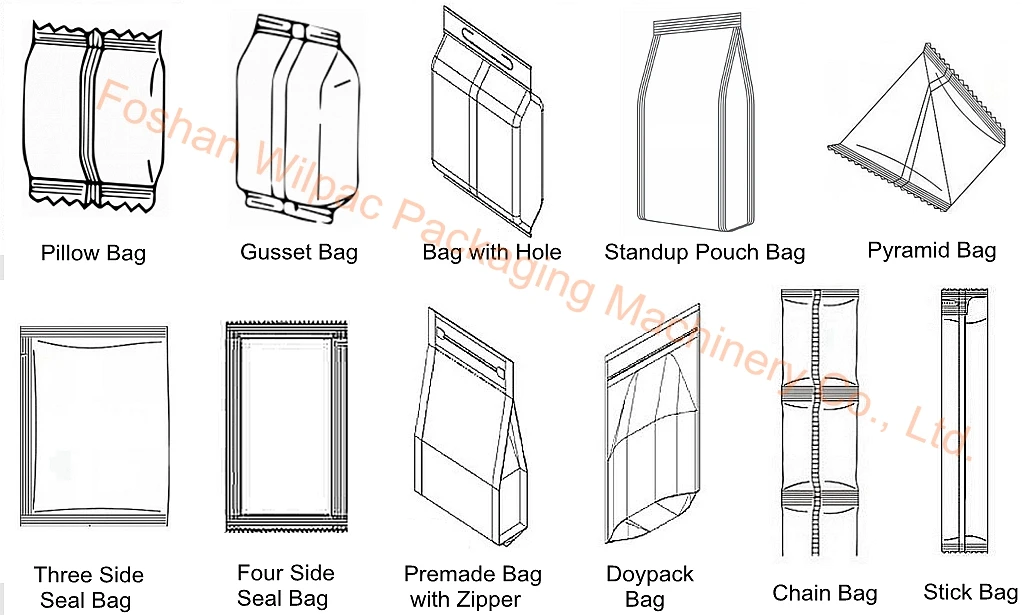

Applicable bag type:
Pillow bag, gusset bag, seal type bag, pyramid bag, standup pouch bag, bag with holes, chain bag, zip lock
bag, four side seal bag, three side seal bag etc.
bag, four side seal bag, three side seal bag etc.
Applicable film material:
A variety of laminated films, plastic film, aluminum film, single layer PE film.. Film thickness range from 0.04mm to 0.15mm.
A variety of laminated films, plastic film, aluminum film, single layer PE film.. Film thickness range from 0.04mm to 0.15mm.

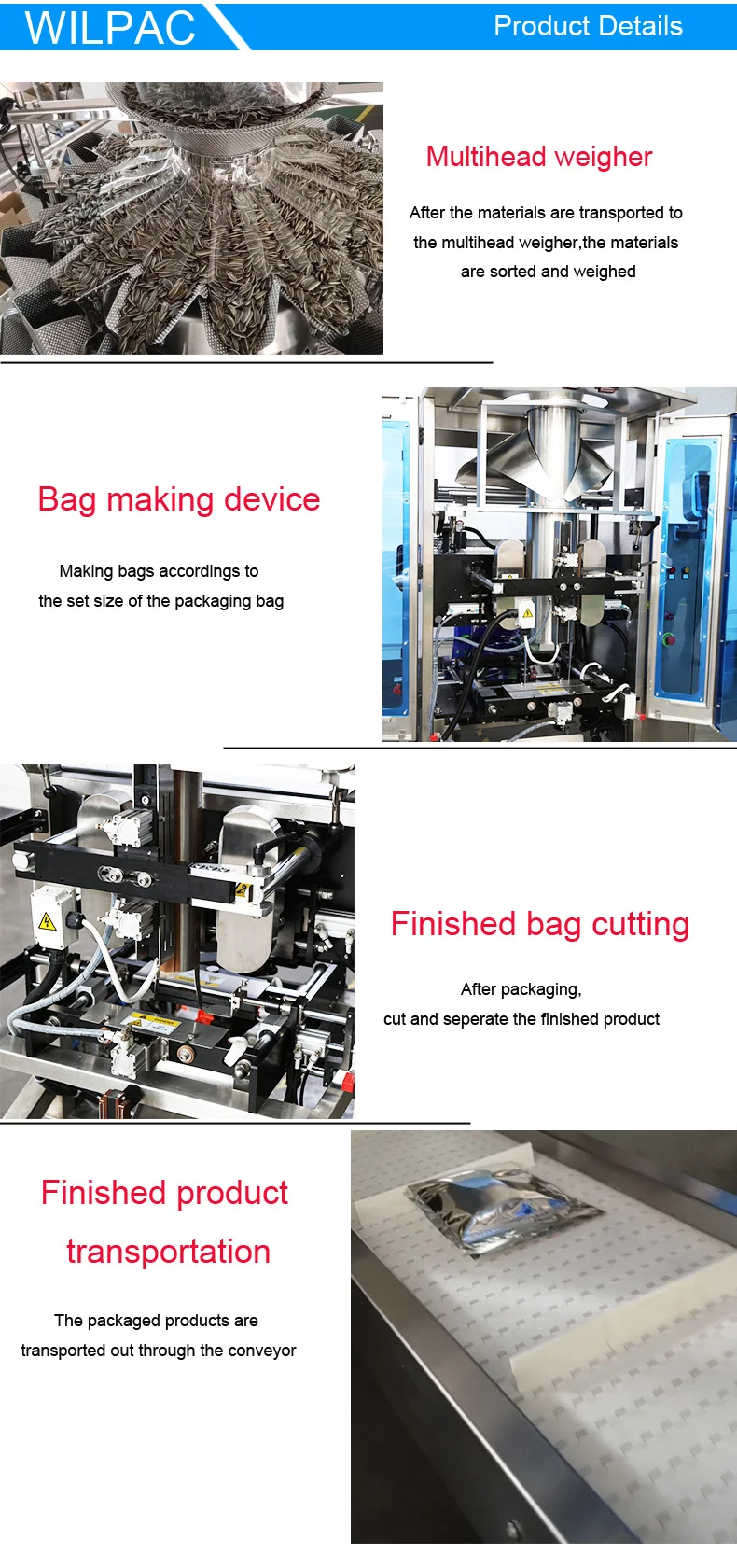

Details Display
Film Roll Unwind Parts:
Our packaging machine film releasing axis is air axis. There are claw in the axis, claw is pushed under the pressure when it is charging and blow film roller tube, then the film is fixed on the film releasing axis. When it is exhausting, the claw will be pulled back, the film can be easily removed from the film releasing axis.

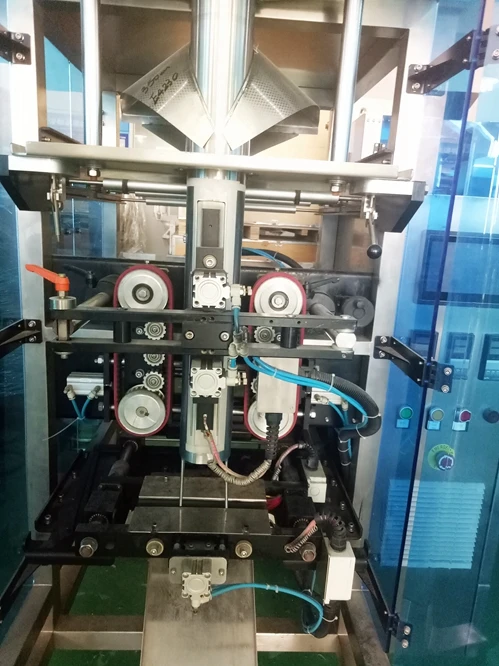

Bag Forming Parts:
After film-pulling, the film is delivered into bag former through arrays of roller, and film-pulling once is a bag length. The bag former will change the film’s form gradually into tubular bag type, and then the vertical and horizontal sealing roller (heat seal) seal the bag simultaneously to form a closed space. Meanwhile the measuring equipment has been ready and discharged material which has been weighed according to needed weight. The material dropped into bag through bag former. After a repeated film-pulling, horizontal (vertical) sealing, material filling, finally the horizontal sealing knife cut the made bag to complete once packaging.

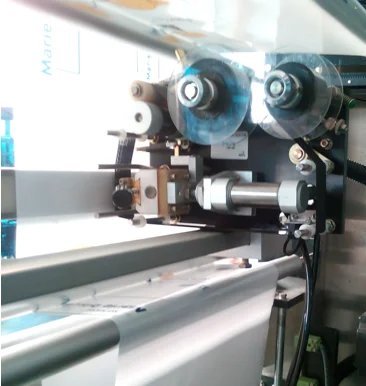

Date Coding Parts:
Loose the screw (do not screwed down), then the code printer can move along with the sliding rod. Move the code printer and match the printer head with the horizontal printing place of the bag. Then fix the screw.
Date printer maximum can print three lines, including MFG date, Lot No., EXP date and so on.

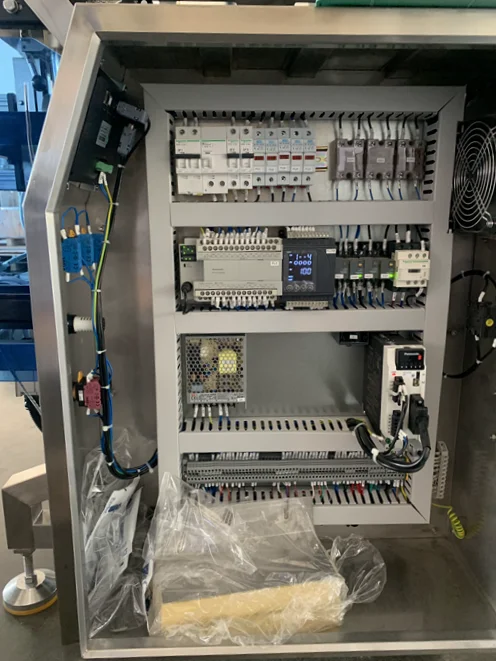

Electric cabinet:
All the main electric parts we adopt world-famous brands, such as the servo motor and servo motor driver from Panasonic in Japan. Switch, intermediate relay and breaker from Schneider in France. Solid relay from Ormon in Japan, PLC from Panasonic in Japan. Touch screen from Flexiem in Taiwan and so on. Higher quality and more durable.
In addition, our electric cabinet meet with IP65 standard which can prevent water and rust damage the electric parts, whole machine frame is made by stainless steel #304 which can meet with food grade standard and CE certificated.

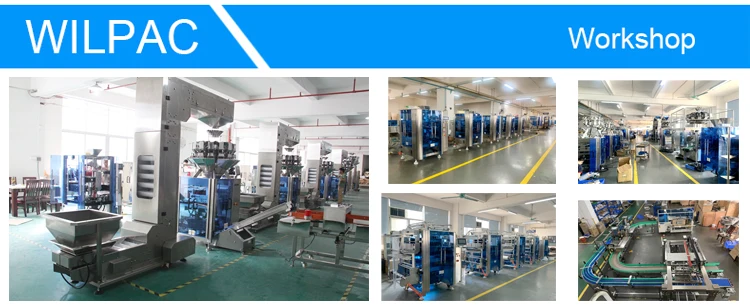

Company profile&Workshop
Accessories appliance
8 station premade pouch packing machine
5 station Premade pouch packing machine
Quad seal packing machine
WP-T Series Z shape Elevator
WP-D Series finished product conveyor
WP-A series multihead weigher
Certifications
Client visit
Exhibition
Packaging and Delivery
FAQ
Q1: Are you the factory or trading company ?
A1: We are factory, packaging machinery manufacturer, selling all around the world and models are hot sales in America, Germany,Austrial and so on, getting high appreciated from our customers.
Q2: What kinds of bags can be packed ?
A2: We have many kinds of bags, such as pillow bag, back sealing gusset bag, side sealing gusset bag, four seal bag, "M" bag,triangle bag and so on.
Q3: How about the MOQ of completed packaging machine ?
A3: 1 sets.
Q4: May i purchase the packaging machinery spare parts too ?
Q4: Sure, highly appreciated.
Q5: What is the delivery date ?
A5: If materials are in stock, delivery date is about 20-25days. If not, delivery date is about 40-50days.
Q6: Why would choose Wilpac ?
A6: We have strong R&D team and aftersales service, any questions just feel free to contact with us.
A1: We are factory, packaging machinery manufacturer, selling all around the world and models are hot sales in America, Germany,Austrial and so on, getting high appreciated from our customers.
Q2: What kinds of bags can be packed ?
A2: We have many kinds of bags, such as pillow bag, back sealing gusset bag, side sealing gusset bag, four seal bag, "M" bag,triangle bag and so on.
Q3: How about the MOQ of completed packaging machine ?
A3: 1 sets.
Q4: May i purchase the packaging machinery spare parts too ?
Q4: Sure, highly appreciated.
Q5: What is the delivery date ?
A5: If materials are in stock, delivery date is about 20-25days. If not, delivery date is about 40-50days.
Q6: Why would choose Wilpac ?
A6: We have strong R&D team and aftersales service, any questions just feel free to contact with us.
