Glass And Ceramic Coating by Large Vacuum Multi arc Ion Coating Machine pvd coating machine

Product Overview

Description

Coating Glass/Ceramic by Large Vacuum Multi-arc Ion Coating Machine/pvd coating machine



Vacuum multi-arc ion coating machine is a high-tech environmental friendly product for metal, jewellery, glass and ceramic products surface coating. After coating the workpieces can improve their hardness, wear resistance, corrosion resistance etc..

Type	LZ-1000	LZ-1200	LZ-1300	LZ-1600	LZ-2100	LZ-2300
Vacuum Chamber Size	D1000×H1000mm	D1200×H1300mm	D1300×H1300mm	D1600×H1800mm	D2100×H3600mm	D2300×H4500mm
Power Supply	Pulse bias power supply, arc power supply (power can be different according to requirements)
Vacuum Chamber Structure	Vertical single/double door, rear vacuum acquisition system
Vacuum Chamber Material	SUS-304 superior stainless steel
Ultimate Vacuum	8.0×10-4Pa	8.0×10-4Pa	8.0×10-4Pa	8.0×10-4Pa	8.0×10-4Pa	8.0×10-4Pa
Pumping Speed	From 1 atm to 6.7×10-3Pa take 8~15min (room temperature, clean and unload)
Vacuum System	Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted according requested)
Number Of Multi-Arc	4	8	8	16	36	45
Shelves Rotation System	Planetary revolution and rotation, frequency control, upper and base rotation shelves, number of axes equipped by requested.
Process Gas	Mass flow controller (3-4 ways), manual or automatic processing gas systems
Cooling System	Water-cooling system. Cooling water tower, industrial chiller or ply-cold system need to be purchased separately. ( or supplied by user)
Control Mode	Manual or PLC + touch screen
Alarm And Protection	Water pressure alarm, air pressure alarm, over current protection, execution on related protective measures and electrical interlock systems.
Foot Print	W3m×L3.5m	W3.5m×L5m	W3.5m×L5m	W4.5m×L5.5m	W4.5m×L11m	W5m×L12m
Other Technical Data	Water pressure≥0.2MPa, water temperature≤25℃, air pressure 0.5-0.8MPa
Remarks	Specific size can be designed by user’s requested. DC magnetron power supply and intermediate frequency power supply can be equipped to meet the different coating process. Customizable vacuum chamber size range D:500-3000mm, H: 500-7000mm.

High pumping speed

Stable vacuum environment

Large load capacity

Uniform coating film

 Watch industry (strap, case, dial)

Automotive industry (piston, piston rings, alloy wheels)

Hardware industry (sanitary ware, door knobs, locks)

Precision mold industry (standard punch mold, forming mold)

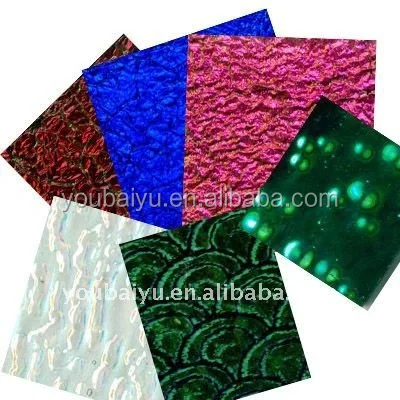

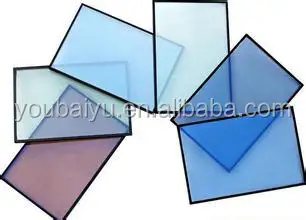

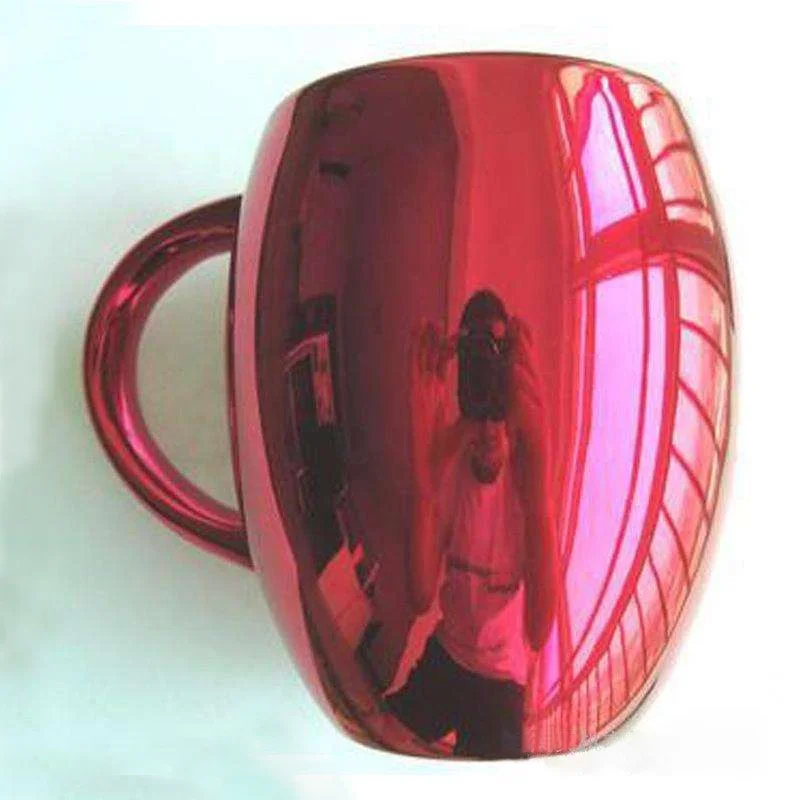

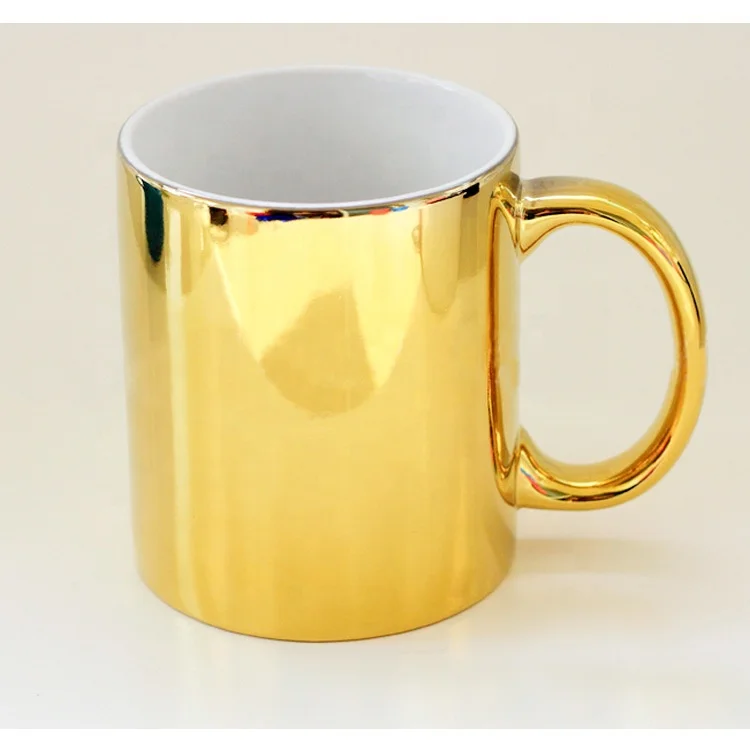

Glass ceramics industry (glass tableware, ceramic crafts)

Architecture industry (stainless steel plate, stair railings, columns)

Tools industry (drill bits, carbide cutters, broaches, shaving heads)

      Qingdao UBU Vacuum Equipments Corp.,Ltd., established in 2009,is a high-tech enterprise who is professional in R&D, manufacture and marketing of the vacuum coating equipments. Our headquarters is located in the international port city - Qingdao, with convenient transportation and brilliant talents, but we also have offices and agents in Shenzhen, Shanghai and some foreign cities.

     We supply 9 main coating equipments, including Multiple arc plasma vacuum coating machine, Magnetic sputtering vacuum coating machine, Multifunctional intermediate frequency vacuum coating machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coating machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering vacuum coating line. In addition, we also provide professional PVD coating services, supply related accessories and machine updating service, solve customer’s problems and make customers satisfied.
     Now our company covers more than 20,000 sqms with more than one hundred employees and we have our own individual R&D team, production team, marketing team and after-sale service team. As a leader high-end manufacturing enterprise, our company successfully listed in 2014.
     Adhering to the "Customer supreme and keep improving" concept ,following the "high quality, high efficiency, low energy consumption" development strategy, we have provided powerful vacuum service for many famous domestic and foreign companies. UBU will continue to cooperate with all the customers for the brilliant future.

Question 1: What is price of the machine?

Answer:

The machine is custom made. If you have any drawing or any specification information of the machine, pls send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired capacity.
We will provide our professional suggestions and work out an appropriate design for your project.



Question 2: Do I have to pay the costs for pollution?

Answer:

The machine is environment-friendly, there is no liquid chemical waste and harmful gas. It a green technology.
