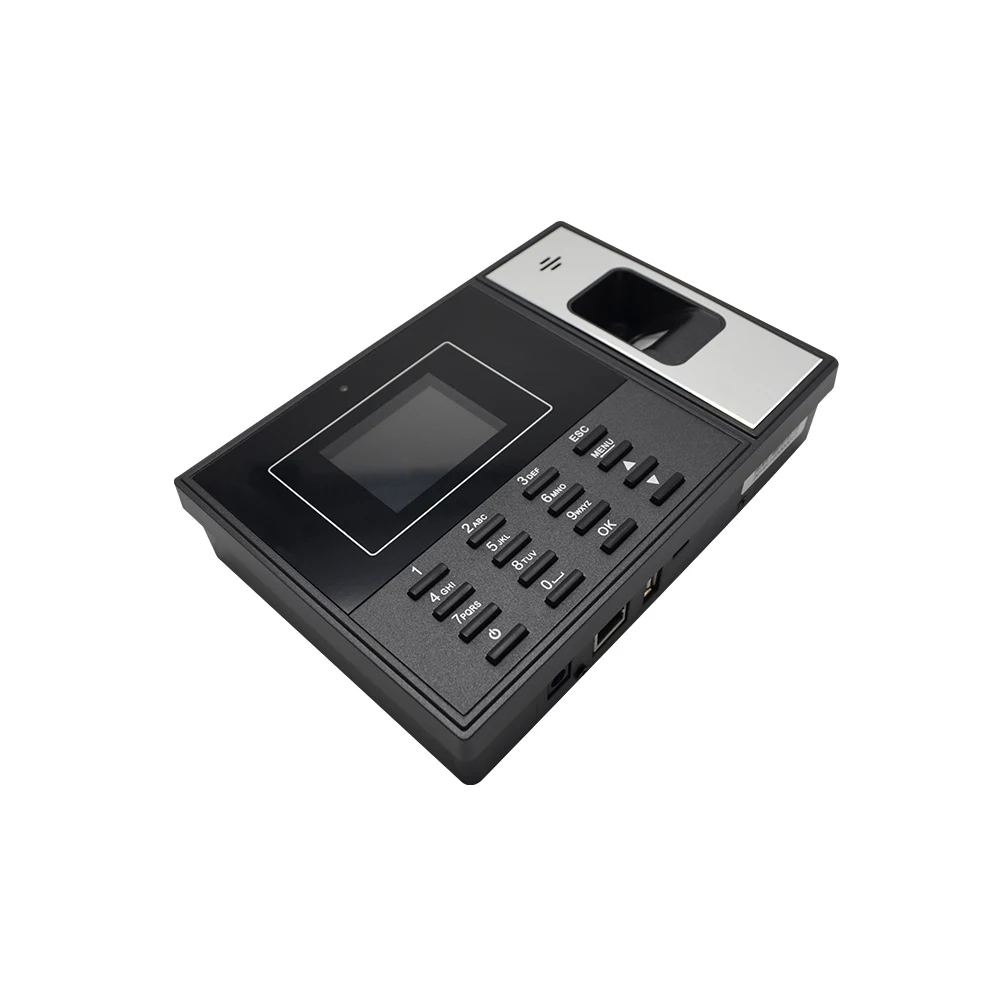

EBKN EN 2815 High Quality Fingerprint recognition Biometric System Time Attendace Machine Access Control

Category

Function

Description

Hardware function

CPU

AK3760C/AK3780C

Fingerprint collector

Optical fingerprint head(DEG931 20pin)

ID Card

YES

Display

2.4 ”, 2.8” TFT LCD (same as M61)

Keyboard

16 physical buttons

Communication mode

Wired network, WIFI, 4G(optional), web(optional), P2P

USB HOST

YES

Clock RTC

YES

Voice output

YES

Access control function

Professional access control (door opening relay, ringing relay, door magnetic switch, door opening button, anti-tamper button, Wiegand input and output)

Clear administrator key

YES

Backup battery interface

YES

Size

Same as S200T motherboard size, external interface location

Working voltage

DC 9~12V

Working temperature

-10℃~ +60℃

Working humidity (RH)

20% ~ 80%

software function

User registration capacity

3000(16M Flash)

User records / management records

100000/3000

Verification mode

fingerprint, card, password and a combination of all three

Language

Multi-language

Fingerprint algorithm

Algorithm version

GreenFinger V3.0

FAR/ FRR

0.00001/ 0.1(%)

Matching speed

≥1 times / second (when registering 3000 fingerprints)

Contrast angle

360 degree free rotation

Smart update function

YES

Fingerprint recognition mode

1:1, 1:N
