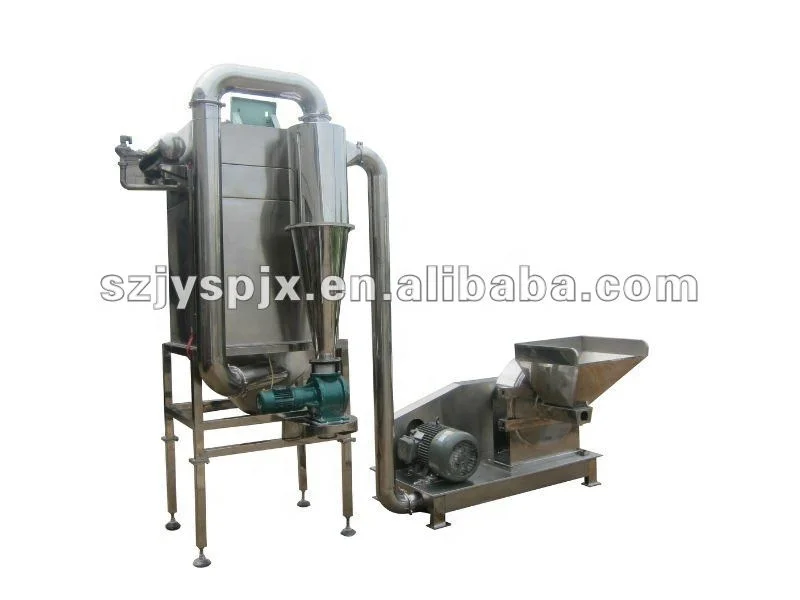

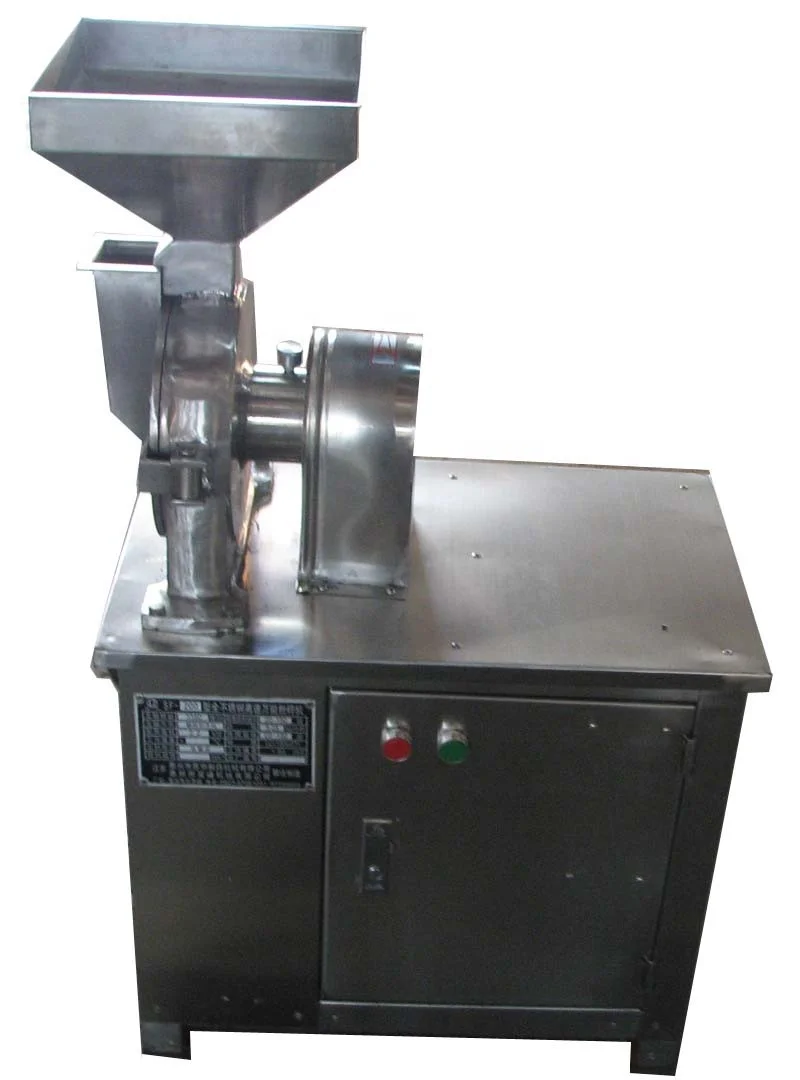

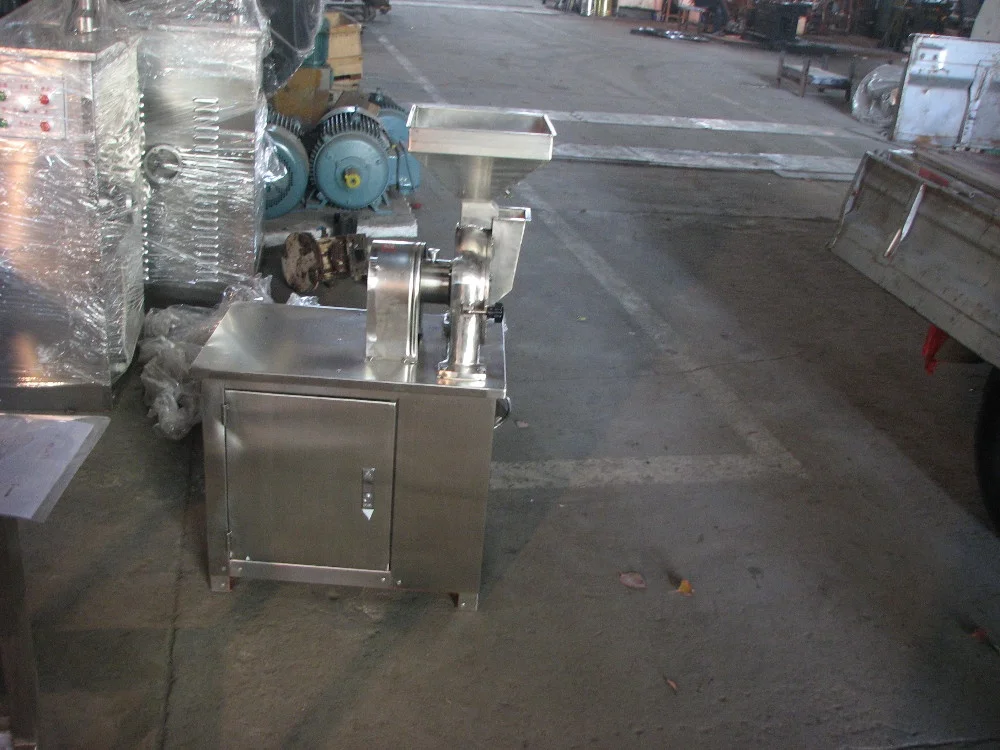

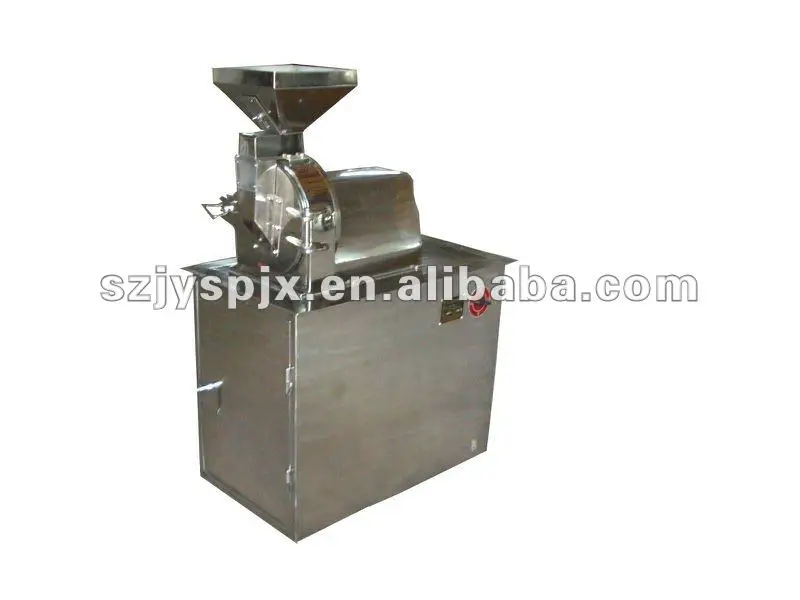

SFJ seria High Speed industrial machine for sugar crushing/sugar milling machine

Product Overview

Description



1.The industrial machine adopts impact smashing.

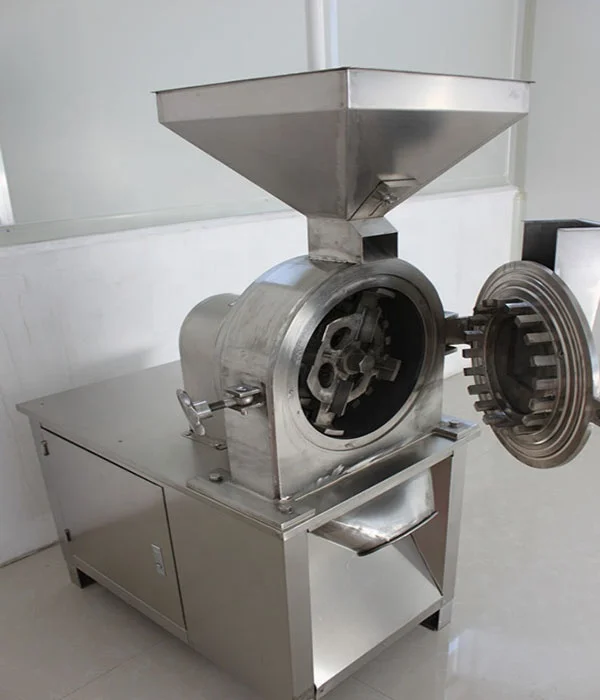

2.After entering into the pulverizing room, the material is impacted by six fast rotating hammers and smashed through the impact between the material and the tooth ring.

3.The smashing fineness is decided by the screen mesh.

4.It is suitable for smashing granulated sugar.

5.Its powder-gathering chamber is sealed completely so that the operation noise is reduced efficiently.





Model                                Project	320	420	520
Main rotational speed(rpm)	4400	4400	3310
Capacity(kg/h)	100-300	100-500	200-3000
Motor power(kw)	7.5	11	22
Smashing fineness(mesh)	20-120	20-120	50-200
Outside dimensions(mm)	700×500×1500	700×500×1550	3665×1265×2580
