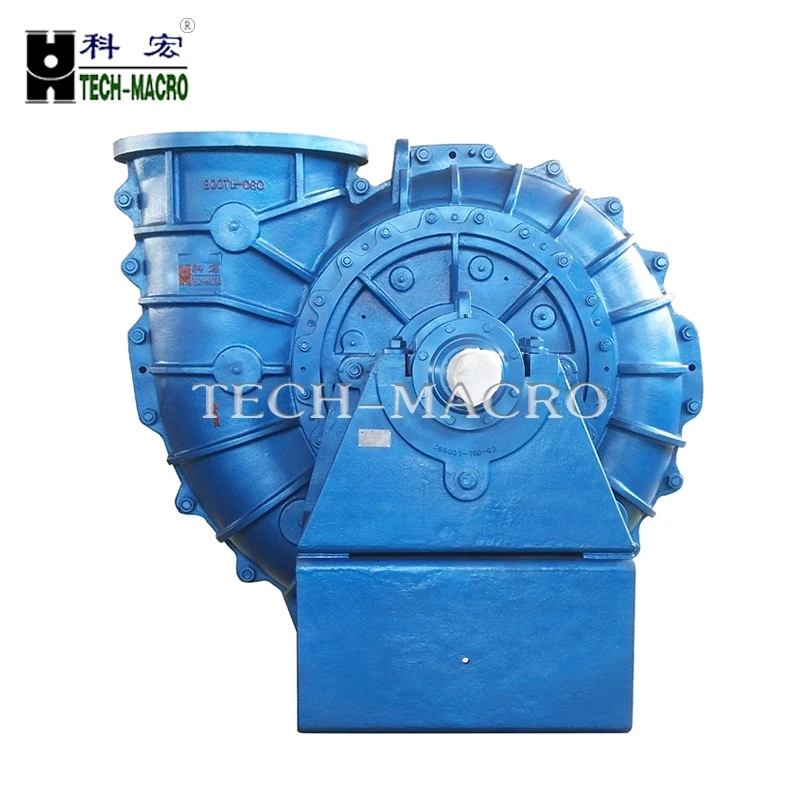

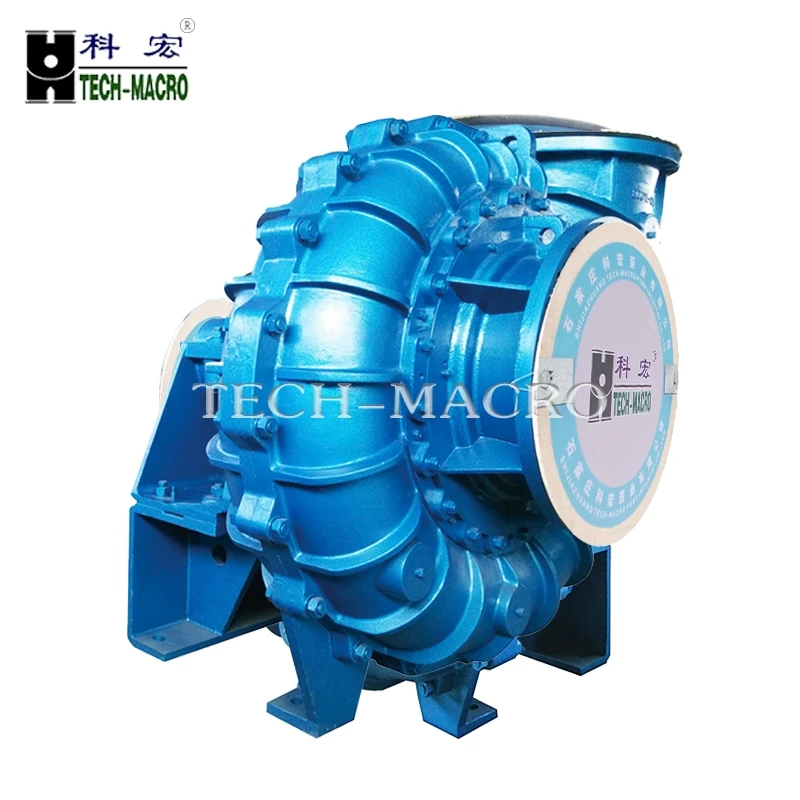

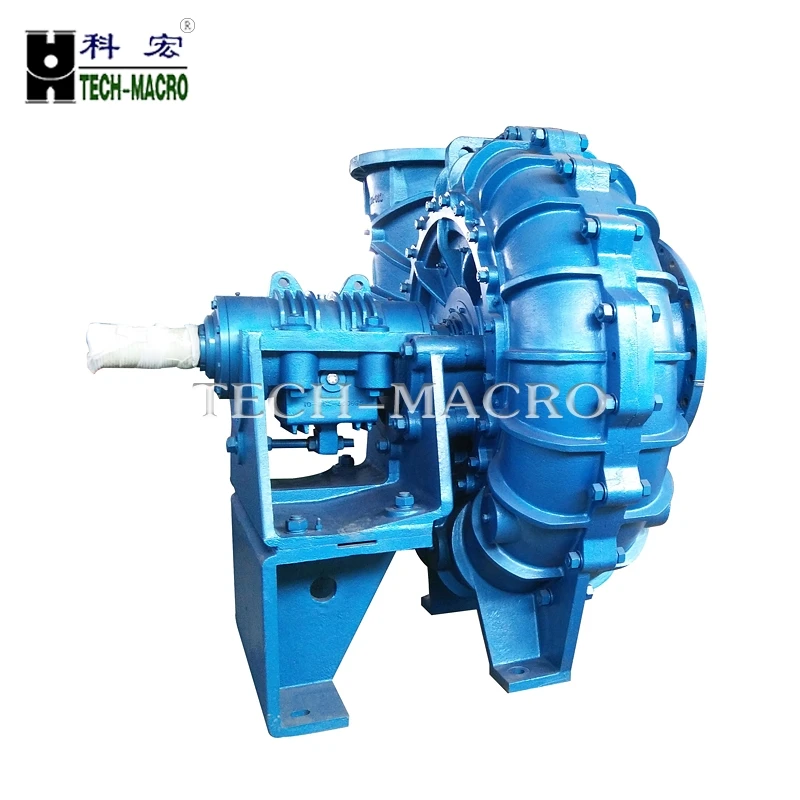

Desulphurization Pump for power plant sulfur removal/bomba centrifuga de desulfuracion
Bomba de desulfuración
FGD pumpApplication
Type TL(R) FGD pump is a single-stage single suction horizontal centrifugal slurry pump. The position of impeller can be changed by adjusting assembly and the pump unit can be in high efficiency operation state. The TLR slurry pumps are mainly used as the circulating pump in the absorption tower of the wet FGD device.
The pump is back disassembled and needn't dismantle the pipe connection resulting the pump structure simple and easy to maintain.
The bearing assembly of the pump adopts oil lubrication.
Desulfurization slurry pump TL(R) series structure.
X type frame,very space saving
FGD pump Features
•The pump wet parts are designed by advanced CFD Flowing Simulating Anslysis Techniques to ensure its design reliable and its working effective.
•It can change the impeller's position in pump casing by adjust the bearing assembly to keep the pump working efficiently all the time.
•Two sets of the taper roller bearing is fixed in the end of the pump, the column roller bearing is equipped at driving end.The bearing is lubricated by oil. All these can improve the bearing working condition and greatly enchance its life.
•Mechanical sealing is adapoted integrating mechanical sealing which is specialized in FGD technology to ensure its operation.
•This kind of pump adopts back pull-out structure, keeping it easy construction and easy maintenance. It dose not need disassemble inlet and outlet pipeline.

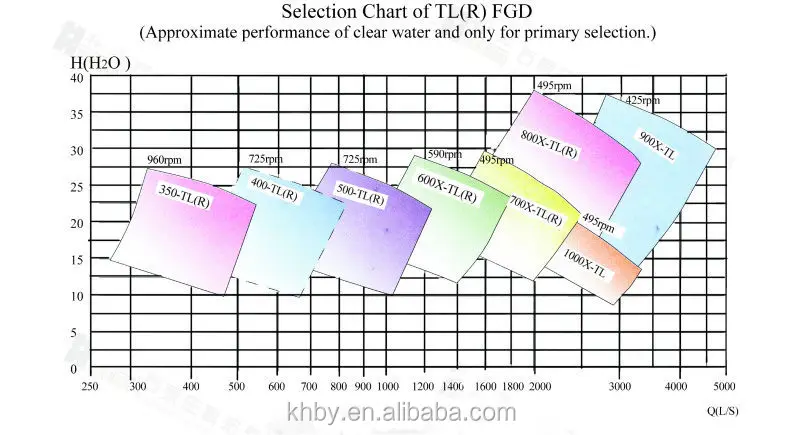

Pump specification
Model
Flow Q(m3/h)
Head H(m)
Speed n(r/m)
Max Efficiency
η(%)
NPSH(m)
Power(kw)
Weight(kg)
350S-L-10
640-1060
9.1-11.2
490
72-79
3.4
55
3200
350S-L-24
1280-1920
22.3-25.2
740
75-81
6.5
200
3200
400ST-L-10
1160-1740
9.4-11.3
490
78-81
3.2
75
3500
400ST-L-24
1760-2640
22-25.5
740
80-83
6.8
280
3500
500X-TL-16
2320-3480
14.8-18.2
490
82-86
3.8
75
4500
500X-TL-24
2800-4200
21.6-25.8
590
82-86
7.1
450
4500
600X-TL-16
3737-5400
15-17.6
490
83-88
5.5
400
6000
600X-TL-24
4500-6500
22-25.5
590
83-88
8
710
6000
700X-TL-18
5550-8370
16.2-19.2
425
84-89.5
6.1
630
8000
800X-TL-18
7156-10400
16-20.3
425
87.5-89.5
7.2
800
8800
800X-TL-24
8250-12000
21.3-27
370
87.5-89.5
9.6
1250
8800
900X-TL-19
10700-16050
17.1-20.7
330
86-90.2
6.6
1250
11400
900X-TL-24
1200-18000
21.5-25
370
86-90.2
8.3
1800
11400
Who Are We
Shijiazhuang Tech-macro Pump Industry Co.,Ltd is a professional pump manufacturer of slurry pump, dredging pump, gravel pump, sewage pump, clean water pump, and various of spare parts,etc. Through the reorganization (2010) and expanding share capital it has developed into one company including complete system(centrifugal pump R&D, design, casting, machining,assembly, quality inspection&control and domestic&overseas market sales).By taking advantage of material application technology,we have improved abrasion&corrosion material application technology to international advanced level, which has been gradually recognized by users all over the world.
Production Flow
Certifications
ISO:9001
SGS
CE
Yes
Yes
Yes
Our strict quality control can ensure the hardness to bring alonger life using for the pump and pump parts. CE and ISO certificates are available.
