Strain Rod Rubber Vulcanizer/Rubber Moulding Press/ Rubber Foam Strip and Bushing Washer Vulcanizing Press

Product Overview

Description



Strain Rod Rubber Vulcanizer/Rubber Moulding Press/ Rubber Foam Strip and Bushing Washer Vulcanizing Press



1- Usage:

This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic .



2- Features:



1.our hydraulic press (vulcanizer)have passed the certificate of ISO9001,the qulity of the machine can be assured.



2.we have professional design group,so we can design and manufacture all kinds of standard rubber machine according to the requirements of the customers.



3.plate vulcanizer applies to sulfurizing rubber  plastic model products



 4.The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).



5.Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.



6.Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.



 7.Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.



8.The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.







3- Certification: ISO9001



As a bigger and quality rubber machine manufacture,we gain more and more clients. If you need ,please contact us as soon  as possible.

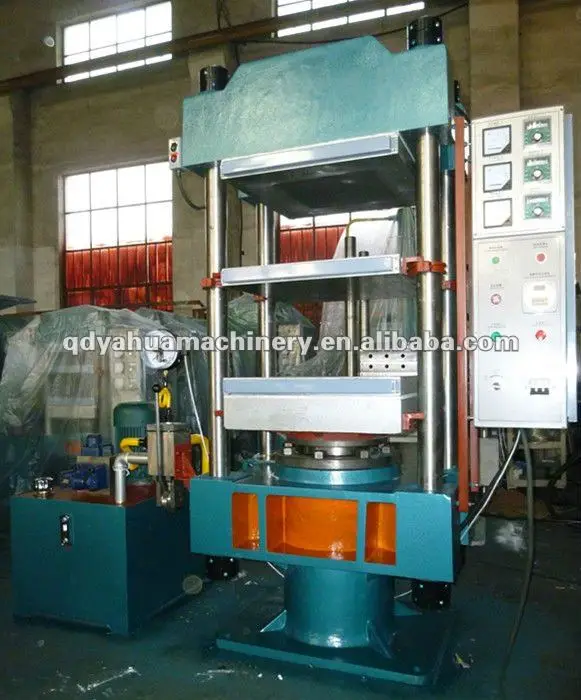

Parameters/version	XLB400*400*2	XLB500*500*2	XLB600*600*2/4
Mould closing force	0.5	0.8	1.0
Hot plate spacing	125	125	125
Hot plate layer	2	2	2/4
Plunger stroke	250	250	250/500
Heating way	Electricity/steam	Electricity/steam	Electricity/steam
Main motor power	2.2	2.2	2.2
The thermal power	3kw/board	3kw/board	7.5kw/board
Size(l*w*h)	1600*400*1440	1450*690*1818	1880*780*1660
Weight(kg)	1500	1800	2500/3100
Platen unit area pressure	3.13	2.52	2.78







Model		XLB-1800X12000*2	XLB-1800X10000*2	XLB-1600X10000*2	XLB-1600X10000*1
Heating platen size   (mm)		1800*12000	1800*10000	1600*10000	1600*10000
Nominal total pressure (mn)		74	72	56	64
Platen unit pressure (mpa)		3.4	4	3.5	4
Ram diameter (mm)		500	500	450	500
Ram Qty (pc)		18	18	18	18
Max. Ram stroke     (mm)		400	300	400	300
Clamping force (mn)		1.2	1.5	1.2	1.2
Tensioning force (mn)		1.1	1.2	1.1	1
Steam pressure   (mpa)		0.63	0.6-0.8	0.63	0.6-0.8
Cooling water pressure (mpa)		0.3	0.3	0.3	0.3
Control form		PLC	PLC	PLC	PLC
Overall dimension of main machine	Length (mm)	12000	1000	10000	10000
	Width (mm )	2900	2740	2660	2560
	Height (mm )	3930	3660	4120	3520















We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine,  rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .



If you interested in our products mentioned above. Kindly let us know by return email.



Contact person:John

Phone:0532-83132191/83137817
