IP30 metal electric distribution box and switch box

Product Overview

Description

IP30 metal electric distribution box and switch box

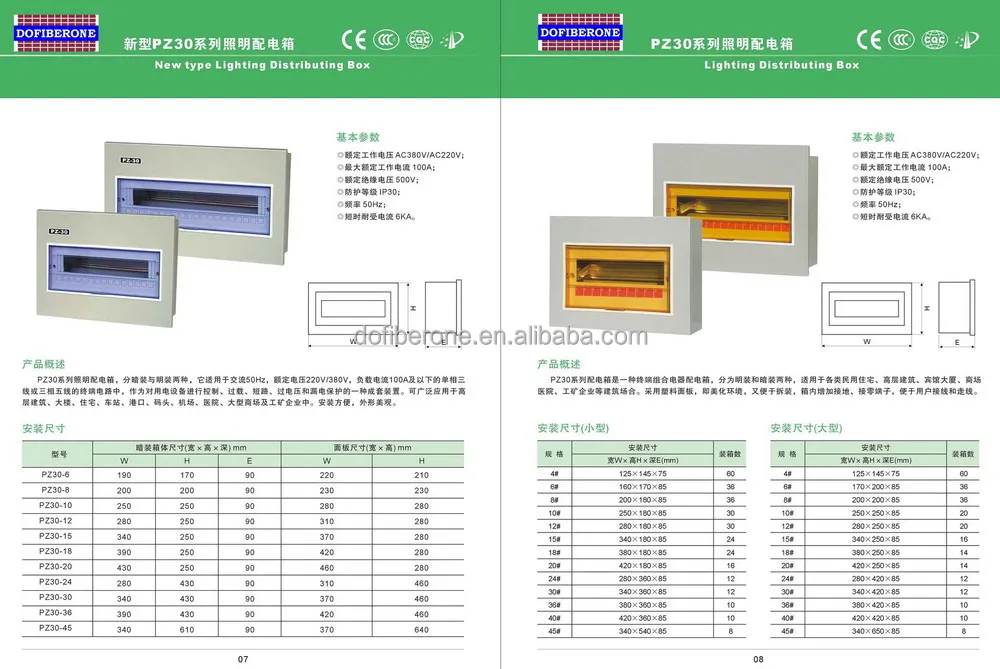

1. Product Pictures of   metal home and lighting electric distribution box and switch box

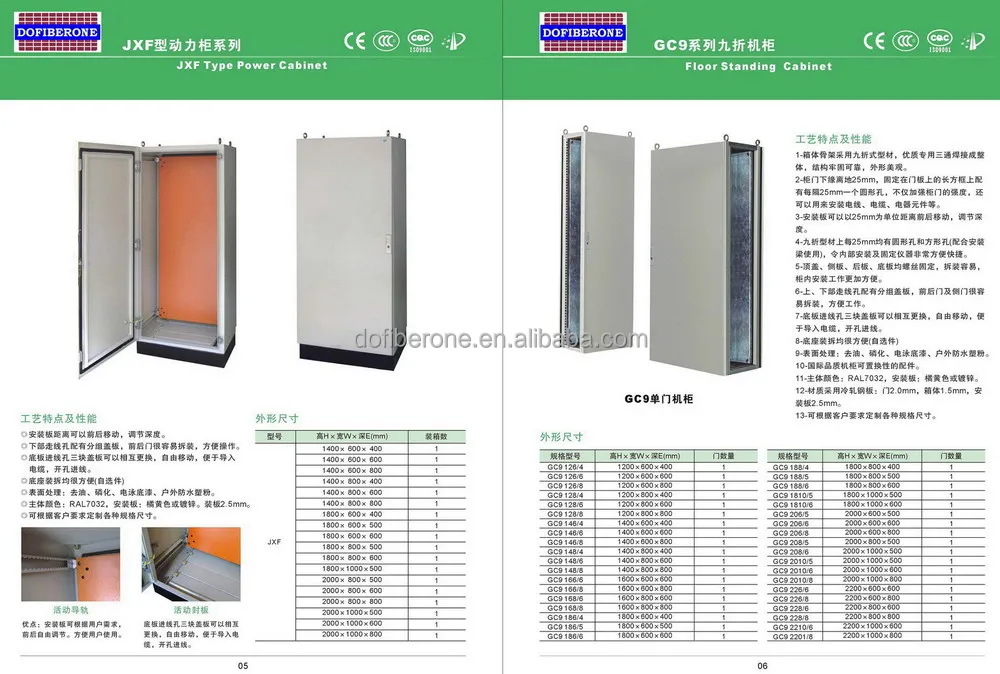

2, More photos and info

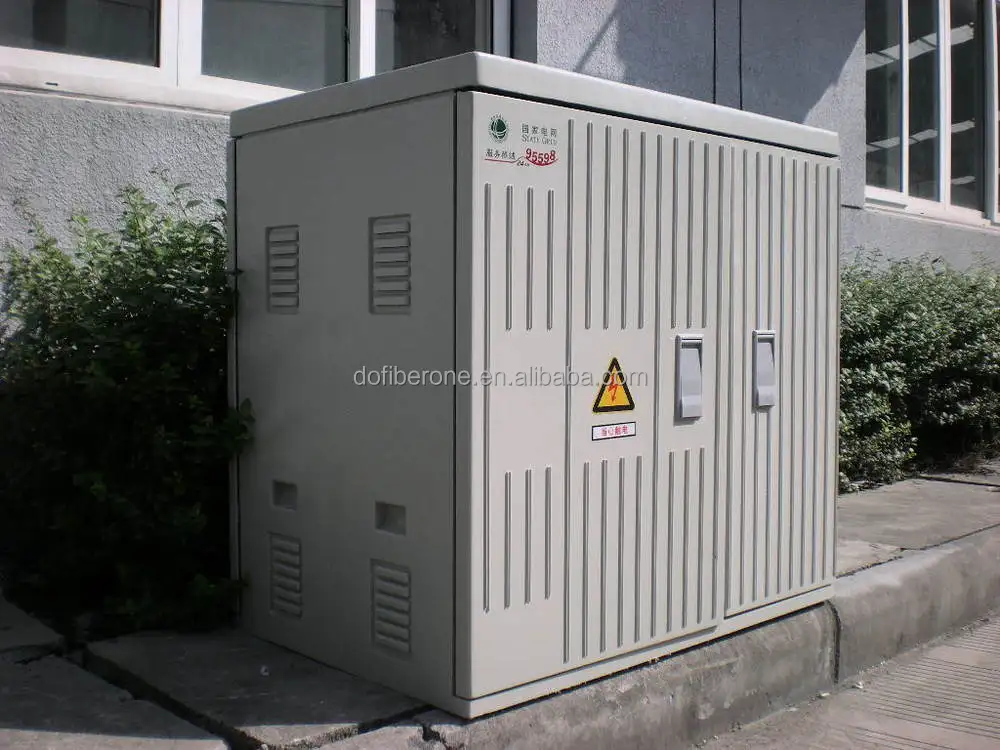

3.Pictures of  fiberglass SMC frp grp electric distribution cabinet box

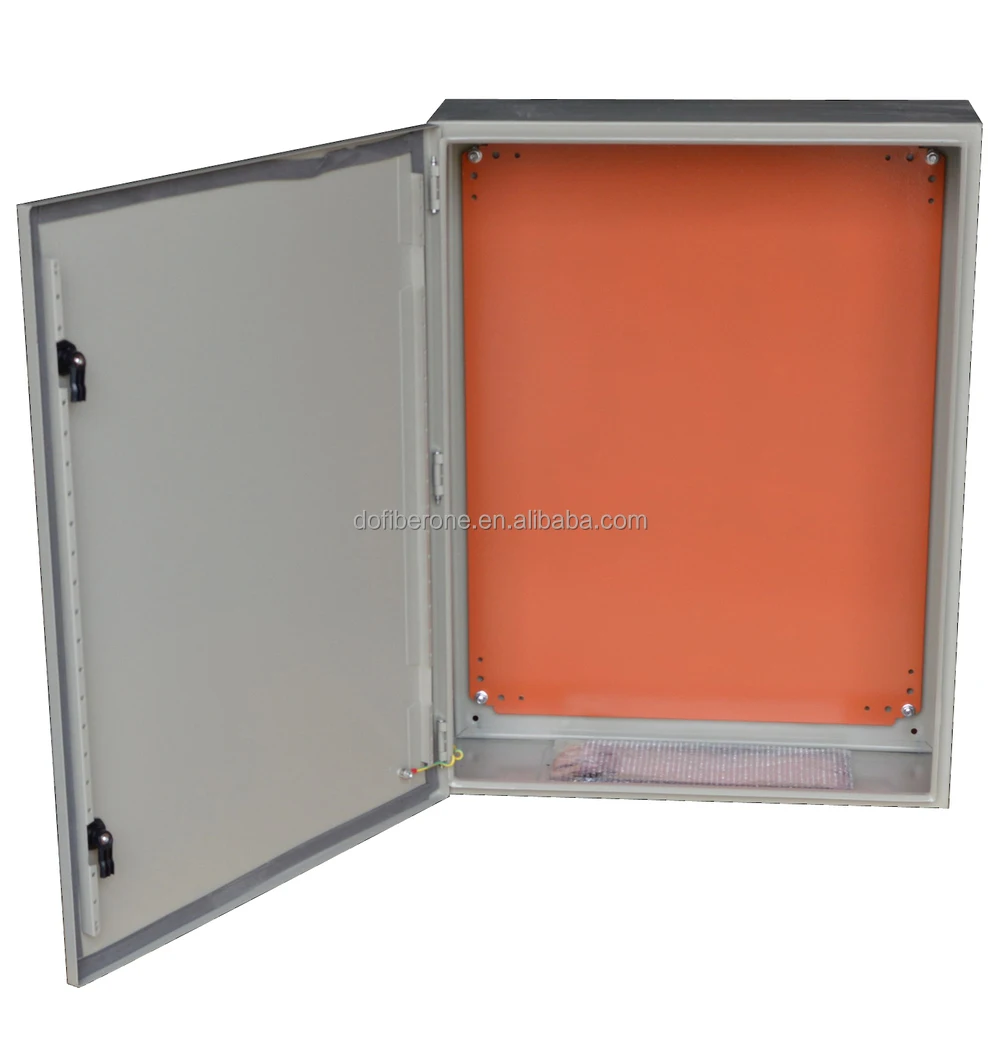

54 Product Description of electric metal distribution cabinet

Paint finish:Epoxy polyester powder coating textured finish.

Protection degree:IP 55

Against mechanical impacts:IK10

Enclosure & door:Sheet steel 1.5mm

Mounting plate:Zinc-coated steel 2.0mm

Color:RAL7032  RAL7035

Supply include:enclosure,Door with lock system,galvanised mounting plate,gland plate,sealing gasket and fixing accessories.



We also have fiberglass SMC electrical distribution cabinet( #48, #96, #144, #288, #576, #1152, etc ), distribution box,junction box, terminal box, meter box, controller box, etc in China. We can produce it as your own design.



The metal foundation JXF box size is as below:

#	Width(mm)	Height (mm)	Depth (mm)	Weight (Kgs)
1	200	250	150	3.7
2	250	300	150	4.7
3	300	400	150	5.3
4	400	500	150	8
5	500	600	150	11.1
6	300	400	200	5.9
7	400	400	200	7.3
8	300	500	200	7.1
9	400	500	200	8.9
10	500	500	200	10.4
11	400	600	200	10.1
12	500	600	200	12
13	600	600	200	13.9
14	500	700	200	13.7
15	600	800	200	19.4
16	800	800	200	24.7
17	300	400	250	6.5
18	400	400	250	8
19	300	500	250	7.7
20	400	500	250	9.5
21	500	500	250	11.2
22	400	600	250	10.9
23	500	600	250	12.9
24	600	600	250	14.9
25	500	700	250	15.9
26	600	800	250	20.6
27	800	800	250	26
28	600	1000	250	24.9
29	800	1000	250	31.5
30	600	1200	250	29.3
31	800	1200	250	37
32	400	400	300	8.6
33	500	500	300	12
34	400	600	300	11.8
35	500	600	300	13.8
36	600	600	300	15.9
37	500	700	300	16.9
38	600	800	300	21.7
39	800	800	300	27.4
40	600	1000	300	26.2
41	800	1000	300	33
42	600	1200	300	33.9
43	800	1200	300	42.5





The following is fiberglass cabinet size.



#	Total size (mm)	Top part size (mm)	IP rate	Door Type
#9090-1	H2000W900D900	1800X900X900	65	single door
#9090-2	H2200W900D900	2000X900X900	65	single door
#9090-3	H2400W900D900	2200X900X900	65	single door
#1152	H1559W1463D632	H1200W1463D630	65	double door
#576W	H1552W1450D360	H1200W1450D360	65	double door
#576L-D w/base	1450X750X600	1100X750X600	65	double door
#576L-D No base	1100X750X600	1100X750X600	65	double door
#576H-D w/base	1550x750x600	1200X750X600	65	double door
#576H-D No base	1200X750X600	1200X750X600	65	double door
#288H-D w/base	1550X750X360	1200X750X360	65	double door
#288H-D no base	1200X750X360	1200X750X360	65	double door
#288L-D w/base	1450X750X360	1100X750X360	65	double door
#288L-D no base	1100X750X360	1100X750X360	65	double door
#288H-S w/base	1550X750X360	1200X750X360	65	single door
#288H-S no base	1200X750X360	1200X750X360	65	single door
#288L-S w/base	1450X750X360	1100X750X360	65	single door
#288L-S no base	1100X750X360	1100X750X360	65	single door
#144 w/base	960X520X288	700X520X288	65	single door
#144 no base	700X520X288	700X520X288	65	single door
#48	520X450X170	520X450X170	65	single door
#8050	1300X800X500	1300X800X500	33	double door
#1200	1300X1200X500	1300X1200X500	33	double door
Mtimedia-#520	H700 W520 D170	700X520X170	55	single door









The technical data for fiberglass cabient is as below:

	PROPERTY or TEST	REGATION	UNIT	VALUE
1	Impact Strength at Break (Reversed Notch Izod)	ASTM D256	ft * lbf in. of width	11
2	Tensile Strength at Break	ASTM D638	psi (MPa)	min 9.000 (62)
3	Flexural Strength at Yield	ASTM D790	psi (MPa)	min 20.000 (138)
4	Density	ASTM D792	gr/cm3	1,70 - 1,80
5	Maximum Temperature of Continuous Working	IEC 216 or	oC	80
6	Thermal Strength (Melting)            Vicat (Method B)	ASTM D1525	oC	130
7	Water Absorption          24h/23oC	ASTM D570	%	0,5
8	Chemical Resistance	ASTM D543	-	Very Good
9	Test in Warm and Dry conditions (Test Bb)	IEC 68-2-2	oC -hrs	100-16
10	Test in Temperature Fluctuation (Test Nb)	IEC 68-2-14	oC	min   -25            max +75
11	Impact Strength	NF C 20-010	J	20
12	Test in Warm and Moistured Conditions (Test Db) Variation I	IEC 68-2-30	oC -cycles	55-8
13	Test in Salty Mist                     (Test Ka)	IEC 68-2-11	weeks	2
14	Dielectrical Strength	IEC 243	KV/mm	min 12
15	Glow Wire Test	IEC 695-2-1	oC	960
16	Test of Needle Fire	IEC 695-2-2	sec	30
17	Flammability	IEC 707	Rating	FH1
18	Color			White or Light Grey RAL 7035
