Product Overview
Description
Product Description

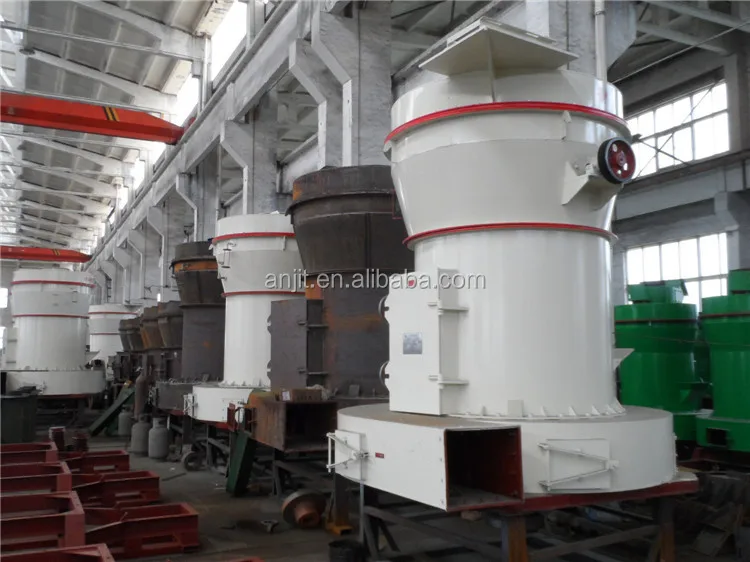

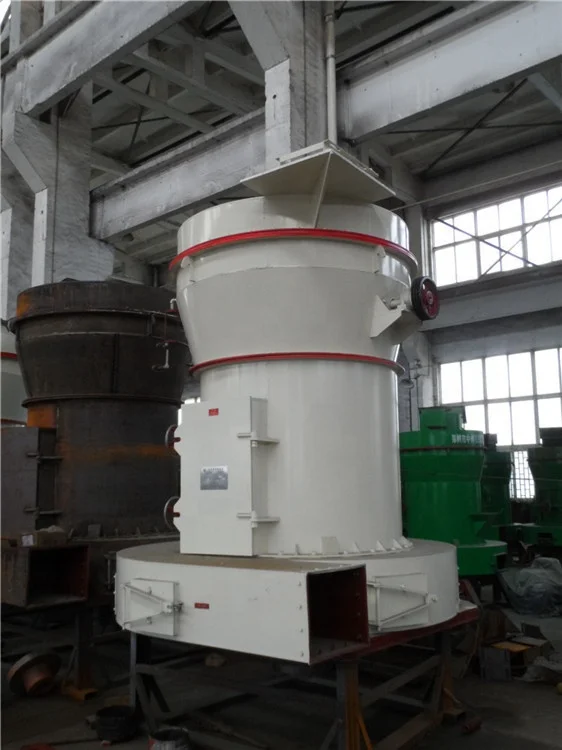

Raymond mill
Introduction:
With low consumption, low investment, environment friendly, small occupation area and so on, raymond Mill is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder.
The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products are gotten from 613 micron to 44 micron through the function of separator and blower, it can meet different customers’ demand.
With low consumption, low investment, environment friendly, small occupation area and so on, raymond Mill is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder.
The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products are gotten from 613 micron to 44 micron through the function of separator and blower, it can meet different customers’ demand.

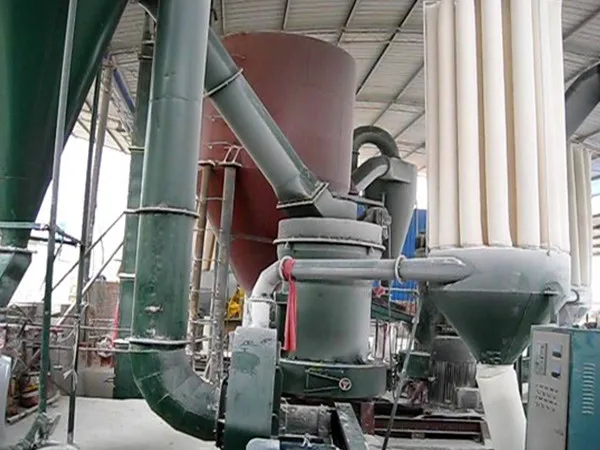

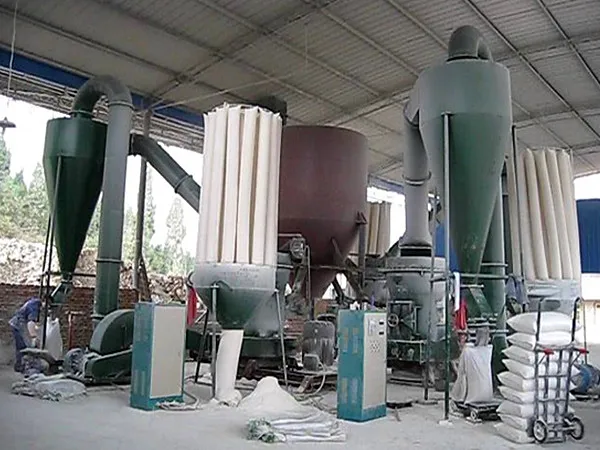

Working principle
Firstly, raw material is crushed by jaw crusher to the size required,

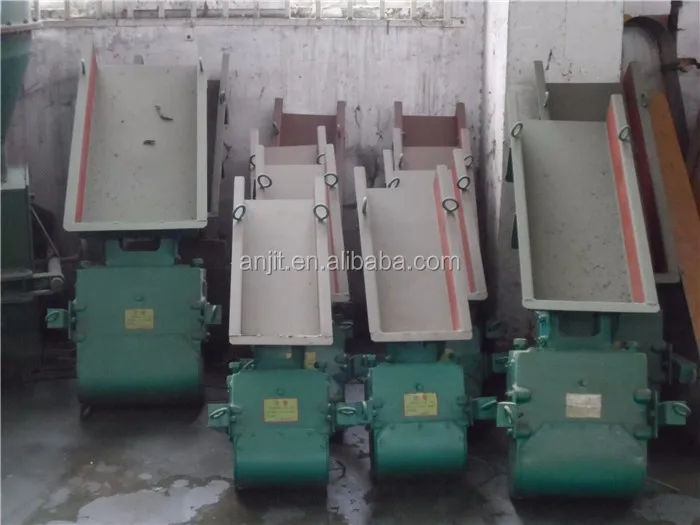

then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing.

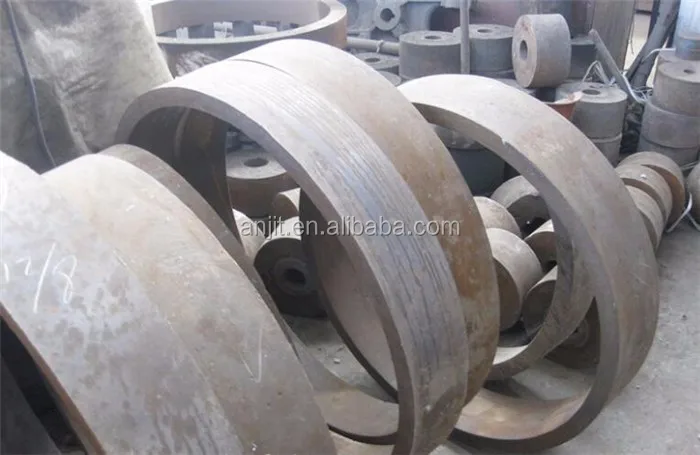

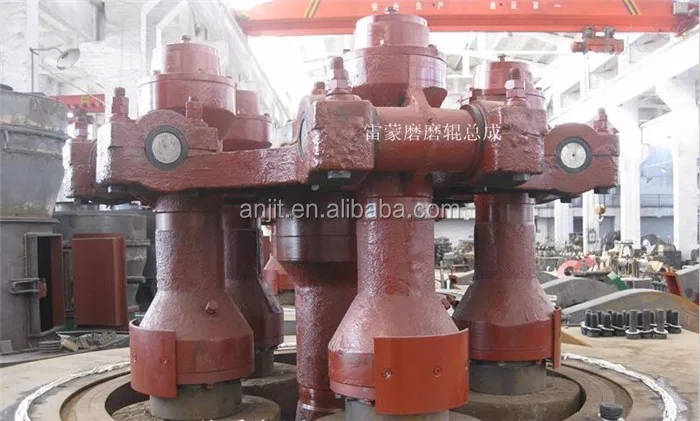

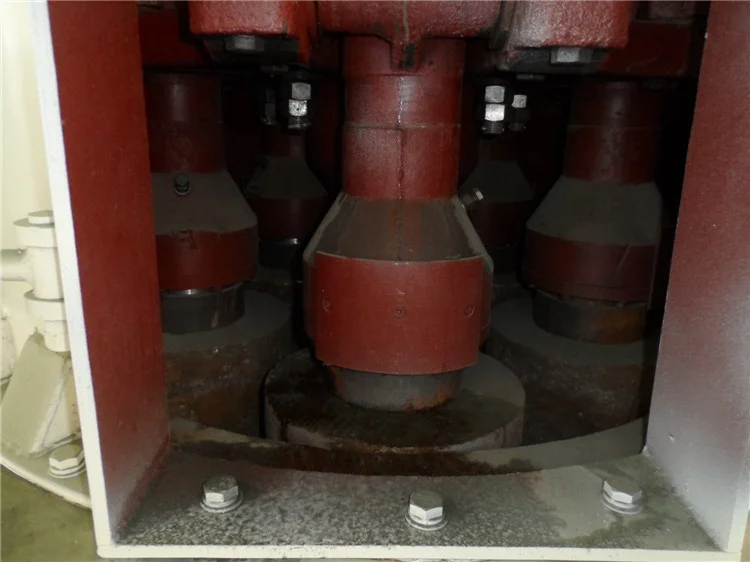

The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.

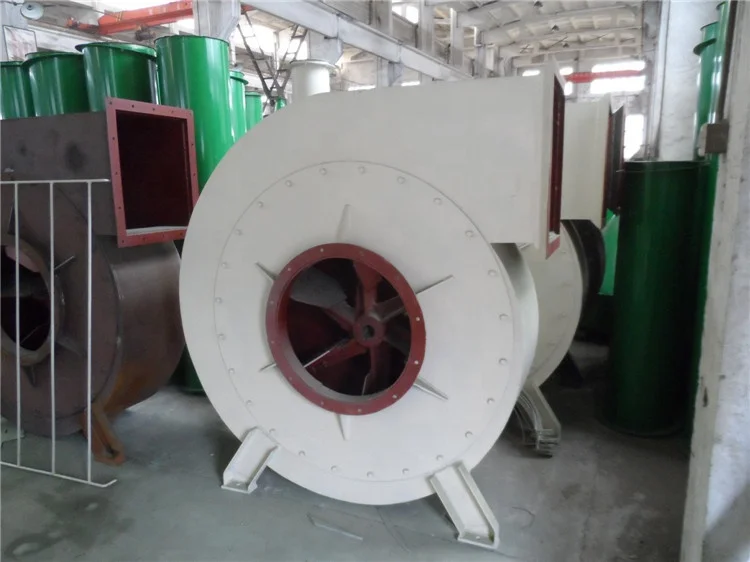

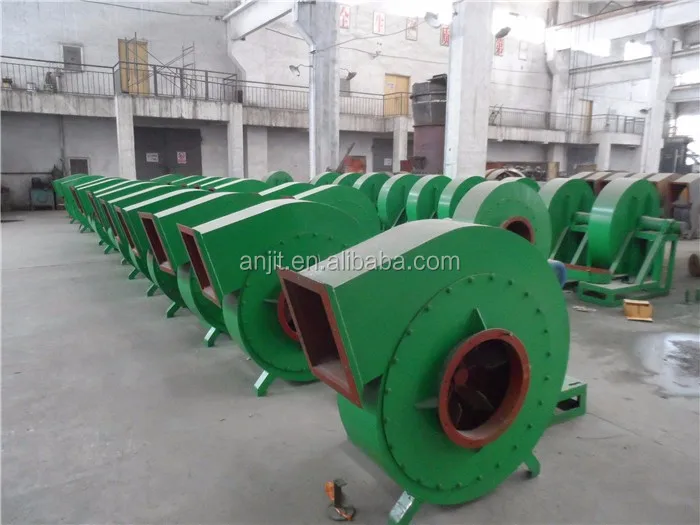

After this, the ground stuff are carried by the air from the blower into the separator for screening.
After this, the ground stuff are carried by the air from the blower into the separator for screening.

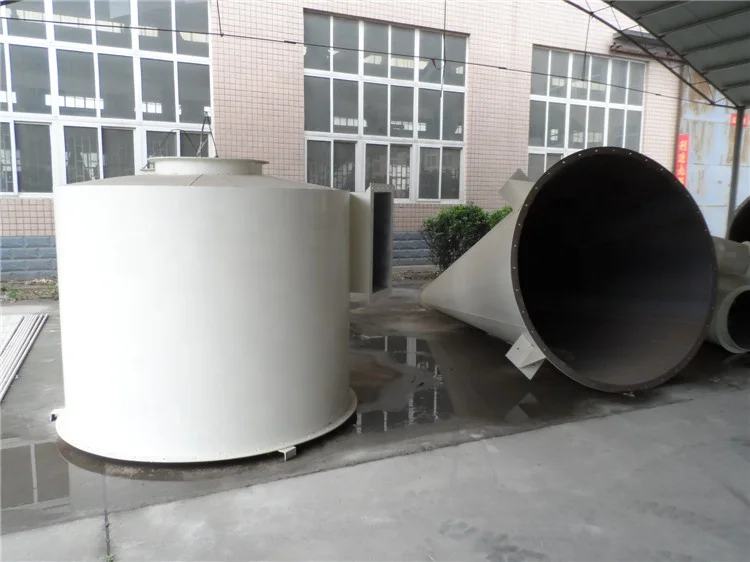

The fine powers are blew into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be back into the grinding chamber for regrinding.
The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Specification
Name | Raymond mill |
Model | 3R2115 |
Roller number | 3pcs |
Roller diameter | 210mm |
Roller height | 150mm |
Maximum feed size | 15mm |
Finished size | 0.044-0.165mm |
Motor | 15kw |
Capacity | 0.6~1.8t/h |
Name | Ramond mill |
Model | 3R2615 |
Roller number | 3pcs |
Roller diameter | 260mm |
Roller height | 150mm |
Maximum feed size | 15~20mm |
Finished size | 0.044-0.165mm |
Motor | 18.5kw |
Capacity | 0.8~2.5t/h |
Name | Ramond mill |
Model | 3R2715 |
Roller number | 3pcs |
Roller diameter | 270mm |
Roller height | 150mm |
Maximum feed size | 15~20mm |
Finished size | 0.044~0.165mm |
Motor | 22kw |
Capacity | 0.9~2.8t/h |
Name | Ramond mill |
Model | 3R3016 |
Roller number | 3pcs |
Roller diameter | 300mm |
Roller height | 160mm |
Maximum feed size | 15~20mm |
Finished size | 0.044-0.165mm |
Motor | 30kw |
Capacity | 1~3.2t/h |
Name | Ramond mill |
Model | 3R3216 |
Roller number | 4pcs |
Roller diameter | 320mm |
Roller height | 160mm |
Maximum feed size | 15~20mm |
Finished size | 0.044-0.165mm |
Motor | 37kw |
Capacity | 1.8~4.5t/h |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
